iFlightPlanner



...

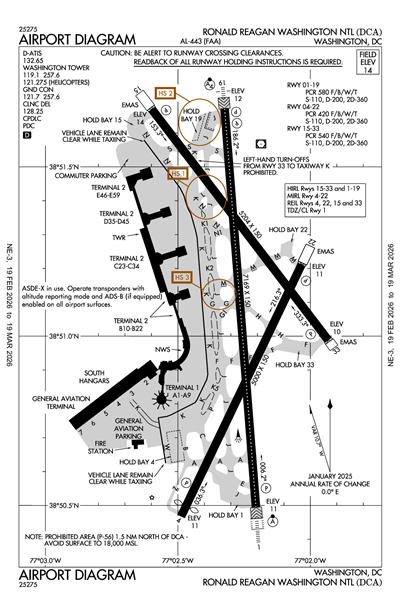

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDCA
RONALD REAGAN WASHINGTON NTL
PublicPUB

3 miles S of WASHINGTON, DC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 51' 05"N 77° 02' 16"W
14' MSL
1014' MSL
11W
JET A
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
7/11/24-8/8/24
KDCA VFR
6:52 AM EDT
Broken 14,000'
Broken 6,000'
Few 2,700'
10sm
71°F
62°F
29.94"Hg
360° 6kts
AO2 SLP138 VIRGA N T02170167
KDCA 191052Z 36006KT 10SM FEW027 BKN060 BKN140 22/17 A2994 RMK AO2 SLP138 VIRGA N T02170167
Add Your Business

KDCA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

KDCA
Thu, 9/19 4:58 AM EDT
Thu, 9/19 5:00 AM EDT - Fri, 9/20 8:00 AM EDT
VFR
5:00 AM EDT - 9:00 AM EDT
Broken 11,000'
Scattered 6,000'
6sm
350° 5kts
VFR
9:00 AM EDT - 9:00 PM EDT
Broken 25,000'
Broken 6,000'
6sm
360° 7kts
VFR
9:00 PM EDT - 8:00 AM EDT
Broken 25,000'
Scattered 10,000'
6sm
020° 4kts
KDCA 190858Z 1909/2012 35005KT P6SM SCT060 BKN110
   FM191300 36007KT P6SM BKN060 BKN250
   FM200100 02004KT P6SM SCT100 BKN250
KDCA
Domestic
9/20/240400Z !DCA 09/358 DCA SVC MBST/WS DETECTION SYSTEM NOT AVBL 2409200400-2409201000
9/19/241400Z !DCA 09/506 DCA NAV ILS RWY 01 CAT II NA 2409191400-2409191800
9/19/241400Z !DCA 09/505 DCA AD AP RVR ALL U/S 2409191400-2409191800
9/19/241400Z !DCA 09/502 DCA NAV ILS RWY 01 GP U/S 2409191400-2409191800
9/19/240400Z !DCA 09/353 DCA SVC MBST/WS DETECTION SYSTEM NOT AVBL 2409190400-2409191000
9/18/241200Z !DCA 09/510 DCA SVC SMR U/S 2409181200-2409181300
9/18/240832Z !DCA 09/547 DCA RWY 33 FICON 5/5/5 100 PCT WET OBS AT 2409180832. 2409180832-2409190832
9/18/240830Z !DCA 09/546 DCA RWY 04 FICON 5/5/5 100 PCT WET OBS AT 2409180830. 2409180830-2409190830
9/18/240828Z !DCA 09/545 DCA RWY 01 FICON 5/5/5 100 PCT WET OBS AT 2409180828. 2409180828-2409190828
9/18/240736Z !DCA 09/544 DCA OBST TOWER LGT (ASR 1049508) 385345.00N0770806.80W (5.2NM WNW DCA) 691.9FT (290.0FT AGL) U/S 2409180736-2501160736
9/18/240205Z !DCA 09/542 DCA APRON HLDG PAD FOR RWY 04 SPOT 4 CLSD 2409180205-2409181700
9/18/240000Z !DCA 09/528 DCA APRON HLDG PAD FOR RWY 15 CLSD DLY 0000-1000 2409180000-2409191000
9/18/240000Z !DCA 09/527 DCA TWY K BTN TWY N AND TWY S CLSD DLY 0000-1000 2409180000-2409211000
9/18/240000Z !DCA 09/526 DCA TWY L CLSD DLY 0000-1000 2409180000-2409211000
9/18/240000Z !DCA 09/525 DCA RWY 15/33 CLSD DLY 0000-1000 2409180000-2409211000
9/18/240000Z !DCA 09/499 DCA TWY J BTN TWY N AND TWY S CLSD DLY 0000-1000 2409180000-2409211000
9/17/240931Z !DCA 09/500 DCA TWY K SFC PAINTED HLDG PSN SIGNS BTN TWY N AND TWY S NOT MARKED 2409170931-2409192359
9/16/242122Z !DCA 09/477 DCA TWY A HLDG PSN MARKINGS FOR RWY 01/19 REMOVED 2409162122-2411270500
9/12/241231Z !DCA 09/330 DCA NAV VWH LOC TYPE DIRECTIONAL AID RWY 19 LOC/DME U/S 2409121231-2411080300
9/4/241848Z !DCA 09/122 DCA AIRSPACE SEE FDC 4/1783, 4/1789, 4/9433 ZDC SECURITY INSTRUCTIONS 2409041848-PERM
9/4/241829Z !DCA 09/107 DCA AIRSPACE SEE FDC 4/2565 ZDC SECURITY INSTRUCTIONS 2409041829-PERM
8/31/240900Z !DCA 08/869 DCA RWY 04 CLSD TO LDG 2408310900-2411302359
8/30/240323Z !DCA 08/815 DCA RWY 01/19 4700FT BTN THR RWY 01 AND TWY N1 NOT GROOVED
2408300323-2409300400
8/29/240645Z !DCA 08/764 DCA OBST TOWER LGT (ASN 2008-AEA-854-OE) 385706N0770905W (7.9NM NW DCA) 320FT (60FT AGL) U/S 2408290645-2410130645
8/28/240854Z !DCA 08/740 DCA OBST STACK LGT (ASN 2008-AEA-855-OE) 385708N0770908W (8.0NM NW DCA) 313FT (70FT AGL) U/S 2408280854-2410130200
8/28/240853Z !DCA 08/739 DCA OBST POLE LGT (ASN 2008-AEA-853-OE) 385703N0770902W (7.9NM NW DCA) 330FT (65FT AGL) U/S 2408280853-2410131840
8/26/241356Z !DCA 08/679 DCA NAV VQK NDB U/S 2408261356-2502262111EST
8/26/241313Z !DCA 08/676 DCA NAV GTN NDB U/S 2408261313-2502262111EST
8/16/241145Z !DCA 08/425 DCA OBST POWER LINE LGT (ASN 2009-AEA-3364-OE) 384435N0771128W (9.8NM SW DCA) 316FT (125FT AGL) U/S 2408161145-2410170525
8/16/240635Z !DCA 08/421 DCA OBST POWER LINE LGT (ASN 2009-AEA-3366-OE) 384439N0771131W (9.8NM SW DCA) 301FT (135FT AGL) U/S 2408160635-2410160512
8/11/240022Z !DCA 08/305 DCA RWY 15/33 CL MARKINGS OBSC 2408110022-2412011200
8/9/240913Z !DCA 08/249 DCA TWY L EDGE MARKINGS BTN RWY 15/33 AND TWY N NOT STD 2408090913-2411290500
8/8/240006Z !DCA 08/206 DCA TWY G1 SFC PAINTED HLDG PSN SIGNS FOR RWY 01/19 NOT MARKED 2408080006-2411072359
8/8/240006Z !DCA 08/205 DCA TWY G SFC PAINTED HLDG PSN SIGNS FOR RWY 01/19 NOT MARKED 2408080006-2411072359
8/8/240005Z !DCA 08/204 DCA TWY N1 SFC PAINTED HLDG PSN SIGNS FOR RWY 01/19 NOT MARKED 2408080005-2411072359
8/8/240003Z !DCA 08/203 DCA TWY S SFC PAINTED HLDG PSN SIGNS FOR RWY 01/19 NOT MARKED 2408080003-2411072359
8/8/240002Z !DCA 08/202 DCA TWY N SFC PAINTED HLDG PSN SIGNS FOR RWY 01/19 NOT MARKED 2408080002-2411072359
8/8/240002Z !DCA 08/201 DCA TWY J SFC PAINTED HLDG PSN SIGNS FOR RWY 15/33 SOUTH SIDE NOT MARKED 2408080002-2411072359
8/8/240001Z !DCA 08/200 DCA TWY J SFC PAINTED HLDG PSN SIGNS FOR RWY 15/33 NORTH SIDE NOT MARKED 2408080001-2411072359
8/7/242343Z !DCA 08/190 DCA TWY M SFC PAINTED HLDG PSN SIGNS FOR RWY 01/19 NOT MARKED 2408072343-2411072359
8/5/240004Z !DCA 08/116 DCA RWY 22 CLSD EXC TAX AND XNG 2408050004-2411040500
7/15/241100Z !DCA 07/321 DCA OBST CRANE LGT (ASN 2023-AEA-15927-OE) 384855N0770224W (2.2NM S DCA) 230FT (202FT AGL) U/S 2407151100-2502182359
7/11/240230Z !DCA 07/286 DCA TWY F SFC PAINTED HLDG PSN SIGNS BTN RWY 01/19 AND TWY J NOT MARKED 2407110230-2409282359
7/9/240221Z !DCA 07/234 DCA RWY 04 PAPI U/S 2407090221-2412312359
7/9/240217Z !DCA 07/233 DCA RWY 22 PAPI U/S 2407090217-2412312359
6/20/240214Z !DCA 06/405 DCA RWY 15/33 NOT GROOVED 2406200214-2411290400
6/12/241100Z !DCA 06/146 DCA OBST CRANE (ASN 2023-AEA-15928-OE) 384857N0770223W (2.2NM S DCA) 223FT (195FT AGL) LGTD 2406121100-2412181100
5/29/240300Z !DCA 05/717 DCA RWY 01/19 RCLL U/S 2405290300-2411221100
5/3/241743Z !DCA 05/076 DCA OBST CRANE LGT (ASN 2023-AEA-16315-OE) 385017N0770346W (1.4NM SW DCA) 237FT (211FT AGL) U/S 2405031743-2508122359
5/3/241742Z !DCA 05/075 DCA OBST CRANE LGT (ASN 2023-AEA-16314-OE) 385016N0770345W (1.4NM SW DCA) 273FT (252FT AGL) U/S 2405031742-2508122359
11/16/231438Z !DCA 11/349 DCA RWY 01 RTZL U/S 2311161438-2411151000
8/15/191000Z !DCA 08/182 DCA OBST BLDG LGT (ASN 2018-AEA-6441-OE) 385213N0770235W (1.2NM NNW DCA) 78FT (67FT AGL) U/S 1908151000-PERM
FDC
9/16/241100Z !FDC 4/5081 DCA IAP RONALD REAGAN WASHINGTON NTL, WASHINGTON, DC.
ILS OR LOC RWY 1, AMDT 41D...
S-LOC 1 MDA 580/HAT 566 ALL CATS. VISIBILITY CATS C/D 1 1/4. VDP AT I-DCA 2.69 DME; DISTANCE VDP TO THLD 1.61 NM. TEMPORARY CRANE 331FT MSL 3566FT SOUTHWEST OF RWY 1 DEPARTURE END (2023-AEA-16512-OE). TEMPORARY CRANE 368FT MSL 3427FT SOUTHWEST OF RWY 1 DEPARTURE END (2024-AEA-2386-OE).
2409161100-2501161810EST
8/13/240900Z !FDC 4/7482 DCA STAR RONALD REAGAN WASHINGTON NATIONAL,
WASHINGTON, DC.
CAPSS THREE ARRIVAL NOTE: THHMP TRANSITION, ATC ASSIGNED ONLY. DO NOT
FILE.
2408130900-2608120400
7/29/241828Z !FDC 4/9389 DCA SID RONALD REAGAN WASHINGTON NTL, WASHINGTON, DC.
NATIONAL EIGHT DEPARTURE...
ADD TAKEOFF OBSTACLE NOTE: RWY 22, TEMPORARY CRANE 125FT FROM DER, 218FT LEFT OF CENTERLINE, 135FT AGL/143FT MSL (2023-AEA-72-NRA). TEMPORARY CRANE 412FT FROM DER, 294FT LEFT OF CENTERLINE, 135FT AGL/142FT MSL (2023-AEA-73-NRA). TEMPORARY CRANE 98FT FROM DER, 406FT RIGHT OF CENTERLINE, 135FT AGL/146FT MSL (2023-AEA-70-NRA). TEMPORARY CRANE 288FT FROM DER, 398FT RIGHT OF CENTERLINE, 135FT AGL/142FT MSL (2023-AEA-74-NRA).
ALL OTHER DATA REMAINS AS PUBLISHED. 2407291828-2412181828EST
7/29/241828Z !FDC 4/9388 DCA ODP RONALD REAGAN WASHINGTON NTL, WASHINGTON, DC.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8B...
ADD TAKEOFF OBSTACLE NOTE: RWY 22, TEMPORARY CRANE 125FT FROM DER, 218FT LEFT OF CENTERLINE, 135FT AGL/143FT MSL (2023-AEA-72-NRA). TEMPORARY CRANE 412FT FROM DER, 294FT LEFT OF CENTERLINE, 135FT AGL/142FT MSL (2023-AEA-73-NRA). TEMPORARY CRANE 98FT FROM DER, 406FT RIGHT OF CENTERLINE, 135FT AGL/146FT MSL (2023-AEA-70-NRA). TEMPORARY CRANE 288FT FROM DER, 398FT RIGHT OF CENTERLINE, 135FT AGL/142FT MSL (2023-AEA-74-NRA).
ALL OTHER DATA REMAINS AS PUBLISHED. 2407291828-2412181828EST
7/22/241516Z !FDC 4/5476 DCA IAP RONALD REAGAN WASHINGTON NTL, WASHINGTON, DC.
RNAV (RNP) Z RWY 19, AMDT 3...
RNP 0.11 DA 536/HAT 523 ALL CATS. VISIBILITY ALL CATS 1 1/2. RNP 0.30 DA 586/HAT 573 ALL CATS. VISIBILITY ALL CATS 1 5/8. TEMPORARY BARGE CRANES OPERATIONAL MONDAY - SATURDAY 0900Z - 2100Z. EXCEPT WHEN ADVISED OTHERWISE BY ATCT. TEMPORARY BARGE CRANE 217FT MSL 1.21NM NORTH OF RWY 19 (2024-AEA-49-OE). TEMPORARY BARGE CRANE 217FT MSL 1.25NM NORTH OF RWY 19 (2024-AEA-51-OE). TEMPORARY BARGE CRANE 217FT MSL 1.32NM NORTH OF RWY 19 (2024-AEA-50-OE). TEMPORARY BARGE CRANE 207FT MSL 1.05NM NORTH OF RWY 19 (2024-AEA-7618-OE).
2407221516-2602191516EST
7/11/240901Z !FDC 4/9888 DCA IAP RONALD REAGAN WASHINGTON NTL, WASHINGTON, DC.
LDA Z RWY 19, AMDT 4 ...
PROCEDURE NA. 2407110901-2607111848EST
1/8/241754Z !FDC 4/1684 DCA ODP RONALD REAGAN WASHINGTON NTL, WASHINGTON, DC.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8B...
TAKE-OFF MINIMUMS: RWY 19, 300-1 1/2 OR STANDARD WITH MINIMUM CLIMB OF 210FT PER NM TO 300.
ALL OTHER DATA REMAINS AS PUBLISHED. 2401081754-2601081753EST
1/8/241751Z !FDC 4/1679 DCA SID RONALD REAGAN WASHINGTON NTL, WASHINGTON, DC.
NATIONAL EIGHT DEPARTURE...
TAKE-OFF MINIMUMS: RWY 19, 300-1 1/2 OR STANDARD WITH MINIMUM CLIMB OF 210FT PER NM TO 300.
ALL OTHER DATA REMAINS AS PUBLISHED. 2401081751-2601081751EST
Yes
ALL
METRO WASH ARPT AUTHORITY
1 AVIATION CIRCLE
WASHINGTON, DC 20001-6000
Phone: 703-417-8600
PAUL MALANDRINO, JR.
1 AVIATION CIRCLE
WASHINGTON, DC 20001-6000
Phone: 703-417-8050
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DCA
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Cargo Handling

Runway 01/19

7169 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
57 /F/B/X/T
110,000lbs
200,000lbs
360,000lbs
--
  Runway 01 Runway 19
True Heading 356°175°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 50' 30"N 38° 51' 40"N
Longitude 77° 02' 12"W 77° 02' 19"W
Elevation 11' 12'
Threshold Crossing Height 54 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights ALSF2 MALSF
Centerline Lights Yes Yes
Runway End Identifier Lights No

Runway 04/22

5000 ft. x 150 ft.
ASPH
Good
GRVD
MED
57 /F/B/X/T
110,000lbs
200,000lbs
360,000lbs
--
  Runway 04 Runway 22
True Heading 26°206°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 50' 28"N 38° 51' 13"N
Longitude 77° 02' 29"W 77° 02' 02"W
Elevation 11' 11'
Threshold Crossing Height 52 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3.25° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

5204 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
57 /F/B/X/T
110,000lbs
200,000lbs
360,000lbs
--
  Runway 15 Runway 33
True Heading 143°323°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 51' 40"N 38° 50' 59"N
Longitude 77° 02' 36"W 77° 01' 56"W
Elevation 14' 10'
Threshold Crossing Height 36 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 19X

0 ft. x 0 ft.





--
--
--
--
  Runway 19X Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10TWY K ENDS AT GATE 5.
A110-13FLOCKS OF BIRDS ON & INVOF ARPT; FQT GULL & GEESE & DUCK POPULATIONS AB OVER ADJ RIVER AREAS.
A110-14TRNG FLIGHTS THAT INCLUDE MULTIPLE APCHS AND/OR TOUCH & GO OPNS REQUIRE PRIOR PERMISSION FM THE ARPT MGR.
A110-17LEFT-HAND TURN-OFFS FROM RWY 33 TO TWY 'K' PROHIBITED.
A110-19ACFT ARRIVING/DEPARTING THE GA PARKING AREA ARE PROHIBITED FM TAXING BTN ACR PUSHBACK OPNS & THE GATES.
A110-21BE ADVISED SOME AIRCREWS MISTAKE RWY 15 FOR RWY 19.
A110-24ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
A110-25RONALD REAGAN WASHINGTON NATIONAL ARPRT (KDCA) IS AN EMERGENCY USE ONLY FIELD FOR ALL DOD OWNED AND OPERATED ACFT.
A110-26TWY N BTN APCH END RWY 15 AND TWY K CLSD TO ACFT WINGSPAN MORE THAN 124FT.
A110-3LGT FM VEHICLE PARKING LOT LCTD 1000 FT SW OF RWY 01 COULD GIVE FALSE INDICATIONS OF BEING PART OF RWY 01 APCH LGT SYS DRG PERIODS OF REDUCED VIS & LOW CEILINGS.
A110-5FORM 150R CREDIT CARD FOR ALL RQRD SVCS. NO MIL FACS.
RONALD REAGAN WASHINGTON NTL (ICAO: KDCA, IATA: DCA) is a public airport located in WASHINGTON, DC.
