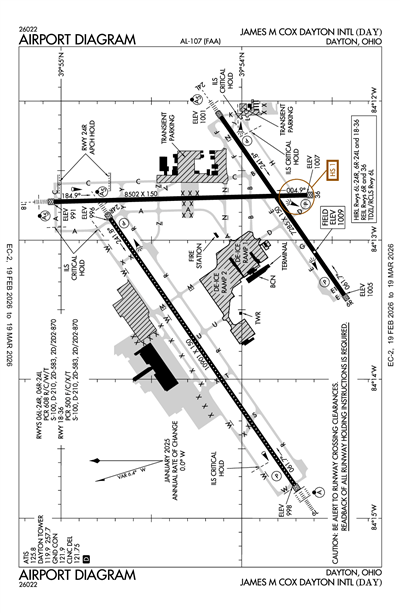

JAMES M COX DAYTON INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDAY
ICAO KDAYIATA DAYLocal DAY
JAMES M COX DAYTON INTL
PublicPUB

9 miles N of DAYTON, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 54' 08"N 84° 13' 10"W
Elevation
1009' MSL
Pattern Alt
2009' MSL
Mag Variation
6°W
Declination
6°W
Fuel
JET A, 100
FSS
DAYTON (DAY)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KDAY MVFR
1:56 AM EST
Light Rain and Mist
Overcast 2,700'
Broken 2,100'
Few 900'
4sm
44°F
44°F
30.17"Hg
Calm
AO2 RAB55 SLP221 P0000 T00670067
METAR KDAY 040656Z 00000KT 4SM -RA BR FEW009 BKN021 OVC027 07/07 A3017 RMK AO2 RAB55 SLP221 P0000 T00670067
+ Add Your Business

KDAY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.8
ASOS (937) 419-1421

Common

UNICOM 122.95

Clearance

Clearance Delivery 121.75

Ground

DAYTON GROUND 121.9

Tower

DAYTON TOWER 119.9

Arrival

DANEI STAR 134.45

Approach

COLUMBUS APPROACH 118.85
091-180
COLUMBUS APPROACH 134.45
181-090

Departure

COLUMBUS DEPARTURE 118.85
091-180
COLUMBUS DEPARTURE 134.45
181-090

Flight Service

Flight Service 122.1
COMMUNICATIONS PRVDD BY DAYTON RADIO ON FREQS 122.1R/114.5T (DAYTON RCO).

Emergency

Emergency 121.5

Other

CLASS C 118.85
091-180
CLASS C 134.45
181-090

Terminal Area Forecast

KDAY
Wed, 3/4 12:46 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
LIFR
1:00 AM EST - 4:00 AM EST
Light Showers and Rain and Mist
Broken 300'
3sm
VRB° 4kts
LIFR
4:00 AM EST - 7:00 AM EST
Light Showers and Rain and Mist
Overcast 300'
1sm
050° 4kts
LIFR
7:00 AM EST - 2:00 PM EST
Mist
Overcast 400'
2sm
080° 5kts
IFR
2:00 PM EST - 7:00 PM EST
Mist
Broken 800'
3sm
110° 6kts
IFR
7:00 PM EST - 10:00 PM EST
Thunderstorm and Rain
Overcast 700'
2sm
Calm
LIFR
7:00 PM EST - 1:00 AM EST
Showers and Rain and Mist
Overcast 400'
3sm
140° 4kts
TAF KDAY 040546Z 0406/0506 VRB04KT 3SM -SHRA BR BKN003
   FM040900 05004KT 1SM -SHRA BR OVC003
   FM041200 08005KT 2SM BR OVC004
   FM041900 11006KT 3SM BR BKN008
   FM050000 14004KT 3SM SHRA BR OVC004
   PROB30 0500/0503 2SM TSRA OVC007CB
KDAY
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
2355Z
!DAY 03/045 DAY NAV ILS RWY 18 GP U/S 2603032355-2604242000EST
3/3/26
2122Z
3/4/26
2122Z
Runway!DAY 03/044 DAY RWY 18 FICON 5/5/5 100 PCT WET OBS AT 2603032121. 2603032122-2603042122
3/3/26
2121Z
3/4/26
2121Z
Runway!DAY 03/043 DAY RWY 24L FICON 5/5/5 100 PCT WET OBS AT 2603032121. 2603032121-2603042121
3/3/26
2120Z
3/4/26
2120Z
Runway!DAY 03/042 DAY RWY 24R FICON 5/5/5 100 PCT WET OBS AT 2603032120. 2603032120-2603042120
3/3/26
0545Z
3/18/26
0445Z
!DAY 03/033 DAY OBST TOWER LGT (ASR 1012223) 395247.90N0840354.10W (7.2NM E DAY) 1158.8FT (271.0FT AGL) U/S 2603030545-2603180445
3/2/26
0117Z
3/6/26
2300Z
!DAY 03/005 DAY TWY V, TWY A BTN TWY W AND APCH END RWY 24R, TWY D BTN TWY E AND RWY 06R/24L HLDG PSN SIGN NOT STD 2603020117-2603062300
2/27/26
2122Z
3/27/26
2300Z
!DAY 02/400 DAY AD AP WDI MIDFIELD LGT U/S 2602272122-2603272300
2/27/26
1016Z
3/6/26
2300Z
!DAY 02/396 DAY TWY W HLDG PSN SIGN BTN APCH END RWY 06L AND TWY A LGT U/S 2602271016-2603062300
5/23/25
0300Z
12/31/26
1100Z
!DAY 05/324 DAY APRON HOLD PAD FOR RWY 06L CLSD DLY 0300-1100 2505230300-2612311100
4/18/25
1355Z
!DAY 04/278 DAY TWY W HLDG PSN SIGN FOR ILS FOR APCH END RWY 06L LGT U/S 2504181355-2612312200EST
4/18/25
1352Z
!DAY 04/276 DAY TWY W HLDG PSN SIGN FOR TWY M LGT U/S 2504181352-2612312200EST
FDC
10/16/25
1822Z
!FDC 5/1927 DAY IAP JAMES M COX DAYTON INTL, DAYTON, OH.
RNAV (GPS) RWY 6R, AMDT 1C...
LPV DA 1260/HAT 251.
2510161822-2710161822EST
10/15/25
1253Z
!FDC 5/1055 DAY IAP JAMES M COX DAYTON INTL, DAYTON, OH.
ILS OR LOC RWY 24R, AMDT 10B...
S-LOC RWY 24R MDA 1520 /HAT 523 ALL CATS, VIS CATS C/D RVR 5500.
2510151253-2710171252EST
3/17/25
1341Z
!FDC 5/3732 DAY IAP JAMES M COX DAYTON INTL, DAYTON, OH.
ILS OR LOC RWY 18, AMDT 11A...
AUTOPILOT COUPLED APPROACH NA BELOW 1200.
2503171341-2703171341EST
Yes
ALL
CITY OF DAYTON, OHIO
101 W 3RD ST
DAYTON, OH 45402
Phone: 937-333-3333
DANIEL J ZENK
3600 TERMINAL DR STE 300
VANDALIA, OH 45377
Phone: 937-454-8212
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
DAY
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hangar
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06L/24R

10901 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

100,000lbs
210,000lbs
583,000lbs
870,000lbs
  Runway 06L Runway 24R
True Heading 55°235°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 53' 42"N 39° 54' 44"N
Longitude 84° 14' 46"W 84° 12' 51"W
Elevation 998' 996'
Threshold Crossing Height 67 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 06R/24L

7285 ft. x 150 ft.
CONC
Good
GRVD
HIGH

100,000lbs
210,000lbs
583,000lbs
870,000lbs
  Runway 06R Runway 24L
True Heading 55°235°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 53' 26"N 39° 54' 07"N
Longitude 84° 13' 24"W 84° 12' 07"W
Elevation 1,005' 1,001'
Threshold Crossing Height 50 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 18/36

8502 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

100,000lbs
210,000lbs
583,000lbs
870,000lbs
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 55' 02"N 39° 53' 38"N
Longitude 84° 12' 43"W 84° 12' 41"W
Elevation 991' 1,007'
Threshold Crossing Height -- 60 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes
A110-10SNC RAMP NORTH OF RWY 06L/24R EDGE LGTS NSTD.
A110-12TWY W SIGN LGTS OTS.
A110-3RUNUPS PROHIBITED ON RWY 24L HOLD PAD.
A110-4TWY Z, TWY T, & TWY S BTN RWY 06L/24R & TWY W CLSD INDEFLY.
A110-5DEER, COYOTES, BIRDS, & WATERFOWL ON & INVOF ARPT.
A110-7TWY C BTN TWY N & TWY Z NOT AVBL FOR GROUP IV & GTR ACFT. TWY K, TWY H, TWY J, & TWY L NOT AVBL FOR GROUP IV & GTR ACFT.
A110-8TWY M NORTH OF RWY 06L/24R & TWY W CLSD TO ACR ACFT; ALL OTR ACFT 24 HR PPR 937-454-2010.
A110-9TWY M NORTH OF RWY 06L/24R & TWY W EDGE LGTS NSTD.
A33-06L/24R_SURFNE 1400 FT CONC, SW 9501 FT ASPH.
A39-06L/24RPCR VALUE: 608/R/C/W/T
A39-06R/24LPCR VALUE: 608/R/C/W/T
A39-18/36PCR VALUE: 500/F/C/X/T
JAMES M COX DAYTON INTL (ICAO: KDAY, IATA: DAY) is a public airport located in DAYTON, OH, US.
