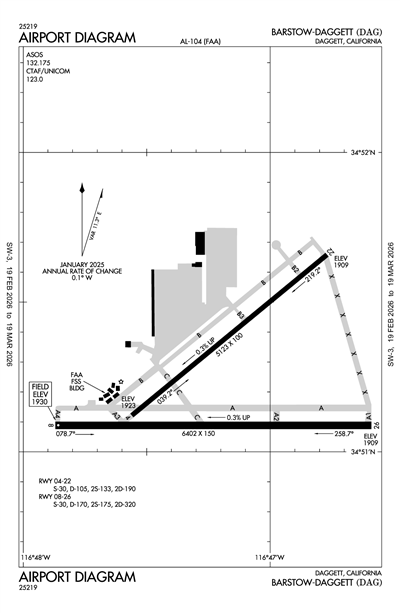

BARSTOW-DAGGETT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDAG
ICAO KDAGIATA DAGLocal DAG
BARSTOW-DAGGETT
PublicPUB

4 miles E of DAGGETT, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 51' 13"N 116° 47' 12"W
Elevation
1930' MSL
Pattern Alt
2930' MSL
Mag Variation
11°E
Declination
15°E
Fuel
JET A, 100LL
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KDAG VFR
8:50 PM PST
Clear
10sm
58°F
26°F
30.04"Hg
260° 3kts
AO2 SLP161 T01441033
METAR KDAG 040450Z AUTO 26003KT 10SM CLR 14/M03 A3004 RMK AO2 SLP161 T01441033
+ Add Your Business

KDAG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 132.175
(760) 254-3630

Common

CTAF 123.0
ACTVT MIRL RWY 4/22 & 8/26 - CTAF. PAPI RWY 08, 22, & 26 OPR CONSLY.
UNICOM 123.0

Center

L.A. CENTER CENTER 132.5
LOW, APCH/DEP CTL SVC PRVDD BY LOS ANGELES ARTCC (ZLA) ON FREQS 132.5/284.7 (BARSTOW RCAG).

Flight Service

Flight Service 122.2
(RAL)

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KDAG
Tue, 3/3 3:20 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 9:00 PM PST
Sky Clear
6sm
040° 7kts
VFR
9:00 PM PST - 11:00 AM PST
Few 25,000'
6sm
270° 7kts
VFR
11:00 AM PST - 4:00 PM PST
Scattered 25,000'
6sm
260° 12kts
Gusts 22kts
TAF KDAG 032320Z 0400/0424 04007KT P6SM SKC
   FM040500 27007KT P6SM FEW250
   FM041900 26012G22KT P6SM SCT250
KDAG
EffectiveExpiresCategoryNOTAM
Domestic
2/28/26
1354Z
3/2/26
0208Z
!DAG 02/010 DAG AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF 350308N1164559W (25NM SSE L06) SFC-400FT AGL DLY 1354-0208 2602281354-2603020208
2/23/26
2049Z
3/2/26
2359Z
!DAG 02/012 DAG COM REMOTE COM OUTLET 121.5 U/S 2602232049-2603022359
2/22/26
2332Z
!DAG 02/011 DAG COM REMOTE COM OUTLET U/S 2602222332-2603062000EST
2/10/26
2040Z
2/25/26
0659Z
!DAG 02/005 DAG AD AP JET A FUEL NOT AVBL 2602102040-2602250659
12/22/25
0341Z
12/31/26
2359Z
!DAG 12/008 DAG AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF 345225N1164653W (1.2NM NE DAG) SFC-225FT AGL 2512220341-2612312359
2/24/20
2212Z
!DAG 02/018 DAG OBST WATER TOWER (ASN UNKNOWN) 345125N1164737W (.3NM SE DAG) 1927FT (75FT AGL) NOT LGTD 2002242212-PERM
No
0630-1700
COUNTY OF SAN BERNARDINO
385 N ARROWHEAD AVE
SAN BERNARDINO, CA 92415
Phone: 909-387-8810
MAUREEN SNELGROVE
268 HOSPITALITY LANE SUITE 302
SAN BERNARDINO, CA 92408
Phone: 909-387-8810
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
DAG
--
ACTVT MIRL RWY 4/22 & 8/26 - CTAF. PAPI RWY 08, 22, & 26 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

5123 ft. x 100 ft.
ASPH
Fair
NONE
MED

30,000lbs
105,000lbs
190,000lbs
--
  Runway 04 Runway 22
True Heading 51°231°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition FAIR GOOD
Latitude 34° 51' 07"N 34° 51' 40"N
Longitude 116° 47' 34"W 116° 46' 46"W
Elevation 1,923' 1,909'
Threshold Crossing Height -- 49 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 08/26

6402 ft. x 150 ft.
ASPH
Fair
NONE
MED

30,000lbs
170,000lbs
320,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR GOOD
Latitude 34° 51' 05"N 34° 51' 05"N
Longitude 116° 47' 52"W 116° 46' 35"W
Elevation 1,930' 1,909'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1E-W TWY PARALLEL TO RWY 08/26 WT BRG CPTY LIMITED TO S-12.
A110-4PAEW INVOF ARMY RAMP. EXTSV MILITARY HELICOPTER TRAFFIC INVOF ARPT.
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC LOS ANGELES ARTCC AT 661-575-2079.
A81-APTACTVT MIRL RWY 4/22 & 8/26 - CTAF. PAPI RWY 08, 22, & 26 OPR CONSLY.
BARSTOW-DAGGETT (ICAO: KDAG, IATA: DAG) is a public airport located in DAGGETT, CA, US.
