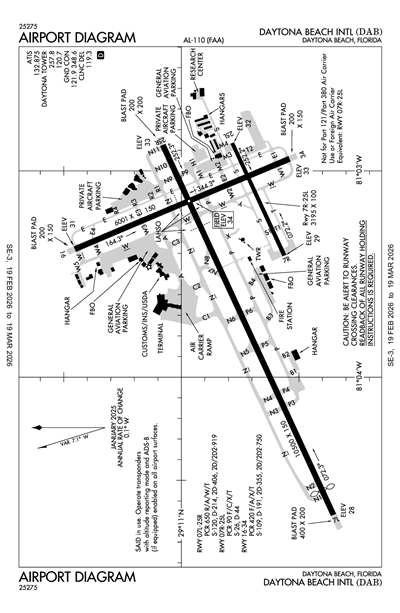

DAYTONA BEACH INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDAB
DAYTONA BEACH INTL
PublicPUB

3 miles SW of DAYTONA BEACH, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 10' 48"N 81° 03' 29"W
34' MSL
999' MSL
JET A, 100LL
SAINT PETERSBURG (PIE)
JACKSONVILLE
JACKSONVILLE (ZJX)
4/17/25-5/15/25
KDAB VFR
10:53 AM EST
Few 9,000'
Few 3,000'
10sm
78°F
65°F
30.23"Hg
VRB° 6kts
AO2 SLP234 T02560183
METAR KDAB 091553Z VRB06KT 10SM FEW030 FEW090 26/18 A3023 RMK AO2 SLP234 T02560183
+ Add Your Business

KDAB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 132.875

Clearance

CD/P 119.3

Ground

GND/P 121.9

Tower

LCL/P 120.7

Approach

APCH/P 118.85
N 4000-7500
APCH/P 125.35
S 3500 FT & BLW
APCH/P 125.725
8000-11000 FT
APCH/P 127.075
S 4000-7500
APCH/P IC 125.8
N 3500 FT & BLW

Emergency

EMERG 121.5

Other

CLASS C 125.35
S 3500 FT & BLW
CLASS C 125.8
N 3500 FT & BLW
LAMMA DP 118.85
ROYES DP 118.85
TTHOR STAR 118.85

Terminal Area Forecast

KDAB
Fri, 1/9 8:12 AM EST
Fri, 1/9 8:00 AM EST - Sat, 1/10 7:00 AM EST
LIFR
Temporary 8:00 AM EST - 9:00 AM EST
Fog
Broken 1,000'
Broken 200'
0.25sm
Calm
VFR
8:00 AM EST - 10:00 AM EST
Few 200'
6sm
Calm
VFR
10:00 AM EST - 6:00 PM EST
Scattered 3,000'
6sm
160° 8kts
VFR
6:00 PM EST - 7:00 AM EST
Few 5,000'
6sm
140° 4kts
TAF KDAB 091312Z 0913/1012 00000KT P6SM FEW002
   TEMPO 0913/0914 1/4SM FG BKN002 BKN010
   FM091500 16008KT P6SM SCT030
   FM092300 14004KT P6SM FEW050
KDAB
EffectiveExpiresCategoryNOTAM
Domestic
1/7/26
1600Z
1/7/26
2000Z
!DAB 01/011 DAB OBST CRANE (ASN UNKNOWN) 291139N0810419W (1.13NM NW DAB)
UNKNOWN (85FT AGL) FLAGGED 2601071600-2601072000
1/2/26
0211Z
!DAB 01/005 DAB NAV ILS RWY 07L GP U/S 2601020211-2601302000EST
1/1/26
1237Z
1/8/26
1200Z
Runway!DAB 01/004 DAB RWY 25R HLDG PSN SIGN AT RWY 16/34 LEFT SIDE LGT U/S
2601011237-2601081200
1/1/26
0922Z
3/31/26
2100Z
Runway!DAB 01/002 DAB RWY 07L TWY DIRECTION SIGN AT TWY P3 AND P4 MISSING 2601010922-2603312100
1/1/26
0917Z
3/31/26
2300Z
!DAB 01/001 DAB AD AP BIRD ACT INCREASED SEAGULLS, EAGLES, AND VULTURES
2601010917-2603312300
8/15/22
1722Z
!DAB 08/071 DAB OBST TREE (ASN UNKNOWN) 291113N0810233W (.31NM E APCH END RWY 25R)
UNKNOWN (70FT AGL) NOT LGTD 2208151722-PERM
8/15/22
1721Z
!DAB 08/070 DAB OBST TREE (ASN UNKNOWN) 291016N0810251W (.29NM S APCH END RWY 34)
UNKNOWN (70FT AGL) NOT LGTD 2208151721-PERM
8/15/22
1720Z
!DAB 08/069 DAB OBST TREE (ASN UNKNOWN) 291027N0810342W (.28NM W APCH END RWY 07R)
UNKNOWN (70FT AGL) NOT LGTD 2208151720-PERM
8/15/22
1702Z
!DAB 08/067 DAB OBST TREE (ASN UNKNOWN) 291050N0810242W (.15NM E APCH END RWY 25L)
UNKNOWN (70FT AGL) NOT LGTD 2208151702-PERM
FDC
12/31/25
1257Z
1/31/26
1257Z
!FDC 5/3957 DAB IAP DAYTONA BEACH INTL, DAYTONA BEACH, FL.
ILS OR LOC RWY 25R, AMDT 1...
MISSED APPROACH: CLIMB TO 500 THEN CLIMBING LEFT TURN TO 3000 ON HEADING 100 AND ORL VORTAC R-032 TO YUBUL/ORL 45.32 DME AND HOLD (DME REQUIRED),
OMN VOR OUT OF SERVICE. 2512311257-2601311257EST
12/31/25
1257Z
1/31/26
1257Z
!FDC 5/3956 DAB IAP DAYTONA BEACH INTL, DAYTONA BEACH, FL.
ILS OR LOC RWY 7L, AMDT 32A...
S-LOC 07L: RADAR REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
ZOPRI FIX MINIMUMS NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OMN VOR OUT OF SERVICE. 2512311257-2601311257EST
12/4/25
1411Z
1/16/26
1411Z
!FDC 5/4542 DAB ODP DAYTONA BEACH INTL, DAYTONA BEACH, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
ADD TAKEOFF OBSTACLE NOTE: RWY 7R, TEMPORARY CRANE 1624FT FROM DER, 164FT LEFT OF CENTERLINE, 135FT AGL/165FT MSL (2024-ASO-13246-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2512041411-2601161411EST
7/9/24
1958Z
!FDC 4/9066 DAB IAP DAYTONA BEACH INTL, DAYTONA BEACH, FL.
ILS OR LOC RWY 7L, AMDT 32A...
CHANGE NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 600.
2407091958-2607091956EST
Yes
ALL
VOLUSIA COUNTY
123 W INDIANA AVE
DELAND, FL 32720-4612
Phone: 386-248-8030
MS KAREN K FEASTER, AAE, IACE, ACE
700 CATALINA DR, SUITE 300, DAYTONA BEACH INTL ARPT
DAYTONA BEACH, FL 32114
Phone: 386-248-8030
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
DAB
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 07L/25R

10500 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
214,000lbs
406,000lbs
919,000lbs
  Runway 07L Runway 25R
True Heading 65°245°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29° 10' 21"N 29° 11' 05"N
Longitude 81° 04' 40"W 81° 02' 52"W
Elevation 28' 33'
Threshold Crossing Height -- 72 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 07R/25L

3195 ft. x 100 ft.
ASPH
Poor
NONE
MED

26,000lbs
44,000lbs
--
--
  Runway 07R Runway 25L
True Heading 65°245°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 10' 34"N 29° 10' 47"N
Longitude 81° 03' 25"W 81° 02' 52"W
Elevation 28' 32'
Threshold Crossing Height 48 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 16/34

6001 ft. x 150 ft.
ASPH
Fair
GRVD
MED

109,000lbs
191,000lbs
355,000lbs
750,000lbs
  Runway 16 Runway 34
True Heading 157°337°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 11' 27"N 29° 10' 32"N
Longitude 81° 03' 23"W 81° 02' 57"W
Elevation 31' 32'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1HVY MIGRATORY BIRD ACT ON & INVOF ARPT.
A110-11USE CO FLY QUIET PROC OR RCMD NOISE ABATEMENT PROC - AMGR.
A110-12AIRFIELD SFC CONDS ARE NOT MNTD BTN THE HRS OF 0000-0400.
A110-17ROTOR WING HEL MUST GRND TAXI; IF UNABL USE CTN DURG HOVER TAXI.
A110-19US CUSTS RAMP RSTRD GROUP II ACFT OF WINGSPAN 79 FT OR LESS.
A110-2E END OF TWY S IS NON-MOVEMENT AREA.
A110-22TWY C1 CLSD TO ACFT WINGSPAN MORE THAN 119 FT; TWY W CLSD TO ACFT WINGSPAN MORE THAN 119 FT; TWY W3 CLSD TO ACFT WINGSPAN MORE THAN 79 FT.
A110-23TWY W BTN RWY 16 APCH END & TWY A CLSD TO MIL HEL & HOVER TAXI OPS.
A110-24TWY W BTN TWY A & RWY 16 APCH END CLSD TO ROTARY WING WITH ROTAR SPAN MORE THAN 50 FT EXC 1 HR PPR - 386-527-0657.
A110-25ALL MIL OPS REQ 24 HR. ADVND CDN WITH ARPT OPNS - PPR (386) 527-0657.
A110-26ALL HELO OPS EXPC TWY W BTN TWY A & RWY 16 APCH END CLSD TO ROTARY WING ACFT WITH ROTAR SPAN MORE THAN 50 FT EXC 1 HR. PPR (386) 527-0657.
A110-27INCRD DRONE ACT NE OF ARPT.
A110-28HVY BIRD ACTIVITY OVER LANDFILL LOCATED 3.5NM SW OF THE AIRFIELD.
A110-29PPR FOR DAYTONA BEACH SPEEDWAY LOW APCH OR FLY-OVER. CTC ATC FOR PMSN.
A110-30RWY 07L LEAD-OFF LINES FOR TWY P3 AND TWY P4 FOR GROUP I ACFT ONLY WITH WINGSPAN OF LESS THAN 49 FT.
A110-4TWY E RSTRD TO 22000 LBS MAX CRTFYD GROSS TKOF WEIGHT; TWY P RSTRD TO 190500 LBS MAX CRTFYD GROSS TKOF WEIGHT.
A110-8TWY "N" N OF RY 7L-25R CAN BE MISTAKEN FOR THE RY & APCH ENVIRONMENT.
A30-07R/25LSKED ACR OPS MORE THAN 9 PAX SEATS OR UNSKED ACR AT LEAST 31 PAX SEATS NA.
A31-07L/25RFIRST 2300 FT RWY 7L CONCRETE ON 50 FT WIDE KEEL SECTION.
A33-07R/25LOUTER EDGES OF PAVEMENT UNEVEN.
A39-07L/25RPCR VALUE: 650/R/A/W/T
A39-07R/25LPCR VALUE: 90/F/C/X/T
A39-16/34PCR VALUE: 420/F/A/X/T
A43-25RPAPI UNUSBL BYD 5 DEG LEFT & RIGHT OF CNTRLN.
A57-07LRWY 07L APCH SLP 50:1 TO DSPLCD THR.
E147TPA FOR LGT ACFT 965 FT AGL; TPA FOR HI PER ACFT 1365 FT AGL.
E80US CUSTOMS USER FEE ARPT.
DAYTONA BEACH INTL (ICAO: KDAB, IATA: DAB) is a public airport located in DAYTONA BEACH, FL.
