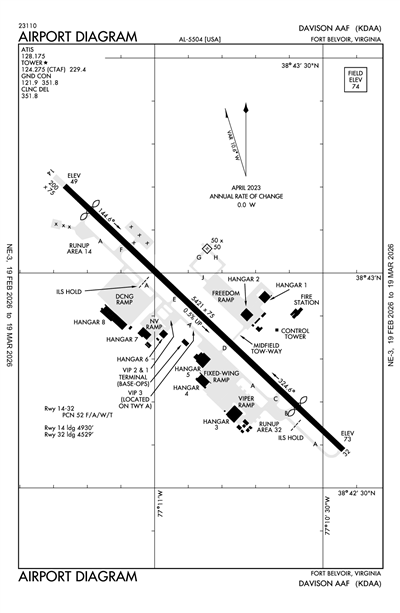

DAVISON AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDAA
ICAO KDAAIATA DAALocal DAA
DAVISON AAF
PrivatePVT

3 miles NW of FORT BELVOIR, VA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 42' 54"N 77° 10' 51"W
Elevation
74' MSL
Pattern Alt
1174' MSL
Mag Variation
11°W
Declination
9°W
Fuel
None Listed
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KDAA MVFR
6:55 AM EST
Mist
Overcast 11,000'
3sm
44°F
43°F
30.20"Hg
Calm
AO2 SLP230 60000 70005 T00650059 10087 20048 55001 $
METAR KDAA 041155Z AUTO 00000KT 3SM BR OVC110 07/06 A3020 RMK AO2 SLP230 60000 70005 T00650059 10087 20048 55001 $
+ Add Your Business

KDAA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.175
Hours: SAME AS ATCT

Common

CTAF 124.275
AVBL 0230-1100Z++ MON-FRI AND 24 HRS ON WKNDS AND HOLS. WHEN TWR CLSD HIRL RWY 14-32 SET TO PCL. TO ACTVT & INCR INTS MALSF RWY 32; PAPI RWY 14 & 32 - CTAF.
Pilot-To-Dispatcher (PTD) 139.4

Ground

DAVIDSON GROUND 121.9
1100-0230Z++ MON-FRI EXC HOL.

Tower

DAVIDSON TOWER 124.275
1100-0230Z++ MON-FRI EXC HOL.

Arrival

FRDMM STAR 118.675
IRONS STAR 126.4
NUMMY STAR 118.675
TIKEE STAR 120.45
TRUPS STAR 118.675

Approach

POTOMAC APPROACH 118.95
POTOMAC APPROACH 124.7
Secondary

Departure

CLTCH DP 118.95
JDUBB DP 118.95
POTOMAC DEPARTURE 118.95
SCRAM DP 118.95
POTOMAC DEPARTURE 124.7
Secondary

RADAR

ASR/PAR 118.85
ASR/PAR 119.95

Operations

Operations 139.4

Emergency

Emergency 121.5

Military

ARNG OPS 52.75
PMSV METRO 139.4

Terminal Area Forecast

KDAA
Tue, 3/3 4:00 PM EST
Tue, 3/3 4:00 PM EST - Wed, 3/4 10:00 PM EST
IFR
4:00 PM EST - 2:00 AM EST
Overcast 500'
6sm
30.30"Hg
VRB° 6kts
IFR
Temporary 5:00 PM EST - 3:00 AM EST
Light Rain and Mist
Overcast 700'
2.98sm
Calm
IFR
Becoming 2:00 AM EST - 5:00 AM EST
Light Rain
Overcast 500'
5.59sm
30.21"Hg
VRB° 6kts
MVFR
Becoming 5:00 AM EST - 7:00 AM EST
Light Rain
Overcast 2,600'
Broken 1,000'
Scattered 500'
4.97sm
30.21"Hg
VRB° 6kts
IFR
Temporary 6:00 AM EST - 8:00 AM EST
Overcast 500'
N/A
Calm
IFR
Becoming 7:00 AM EST - 5:00 PM EST
Light Rain
Overcast 1,000'
Broken 500'
4.97sm
30.21"Hg
VRB° 6kts
MVFR
Temporary 8:00 AM EST - 6:00 PM EST
Overcast 1,000'
Scattered 500'
N/A
Calm
IFR
Becoming 5:00 PM EST - 6:00 PM EST
Mist
Overcast 500'
4.97sm
30.21"Hg
VRB° 6kts
IFR
Becoming 6:00 PM EST - 10:00 PM EST
Light Rain
Overcast 500'
4.97sm
30.21"Hg
VRB° 6kts
TAF KDAA 032100Z 0321/0503 VRB06KT 9999 OVC005 QNH3030INS
   TEMPO 0322/0408 4800 -RA BR OVC007
   BECMG 0407/0408 VRB06KT 9000 -RA OVC005 QNH3021INS
   BECMG 0410/0411 VRB06KT 8000 -RA SCT005 BKN010 OVC026 QNH3020INS
   TEMPO 0411/0413 OVC005
   BECMG 0412/0413 VRB06KT 8000 -RA BKN005 OVC010 QNH3022INS
   TEMPO 0413/0423 SCT005 OVC010
   BECMG 0422/0423 VRB06KT 8000 BR OVC005 QNH3022INS
   BECMG 0423/0500 VRB06KT 8000 -RA OVC005 QNH3022INS TX10/0420Z TN05/0321Z LAST NO AMDS AFT 0402 NEXT 0413
KDAA
EffectiveExpiresCategoryNOTAM
FDC
9/30/25
1221Z
!FDC 5/2642 DAA SID DAVISON AAF, FORT BELVOIR, VA.
JDUBB FOUR DEPARTURE (RNAV)...
RRSIN TRANSITION: JDUBB TO TYPNZ MOCA 1900. MELTN TRANSITION: JDUBB TO CASLY MOCA 1900. ALL OTHER DATA REMAINS AS PUBLISHED. 2509301221-2709301221EST
Military
3/5/26
1200Z
3/5/26
2200Z
SLING LOAD OPS IN NORTH SOD. CAUTION TO PERSONNEL AND EQUIPMENT
3/4/26
1200Z
3/4/26
2200Z
SLING LOAD OPS IN NORTH SOD. CAUTION TO PESONNEL AND EQUIPMENT
3/4/26
0500Z
3/4/26
1100Z
RunwayRWY 14/32 OBS WET AT 0304260330. CONDITIONS NOT OBSERVED FROM 2603040500 TO 2603041100.
3/2/26
2031Z
5/6/26
0001Z
Aerodrome!KDAA V0095/26 DAA AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC RWY 32 AMDT 1 MINIMA CHANGE S-ILS RWY ALL CATS 348-1 280 (300-1). S-LOC CAT AB 580-1 512 (600-1). CIRCLING CAT AB 780-1 706 (800-1), CAT C 920-2 ½ 846 (900-2 ½). RONALD REAGAN WASHINGTON NATL ALTIMETER SETTING MINS S-ILS ALL CATS 388-1 320 (400-1). S-LOC 620-1 552 (600-1). CIRCLING CAT AB 820-1 746 (800-1), CAT C 920-2 ½ 846 (900-2 ½). 2603022031-2605060001
3/2/26
2024Z
5/6/26
0001Z
Aerodrome!KDAA V0094/26 DAA AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 14 AMDT 3 LNAV MDA CAT AB 700-1 640 (700-1), CAT CD 700-1 ¾ 640 (700-1 ¾). CIRCLING CAD D 1000-3 926 (1000-3). RONALD REAGAN WASHINGTON NATL ALTIMETER SETTING MINS LNAV MDA CAT AB 740-1, CAT CD 740-1 7/8 680 (700-1 7/8). CIRCLING CAT C 920-2 ½ 846 (900-2 ½), CAT D 1040-3 966 (1000-3) 2603022024-2605060001
3/2/26
2024Z
3/5/26
2024Z
V0093/26 NOTAMC V0003/26
3/2/26
2019Z
3/5/26
2019Z
V0092/26 NOTAMC V0001/26
3/2/26
2019Z
5/6/26
0001Z
Aerodrome!KDAA V0091/26 DAA AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 32 AMDT 4 LNAV/VNAV DA ALL CATS 556-1 488 (500 - 1 1/8), LNAV MDA CAT AB 580-1 512 (600-1), CAT CD 580- 1 1/4 512 (600- 1 1/4), CIRCLING CAT AB 780-1 706 (800-1), CAT C 800-2 1/4 806 (900-2 1/4). RONALD REAGAN WASHINGTON NATL ALTIMETER SETTING MINS LNAV/VNAV DA ALL CATS 589 11/4 521 (600-1 1/4), LNAV MDA CAT AB 620-1 552 (600-1), CD 620-1 3/8 552 (600- 1 3/8), CIRCLING CAT AB 820-1 746 (800-1), CAT C 920-2 1/2 846 (900-2 1/2) 2603022019-2605060001
2/27/26
1104Z
5/27/26
2359Z
AerodromeAERODROME UNLGTD OBST 12'AGL RADAR REFLECTOR LOCATED 38°43'11.39"N 077°11'10.41"W 289' NNE RWY14
2/27/26
1104Z
5/27/26
2200Z
TEMPORARY TRAILER ADJ TO SOUTH SIDE OF STONE HANGAR.
2/27/26
1103Z
5/27/26
2359Z
COMPASS ROSE NOT AVAILABLE
2/26/26
1702Z
4/24/26
2300Z
RunwayRWY 14/32 EDGE LIGHTS OTS
2/18/26
2043Z
4/17/26
2359Z
HOT REFUEL POINT HOURS OF SERVICE ARE MON-THU 1500-0530 (1000-0030L) FOR 12TH AVB ACFT ONLY
2/18/26
2042Z
4/17/26
2359Z
Taxiway!KDAA M0212/26 DAA TWY G CLSD DUE TO HOT REFUEL POINT VEHICLE. 2602182042-2604172359
2/11/26
1456Z
5/8/26
2359Z
BASE OPS/WEATHER/PAX TERMINAL BUILDING UNDER RENOVATION. NO AIRCREW/PASSENGER ACCESS AVAILABLE.
2/11/26
1451Z
3/16/26
0400Z
RunwayRWY 32 END LIGHTS OTS
1/21/26
0323Z
3/27/26
2359Z
PCL SYSTEM OTS. AIRFIELD LIGHTING SET TO MEDIUM INTENSITY LEVEL DURING ATC CLOSURE.
1/15/26
1725Z
3/11/26
0001Z
Aerodrome!KDAA V0013/26 DAA AERODROME IFR TAKE-OFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES CHANGED RWY 32 TEMP CRANE, 2200FT FROM DER, 612FT RIGHT OF CENTERLINE, 85FT AGL/183FT AMSL 2601151725-2603110001
1/15/26
1724Z
3/11/26
0001Z
Aerodrome!KDAA V0011/26 DAA AERODROME IFR TAKE-OFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES CHANGED RWY 32 TEMP CRANE, 1887FT FROM DER, 435FT RIGHT OF CENTERLINE, 85FT AGL/182FT AMSL 2601151724-2603110001
1/15/26
1722Z
3/11/26
0001Z
Aerodrome!KDAA V0009/26 DAA AERODROME INSTRUMENT APPROACH PROCEDURE LIMITED ILS OR LOC RWY 32 AMDT 1 VDP NA 2601151722-2603110001
1/15/26
1721Z
3/11/26
0001Z
Aerodrome!KDAA V0007/26 DAA AERODROME INSTRUMENT APPROACH PROCEDURE LIMITED RNAV (GPS) RWY 32 AMDT4 VDP NA 2601151721-2603110001
1/15/26
1719Z
3/11/26
0001Z
Aerodrome!KDAA V0005/26 DAA AERODROME INSTRUMENT APPROACH PROCEDURE LIMITED RNAV (GPS) RWY 14 AMDT 3 VDP NA 2601151719-2603110001
1/14/26
1601Z
4/13/26
1200Z
OBSTRUCTION LIGHT ON WALSH HANGER OTS
Yes
ALL
DAVISON ARMY AIRFIELD
US ARMY ATCA-ASO 6970 BRITTON DR
FT BELVIOR, VA 22060
N/A
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DCA
--
AVBL 0230-1100Z++ MON-FRI AND 24 HRS ON WKNDS AND HOLS. WHEN TWR CLSD HIRL RWY 14-32 SET TO PCL. TO ACTVT & INCR INTS MALSF RWY 32; PAPI RWY 14 & 32 - CTAF.
N/A
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 14/32

5421 ft. x 75 ft.

ASPH
NONE
HIGH
52/F/A/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 133°313°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 43' 12"N 38° 42' 35"N
Longitude 77° 11' 16"W 77° 10' 26"W
Elevation 49' 73'
Threshold Crossing Height 68 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights No No

Runway H1

50 ft. x 50 ft.

CONC
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 38° 43' 01"N N/A
Longitude 77° 10' 47"W N/A
Elevation 40' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FUEL: FUEL - A++ (MIL); AVBL 1200-0300Z++ MON-FRI.
A110-11MISC-AERODROME BEACON LOCATED 4600 FT E-NE OF AFLD ON TOP OF DLA BLDG.
A110-12RSTD: RWY 14 PAPI ARE NON-STANDARD. VFR USE ONLY.
A110-14FOR CD WHEN ATCT IS CLSD CTC POTOMAC APCH AT 866-599-3874.
A110-15RSTD: TWY G, H, AND J CLSD FOR NIGHT AND IFR OPS DUE TO BEING UNLIT.
A110-16RSTD: HELIPAD 14/32 IS 50 FT BY 50 FT WIDE. LMTD TO H-60 AND SMALLER ACFT OPS.
A110-17HAZARDS: RWY 14 INBRD (INGROUND) THR LGTS ARE REMOVED.
A110-18RSTD: HELIPAD 14/32 CLSD FOR NIGHT AND IFR OPS DUE TO BEING UNLIT.
A110-2OIL: 0-123-128-148-156.
A110-3OFFL BUS ONLY. PPR 24 HR NOTICE FOR ALL NON DAA BASED ACFT, CTC BASE OPS 1100-0500Z++ MON-FRI 1200-2100Z++ SAT-SUN, C571-515-4226/4228/4424.
A110-4RSTD: 24 HR PPR NVESD RAMP, DSN 656-7675/7676, C703-806-7675/7676.
A110-5CAUTON: EXP SHEAR/CROSSWIND SHIFT TDZ RWY 32 DUR SW-NW WIND. BIRD AND DEER HAZ.
A110-6TFC PAT: F/W R/W SW 1500 FT, R/W/NE 1100 FT.
A110-7NS ABTMT: TWR WILL ADVS OF RSTD TO ENG RUN-UP, TKOF AND LDG BTN 0300-1300Z++ MON-SAT;2200-1700Z++ SUN AND HOL.
A110-8MISC: WITH TWR/OPS APV, DEP ACFT MAY USE DISPL THLDS FOR TKOF ROLL. WX OBSN AUTOMATED. WX OBSN AUGMENTED/BACK-UP AS REQ 1030-0230++ MON-FRI, EXC HOL. WX FCST 1100-0230++ MON-FRI, EXC HOL, OT, C571-515-4258, REMOTE BRIEFING SVC AVBL 15 OWS, SCOTT AFB DSN 576-9755, FAX EXTN 4855 OR HTTP://OWS.SCOTT.AF.MIL. SEE VFR-S FOR PENTAGON HELIPORT.
A110-9ARNG: OPR 24/7. 24 HR PPR FOR TRAN ACFT, DSN 656-7092/7690, C703-806-7092/7690 FAX 7298.
A49-14NATO STD APPROACH LGTS (BP).
A81-APTAVBL 0230-1100Z++ MON-FRI AND 24 HRS ON WKNDS AND HOLS. WHEN TWR CLSD HIRL RWY 14-32 SET TO PCL. TO ACTVT & INCR INTS MALSF RWY 32; PAPI RWY 14 & 32 - CTAF.
DAVISON AAF (ICAO: KDAA, IATA: DAA) is a private airport located in FORT BELVOIR, VA, US.
