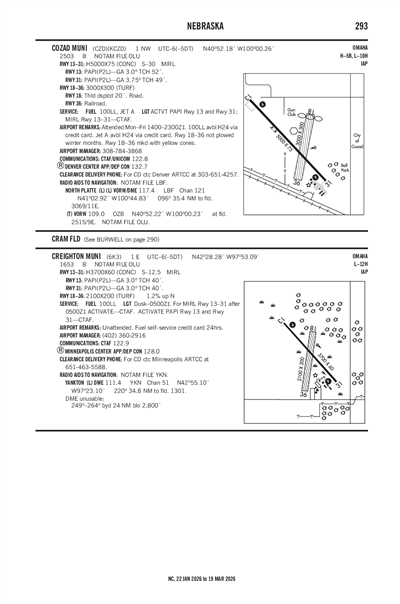

COZAD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCZD
ICAO KCZDIATA CZDLocal CZD
COZAD MUNI
PublicPUB

1 miles NW of COZAD, NE, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 52' 11"N 100° 00' 15"W
Elevation
2503' MSL
Pattern Alt
3503' MSL
Mag Variation
5°E
Declination
7°E
Fuel
JET A, 100LL
FSS
COLUMBUS (OLU)
Sectional
OMAHA
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KLXN (11nm) VFR
10:35 PM CST
Clear
10sm
34°F
31°F
30.17"Hg
Calm
AO2 T00101008
METAR KLXN 040435Z AUTO 00000KT 10SM CLR 01/M01 A3017 RMK AO2 T00101008
+ Add Your Business

KCZD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
UNICOM 122.8

Center

DENVER CENTER 132.7
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 132.7/226.675 (NORTH PLATTE RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLBF (34nm)
Tue, 3/3 5:35 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 1:00 AM CST
Scattered 20,000'
6sm
070° 6kts
VFR
1:00 AM CST - 3:00 AM CST
Overcast 15,000'
6sm
VRB° 4kts
IFR
3:00 AM CST - 8:00 AM CST
Mist
Sky Clear
2sm
VRB° 5kts
VFR
8:00 AM CST - 6:00 PM CST
Sky Clear
6sm
180° 4kts
TAF KLBF 032335Z 0400/0424 07006KT P6SM SCT200
   FM040700 VRB04KT P6SM OVC150
   FM040900 VRB05KT 2SM BR SKC
   FM041400 18004KT P6SM SKC
KCZD
EffectiveExpiresCategoryNOTAM
Domestic
2/4/26
0610Z
4/4/26
0109Z
!OLU 02/031 CZD OBST TOWER LGT (ASR 1278512) 410742.40N0994559.30W (18.9NM NE CZD) 2961.0FT (310.0FT AGL) U/S 2602040610-2604040109
No
MON-FRI 0800-1700
COZAD AIRPORT AUTHORITY
PO BOX 2000
COZAD, NE 69130
Phone: 308-784-3868
ALLISON DONNER
P.O. BOX 458
COZAD, NE 69130
Phone: 308-784-3868
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
OLU
--
ACTVT PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

5000 ft. x 75 ft.
CONC
Good
NONE
MED

30,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 137°317°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 52' 30"N 40° 51' 54"N
Longitude 100° 00' 41"W 99° 59' 57"W
Elevation 2,503' 2,497'
Threshold Crossing Height 52 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3.75°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

3000 ft. x 300 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 191°11°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 52' 23"N 40° 51' 54"N
Longitude 100° 00' 06"W 100° 00' 13"W
Elevation 2,500' 2,497'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 18/36 NOT PLOWED WINTER MONTHS.
A110-2FOR CD CTC DENVER ARTCC AT 303-651-4257.
A42-18_MARKMKD WITH YELLOW CONES.
A42-36_MARKMKD WITH YELLOW CONES.
A52-13GRAIN ELEVATOR.
A57-31CLNC SLP 26:1 ALSO DUE TO ROAD 631 FT OUT 16 FT ABV 0B.
A70-100LLAVBL H24 VIA CREDIT CARD.
A70-AAVBL H24 VIA CREDIT CARD.
A75-HCALL AHD FOR HNGR AVBL 308-784-3868.
A81-APTACTVT PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
COZAD MUNI (ICAO: KCZD, IATA: CZD) is a public airport located in COZAD, NE, US.
