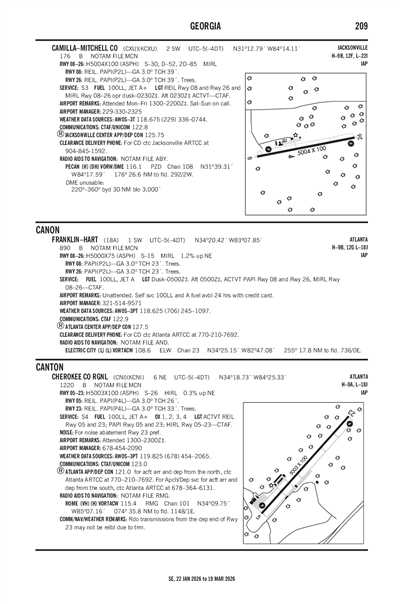

CAMILLA-MITCHELL COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCXU
ICAO KCXUIATA CXULocal CXU
CAMILLA-MITCHELL COUNTY
PublicPUB

2 miles SW of CAMILLA, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 12' 47"N 84° 14' 07"W
Elevation
176' MSL
Pattern Alt
1176' MSL
Mag Variation
5°W
Declination
5°W
Fuel
JET A (FSII), 100LL
FSS
MACON (MCN)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KCXU VFR
10:55 PM EST
Mist
Clear
6sm
59°F
57°F
30.30"Hg
VRB° 3kts
AO2
METAR KCXU 040355Z AUTO VRB03KT 6SM BR CLR 15/14 A3030 RMK AO2
+ Add Your Business

KCXU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3T 118.675
(229) 336-0744

Common

CTAF 122.8
REIL RWY 08 & 26; PAPI RWY 08 & 26; AND MIRL RWY 08/26 OPR DUSK TO 2130. AFT 2130 ACTVT - CTAF.
UNICOM 122.8

Center

JACKSONVILLE CENTER 125.75
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 125.75/363.075 (ALBANY RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KABY (20nm)
Tue, 3/3 6:32 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 1:00 AM EST
Sky Clear
6sm
070° 7kts
IFR
1:00 AM EST - 4:00 AM EST
Mist
Broken 800'
5sm
080° 3kts
LIFR
4:00 AM EST - 10:00 AM EST
Mist
Overcast 300'
1sm
070° 3kts
LIFR
Temporary 5:00 AM EST - 8:00 AM EST
Fog
No Clouds
0.5sm
Calm
VFR
10:00 AM EST - 7:00 PM EST
Scattered 4,000'
6sm
100° 5kts
TAF KABY 032332Z 0400/0424 07007KT P6SM SKC
   FM040600 08003KT 5SM BR BKN008
   FM040900 07003KT 1SM BR OVC003
   TEMPO 0410/0413 1/2SM FG
   FM041500 10005KT P6SM SCT040
KCXU
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0218Z
6/25/26
0218Z
!MCN 02/678 CXU OBST TOWER LGT (ASR 1253918) 311800.20N0841903.20W (6.6NM NW CXU) 394.0FT (233.9FT AGL) U/S 2602250218-2606250218
1/18/26
2346Z
5/18/26
2346Z
!MCN 01/413 CXU OBST TOWER LGT (ASR 1271070) 310851.40N0842412.10W (9.6NM WSW CXU) 370.1FT (224.1FT AGL) U/S 2601182346-2605182346
No
MON-FRI 0800-1700
SAT-SUN ON CALL
CITY OF CAMILLA
BOX 328
CAMILLA, GA 31730
Phone: 229-336-2216
CHERYL FORD
3907 AIRPORT ROAD
CAMILLA, GA 31730
Phone: 229-330-2325
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
REIL RWY 08 & 26; PAPI RWY 08 & 26; AND MIRL RWY 08/26 OPR DUSK TO 2130. AFT 2130 ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Minor
None
None
Crop Dusting

Runway 08/26

5004 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
52,000lbs
85,000lbs
--
  Runway 08 Runway 26
True Heading 79°259°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 31° 12' 43"N 31° 12' 52"N
Longitude 84° 14' 35"W 84° 13' 39"W
Elevation 168' 176'
Threshold Crossing Height 39 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A17-D1SAT-SUN ON CALL
A81-APTREIL RWY 08 & 26; PAPI RWY 08 & 26; AND MIRL RWY 08/26 OPR DUSK TO 2130. AFT 2130 ACTVT - CTAF.
CAMILLA-MITCHELL COUNTY (ICAO: KCXU, IATA: CXU) is a public airport located in CAMILLA, GA, US.
