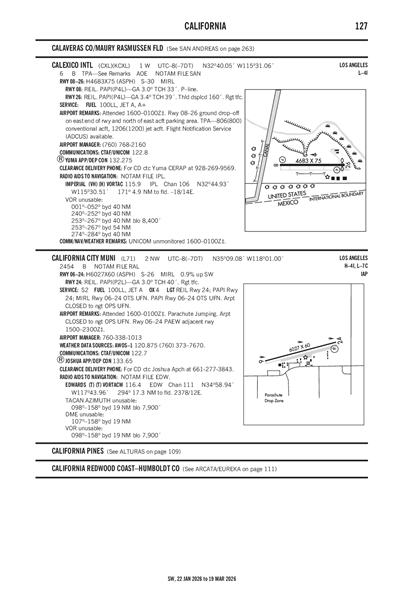

CALEXICO INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCXL
ICAO KCXLIATA CXLLocal CXL
CALEXICO INTL
PublicPUB

1 miles W of CALEXICO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 40' 03"N 115° 31' 03"W
Elevation
6' MSL
Pattern Alt
1006' MSL
Mag Variation
11°E
Declination
13°E
Fuel
JET A, JET A (FSII), 100LL
FSS
SAN DIEGO (SAN)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KIPL (10nm) VFR
7:53 PM PST
Clear
10sm
72°F
31°F
29.90"Hg
260° 4kts
AO2 SLP126 T02221006
METAR KIPL 040353Z AUTO 26004KT 10SM CLR 22/M01 A2990 RMK AO2 SLP126 T02221006
+ Add Your Business

KCXL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8
UNICOM MONITORED 0800-1700.

Center

YUMA CENTER 118.0
HIGH, USE: CD/P.
YUMA CENTER 132.275
LOW/HIGH, APCH/DEP SVC PRVDD BY YUMA CERAP (ZYL) ON FREQS 132.275/292.2 (EL CENTRO RCAG).

FAA A/FD Pages

Terminal Area Forecast

KIPL (10nm)
Tue, 3/3 3:22 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 6:00 PM PST
Few 25,000'
6sm
360° 9kts
VFR
6:00 PM PST - 7:00 AM PST
Scattered 25,000'
6sm
270° 5kts
VFR
7:00 AM PST - 1:00 PM PST
Broken 25,000'
Scattered 20,000'
6sm
VRB° 4kts
VFR
1:00 PM PST - 4:00 PM PST
Sky Clear
6sm
120° 4kts
TAF KIPL 032322Z 0400/0424 36009KT P6SM FEW250
   FM040200 27005KT P6SM SCT250
   FM041500 VRB04KT P6SM SCT200 BKN250
   FM042100 12004KT P6SM SKC
KCXL
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
2334Z
3/2/26
2359Z
!SAN 02/142 CXL AD AP JET A FUEL NOT AVBL 2602232334-2603022359
2/22/26
0639Z
3/9/26
0539Z
!SAN 02/135 CXL OBST TOWER LGT (ASR 1235432) 324118.70N1153022.60W (1.4NM NNE CXL) 163.1FT (160.1FT AGL) U/S 2602220639-2603090539
1/30/26
1532Z
3/1/26
2300Z
!SAN 01/204 CXL OBST TOWER LGT (ASR 1031207) 324048.00N1152539.00W (4.6NM E CXL) 326.1FT (306.1FT AGL) U/S 2601301532-2603012300
1/7/26
1731Z
4/7/26
1651Z
!SAN 01/050 CXL OBST POLE LGT (ASN 2013-AWP-4097-OE) 324038N1154017W (7.8NM W CXL) 113FT (129FT AGL) U/S 2601071731-2604071651
1/4/26
0001Z
7/4/26
2359Z
!SAN 01/018 CXL AIRSPACE SEE FDC 6/0092 ZLA 99.7 SECURITY 2601040001-2607042359
1/4/26
0001Z
7/4/26
2359Z
!SAN 01/016 CXL AIRSPACE SEE FDC 6/0091 ZLA 99.7 SECURITY 2601040001-2607042359
No
0800-1700
CITY OF CALEXICO
608 HEBER AVENUE
CALEXICO, CA 92231
Phone: (760) 768-2100
LILIANA FALOMIR
608 HEBER AVENUE
CALEXICO, CA 92231
Phone: (760) 768-2160
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
SAN
--
--
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
Airport of Entry
None
None
None
None
Crop Dusting

Runway 08/26

4683 ft. x 75 ft.
ASPH
Excellent
NONE
MED

30,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 91°271°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 40' 03"N 32° 40' 02"N
Longitude 115° 31' 31"W 115° 30' 36"W
Elevation -1' -6'
Threshold Crossing Height 33 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3.4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1RY 08/26 - GROUND DROP-OFF ON EAST END OF RY & NORTH OF EAST ACFT PARKING AREA.
A110-2FOR CD CTC YUMA CERAP AT 928-269-9569.
A14CITY MANAGER, OFFICE IN CALEXICO.
A82UNICOM MONITORED 0800-1700.
E147TPA 800' CONVENTIONAL ACFT; 1200' JET ACFT.
CALEXICO INTL (ICAO: KCXL, IATA: CXL) is a public airport located in CALEXICO, CA, US.
