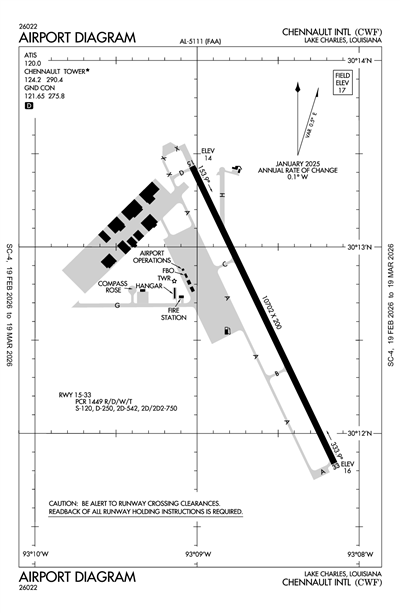

CHENNAULT INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCWF
ICAO KCWFIATA CWFLocal CWF
CHENNAULT INTL
PublicPUB

4 miles E of LAKE CHARLES, LA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 12' 38"N 93° 08' 35"W
Elevation
17' MSL
Pattern Alt
1500' MSL
Mag Variation
1°E
Declination
0°
Fuel
JET A-1+, 100LL
FSS
DE RIDDER (DRI)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KCWF MVFR
3:55 AM CST
Mist
Overcast 1,000'
Scattered 500'
4sm
68°F
67°F
30.10"Hg
120° 6kts
AO2 T01980197
METAR KCWF 040955Z AUTO 12006KT 4SM BR SCT005 OVC010 20/20 A3010 RMK AO2 T01980197
+ Add Your Business

KCWF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.0
AWOS-3 120.0
(337) 214-2134

Common

CTAF 124.2
WHEN ATCT CLSD ACTVT MALSR RWY 15; REIL RWY 33; PAPI RWY 15 & 33; HIRL RWY 15/33 - CTAF.
UNICOM 122.95

Ground

CHENNAULT GROUND 121.65
0600-2200

Tower

CHENNAULT TOWER 124.2
0600-2200

Approach

LAKE CHARLES APPROACH 119.8

Departure

LAKE CHARLES DEPARTURE 119.8

Center

LAKE CHARLES CENTER 124.7
LOW, APCH/DEP SVC PRVDD BY HOUSTON ARTCC (ZHU) ON FREQS 124.7/317.4 (LAKE CHARLES RCAG) WHEN LAKE CHARLES APCH CTL (LCH) CLSD.

Terminal Area Forecast

KLCH (7nm)
Tue, 3/3 11:32 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
LIFR
12:00 AM CST - 8:00 AM CST
Fog
Overcast 200'
0.5sm
150° 6kts
MVFR
8:00 AM CST - 12:00 PM CST
Overcast 2,000'
6sm
140° 10kts
VFR
12:00 PM CST - 6:00 PM CST
Broken 5,000'
6sm
160° 9kts
Gusts 16kts
VFR
6:00 PM CST - 9:00 PM CST
Broken 3,500'
6sm
180° 7kts
IFR
9:00 PM CST - 12:00 AM CST
Mist
Overcast 700'
4sm
150° 6kts
TAF KLCH 040532Z 0406/0506 15006KT 1/2SM FG OVC002
   FM041400 14010KT P6SM OVC020
   FM041800 16009G16KT P6SM BKN050
   FM050000 18007KT P6SM BKN035
   FM050300 15006KT 4SM BR OVC007
KCWF
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1910Z
3/26/26
2201Z
!CWF 02/014 CWF APRON TXL G LOCATION MARKINGS NOT STD 2602261910-2603262201
2/26/26
1407Z
3/12/26
2200Z
!CWF 02/012 CWF APRON SOUTH RAMP NONMOVEMENT AREA BDRY MARKINGS NOT STD 2602261407-2603122200
2/23/26
2107Z
3/6/26
2300Z
!CWF 02/011 CWF APRON FIXED BASE OPR PRKG RAMP WIP 2602232107-2603062300
2/17/26
1948Z
4/3/26
1948Z
!CWF 02/010 CWF OBST TOWER LGT (ASN 2021-ASW-12050-OE) 302608N0930643W (13.5NM NE CWF) 441FT (389FT AGL) U/S 2602171948-2604031948
2/12/26
1201Z
5/12/26
2358Z
!CWF 02/005 CWF OBST CRANE (ASN UNKNOWN) 301153N0930846W (0.88NM SSW CWF)
UNKNOWN (160FT AGL) FLAGGED AND LGTD DLY SR-SS 2602121201-2605122358
1/28/26
1712Z
4/28/26
0500Z
!CWF 01/007 CWF OBST TOWER LGT (ASR 1021744) 301420.80N0930443.50W (3.8NM ENE CWF) 541.0FT (525.9FT AGL) U/S 2601281712-2604280500
1/19/26
2344Z
3/5/26
2343Z
!CWF 01/003 CWF OBST TOWER LGT (ASR 1300471) 301754.90N0930637.10W (5.5NM NNE CWF) 311.0FT (299.9FT AGL) U/S 2601192344-2603052343
6/6/25
1401Z
6/6/26
2359Z
!CWF 06/002 CWF OBST TOWER LGT (ASR 1022539) 300828.00N0930352.00W (5.8NM SE CWF) 322.8FT (316.9FT AGL) U/S 2506061401-2606062359
FDC
10/15/25
1300Z
!FDC 5/1061 CWF IAP CHENNAULT INTL, LAKE CHARLES, LA.
RADAR 1, AMDT 1B...
PROCEDURE NA.
2510151300-2710151300EST
Yes
0600-2200
AFT HRS CALL 337-433-7766.
CHENNAULT INTL ARPT AUTHORITY
3650 SEN. J. BENNETT JOHNSTON AVE
LAKE CHARLES, LA 70615
Phone: 337-491-9961
W. KEVIN MELTON
3650 SEN. J. BENNETT JOHNSTON AVE
LAKE CHARLES, LA 70615
Phone: 337-491-9961
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
CWF
--
WHEN ATCT CLSD ACTVT MALSR RWY 15; REIL RWY 33; PAPI RWY 15 & 33; HIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
None
None
Low Pressure
None
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 15/33

10702 ft. x 200 ft.
CONC
Fair
NONE
HIGH

120,000lbs
250,000lbs
542,000lbs
750,000lbs
  Runway 15 Runway 33
True Heading 154°334°
Traffic Pattern Right
Markings PIR NPI
Markings Condition FAIR FAIR
Latitude 30° 13' 26"N 30° 11' 50"N
Longitude 93° 09' 02"W 93° 08' 09"W
Elevation 14' 16'
Threshold Crossing Height 53 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes
A110-1INDEX E AVBL WITH 24 HRS NOTICE CALL AMGR 337-491-9961.
A110-2BIRDS ON & INVOF OF ARPT
A110-3WHEN ATCT CLSD, FOR CD CTC HOUSTON ARTCC AT 281-230-5622.
A110-4PPR REQD FOR ACFT / HELO OPS IN THE INDUSTRIAL AREA
A110-5FOR PORT OF ENTRY REQ, CONTACT THE DIR OF OPS VIA CIAA@CHENNAULT.ORG AT LEAST 3 BUS DAYS (M-F) PRIOR TO PLANNED ARR.
A110-6CTC APRT MGR FOR DSGND RAMP SPACE FOR PUB USE.
A17-M1AFT HRS CALL 337-433-7766.
A266 HRS PPR FOR ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 337-491-9961. ARFF INDEX E AVAILABLE 24/7
A39-15/33PCR VALUE: 1449/R/D/W/T
A70-100LLFOR FUEL CALL 337-436-4877. SELF SVC AVBL 24 HRS WITH CREDIT CARD.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 15; REIL RWY 33; PAPI RWY 15 & 33; HIRL RWY 15/33 - CTAF.
E111PRVDD ATCT OPNL TO PRVD ATC SVCS PRIOR TO ACFT OPNS.
CHENNAULT INTL (ICAO: KCWF, IATA: CWF) is a public airport located in LAKE CHARLES, LA, US.
