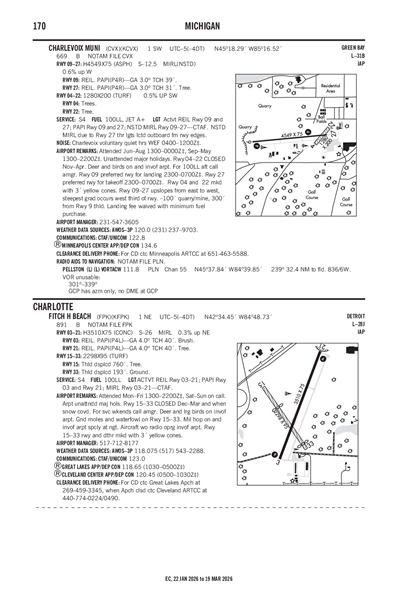

CHARLEVOIX MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCVX
ICAO KCVXIATA CVXLocal CVX
CHARLEVOIX MUNI
PublicPUB

1 miles SW of CHARLEVOIX, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 18' 17"N 85° 16' 31"W
Elevation
669' MSL
Pattern Alt
1669' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A (FSII), 100LL
FSS
LANSING (LAN)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KCVX VFR
11:55 PM EST
Broken 4,200'
10sm
30°F
19°F
30.16"Hg
VRB° 3kts
AO2 400531035
METAR KCVX 040455Z AUTO VRB03KT 10SM BKN042 M01/M07 A3016 RMK AO2 400531035
+ Add Your Business

KCVX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 120.0
(231) 237-9703

Common

CTAF 122.8
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; NSTD MIRL RWY 09/27 - CTAF.
UNICOM 122.8

Center

MINNEAPOLIS CENTER 134.6
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 134.6/354.05 (PELLSTON RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPLN (26nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 10:00 PM EST
Few 25,000'
6sm
VRB° 3kts
VFR
10:00 PM EST - 4:00 AM EST
Broken 3,500'
6sm
VRB° 3kts
MVFR
4:00 AM EST - 10:00 AM EST
Broken 2,200'
6sm
Calm
VFR
10:00 AM EST - 1:00 PM EST
Broken 3,500'
6sm
200° 2kts
VFR
1:00 PM EST - 7:00 PM EST
Few 25,000'
6sm
220° 4kts
TAF KPLN 032320Z 0400/0424 VRB03KT P6SM FEW250
   FM040300 VRB03KT P6SM BKN035
   FM040900 00000KT P6SM BKN022
   FM041500 20002KT P6SM BKN035
   FM041800 22004KT P6SM FEW250
KCVX
EffectiveExpiresCategoryNOTAM
Domestic
2/4/26
1757Z
4/4/26
2359Z
Runway!CVX 02/002 CVX RWY 09 PAPI U/S 2602041757-2604042359
1/27/26
1243Z
4/1/26
1243Z
Runway!CVX 01/017 CVX RWY 04/22 CLSD 2601271243-2604011243
No
JUN-AUG 0800-1900
SEP-MAY 0800-1700
UNATNDD MAJOR HOLS.
CITY OF CHARLEVOIX
210 STATE ST
CHARLEVOIX, MI 49720
Phone: 231-547-3270
ROBERT SCHOLEY
111 AIRPORT DR
CHARLEVOIX, MI 49720
Phone: 231-547-3605
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
CVX
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; NSTD MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Charter Service
Parachute Jump Activity

Runway 04/22

1280 ft. x 200 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 40°220°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 45° 18' 14"N 45° 18' 23"N
Longitude 85° 16' 15"W 85° 16' 04"W
Elevation 646' 640'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

4549 ft. x 75 ft.
ASPH
Good
NONE
NSTD

12,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 85°265°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 18' 15"N 45° 18' 19"N
Longitude 85° 17' 09"W 85° 16' 06"W
Elevation 669' 643'
Threshold Crossing Height 39 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RWY 09/27 UPSLP FM EAST TO WEST, STEEPEST GRAD OCRS WEST THIRD OF RWY.
A110-10FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-2DEER & BIRDS ON & INVOF ARPT.
A110-4-100 FT QUARRY/MINE, 300 FT FM RWY 09 THR.
A110-8CHARLEVOIX VOLUNTARY QUIET HRS WEF 2300-0700 DLY.
A17-M2UNATNDD MAJOR HOLS.
A24LDG FEE WAIVED WITH MNM FUEL PURCHASE.
A30-04/22CLSD NOV-APR.
A30A-09PREFERRED LDG RWY 2300-0700.
A30A-27PREFERRED TKOF RWY 2300-0700.
A40-09/27NSTD MIRL DUE TO RWY 27 THR LGTS LCTD OUTBOARD FM RWY EDGES.
A42-04_MARK3 FT YELLOW CONES.
A42-22_MARK3 FT YELLOW CONES.
A70-100LLFOR FUEL AFT HRS CALL AMGR.
A81-APTACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; NSTD MIRL RWY 09/27 - CTAF.
E111ESTABD BFR 1959.
CHARLEVOIX MUNI (ICAO: KCVX, IATA: CVX) is a public airport located in CHARLEVOIX, MI, US.
