No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCVN
CLOVIS RGNL
PublicPUB

6 miles E of CLOVIS, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 25' 36"N 103° 04' 39"W
4216' MSL
5016' MSL
09E
JET A, 100LL
ALBUQUERQUE (ABQ)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
7/11/24-8/8/24
KCVN VFR
3:56 AM MDT
Clear
10sm
62°F
57°F
29.99"Hg
260° 7kts
AO2 SLP110 T01670139
KCVN 190956Z AUTO 26007KT 10SM CLR 17/14 A2999 RMK AO2 SLP110 T01670139
Add Your Business

KCVN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
575-389-1056
 135.375

FAA A/FD Pages

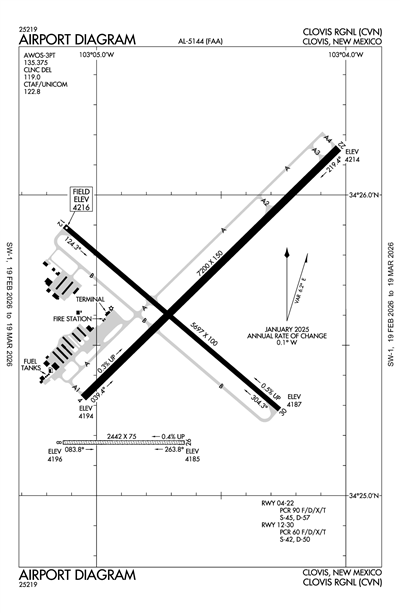

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCVS (12nm)
Thu, 9/19 4:00 AM MDT
Thu, 9/19 4:00 AM MDT - Fri, 9/20 10:00 AM MDT
VFR
4:00 AM MDT - 9:00 AM MDT
Few 25,000'
6sm
29.97"Hg
VRB° 6kts
VFR
Becoming 9:00 AM MDT - 6:00 PM MDT
Scattered 25,000'
6sm
29.91"Hg
220° 12kts
Gusts 20kts
VFR
Becoming 6:00 PM MDT - 2:00 AM MDT
Sky Clear
6sm
29.91"Hg
VRB° 6kts
VFR
Becoming 2:00 AM MDT - 8:00 AM MDT
Few 8,000'
6sm
29.97"Hg
VRB° 6kts
VFR
Becoming 8:00 AM MDT - 10:00 AM MDT
Scattered 12,000'
6sm
30.03"Hg
210° 15kts
Gusts 25kts
TAF KCVS 191000Z 1910/2016 VRB06KT 9999 FEW250 QNH2996INS
   BECMG 1915/1916 22012G20KT 9999 SCT250 QNH2992INS
   BECMG 2000/2001 VRB06KT 9999 SKC QNH2992INS
   BECMG 2008/2009 VRB06KT 9999 FEW080 QNH2997INS
   BECMG 2014/2015 21015G25KT 9999 SCT120 QNH3002INS TX34/1923Z TN16/1913Z
KCVN
Domestic
9/4/241747Z !CVN 09/003 CVN RWY 04 RAI LGT LOW/HIGH INTST U/S 2409041747-2409182300EST
4/11/221526Z !CVN 04/004 CVN RWY 30 VASI DECOMMISSIONED 2204111526-PERM
8/31/211510Z !CVN 08/013 CVN RWY 12/30 CHANGED TO 5697FT X 100FT. DECLARED DIST: RWY 12 TORA 5697FT TODA 5697FT ASDA 5697FT LDA 5697FT. RWY 30 TORA 5697FT TODA 5697FT ASDA 5697FT LDA 5697FT. 2108311510-PERM
FDC
7/11/241521Z !FDC 4/0785 CVN IAP CLOVIS RGNL, CLOVIS, NM.
VOR RWY 22, AMDT 5A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TXO VORTAC UNMONITORED. 2407111521-2410081520EST
5/10/241639Z !FDC 4/2457 CVN IAP CLOVIS RGNL, CLOVIS, NM.
RNAV (GPS) RWY 30, ORIG-A...
NOTE: CIRCLING NA TO RWYS 8 AND 26.
2405101639-2605091639EST
No
0700-1700
CITY OF CLOVIS
PO BOX 760
CLOVIS, NM 88101
Phone: (575) 769-7890
AMANDA BRUNGART
459 CR 11.5
TEXICO, NM 88101
Phone: 717-460-3228
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
CVN
--
ACTVT MALSR RWY 04; PAPI RWY 04, 22; MIRL RWY 04/22 & 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
42
15
7
3
0
0
Major
Major
None
None
Air Freight
Crop Dusting
Air Ambulance
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

7200 ft. x 150 ft.
ASPH
Good
AFSC
MED
17 /F/C/X/T
45,000lbs
57,000lbs
--
--
  Runway 04 Runway 22
True Heading 46°226°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 34° 25' 20"N 34° 26' 09"N
Longitude 103° 05' 03"W 103° 04' 02"W
Elevation 4,194' 4,214'
Threshold Crossing Height 53 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 08/26

2442 ft. x 75 ft.
TURF
Fair
NONE

3 /F/D/X/T
--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 34° 25' 11"N 34° 25' 11"N
Longitude 103° 05' 08"W 103° 04' 39"W
Elevation 4,196' 4,185'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

5697 ft. x 100 ft.
ASPH
Good
NONE
MED

42,000lbs
50,000lbs
--
--
  Runway 12 Runway 30
True Heading 130°310°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 25' 54"N 34° 25' 17"N
Longitude 103° 05' 08"W 103° 04' 16"W
Elevation 4,216' 4,187'
Threshold Crossing Height -- 75 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1CTN: JET TFC; CANNON AFB 13 NM SW.
A110-3AGRICULTURE ACT ON & INVOF ARPT.
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
CLOVIS RGNL (ICAO: KCVN, IATA: CVN) is a public airport located in CLOVIS, NM.
