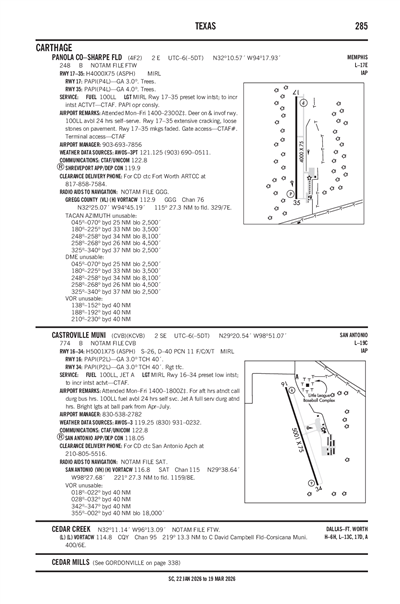

CASTROVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCVB
ICAO KCVBLocal CVB
CASTROVILLE MUNI
PublicPUB

2 miles SE of CASTROVILLE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 20' 33"N 98° 51' 04"W
Elevation
774' MSL
Pattern Alt
1774' MSL
Mag Variation
4°E
Declination
4°E
Fuel
JET A, 100LL
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KCVB VFR
9:55 PM CST
Few 2,000'
10sm
73°F
68°F
29.98"Hg
130° 9kts
Gusts 18kts
AO2
METAR KCVB 040355Z AUTO 13009G18KT 10SM FEW020 23/20 A2998 RMK AO2
+ Add Your Business

KCVB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.25
(830) 931-0232

Common

CTAF 122.8
SS-SR MIRL RWY 16/34 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
UNICOM 122.8

Arrival

CRVZA RNAV STAR 125.7
DNKIN RNAV STAR 125.1
POPPO RNAV STAR 125.1
SAT REQUEST BAZ ATIS, 119.325, ADDED TO THIS STAR.
QERVO RNAV STAR 127.1
SAT REQUEST BAZ ATIS, 119.325, ADDED TO THIS STAR.

Approach

SAN ANTONIO APPROACH 118.05

Departure

SAN ANTONIO DEPARTURE 118.05

Terminal Area Forecast

KSKF (14nm)
Tue, 3/3 8:00 PM CST
Tue, 3/3 8:00 PM CST - Thu, 3/5 2:00 AM CST
VFR
Temporary 8:00 PM CST - 9:00 PM CST
No Clouds
N/A
140° 15kts
Gusts 25kts
MVFR
8:00 PM CST - 10:00 PM CST
Broken 30,000'
Broken 3,000'
6sm
29.91"Hg
140° 10kts
Gusts 15kts
MVFR
Becoming 10:00 PM CST - 9:00 AM CST
Overcast 1,000'
6sm
29.97"Hg
150° 10kts
Light Turbulence: 1,000 - 6,000'
IFR
Temporary 5:00 AM CST - 8:00 AM CST
Light Drizzle and Mist
Overcast 800'
4.97sm
Calm
MVFR
Becoming 9:00 AM CST - 11:00 AM CST
Broken 25,000'
Broken 1,500'
6sm
29.97"Hg
140° 10kts
Gusts 15kts
Light Turbulence: 500 - 5,500'
MVFR
Becoming 11:00 AM CST - 1:00 PM CST
Broken 25,000'
Broken 3,000'
Broken 2,000'
6sm
30.00"Hg
150° 12kts
Gusts 18kts
Light Turbulence: 500 - 6,000'
VFR
Becoming 1:00 PM CST - 10:00 PM CST
Overcast 20,000'
Broken 5,500'
Scattered 4,500'
6sm
29.91"Hg
150° 15kts
Gusts 25kts
Light Turbulence: 500 - 6,000'
MVFR
Becoming 10:00 PM CST - 2:00 AM CST
Overcast 25,000'
Broken 10,000'
Broken 1,000'
6sm
29.88"Hg
150° 10kts
Light Turbulence: 500 - 5,000'
TAF KSKF 040200Z 0402/0508 14010G15KT 9999 BKN030 BKN300 QNH2991INS
   TEMPO 0402/0403 14015G25KT
   BECMG 0404/0405 15010KT 9999 OVC010 510105 QNH2997INS
   TEMPO 0411/0414 8000 -DZ BR OVC008
   BECMG 0415/0416 14010G15KT 9999 BKN015 BKN250 510055 QNH2998INS
   BECMG 0417/0418 15012G18KT 9999 BKN020 BKN030 BKN250 510006 QNH2999INS
   BECMG 0419/0420 15015G25KT 9999 SCT045 BKN055 OVC200 510006 QNH2992INS
   BECMG 0504/0505 15010KT 9999 BKN010 BKN100 OVC250 510005 QNH2988INS TX31/0422Z TN21/0413Z
KCVB
EffectiveExpiresCategoryNOTAM
Domestic
1/28/26
0435Z
4/27/26
0500Z
!CVB 01/005 CVB OBST TOWER LGT (ASR 1219778) 292116.40N0984820.60W (2.5NM ENE CVB) 1086.9FT (349.1FT AGL) U/S 2601280435-2604270500
1/13/26
1400Z
3/7/26
2300Z
!CVB 01/002 CVB AIRSPACE PJE WI AN AREA DEFINED AS 1NM RADIUS OF CVB SFC-10000FT FRI-MON 1400-2300 2601131400-2603072300
FDC
11/25/25
1056Z
!FDC 5/1341 CVB IAP CASTROVILLE MUNI, CASTROVILLE, TX.
RNAV (GPS) RWY 16, AMDT 1A...
LNAV MDA 1280/HAT 506 ALL CATS. CIRCLING CAT A MDA 1280/HAA 506. VDP 1.21NM TO RW16.
2511251056-2711251056EST
No
MON-FRI 0800-1200
FOR AFT HRS ATNDT CALL DURG BUS HRS.
CITY OF CASTROVILLE
1209 FIORELLA ST
CASTROVILLE, TX 78009
Phone: 830-931-4070
MICHAEL HALEY
10500 AIRPORT ROAD
CASTROVILLE, TX 78009
Phone: 830-538-2782
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
CVB
--
SS-SR MIRL RWY 16/34 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 16/34

5001 ft. x 75 ft.
ASPH
Excellent
NONE
MED
11/F/C/X/T
26,000lbs
40,000lbs
--
--
  Runway 16 Runway 34
True Heading 161°341°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 20' 56"N 29° 20' 09"N
Longitude 98° 51' 14"W 98° 50' 55"W
Elevation 774' 762'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2BRIGHT LGTS AT BALL PARK FM APR-JULY.
A110-3FOR CD CTC SAN ANTONIO APCH AT 210-805-5516.
A14COMMUNITY DEV. DIR/AMGR.
A17-H1FOR AFT HRS ATNDT CALL DURG BUS HRS.
A35-16/34PAVEMENT STRENGTH INCREASE REQUEST BASED ON KSA ENGINEERING REPORT
A36-16/34PAVEMENT STRENGTH INCREASE REQUEST BASED ON KSA ENGINEERING REPORT
A39-16/34PAVEMENT STRENGTH INCREASE REQUEST BASED ON KSA ENGINEERING REPORT
A70-100LLFUEL AVBL 24 HRS SELF SVC. JET A FULL SERV DURG ATND HRS.
A76-PAJAPAJA BLW 10000 FT MSL FRI-SUN 0800-1600.
A81-APTSS-SR MIRL RWY 16/34 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
E111PRE DATES THE ACT.
CASTROVILLE MUNI (ICAO: KCVB, IATA: CVB) is a public airport located in CASTROVILLE, TX, US.
