No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCUB
JIM HAMILTON L B OWENS
PublicPUB

2 miles S of COLUMBIA, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 58' 14"N 80° 59' 43"W
193' MSL
1000' MSL
06W
JET A, 100LL
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
10/31/24-11/28/24
KCUB VFR
6:53 AM EST
Scattered 4,400'
10sm
62°F
52°F
30.18"Hg
Calm
AO2 SLP219 T01670111 10189 20167 53023
KCUB 091153Z AUTO 00000KT 10SM SCT044 17/11 A3018 RMK AO2 SLP219 T01670111 10189 20167 53023
Add Your Business

KCUB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

ASOS

ASOS
803-929-0665
 118.675

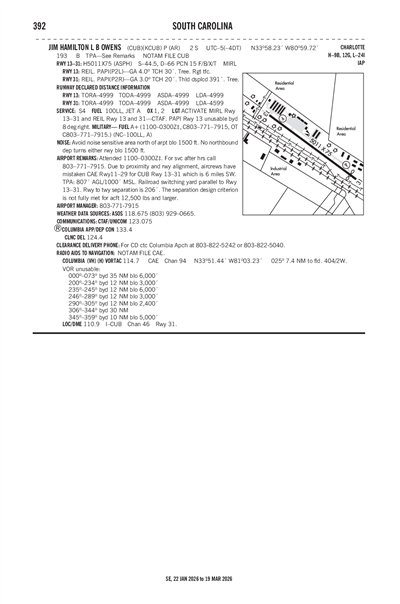

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCUB
Sat, 11/9 6:31 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Broken 4,000'
Scattered 1,000'
6sm
070° 7kts
VFR
9:00 AM EST - 7:00 PM EST
Scattered 5,000'
6sm
070° 10kts
Gusts 18kts
VFR
7:00 PM EST - 3:00 AM EST
Scattered 15,000'
6sm
VRB° 3kts
VFR
3:00 AM EST - 7:00 AM EST
Broken 15,000'
Scattered 1,500'
6sm
VRB° 3kts
KCUB 091131Z 0912/1012 07007KT P6SM SCT010 BKN040
   FM091400 07010G18KT P6SM SCT050
   FM100000 VRB03KT P6SM SCT150
   FM100800 VRB03KT P6SM SCT015 BKN150
KCUB
Domestic
11/5/240826Z !CUB 11/002 CUB OBST TOWER LGT (ASR 1244488) 340004.40N0810204.80W (2.7NM NW CUB) 685.0FT (394.0FT AGL) U/S 2411050826-2412200815
11/1/241026Z !CUB 11/001 CUB OBST TOWER LGT (ASR 1058761) 340904.00N0805436.00W (11.8NM NNE CUB) 1416.7FT (1003.0FT AGL) U/S 2411011026-2412161125
10/29/242044Z !CUB 10/011 CUB OBST TOWER LGT (ASR 1243898) 335113.90N0804647.10W (12.7NM ESE CUB) 437.0FT (279.9FT AGL) U/S 2410292044-2411131944
FDC
8/13/241854Z !FDC 4/8005 CUB IAP JIM HAMILTON L B OWENS, COLUMBIA, SC.
LOC RWY 31, AMDT 2...
MISSED APPROACH: CLIMB TO 1200 THEN CLIMBING LEFT TURN TO 2100 DIRECT CAE VORTAC AND HOLD. CONTINUE CLIMB IN HOLD TO 2100.
2408131854-2608131854EST
No
0600-2200
FOR SERVICE AFTER HRS CALL 803-771-7915.
COUNTY OF RICHLAND
PO BOX 192
COLUMBIA, SC 29202
Phone: 803-748-4616
PETER CEVALLOS
1400 JIM HAMILTON BLVD
COLUMBIA, SC 29205
Phone: 803-771-7915
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
CUB
--
ACTVT MIRL RY 13/31 AND REILS RYS 13 & 31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 13/31

5011 ft. x 75 ft.
ASPH
Fair
NONE
MED
15 /F/B/X/T
44,000lbs
66,000lbs
--
--
  Runway 13 Runway 31
True Heading 125°305°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 58' 28"N 33° 57' 59"N
Longitude 81° 00' 07"W 80° 59' 19"W
Elevation 193' 182'
Threshold Crossing Height 30 ft. AGL 20 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RR SWITCHING YARD PARALLEL TO RY 13/31.
A110-3AVOID NOISE SENSITIVE AREA NORTH OF ARPT BLO 1500 FT.
A110-4NO NORTHBOUND DEP TURNS EITHER RY BLO 1500 FT.
A110-6RY TO TWY SEPARATION IS 206 FT. THE SEPARATION DESIGN CRITERION IS NOT FULLY MET FOR ACFT 12,500 LBS AND LARGER
A110-7DUE TO PROXIMITY AND RY ALIGNMENT, AIRCREWS HAVE MISTAKEN CAE (RY 11/29) FOR CUB (RY 13/31) WHICH IS 6 MILES SW.
A110-8FOR CD CTC COLUMBIA APCH AT 803-822-5242 OR 803-822-5040.
JIM HAMILTON L B OWENS (ICAO: KCUB, IATA: CUB) is a public airport located in COLUMBIA, SC.
