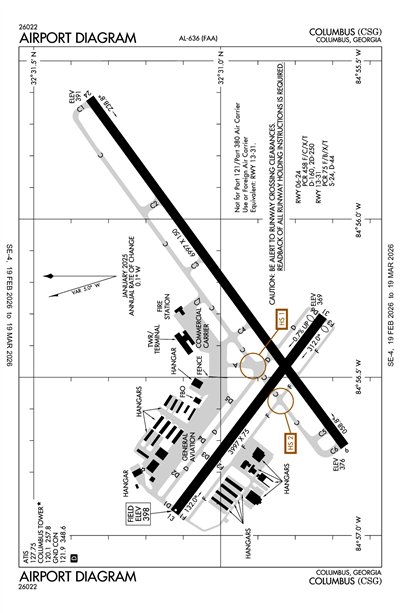

COLUMBUS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCSG
ICAO KCSGIATA CSGLocal CSG
COLUMBUS
PublicPUB

3 miles NE of COLUMBUS, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 30' 59"N 84° 56' 20"W
Elevation
398' MSL
Pattern Alt
1398' MSL
Mag Variation
5°W
Declination
2°W
Fuel
JET A, 100LL
FSS
MACON (MCN)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KCSG VFR
11:51 PM EST
Clear
10sm
55°F
52°F
30.29"Hg
110° 5kts
AO2 SLP255 T01280111 401890128
METAR KCSG 040451Z AUTO 11005KT 10SM CLR 13/11 A3029 RMK AO2 SLP255 T01280111 401890128
+ Add Your Business

KCSG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.75
ASOS (706) 748-8097

Common

CTAF 120.1
ALL LGTS OPER 0900-2100. AFTER 2100, ACTVT MALSR RWY 06; REIL RWY 24; PAPI RWY 06 & 24; HIRL RWY 06/24; MIRL RWY 13/31; TWY LGTS; WINDCONE LGTS - CTAF. REIL RWY 13 & 31; PAPI RWY 13 & 31 OPER CONSLY.
UNICOM 122.95

Ground

COLUMBUS GROUND 121.9
0900-2100

Tower

COLUMBUS TOWER 120.1
0900-2100

Approach

ATLANTA APPROACH 125.5
ATLANTA APPROACH 126.55
7000 FT & ABV

Departure

ATLANTA DEPARTURE 125.5
ATLANTA DEPARTURE 126.55
7000 FT & ABV

Center

ATLANTA CENTER 120.45
LOW, APCH/DEP SVC PRVDD BY ATLANTA LARGE TRACON 0615-2200; APCH/DEP SVC PRVDD BY ATLANTA ARTCC APCH/DEP SVC 2200-0615 ON FREQS 120.45/298.850 (COLUMBUS RCAG).

Flight Service

Flight Service 122.2
(MCN)

Emergency

Emergency 121.5

Terminal Area Forecast

KCSG
Tue, 3/3 6:41 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 1:00 AM EST
Scattered 10,000'
Scattered 2,500'
6sm
110° 6kts
VFR
1:00 AM EST - 4:00 AM EST
Broken 10,000'
Scattered 1,500'
6sm
100° 4kts
IFR
4:00 AM EST - 10:00 AM EST
Mist
Broken 700'
4sm
VRB° 3kts
LIFR
Temporary 5:00 AM EST - 9:00 AM EST
Mist
Overcast 300'
1sm
Calm
VFR
10:00 AM EST - 12:00 PM EST
Mist
Broken 4,000'
Scattered 500'
6sm
130° 4kts
VFR
12:00 PM EST - 2:00 PM EST
Scattered 7,000'
Scattered 2,500'
6sm
140° 5kts
VFR
2:00 PM EST - 7:00 PM EST
Scattered 12,000'
Scattered 4,000'
6sm
160° 6kts
TAF KCSG 032341Z 0400/0424 11006KT P6SM SCT025 SCT100
   FM040600 10004KT P6SM SCT015 BKN100
   FM040900 VRB03KT 4SM BR BKN007
   TEMPO 0410/0414 1SM BR OVC003
   FM041500 13004KT 6SM BR SCT005 BKN040
   FM041700 14005KT P6SM SCT025 SCT070
   FM041900 16006KT P6SM SCT040 SCT120
KCSG
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1300Z
!CSG 02/031 CSG SVC TAR/SSR U/S 2602261300-2602262100EST
2/26/26
0400Z
2/27/26
1100Z
Runway!CSG 02/037 CSG RWY 06/24 CLSD DLY 0400-1100 2602260400-2602271100
2/25/26
1300Z
!CSG 02/030 CSG SVC TAR/SSR U/S 2602251300-2602252100EST
2/24/26
1538Z
!CSG 02/040 CSG COM REMOTE COM OUTLET 122.2 U/S 2602241538-2603032000EST
2/22/26
2028Z
6/22/26
2028Z
!CSG 02/039 CSG OBST TOWER LGT (ASR 1036113) 323145.00N0850155.10W (4.8NM W CSG) 921.6FT (325.8FT AGL) U/S 2602222028-2606222028
2/20/26
1632Z
4/6/26
1631Z
!CSG 02/034 CSG OBST TOWER LGT (ASN 2017-ASO-19802-OE) 322434N0851035W (13.8NM WSW CSG) 740FT (315FT AGL) U/S 2602201632-2604061631
2/19/26
2217Z
2/27/26
2300Z
Runway!CSG 02/032 CSG RWY 24 RTHL NOT STD 2602192217-2602272300
2/17/26
1245Z
5/18/26
0500Z
!CSG 02/027 CSG OBST TOWER LGT (ASR 1019943) 323643.00N0844812.00W (9.0NM NE CSG) 943.9FT (254.9FT AGL) U/S 2602171245-2605180500
2/17/26
0000Z
4/2/26
0500Z
!CSG 02/026 CSG OBST TOWER LGT (ASR 1035825) 322708.50N0850406.60W (7.7NM WSW CSG) 1109.9FT (602.0FT AGL) U/S 2602170000-2604020500
2/15/26
0642Z
3/2/26
0542Z
!CSG 02/024 CSG OBST TOWER LGT (ASR 1246542) 322004.20N0850128.00W (11.8NM SSW CSG) 540.0FT (187.0FT AGL) U/S 2602150642-2603020542
2/13/26
1135Z
!CSG 02/022 CSG NAV TACAN NOT MNT 2602131135-2602272000EST
2/12/26
1322Z
3/29/26
1321Z
!CSG 02/021 CSG OBST TOWER LGT (ASR 1247279) 322204.20N0845756.70W (9.0NM S CSG) 529.9FT (190.0FT AGL) U/S 2602121322-2603291321
2/1/26
0331Z
3/18/26
0331Z
!CSG 02/002 CSG OBST TOWER LGT (ASN 2017-ASO-19212-OE) 321745N0851222W (19.1NM SW CSG) 686FT (312FT AGL) U/S 2602010331-2603180331
1/30/26
1800Z
2/27/26
2300Z
!CSG 01/076 CSG TWY D5 CLSD 2601301800-2602272300
1/30/26
1631Z
!CSG 01/075 CSG NAV ILS RWY 06 OM U/S 2601301631-2610072111EST
1/30/26
1322Z
2/27/26
2300Z
!CSG 01/074 CSG TWY F HLDG PSN SIGN BTN TWY C AND RWY 06/24 LGT U/S 2601301322-2602272300
1/30/26
1322Z
2/27/26
2300Z
Runway!CSG 01/073 CSG RWY 24 RWY END ID LGT U/S 2601301322-2602272300
1/30/26
1322Z
2/27/26
2300Z
Runway!CSG 01/072 CSG RWY 06/24 SFC MARKINGS NOT STD 2601301322-2602272300
1/26/26
1502Z
3/12/26
0902Z
!CSG 01/071 CSG OBST TOWER LGT (ASN 2025-ASO-5857-OE) 322919N0850554W (8.3NM WSW CSG) 729FT (240FT AGL) U/S 2601261502-2603120902
1/8/26
1748Z
3/8/26
2359Z
!CSG 01/016 CSG OBST TOWER LGT (ASR 1035482) 323603.00N0845440.60W (5.3NM NNE CSG) 906.8FT (232.0FT AGL) U/S 2601081748-2603082359
11/5/25
1305Z
5/5/26
2359Z
!CSG 11/011 CSG OBST TOWER LGT (ASR 1020356) 322559.00N0845702.00W (5.0NM S CSG) 614.2FT (403.9FT AGL) U/S 2511051305-2605052359
12/15/23
2058Z
Runway!CSG 12/033 CSG RWY 06/24 SAFETY AREA NOT STD S EDGE 2312152058-PERM
FDC
9/24/25
1619Z
!FDC 5/9834 CSG IAP COLUMBUS, COLUMBUS, GA.
ILS OR LOC RWY 6, AMDT 26...
NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 1000.
DISREGARD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 900.
2509241619-2709261618EST
Yes
ALL
COLUMBUS AIRPORT COMMISSION
3250 W BRITT DAVID RD
COLUMBUS, GA 31909
Phone: 706-324-2449
AMBER CLARK, A.A.E.
3250 W BRITT DAVID RD
COLUMBUS, GA 31909
Phone: 706-575-0907
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
CSG
--
ALL LGTS OPER 0900-2100. AFTER 2100, ACTVT MALSR RWY 06; REIL RWY 24; PAPI RWY 06 & 24; HIRL RWY 06/24; MIRL RWY 13/31; TWY LGTS; WINDCONE LGTS - CTAF. REIL RWY 13 & 31; PAPI RWY 13 & 31 OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 06/24

6997 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

--
160,000lbs
250,000lbs
--
  Runway 06 Runway 24
True Heading 54°234°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 30' 40"N 32° 31' 21"N
Longitude 84° 56' 43"W 84° 55' 37"W
Elevation 376' 391'
Threshold Crossing Height 48 ft. AGL 43 ft. AGL
Visual Glide Path Angle 2.61° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 13/31

3997 ft. x 75 ft.
ASPH
Good
NONE
MED

24,000lbs
44,000lbs
--
--
  Runway 13 Runway 31
True Heading 127°307°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 32° 31' 07"N 32° 30' 44"N
Longitude 84° 56' 56"W 84° 56' 18"W
Elevation 398' 369'
Threshold Crossing Height 36 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS ON & INVOF ARPT.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC ATLANTA APCH AT 678-364-6132, WHEN ATCT CLSD CTC ATLANTA ARTCC AT 770-210-7692.
A110-3BE ALERT FOR RWY 6 AT TWY D INT DEP INSTRUCTIONS WITH RWY RMNG 5085 FT TORA/TODA/ASDA.
A110-4BE ALERT FOR RWY 6 AT TWY F INT DEP INSTRUCTIONS WITH RWY RMNG 5623 FT TORA/TODA/ASDA.
A26INDEX B ARFF EQUIP AVBL.
A30-13/31RWY 13/31 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-06/24PCR VALUE: 458/F/C/X/T
A39-13/31PCR VALUE: 75/F/B/X/T
A58-24+5 FT GND 200 FT FROM RWY END 500 FT RIGHT.
A70-100LLSELF SERVE 100LL AVBL 24 HRS.
A81-APTALL LGTS OPER 0900-2100. AFTER 2100, ACTVT MALSR RWY 06; REIL RWY 24; PAPI RWY 06 & 24; HIRL RWY 06/24; MIRL RWY 13/31; TWY LGTS; WINDCONE LGTS - CTAF. REIL RWY 13 & 31; PAPI RWY 13 & 31 OPER CONSLY.
COLUMBUS (ICAO: KCSG, IATA: CSG) is a public airport located in COLUMBUS, GA, US.
