No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCRW
WEST VIRGINIA INTL YEAGER
PublicPUB

3 miles E of CHARLESTON, WV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 22' 34"N 81° 35' 34"W
947' MSL
1947' MSL
06W
JET A, 100LL
ELKINS (EKN)
CINCINNATI
INDIANAPOLIS (ZID)
4/17/25-5/15/25
KCRW LIFR
9:54 AM EDT
Mist
Overcast 200'
1sm
52°F
51°F
30.21"Hg
Calm
AO2 SLP228 T01110106 $
METAR KCRW 141354Z 00000KT 1SM BR OVC002 11/11 A3021 RMK AO2 SLP228 T01110106 $
+ Add Your Business

KCRW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 127.6

Approach/Departure

APCH/P DEP/P
SOUTH
 119.2
APCH/P DEP/P IC
NORTH
 124.1
APCH/S DEP/S
 128.5

Clearance Delivery

CD/P
 118.55

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 125.7

Other

CLASS C
SOUTH
 119.2
CLASS C
NORTH
 124.1

FAA A/FD Pages

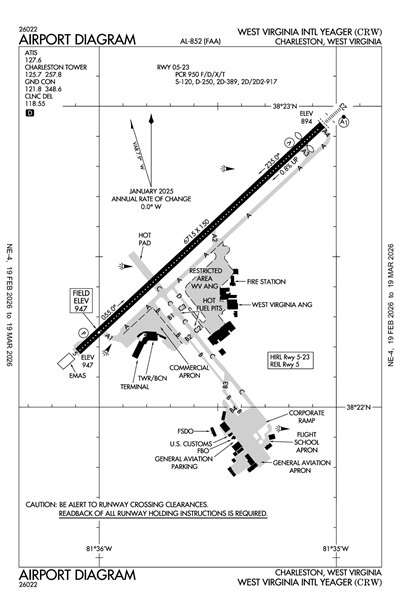

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCRW
Tue, 10/14 9:36 AM EDT
Tue, 10/14 10:00 AM EDT - Wed, 10/15 8:00 AM EDT
IFR
Temporary 10:00 AM EDT - 12:00 PM EDT
Mist
Overcast 800'
4sm
Calm
MVFR
7:00 AM EDT - 8:00 AM EDT
Mist
Scattered 9,000'
Few 100'
3sm
Calm
VFR
1:00 PM EDT - 2:00 AM EDT
Scattered 3,500'
6sm
010° 7kts
VFR
2:00 AM EDT - 7:00 AM EDT
Few 23,000'
6sm
Calm
LIFR
10:00 AM EDT - 12:00 PM EDT
Mist
Overcast 400'
Few 100'
1sm
Calm
MVFR
12:00 PM EDT - 1:00 PM EDT
Broken 2,500'
6sm
010° 5kts
TAF KCRW 141336Z 1414/1512 00000KT 1SM BR FEW001 OVC004
   TEMPO 1414/1416 4SM BR OVC008
   FM141600 01005KT P6SM BKN025
   FM141700 01007KT P6SM SCT035
   FM150600 00000KT P6SM FEW230
   FM151100 00000KT 3SM BR FEW001 SCT090
KCRW
EffectiveExpiresCategoryNOTAM
Domestic
10/10/25
0400Z
10/10/25
0700Z
!CRW 10/013 CRW COM REMOTE COM OUTLET 122.2 U/S 2510100400-2510100700
10/8/25
1200Z
10/8/25
2000Z
!CRW 10/021 CRW SVC TAR/SSR U/S 2510081200-2510082000
10/8/25
0321Z
10/8/25
1100Z
!CRW 10/032 CRW TWY HOT PAD LGT U/S 2510080321-2510081100
10/8/25
0310Z
10/8/25
1100Z
!CRW 10/031 CRW TWY C DIRECTIONAL SIGN, LOC SIGN NOT LGTD 2510080310-2510081100
10/8/25
0309Z
10/8/25
1100Z
!CRW 10/030 CRW TWY C BTN RWY 05/23 AND CORPORATE RAMP EDGE LGT U/S 2510080309-2510081100
10/8/25
0241Z
10/8/25
1100Z
!CRW 10/028 CRW TWY B2 LOCATION SIGN NORTHEAST SIDE BTN TWY C AND TWY B LGT U/S 2510080241-2510081100
10/7/25
2242Z
2/4/26
2242Z
!CRW 10/022 CRW OBST TOWER LGT (ASR 1050615) 382811.80N0814635.20W (10.2NM WNW CRW) 1984.9FT (982.9FT AGL) U/S 2510072242-2602042242
10/7/25
1942Z
2/4/26
1942Z
!CRW 10/020 CRW OBST TOWER LGT (ASR 1224593) 382904.20N0812533.90W (10.3NM NE CRW) 1381.6FT (289.7FT AGL) U/S 2510071942-2602041942
10/7/25
1924Z
10/10/25
1900Z
!CRW 10/019 CRW TWY B3 BTN TWY C AND TWY B CLSD 2510071924-2510101900
10/7/25
1923Z
10/10/25
1900Z
!CRW 10/018 CRW TWY C BTN TWY B2 AND TWY B3 CLSD 2510071923-2510101900
10/7/25
0101Z
11/7/25
2300Z
!CRW 10/017 CRW OBST TOWER LGT (ASR 1035665) 381314.00N0812452.00W (12.5NM SE CRW) 1910.4FT (330.1FT AGL) U/S 2510070101-2511072300
10/2/25
0432Z
12/5/25
2100Z
!CRW 10/006 CRW TWY C BTN TWY B3 AND CORPORATE RAMP CLSD 2510020432-2512052100
10/2/25
0421Z
12/5/25
2100Z
!CRW 10/005 CRW TWY B BTN TWY B4 AND CORPORATE RAMP CLSD 2510020421-2512052100
9/26/25
2048Z
12/26/25
2359Z
!CRW 09/089 CRW OBST TOWER LGT (ASR 1054160) 382154.00N0814605.00W (8.3NM W CRW) 1376.0FT (427.8FT AGL) U/S 2509262048-2512262359
9/19/25
1429Z
1/19/26
2359Z
!CRW 09/053 CRW OBST TOWER LGT (ASR 1033637) 382208.00N0814910.00W (10.6NM W CRW) 1379.6FT (349.7FT AGL) U/S 2509191429-2601192359
9/3/25
2046Z
10/18/25
2045Z
!CRW 09/008 CRW OBST TOWER LGT (ASN 2018-AEA-15527-OE) 380713N0813626W (15.4NM S CRW) 1804FT (310FT AGL) U/S 2509032046-2510182045
8/20/25
1345Z
12/18/25
1345Z
!CRW 08/039 CRW OBST TOWER LGT (ASR 1221103) 382042.30N0813617.50W (2.0NM SSW CRW) 1130.9FT (129.9FT AGL) U/S 2508201345-2512181345
8/7/25
1157Z
11/6/25
0400Z
!CRW 08/014 CRW OBST TOWER LGT (ASR 1034141) 382749.00N0815133.20W (13.5NM WNW CRW) 1204.1FT (311.0FT AGL) U/S 2508071157-2511060400
7/17/25
1823Z
10/17/25
2359Z
!CRW 07/060 CRW OBST TOWER LGT (ASR 1036503) 382353.00N0814105.00W (4.5NM WNW CRW) 1432.7FT (303.8FT AGL) U/S 2507171823-2510172359
7/17/25
1822Z
10/17/25
2359Z
!CRW 07/059 CRW OBST TOWER LGT (ASR 1054157) 381906.00N0813226.00W (4.2NM SE CRW) 1450.5FT (307.1FT AGL) U/S 2507171822-2510172359
6/16/25
1408Z
12/5/25
2100Z
!CRW 06/042 CRW TWY C WIP CONST 2506161408-2512052100
6/16/25
1407Z
12/5/25
2100Z
!CRW 06/041 CRW TWY B WIP CONST 2506161407-2512052100
6/16/25
1407Z
12/5/25
2100Z
!CRW 06/040 CRW APRON GA RAMP WIP CONST 2506161407-2512052100
6/16/25
1030Z
12/5/25
2100Z
!CRW 06/033 CRW APRON CORPORATE RAMP CLSD 2506161030-2512052100
5/8/25
1855Z
!CRW 05/024 CRW NAV ILS RWY 23 GP U/S 2505081855-2511072111EST
1/11/24
1826Z
1/11/29
2359Z
!CRW 01/052 CRW OBST PARKED ACFT (ASN 2020-AEA-1586-NRA) 382227N0813533W (0.1NM S CRW) 975FT (38FT AGL) LGTD 2401111826-2901112359
1/11/24
1825Z
1/11/29
2359Z
!CRW 01/051 CRW OBST PARKED ACFT (ASN 2020-AEA-1585-NRA) 382225N0813537W (0.2NM S CRW) 978FT (38FT AGL) LGTD 2401111825-2901112359
Military
10/8/25
2030Z
10/11/25
0400Z
AerodromeAERODROME MIL ACFT ONLY: ARFF CAPABILITY CRITICAL LEVEL OF SERVICE FOR MANNING (7) DAILY FROM 2030-1200
10/4/25
1527Z
10/10/25
2000Z
AerodromeAERODROME MIL ACFT ONLY: ARFF CAPABILITY REDUCED LEVEL OF SERVICE 3,700 GALLONS AVAILABLE
8/13/25
1751Z
11/1/25
2030Z
AerodromeAERODROME BASH PHASE II BIRD IN EFF 1 MAR ? 31 MAY AND 1 AUG ? 31 OCT ANNUALLY. CTC AFLD MGMT FOR CURRENT BIRD WATCH COND.
Yes
ALL
CENTRAL WV REG ARPT AUTH
100 AIRPORT ROAD SUITE 175
CHARLESTON, WV 25311
Phone: (304) 344-8033
MS DOMINIQUE RANIERI, ESQ., C.M.
100 AIRPORT ROAD SUITE 175
CHARLESTON, WV 25311
Phone: 304-344-8033
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
CRW
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

6715 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
389,000lbs
917,000lbs
  Runway 05 Runway 23
True Heading 47°227°
Traffic Pattern Left Left
Markings PIR NSTD
Markings Condition GOOD GOOD
Latitude 38° 22' 11"N 38° 22' 56"N
Longitude 81° 36' 05"W 81° 35' 04"W
Elevation 947' 894'
Threshold Crossing Height 56 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4R
Approach Lights ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1DEER & BIRDS ON & INVOF ARPT.
A110-10RWY 23 ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 328 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER.
A110-7ANG: AFLD MGMT OPS OPR 1200-2100Z++ MON-FRI, AND UNIT TRNG ASSEMBLY (UTA) WKND. PPR REQ FOR ALL ACFT 48 HR PRIOR FOR SVCG AND USE OF PARK RAMPS. FILE PPR NR IN RMK SEC ON FLT PLAN. CLSD SAT-SUN AND HOL. AVBL WKND FOR OBO, CTC AFLD MGMT OPS DSN 366-6240/6200, C304-341-6240/6200. ACFT MUST MEET PPR TIME +/- 1 HR OR WILL BE CONSDR CNXED, UPDATE CHNG AFTER HR CALL DSN 366-6301 OR C304-341-6301. NSTD PAVEMENT MRK ON ANG RAMP. COMD POST DSN 366-6250/6256, C304-341-6250/6256. EXPLOSIVES PROH. BASH PHASE II BIRD IN EFF APR-MAY AND AUG-OCT. CTC AFLD MGMT FOR BIRD WATCH COND.
A110-8FUEL SERVICE-CAPITAL JET CENTER CTC 304-346--9977.
A110-9SERVICE-FUEL: A++(MIL).
WEST VIRGINIA INTL YEAGER (ICAO: KCRW, IATA: CRW) is a public airport located in CHARLESTON, WV.
