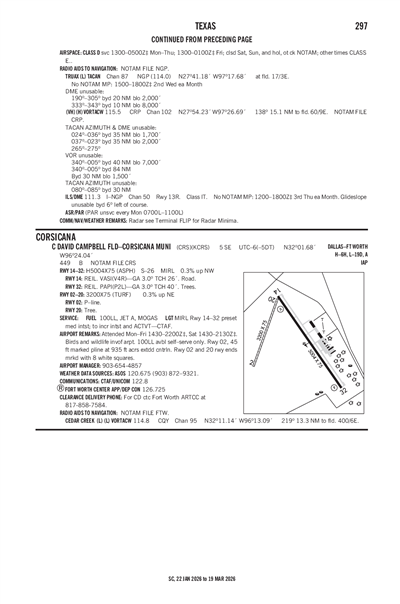

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCRS
C DAVID CAMPBELL FLD-CORSICANA MUNI
PublicPUB

5 miles SE of CORSICANA, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 01' 41"N 96° 24' 02"W
449' MSL
1449' MSL
06E
JET A, 100LL, MOGAS
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
4/17/25-5/15/25
KCRS VFR
1:53 AM CDT
Clear
10sm
78°F
71°F
29.89"Hg
170° 9kts
AO2 SLP114 T02560217
KCRS 030653Z AUTO 17009KT 10SM CLR 26/22 A2989 RMK AO2 SLP114 T02560217
+ Add Your Business

KCRS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
903-872-9321
 120.675

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KACT (49nm)
Tue, 6/3 12:25 AM CDT
Tue, 6/3 1:00 AM CDT - Wed, 6/4 1:00 AM CDT
VFR
1:00 AM CDT - 5:00 AM CDT
Broken 25,000'
6sm
160° 15kts
MVFR
5:00 AM CDT - 11:00 AM CDT
Broken 1,400'
6sm
170° 14kts
VFR
11:00 AM CDT - 1:00 AM CDT
Broken 3,500'
6sm
170° 18kts
KACT 030525Z 0306/0406 16015KT P6SM BKN250
   FM031000 17014KT P6SM BKN014
   FM031600 17018KT P6SM BKN035
KCRS
Domestic
5/21/251400Z !CRS 05/005 CRS RWY 14 VASI U/S 2505211400-2505211800
5/20/252318Z !CRS 05/007 CRS AD AP JET A FUEL NOT AVBL 2505202318-2505232200
5/18/250307Z !CRS 05/006 CRS OBST TOWER LGT (ASR 1223976) 320816.70N0961133.40W (12.5NM ENE CRS) 663.1FT (310.0FT AGL) U/S 2505180307-2506020207
4/26/251413Z !CRS 04/009 CRS OBST TOWER LGT (ASR 1228475) 321734.30N0961153.30W (18.9NM NNE CRS) 619.8FT (256.9FT AGL) U/S 2504261413-2507260400
12/20/241947Z !CRS 12/005 CRS OBST TOWER LGT (ASR 1223647) 315613.70N0960947.10W (13.3NM ESE CRS) 581.0FT (199.1FT AGL) U/S 2412201947-2512202359
FDC
5/20/251400Z !FDC 5/2594 CRS IAP C DAVID CAMPBELL FLD-CORSICANA MUNI, CORSICANA, TX.
VOR/DME-A, AMDT 1D...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CQY TACAN OUT OF SERVICE. 2505201400-2506201405EST
No
MON-FRI 0830-1630
SAT 0830-1530
CITY OF CORSICANA
200 N. 12TH
CORSICANA, TX 75110
Phone: 903-654-4884
SAMUEL ZAMORA
200 N. 12TH
CORSICANA, TX 75110
Phone: 903-654-4857
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
CRS
--
MIRL RWY 14/32 PRESET MED INTST; TO INCR INTST & ACTVT PAPI RWY 32 - CTAF. VASI RWY 14 OPRS CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 02/20

3200 ft. x 75 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 02 Runway 20
True Heading 22°202°
Traffic Pattern
Markings
Markings Condition
Latitude 32° 01' 30"N 32° 01' 59"N
Longitude 96° 24' 23"W 96° 24' 09"W
Elevation 438' 448'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

5004 ft. x 75 ft.
ASPH
Good
NONE
MED

26,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 145°325°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 01' 59"N 32° 01' 19"N
Longitude 96° 24' 10"W 96° 23' 36"W
Elevation 449' 432'
Threshold Crossing Height 26 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-4RWY 02, 45 FT MKD PLINE AT 935 FT ACRS EXTDD CNTRLN.
A110-5DEER ON & INVOF ARPT.
A110-6FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
C DAVID CAMPBELL FLD-CORSICANA MUNI (ICAO: KCRS, IATA: CRS) is a public airport located in CORSICANA, TX.
