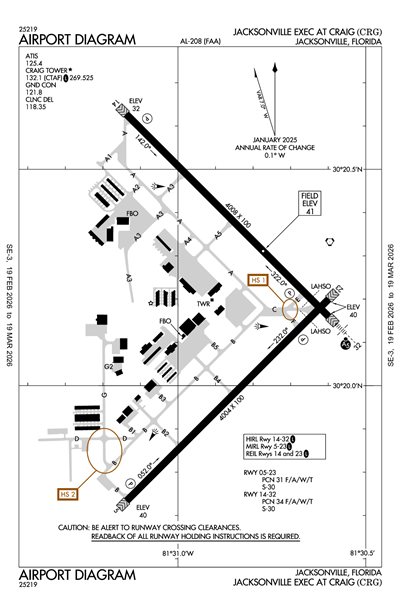

JACKSONVILLE EXEC AT CRAIG - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCRG
ICAO KCRGIATA CRGLocal CRG
JACKSONVILLE EXEC AT CRAIG
PublicPUB

8 miles E of JACKSONVILLE, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 20' 11"N 81° 30' 52"W
Elevation
41' MSL
Pattern Alt
1041' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JET A, 100LL
FSS
GAINESVILLE (GNV)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KCRG LIFR
11:53 PM EST
Fog
Obscured 200'
0.5sm
56°F
56°F
30.30"Hg
360° 6kts
AO2 SLP260 T01330133 402110133
METAR KCRG 040453Z AUTO 36006KT 1/2SM FG VV002 13/13 A3030 RMK AO2 SLP260 T01330133 402110133
+ Add Your Business

KCRG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.4
ASOS 125.4
(904) 646-4670

Common

CTAF 132.1
WHEN ATCT CLSD ACTVT MALSR RWY 32; REIL RWY 14 & 23; HIRL RWY 14/32, MIRL RWY 5/23 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 118.35

Ground

CRAIG GROUND 121.8
0600-2300 MON-FRI; 0700-2200 SAT-SUN

Tower

CRAIG TOWER 132.1
0600-2300 MON-FRI; 0700-2200 SAT-SUN

Arrival

ALCRN STAR 127.0

Approach

JACKSONVILLE APPROACH 124.9

Departure

JACKSONVILLE DEPARTURE 124.9
JACKSONVILLE DEPARTURE 132.775
251-069

Flight Service

Flight Service 122.2
(GNV)

Terminal Area Forecast

KCRG
Tue, 3/3 6:40 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
LIFR
7:00 PM EST - 9:00 PM EST
Mist
Overcast 300'
1sm
020° 8kts
LIFR
Temporary 7:00 PM EST - 9:00 PM EST
Fog
Overcast 200'
0.25sm
Calm
LIFR
9:00 PM EST - 9:00 AM EST
Fog
Overcast 200'
0.25sm
Calm
LIFR
9:00 AM EST - 11:00 AM EST
Mist
Overcast 900'
Broken 300'
2sm
030° 5kts
MVFR
11:00 AM EST - 2:00 PM EST
Broken 1,500'
Scattered 900'
6sm
060° 8kts
VFR
2:00 PM EST - 7:00 PM EST
Broken 4,500'
Scattered 2,000'
6sm
080° 10kts
TAF KCRG 032340Z 0400/0424 02008KT 1SM BR OVC003
   TEMPO 0400/0402 1/4SM FG OVC002
   FM040200 00000KT 1/4SM FG OVC002
   FM041400 03005KT 2SM BR BKN003 OVC009
   FM041600 06008KT P6SM SCT009 BKN015
   FM041900 08010KT P6SM SCT020 BKN045
KCRG
EffectiveExpiresCategoryNOTAM
Domestic
2/27/26
2100Z
3/1/26
0400Z
!CRG 02/034 CRG AIRSPACE NUMEROUS UAS WI AN AREA DEFINED AS .10NM RADIUS OF 30192500N0813745W (5.3NM W CRG) SFC-475FT AGL 2602272100-2603010400
2/24/26
1305Z
6/24/26
1305Z
!CRG 02/039 CRG OBST TOWER LGT (ASR 1028871) 301640.90N0812350.30W (6.9NM ESE CRG) 334.6FT (322.8FT AGL) U/S 2602241305-2606241305
2/22/26
0017Z
4/8/26
0017Z
!CRG 02/033 CRG OBST TOWER LGT (ASR 1020783) 301635.00N0813350.70W (4.5NM SW CRG) 1090.9FT (1061.0FT AGL) U/S 2602220017-2604080017
2/16/26
0016Z
5/16/26
2359Z
!CRG 02/014 CRG OBST TOWER LGT (ASN 2021-ASO-49656-OE) 301731N0813551W (5.1NM WSW CRG) 179FT (155FT AGL) U/S 2602160016-2605162359
2/9/26
1200Z
3/20/26
1200Z
!CRG 02/005 CRG APRON ALL SIGNS NOT STD 2602091200-2603201200
2/9/26
1200Z
3/20/26
1200Z
!CRG 02/004 CRG TWY ALL SIGNS NOT STD 2602091200-2603201200
1/30/26
2132Z
!CRG 01/035 CRG NAV VOR U/S 2601302132-2602272000EST
12/16/25
1300Z
9/28/27
2359Z
!CRG 12/015 CRG OBST CRANE (ASN UNKNOWN) 301857N0813948W (7.3NM WSW CRG) UNKNOWN (200FT AGL) FLAGGED AND LGTD 2512161300-2709282359
2/28/25
1528Z
2/28/26
2359Z
!CRG 02/031 CRG OBST TOWER LGT (ASR 1017604) 301625.00N0813312.00W (4.3NM SSW CRG) 1046.3FT (996.4FT AGL) U/S 2502281528-2602282359
FDC
2/24/26
1430Z
4/2/26
1430Z
!FDC 6/9143 CRG IAP JACKSONVILLE EXEC AT CRAIG, JACKSONVILLE, FL.
ILS OR LOC RWY 32, AMDT 5B...
MISSED APPROACH: CLIMB TO 700 THEN CLIMBING RIGHT TURN TO 2000 ON HEADING 100 EXPECT RADAR VECTORS.
RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CRG VORTAC OUT OF SERVICE. 2602241430-2604021430EST
8/12/25
1535Z
!FDC 5/5963 CRG IAP JACKSONVILLE EXEC AT CRAIG, JACKSONVILLE, FL.
RNAV (GPS) RWY 32, AMDT 1B...
LNAV MDA 500/HAT 459 ALL CATS. VDP 1.3 NM TO RW32. TEMPORARY CRANE 189 MSL 1615FT W OF APCH END RWY 32 (2022-ASO-9384-NRA).
2508121535-2605301535EST
5/15/24
1735Z
!FDC 4/4449 CRG IAP JACKSONVILLE EXEC AT CRAIG, JACKSONVILLE, FL.
RNAV (GPS) RWY 14, AMDT 1B...
LPV DA 295/HAT 254 ALL CATS. CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE JACKSONVILLE INTL ALTITMETER SETTING: INCREASE LPV DA TO 327 FEET; INCREASE LNAV/VNAV DA TO 450 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE ALL MDAS 40 FEET AND CIRCLING VISIBILITY CAT C 1/4 SM.
2405151735-2605151735EST
5/15/24
1735Z
!FDC 4/4448 CRG IAP JACKSONVILLE EXEC AT CRAIG, JACKSONVILLE, FL.
RNAV (GPS) RWY 32, AMDT 1B...
LPV DA 291/HAT 250 ALL CATS. LNAV/VNAV DA 406/HAT 365 ALL CATS. VDP NA. CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE JACKSONVILLE INTL ALTIMETER SETTING: INCREASE LPV DA TO 324 FEET; INCREASE LNAV/VNAV DA TO 439 FEET; INCREASE ALL MDAS 40 FEET AND CIRCLING VISIBILITY CAT C 1/4 SM.
2405151735-2605151735EST
5/15/24
1735Z
!FDC 4/4447 CRG IAP JACKSONVILLE EXEC AT CRAIG, JACKSONVILLE, FL.
ILS OR LOC RWY 32, AMDT 5B...
S-ILS 32 DA 291/HAT 250 ALL CATS. CHANGE NOTE TO READ: CIRCLING RWY 5 NA AT NIGHT. CHANGE NOTE TO READ: RWY 32 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE JACKSONVILLE INTL ALTIMETER SETTING: INCREASE DA TO 324 FEET; INCREASE ALL MDAS 40 FEET AND CIRCLING VISIBILITY CAT C 1/4 SM.
2405151735-2605151735EST
Yes
MON-FRI 0600-2300
SAT-SUN 0700-2200
JACKSONVILLE AVIATION AUTHORITY
14201 PECAN PARK ROAD
JACKSONVILLE, FL 32218
Phone: 904-573-1613
ROLF RIECHMANN
855-1 SAINT JOHNS BLUFF RD NORTH SUITE 500
JACKSONVILLE, FL 32225
Phone: 904-741-5066
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
CRG
--
WHEN ATCT CLSD ACTVT MALSR RWY 32; REIL RWY 14 & 23; HIRL RWY 14/32, MIRL RWY 5/23 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 05/23

4004 ft. x 100 ft.
ASPH
Fair
NONE
MED
31/F/A/W/T
30,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 19' 44"N 30° 20' 12"N
Longitude 81° 31' 08"W 81° 30' 36"W
Elevation 40' 40'
Threshold Crossing Height 47 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 14/32

4008 ft. x 100 ft.
ASPH
Good
NONE
HIGH
34/F/A/W/T
30,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 30° 20' 38"N 30° 20' 10"N
Longitude 81° 31' 08"W 81° 30' 36"W
Elevation 32' 40'
Threshold Crossing Height 44 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-2BIRDS PERIODICALLY ON OR NEAR THE ARPT INCREASING IN ACTIVITY DURING INCLEMENT WEATHER.
A110-3BANNER TOWING ON WEEKENDS & SPECIAL EVENTS.
A110-4VFR NOISE ABATEMENT PROCEDURES IN EFFECT, CALL AMGR 904-641-7666. WX PERMITTING, RY 05 PREFERRED FOR APCH, RY 32 PREFERRED FOR DEP.
A110-5WILDLIFE ON & INVOF ARPT.
A110-7PAVEMENT ACCOMMODATES DESIGN GROUP II ACFT (UP TO 79 FT WINGSPAN) UP TO 60,000 LBS DUAL WHEEL LOADING. PPR FOR ACFT EXCEEDING THESE LTDS CTC AT 904-741-2020.
A16NOISE ABATEMENT COMPLAINTS 904-641-3606.
A31-05/23RY 05/23 HAS 75 FT STWYS BOTH ENDS.
A31-14/32RY 14/32 HAS 75 FT STWYS BOTH ENDS.
A43-05UNUSBL BYD 3.5 MILES ON FINAL DUE TO LRG TWRS LCTD ON EXTDD CNTRLN.
A43-23UNUSBL BYD 8.0 DEGS LEFT AND RIGHT OF CNTRLN.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 32; REIL RWY 14 & 23; HIRL RWY 14/32, MIRL RWY 5/23 - CTAF.
JACKSONVILLE EXEC AT CRAIG (ICAO: KCRG, IATA: CRG) is a public airport located in JACKSONVILLE, FL, US.
