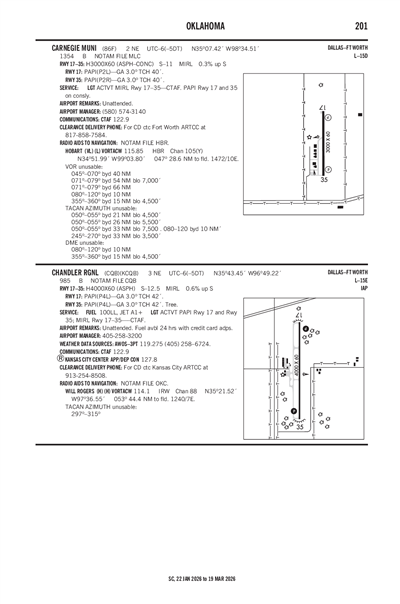

CHANDLER RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCQB
ICAO KCQBIATA CQBLocal CQB
CHANDLER RGNL
PublicPUB

3 miles NE of CHANDLER, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 43' 27"N 96° 49' 13"W
Elevation
985' MSL
Pattern Alt
1985' MSL
Mag Variation
3°E
Declination
6°E
Fuel
JET A-1+, 100LL
FSS
MC ALESTER (MLC)
Sectional
DALLAS-FT WORTH
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KCQB VFR
12:30 AM CST
Clear
10sm
50°F
46°F
30.05"Hg
350° 6kts
AO2 T00990080
METAR KCQB 040630Z AUTO 35006KT 10SM CLR 10/08 A3005 RMK AO2 T00990080
+ Add Your Business

KCQB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.275
(405) 258-6724

Common

CTAF 122.9
ACTVT PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.

Center

KANSAS CITY CENTER 127.8
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 127.8/319.1 (OKLAHOMA CITY RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSWO (29nm)
Tue, 3/3 11:22 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
MVFR
12:00 AM CST - 7:00 AM CST
Overcast 1,000'
6sm
360° 7kts
LIFR
3:00 AM CST - 7:00 AM CST
Light Thunderstorm and Rain
Overcast 400'
4sm
Calm
VFR
7:00 AM CST - 9:00 AM CST
Light Showers and Rain
No Clouds
N/A
Calm
IFR
7:00 AM CST - 12:00 AM CST
Mist
Overcast 700'
5sm
350° 5kts
TAF KSWO 040522Z 0406/0506 36007KT P6SM OVC010
   PROB30 0409/0413 4SM -TSRA OVC004CB
   FM041300 35005KT 5SM BR OVC007
   PROB30 0413/0415 -SHRA
KCQB
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
1411Z
Runway!CQB 02/001 CQB RWY 17 PAPI UNUSABLE 2602251411-2608252111EST
No
UNATNDD
CITY OF CHANDLER
414 MANVEL
CHANDLER, OK 74834
Phone: 405-258-3200
JASON ORR
414 MANVEL
CHANDLER, OK 74834
Phone: 405-258-3200
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
CQB
--
ACTVT PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 17/35

4000 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 35° 43' 46"N 35° 43' 07"N
Longitude 96° 49' 13"W 96° 49' 13"W
Elevation 961' 985'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A14CITY MANAGER.
A70-100LLFUEL AVBL 24 HRS WITH CREDIT CARD ADPS.
A81-APTACTVT PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
CHANDLER RGNL (ICAO: KCQB, IATA: CQB) is a public airport located in CHANDLER, OK, US.
