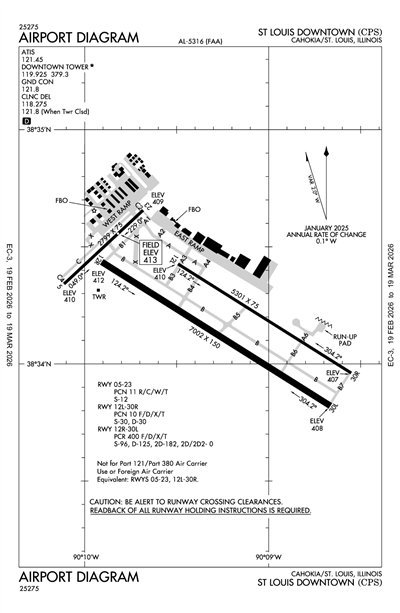

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCPS
ST LOUIS DOWNTOWN
PublicPUB

1 miles E of CAHOKIA/ST LOUIS, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 34' 13"N 90° 09' 18"W
413' MSL
1413' MSL
00E
JET A, 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
7/11/24-8/8/24
KCPS VFR
5:53 AM CDT
Clear
10sm
60°F
59°F
29.95"Hg
Calm
AO2 SLP138 T01560150 $
KCPS 191053Z AUTO 00000KT 10SM CLR 16/15 A2995 RMK AO2 SLP138 T01560150 $
Add Your Business

KCPS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.925

ATIS

ATIS
 121.45

Clearance Delivery

CD/P
 118.275

Ground

GND/P
 121.8

Tower

LCL/P
 119.925

Terminal Area Forecast

KCPS
Thu, 9/19 12:20 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 10:00 AM CDT
Few 25,000'
6sm
Calm
VFR
10:00 AM CDT - 7:00 PM CDT
Sky Clear
6sm
180° 7kts
VFR
7:00 PM CDT - 1:00 AM CDT
Few 25,000'
6sm
VRB° 4kts
KCPS 190520Z 1906/2006 00000KT P6SM FEW250
   FM191500 18007KT P6SM SKC
   FM200000 VRB04KT P6SM FEW250
KCPS
Domestic
9/15/242320Z !CPS 09/012 CPS OBST TOWER LGT (ASR 1006877) 383127.00N0901417.00W (4.8NM SW CPS) 801.8FT (397.0FT AGL) U/S 2409152320-2411302359
9/15/242320Z !CPS 09/011 CPS OBST TOWER LGT (ASR 1006876) 383127.00N0901417.00W (4.8NM SW CPS) 801.8FT (397.0FT AGL) U/S 2409152320-2411302359
9/15/242320Z !CPS 09/010 CPS OBST TOWER LGT (ASR 1006875) 383127.00N0901417.00W (4.8NM SW CPS) 801.8FT (397.0FT AGL) U/S 2409152320-2411302359
9/15/242319Z !CPS 09/009 CPS OBST TOWER LGT (ASR 1006874) 383127.00N0901417.00W (4.8NM SW CPS) 801.8FT (397.0FT AGL) U/S 2409152319-2411302359
9/7/240110Z !CPS 09/005 CPS OBST TOWER LGT (ASR 1021677) 383531.70N0900202.30W (5.8NM ENE CPS) 1046.9FT (475.1FT AGL) U/S 2409070110-2412050400
8/31/240243Z !CPS 08/027 CPS OBST TOWER LGT (ASR 1003920) 382856.00N0902353.00W (12.6NM WSW CPS) 1649.3FT (1073.2FT AGL) U/S 2408310243-2509012359
8/29/242016Z !CPS 08/022 CPS OBST TOWER LGT (ASR 1225389) 382724.60N0900516.10W (7.5NM SSE CPS) 818.2FT (220.1FT AGL) U/S 2408292016-2412272016
8/26/241405Z !CPS 08/019 CPS TWY C SFC MARKING NOT STD 2408261405-2504302359
8/26/241404Z !CPS 08/018 CPS RWY 05/23 SFC MARKING NOT STD 2408261404-2504302359
8/21/241855Z !CPS 08/015 CPS RWY 30L PAPI U/S 2408211855-2409302300
FDC
8/5/241632Z !FDC 4/3246 CPS ODP ST LOUIS DOWNTOWN, CAHOKIA/ST LOUIS, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8...
TAKEOFF OBSTACLE NOTES: RWY 5: POLE BEGINNING 72 FT FROM DER, 503 FT LEFT OF CENTERLINE, UP TO 66 FT AGL/476 FT MSL. BUILDING 310 FT FROM DER, 413 FT RIGHT OF CENTERLINE, 39 FT AGL/449 FT MSL. POLE 322 FT FROM DER, 527 FT RIGHT OF CENTERLINE, 64 FT AGL/472 FT MSL. POLE, BUILDING, TREE BEGINNING 324 FT FROM DER, 325 FT RIGHT OF CENTERLINE, UP TO 63 FT AGL/473 FT MSL. TREES, BUILDING BEGINNING 502 FT FROM DER, 148 FT LEFT OF CENTERLINE, UP TO 100 FT AGL/507 FT MSL. TREES, POLE, TRANSMISSION LINE BEGINNING 610 FT FROM DER, 14 FT RIGHT OF CENTERLINE, UP TO 100 FT AGL/507 FT MSL. TREES, TRANSMISSION LINE BEGINNING 709 FT FROM DER, 15 FT LEFT OF CENTERLINE, UP TO 100 FT AGL/511 FT MSL. TREES BEGINNING 2060 FT FROM DER, ON CENTERLINE, UP TO 100 FT AGL/514 FT MSL. TREES BEGINNING 2724 FT FROM DER, 43 FT RIGHT OF CENTERLINE, UP TO 100 FT AGL/511 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2408051632-2608051632EST
7/15/241313Z !FDC 4/2123 CPS SID ST LOUIS DOWNTOWN, CAHOKIA/ST LOUIS, IL.
PLESS FIVE DEPARTURE...
NASHVILLE TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BNA VOR OUT OF SERVICE. 2407151313-2502241313EST
Yes
ALL
BI-STATE DEVELOPMENT AGENCY
6100 ARCHVIEW DRIVE
CAHOKIA, IL 62206-1445
Phone: 618-337-6060
SANDRA SHORE
6100 ARCHVIEW DRIVE
CAHOKIA, IL 62206-1445
Phone: 618-337-6060
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
CPS
--
ACTVT MALSR RWY 30L WHEN ATCT CLSD; REIL RWY 30R - CTAF. HIRL RWY 12R/30L PRESET MED INTST WHEN ATCT CLSD. MIRL RWY 12L & 30R NOT AVBL WHEN ATCT CLSD. PAPI RWY 12R & 30L OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
85
12
13
13
0
0
Major
Major
None
High Pressure
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

2799 ft. x 75 ft.
ASPH
Fair
NONE
MED
11 /R/C/W/T
12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 47°227°
Traffic Pattern
Markings BSC BSC
Markings Condition POOR POOR
Latitude 38° 34' 20"N 38° 34' 39"N
Longitude 90° 10' 07"W 90° 09' 41"W
Elevation 410' 409'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12L/30R

5301 ft. x 75 ft.
CONC
Fair
NONE
MED
10 /F/D/X/T
30,000lbs
30,000lbs
--
--
  Runway 12L Runway 30R
True Heading 122°302°
Traffic Pattern Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 38° 34' 26"N 38° 33' 58"N
Longitude 90° 09' 30"W 90° 08' 33"W
Elevation 410' 406'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12R/30L

7002 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
48 /F/D/X/T
65,000lbs
95,000lbs
175,000lbs
--
  Runway 12R Runway 30L
True Heading 122°302°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 34' 26"N 38° 33' 50"N
Longitude 90° 09' 54"W 90° 08' 40"W
Elevation 412' 408'
Threshold Crossing Height 49 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1WATERFOWL ON & INVOF ARPT.
A110-3BE ALERT FOR STUDENT TRNG & HEL OPS.
A110-5ALL TWYS EXCP TWY B4 PPR ACFT OVER 120000 LBS.
A110-6SFC CONDS NOT MNTD 2100-0700 LCL.
ST LOUIS DOWNTOWN (ICAO: KCPS, IATA: CPS) is a public airport located in CAHOKIA/ST LOUIS, IL.
