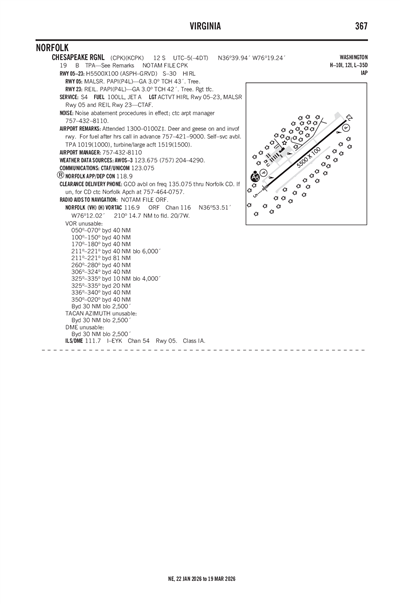

CHESAPEAKE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCPK
ICAO KCPKLocal CPK
CHESAPEAKE RGNL
PublicPUB

12 miles S of NORFOLK, VA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 39' 56"N 76° 19' 14"W
Elevation
19' MSL
Pattern Alt
1019' MSL
Mag Variation
11°W
Declination
11°W
Fuel
JET A, 100LL
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KCPK VFR
10:55 PM EST
Overcast 11,000'
10sm
47°F
45°F
30.33"Hg
Calm
AO2 T00820071
METAR KCPK 040355Z AUTO 00000KT 10SM OVC110 08/07 A3033 RMK AO2 T00820071
+ Add Your Business

KCPK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 123.675
(757) 204-4290

Common

CTAF 123.075
ACTVT HIRL RY 05/23, MALSR RY 05 AND REIL RY 23 - CTAF.
UNICOM 123.075

Arrival

DRONE STAR 118.9
TERKS STAR 118.9

Approach

NORFOLK APPROACH 118.9
NORFOLK APPROACH 125.2

Departure

NORFOLK DEPARTURE 118.9
NORFOLK DEPARTURE 125.2

Flight Service

Ground Communication Outlet 135.075
GCO AVBL ON FREQ 135.075 THRU NORFOLK CD. IF UN, FOR CD CTC NORFOLK APCH AT 757-464-0757.

Terminal Area Forecast

KORF (16nm)
Tue, 3/3 9:32 PM EST
Tue, 3/3 10:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
10:00 PM EST - 2:00 AM EST
Broken 8,000'
6sm
Calm
VFR
2:00 AM EST - 4:00 AM EST
Broken 3,500'
Scattered 2,500'
6sm
230° 5kts
IFR
Temporary 2:00 AM EST - 4:00 AM EST
Mist
Broken 2,500'
2sm
Calm
MVFR
4:00 AM EST - 8:00 AM EST
Mist
Broken 2,500'
Scattered 600'
4sm
230° 7kts
VFR
8:00 AM EST - 11:00 AM EST
Scattered 2,500'
6sm
220° 5kts
VFR
11:00 AM EST - 7:00 PM EST
Scattered 4,000'
6sm
240° 8kts
TAF KORF 040232Z 0403/0424 00000KT P6SM BKN080
   FM040700 23005KT P6SM SCT025 BKN035
   TEMPO 0407/0409 2SM BR BKN025
   FM040900 23007KT 4SM BR SCT006 BKN025
   FM041300 22005KT P6SM SCT025
   FM041600 24008KT P6SM SCT040
KCPK
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
0406Z
4/8/26
2205Z
!CPK 02/005 CPK OBST TOWER LGT (ASR 1026211) 363739.30N0761306.10W (5.4NM ESE CPK) 443.9FT (424.9FT AGL) U/S 2602230406-2604082205
1/19/26
2304Z
3/5/26
2304Z
!CPK 01/009 CPK OBST TOWER LGT (ASN 2025-AEA-1176-OE) 364129N0761743W (2.0NM NE CPK) 197FT (187FT AGL) U/S 2601192304-2603052304
1/19/26
0425Z
3/4/26
0425Z
!CPK 01/007 CPK OBST POWER LINE LGT (ASN 2021-AEA-9267-OE) 364547N0761820W (5.9NM NE CPK) 164FT (162FT AGL) U/S 2601190425-2603040425
1/16/26
1344Z
3/2/26
2359Z
!CPK 01/004 CPK OBST WIND TURBINE LGT (ASN 2021-AEA-9269-OE) 364525N0761822W (5.6NM NE CPK) 132FT (128FT AGL) U/S 2601161344-2603022359
FDC
11/27/25
0901Z
!FDC 5/1868 CPK IAP CHESAPEAKE RGNL, NORFOLK, VA.
RNAV (GPS) RWY 5, AMDT 1D...
CIRCLING MDA 600/HAA 581 CAT B/C/D. TEMPORARY CRANE 235FT MSL 2.03NM NORTHEAST OF RWY 23 (2024-AEA-11759-OE).
2511270901-2607081516EST
11/27/25
0901Z
!FDC 5/1855 CPK IAP CHESAPEAKE RGNL, NORFOLK, VA.
ILS OR LOC RWY 5, AMDT 2...
CIRCLING MDA 600/HAA 581 CAT B/C/D. CEKAD FIX MINIMUMS: CIRCLING MDA 600/HAA 581 CAT B/C/D. TEMPORARY CRANE 235FT MSL 2.03NM NORTHEAST OF RWY 23 (2024-AEA-11759-OE).
2511270901-2607081513EST
11/26/25
1518Z
!FDC 5/1871 CPK IAP CHESAPEAKE RGNL, NORFOLK, VA.
RNAV (GPS) RWY 23, ORIG-B...
LNAV MDA 560/HAT 541 ALL CATS. VISIBILITY CAT C/D 1 5/8. VDP 1.56NM TO RW23. WHEN LOCAL ALTIMETER SETTING NOT RECIEVED, USE NORFOLK INTL ALTIMETER SETTING AND INCREASE ALL DA 36 FEET AND ALL MDA 40 FEET. INCREASE LNAV CAT C/D VISIBILITY BY 1/8 SM. TEMPORARY CRANE 243FT MSL 1.72NM NORTHEAST OF RWY 23 (2024-AEA-11761-OE).
2511261518-2607081518EST
No
0800-2000
CHESAPEAKE AIRPORT AUTHORITY
2800 AIRPORT DRIVE
CHESAPEAKE, VA 23323
Phone: 757-432-8110
CHRIS SCHRANTZ
2800 AIRPORT DRIVE
CHESAPEAKE, VA 23323
Phone: 757-432-8110
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
CPK
--
ACTVT HIRL RY 05/23, MALSR RY 05 AND REIL RY 23 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Major
Major
None
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

5500 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

30,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 36°216°
Traffic Pattern Left Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 36° 39' 34"N 36° 40' 18"N
Longitude 76° 19' 35"W 76° 18' 54"W
Elevation 16' 18'
Threshold Crossing Height 43 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2DEER AND GEESE ON & INVOF RY.
A110-3GCO AVBL ON FREQ 135.075 THRU NORFOLK CD. IF UN, FOR CD CTC NORFOLK APCH AT 757-464-0757.
A110-4NOISE ABATEMENT PROCEDURES IN EFFECT; CTC AMGR 757-432-8110.
A58-0518 FT TREE 276 FT R OF CNTRLN.
A70-100LLFOR FUEL AFTER HRS CALL 757-421-9000.
A70-AFOR FUEL AFT HRS CALL IN ADVANCE 757-421-9000. SELF-SVC AVBL.
A81-APTACTVT HIRL RY 05/23, MALSR RY 05 AND REIL RY 23 - CTAF.
E111SPB ASP: PRVDD SAME TFC PAT IS USED FOR RWY & SEALANE; ARPT MGR ESTABS MIN CROSSWIND LNDG CRITERIA & HAS THIS INFO PUBLD LOCAL & IN AIM.
E147TPA 1000FT AGL (1020 FT MSL) TURBINE/LARGE ACFT 1500 FT AGL (1520 FT MSL).
CHESAPEAKE RGNL (ICAO: KCPK, IATA: CPK) is a public airport located in NORFOLK, VA, US.
