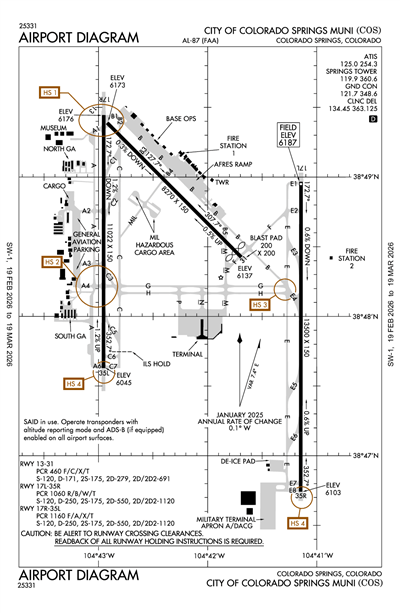

CITY OF COLORADO SPRINGS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCOS
ICAO KCOSIATA COSLocal COS
CITY OF COLORADO SPRINGS MUNI
PublicPUB

6 miles SE of COLORADO SPRINGS, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 48' 21"N 104° 42' 03"W
Elevation
6187' MSL
Pattern Alt
7187' MSL
Mag Variation
8°E
Declination
8°E
Fuel
JET A, 100LL
FSS
DENVER (DEN)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KCOS MVFR
11:54 PM MST
Light Rain and Snow and Mist
Overcast 2,500'
Scattered 1,500'
4sm
34°F
33°F
30.22"Hg
310° 5kts
AO2 SLP227 SNB14 P0010 T00110006 401330006 $
METAR KCOS 040654Z 31005KT 4SM -RASN BR SCT015 OVC025 01/01 A3022 RMK AO2 SLP227 SNB14 P0010 T00110006 401330006 $
+ Add Your Business

KCOS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.0
(719) 596-7040
ASOS 125.0
(719) 694-7502

Common

UNICOM 122.95
Pilot-To-Dispatcher (PTD) 122.85

Clearance

Clearance Delivery 134.45

Ground

SPRINGS GROUND 121.7

Tower

SPRINGS TOWER 119.9
SPRINGS TOWER 133.15
Secondary

Arrival

DUNNN STAR 124.0

Approach

SPRINGS APPROACH 124.0
SPRINGS APPROACH 120.6
Secondary

Departure

SPRINGS DEPARTURE 124.0

Flight Service

Flight Service 122.4
(DEN), COMMUNICATIONS PRVDD BY DENVER RADIO ON FREQ 122.4 (BLACK FOREST RCO).

Emergency

Emergency 121.5

Other

CLASS C 124.0

Terminal Area Forecast

KCOS
Tue, 3/3 10:26 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
MVFR
11:00 PM MST - 12:00 AM MST
Light Showers and Rain
Overcast 2,000'
6sm
320° 8kts
MVFR
11:00 PM MST - 12:00 AM MST
Light Rain and Snow
Overcast 1,500'
3sm
Calm
MVFR
Temporary 12:00 AM MST - 3:00 AM MST
Light Showers and Rain and Showers and Snow and Mist
Broken 2,000'
5sm
Calm
MVFR
12:00 AM MST - 4:00 AM MST
Showers in vicinity
Broken 3,000'
Few 1,500'
6sm
330° 5kts
VFR
4:00 AM MST - 8:00 AM MST
Broken 12,000'
Scattered 3,000'
6sm
320° 6kts
VFR
8:00 AM MST - 7:00 PM MST
Sky Clear
6sm
160° 6kts
VFR
7:00 PM MST - 11:00 PM MST
Sky Clear
6sm
130° 6kts
TAF KCOS 040526Z 0406/0506 32008KT 6SM -SHRA OVC020
   PROB30 0406/0407 3SM -RASN OVC015
   FM040700 33005KT P6SM VCSH FEW015 BKN030
   TEMPO 0407/0410 5SM -SHRASN BR BKN020
   FM041100 32006KT P6SM SCT030 BKN120
   FM041500 16006KT P6SM SKC
   FM050200 13006KT P6SM SKC
KCOS
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
0542Z
3/5/26
0542Z
!COS 03/027 COS TWY ALL FICON WET OBS AT 2603040542. 2603040542-2603050542
3/4/26
0542Z
3/5/26
0542Z
Runway!COS 03/026 COS RWY 31 FICON 5/5/5 100 PCT WET OBS AT 2603040542. 2603040542-2603050542
3/4/26
0542Z
3/5/26
0542Z
Runway!COS 03/025 COS RWY 35L FICON 5/5/5 100 PCT WET OBS AT 2603040542. 2603040542-2603050542
3/4/26
0541Z
3/5/26
0541Z
Runway!COS 03/024 COS RWY 35R FICON 5/5/5 100 PCT WET OBS AT 2603040541. 2603040541-2603050541
3/4/26
0541Z
3/5/26
0541Z
!COS 03/023 COS APRON ALL FICON WET OBS AT 2603040541. 2603040541-2603050541
3/3/26
0442Z
5/1/26
2359Z
Runway!COS 03/004 COS RWY 13 RWY END ID LGT NOT STD 2603030442-2605012359
3/2/26
1643Z
3/30/26
2200Z
!COS 03/003 COS OBST CRANE (ASN 2025-ANM-3947-NRA) 384912N1044311W (1.2NM NW COS) 6233FT (85FT AGL) FLAGGED AND LGTD 2603021643-2603302200
2/28/26
1947Z
Runway!COS 02/122 COS RWY 35L 2000FT DIST REMAINING SIGN MISSING 2602281947-2606302300EST
2/28/26
1947Z
Runway!COS 02/121 COS RWY 17R 9000FT DIST REMAINING SIGN MISSING 2602281947-2606302300EST
2/26/26
0900Z
3/5/26
1600Z
!COS 02/117 COS OBST CRANE (ASN 2025-ANM-3941-NRA) 384628N1044139W (1.9NM S COS) 6194FT (160FT AGL) FLAGGED AND LGTD 2602260900-2603051600
1/30/26
2212Z
7/30/26
2359Z
!COS 01/481 COS OBST ANTENNA (ASN 1993-ANM-281-OE) 384136N1042837W (12.5NM ESE COS) 5906FT (200FT AGL) LGTD 2601302212-2607302359
1/29/26
2318Z
!COS 01/480 COS NAV ILS RWY 35L PETEY LOM U/S 2601292318-2603272000EST
12/31/25
1324Z
!COS 12/289 COS NAV ILS RWY 35L CAT II NA 2512311324-2606302000EST
12/24/25
0840Z
3/24/26
0500Z
!COS 12/280 COS OBST TOWER LGT (ASR 1037882) 384745.00N1044322.00W (1.2NM WSW COS) 6108.3FT (74.1FT AGL) U/S 2512240840-2603240500
4/15/25
1222Z
9/1/27
0130Z
!COS 04/074 COS AIRSPACE SEE BRK 04/434 AEROBATIC ACFT DLY SR-SS 2504151222-2709010130
FDC
2/24/26
1247Z
!FDC 6/9065 COS IAP CITY OF COLORADO SPRINGS MUNI, COLORADO SPRINGS, CO.
ILS RWY 35L (SA CAT II), AMDT 40...
PROCEDURE NA. TEMPORARY CRANE 6309 MSL, 1.9NM NE OF RWY 35L (2025-ANM-3467-NRA)..
2602241247-2606261247EST
1/30/26
1834Z
!FDC 6/8995 COS IAP CITY OF COLORADO SPRINGS MUNI, COLORADO SPRINGS, CO.
ILS OR LOC RWY 35L, AMDT 40...
S-LOC 35L: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PETEY (CO) LOM OUT OF SERVICE. 2601301834-2604301833EST
1/30/26
1409Z
!FDC 6/8826 COS IAP CITY OF COLORADO SPRINGS MUNI, COLORADO SPRINGS, CO.
VOR RWY 17L, ORIG-A...
VDP NA. DISREGARD BRK 8.1 DME AT MISSED APPROACH POINT. BRK DME RESTRICTED ON FINAL.
2601301409-2801301409EST
1/16/26
1358Z
!FDC 6/4245 COS IAP CITY OF COLORADO SPRINGS MUNI, COLORADO SPRINGS, CO.
RNAV (RNP) Z RWY 17L, AMDT 2B...
RNP 0.15 DA 6638/HAT 451 ALL CATS, VIS RVR 4500 ALL CATS.
RNP 0.25 DA 6659/HAT 472 ALL CATS.
2601161358-2608281358EST
6/24/25
1617Z
!FDC 5/8175 COS IAP CITY OF COLORADO SPRINGS MUNI, COLORADO SPRINGS, CO.
NDB RWY 35L, AMDT 28...
CHANGE INOP NOTE TO READ: FOR INOP ALS, INCREASE S-35L CAT A/B VISIBILITY TO RVR 5500, AND CAT C/D TO 1 3/8 SM. TERMINAL ROUTE FROM PUB VORTAC TO MIDAY INT/PUB 21.4 DME: NOPT.
2506241617-2706241617EST
6/13/25
1803Z
!FDC 5/4142 COS IAP CITY OF COLORADO SPRINGS MUNI, COLORADO SPRINGS, CO.
ILS OR LOC RWY 35L, AMDT 40...
NDB RWY 35L, AMDT 28...
CIRCLING CAT B MDA 6800/HAA 613.
2506131803-2706131803EST
4/11/25
1620Z
!FDC 5/5437 COS IAP CITY OF COLORADO SPRINGS MUNI, COLORADO SPRINGS, CO.
ILS OR LOC RWY 35R, AMDT 2A...
DME REQUIRED FOR LOC ONLY.
2504111620-2704151620EST
3/6/25
1740Z
!FDC 5/0110 COS IAP CITY OF COLORADO SPRINGS MUNI, COLORADO SPRINGS, CO.
ILS OR LOC RWY 35L, AMDT 40...
ILS RWY 35L (SA CAT II), AMDT 40...
NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 6400 MSL.
2503061740-2703051738EST
2/18/25
1908Z
!FDC 5/3905 COS IAP CITY OF COLORADO SPRINGS MUNI, COLORADO SPRINGS, CO.
ILS RWY 35L (SA CAT II), AMDT 40 ...
PROCEDURE NA. 2502181908-2702201908EST
11/15/24
1835Z
!FDC 4/4945 COS IAP CITY OF COLORADO SPRINGS MUNI, COLORADO SPRINGS, CO.
RNAV (RNP) Z RWY 17R, AMDT 1B...
RNP 0.22 DA 6678/HAT 502 ALL CATS. TREE 6408 MSL 1.35NM N OF RWY 17R (08-097357 PERMANENT).
2411151835-2611151835EST
Military
2/24/26
2241Z
5/24/26
2359Z
PETERSON SPACE FORCE BASE RAMP OFFICIAL BUSINESS ONLY DUE TO PETERSON RAMP FUEL SERVICES UNAVAILABLE. PLEASE CONTACT COLORADO JET CENTER FOR ANY FUEL REQUESTS. 719-591-2288.
12/23/25
0121Z
3/20/26
1900Z
AerodromeAERODROME PETERSON SFB OBSTRUCTION LIGHTS ON HGR 140, BLDG122, AND HGR 104 ARE OTS.
12/23/25
0120Z
3/20/26
1900Z
AerodromeAERODROME AIRCRAFT PARKING AT THE ADACG MUST COORDINATE WITH TRANSPORTATION OFFICE PRIOR TO ARRIVAL FOR VEHICLES/TRANSPORTATION. TRANSPORTATION OFFICE; COM: 719-556-4307, HOURS 0800L/1400Z-1600L/2200Z.
12/23/25
0118Z
3/20/26
1900Z
AerodromeAERODROME PARKING SPOTS IN THE HEAVY AREA, INDIA ROW, AND JULIET ROW CLOSED TO FIGHTER TYPE AIRCRAFT
12/23/25
0116Z
3/20/26
1900Z
AerodromeAERODROME TAXIWAY CHARLIE AND DELTA LEADING TO THE IMOS CLOSED TO TURBOJET AIRCRAFT
12/23/25
0114Z
3/20/26
1900Z
AerodromeAERODROME PARKING SPOT V-1 CLOSED TO FIGHTER TYPE AIRCRAFT
Yes
ALL
CITY OF COLORADO SPRINGS
7770 MILTON E PROBY PKWY, SUITE 50
COLORADO SPRINGS, CO 80916
Phone: (719) 550-1919
ALEXANDRU KOVACS
7770 MILTON E PROBY PKWY, SUITE 50
COLORADO SPRINGS, CO 80916
Phone: (719) 550-1900
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
COS
--
ACTVT REIL RWY 13 & 31, 17R - CTC COS ATCT.
N/A
Yes
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 13/31

8270 ft. x 150 ft.
ASPH
Good
GRVD
MED

120,000lbs
171,000lbs
279,000lbs
691,000lbs
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 49' 23"N 38° 48' 25"N
Longitude 104° 42' 55"W 104° 41' 42"W
Elevation 6,173' 6,137'
Threshold Crossing Height 64 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3.04°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17L/35R

13500 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 17L Runway 35R
True Heading 180°0°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 48' 58"N 38° 46' 45"N
Longitude 104° 41' 09"W 104° 41' 09"W
Elevation 6,187' 6,103'
Threshold Crossing Height 57 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway 17R/35L

11022 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 17R Runway 35L
True Heading 180°0°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 49' 27"N 38° 47' 38"N
Longitude 104° 42' 57"W 104° 42' 57"W
Elevation 6,176' 6,045'
Threshold Crossing Height 49 ft. AGL 72 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1CUSTOMS AVBL FOR ALL MIL/CIVILIAN ACFT. CONTACT US CUSTOMS 719-574-6607.
A110-10OIL: O-133-148-156(MIL).
A110-13PORTIONS OF TWYS A, B, E, F, G, AND M ARE BLOCKED FROM VIEW FROM THE TOWER BY OBSTRUCTIONS. PORTIONS OF TWY C AND RY 17R/35L ARE BLOCKED FROM VIEW FROM THE TOWER WHEN THE INFIELD MILITARY OPERATING SFC IS OCCUPIED BY A C17 OR C5.
A110-15WATERFOWL AND MIGRATORY BIRD ACTIVITY ON AND INVOF ARPT.
A110-16A/DACG RAMP LIGHT 140 FT AGL.
A110-17BE ALERT; INTENSIVE USAF STUDENT TRAINING INVOF COLORADO SPRINGS & PUEBLO COLORADO.
A110-18CTN: ACFT WITH WINGSPAN GREATER THAN 117 FT; WHEN TAXI ON CNTRLN A2, A3, A4, USE OVERSTEER IN TURNS DUE TO INSUFFICIENT CORNER FILLETS IN PAVEMENT.
A110-19PPR RQR FOR ALL TRAN ACFT - CTC AFLD MGT DSN 834-4778/9 C719-556-4778/9. AFLD MGMT OPR 1300-0500++, CLSD HOL.
A110-2TURBO JET TRNG FLTS PROHIBITED 2300-0600.
A110-20MILITARY: TRAN ALERT-FORT CARSON ARRIVAL/DEPARTURE AIR CONTROL GROUP (ADACG) MSN, CTC DSN 532-8002/3 OR C719-503-8002/3. ALL TRAN ACFT CTC HIGH COUNTRY 30 MIN PRIOR TO ARR. TRAN ACFT CTC COLORADO SPRINGS RGNL COMD POST (CALLSIGN: HIGH COUNTRY) WITH ATA AND ATD.
A110-21MISC-FAA ATCT WILL PROVIDE MIL RCR O/R. CARGO AND PAX SVC AVBL ONLY ON PETERSON RAMP 1330-2330Z++ WKD. CLSD WKEND AND HOL UNLESS COORD 72 HR PRIOR. CTC PAX SVC AT DSN 834-4521/9021 OR C719-556-4521/9021.
A110-22FUEL-A++(MIL)
A110-23MISC-WX OPR H24 INCL WKEND; ++ CTC 834-4337, C 719-556-4337. OBSN AND FCST BY NWS KCOS. LLWASL KPEF WATCH, WARNING, ADZY.
A110-24WHEN CROSSING RWY 17R/35L FROM A1 TO B1 OR B1 TO A1, BE AWARE YOU WILL NOT SEE A1 OR B1 DEPENDING ON DIRECTION CROSSING UNTIL YOU CREST RWY 17R/35L. WHEN CROSSING FROM A1 TO B1 TRAVEL NE AND FROM B1 TO A1 TRAVEL SW.
A110-25AF: ACFT TRANSPORTING HAZ CARGO CTC AFLD MGMT ON 318.05 30 MIN PRIOR TO ARR.
A110-29MILITARY: RSTD: DUE TO LIMITED PRKG AND POTENTIAL TO DMG LGT, UNSECURED ACFT, MOBILITY ACFT ARE NOT PERMITTED TO USE COLORADO SPRINGS FBO UNLESS FBO CAN GUARANTEE SUFFICIENT PRKG CLNC THAT BLAST FM ENG THRUST AND REVERSE THRUST WILL NOT IMPACT OTR ACFT, GND PSNL, OR EQPT.
A110-3B52 OPNS PROHIBITED.
A110-4LGTD WDI APCH RWY 17L/35R, 17R/35L & 13/31.
A110-9JASU: 2(AM32A-95) 2MA32A-60A 2(MA32-86A) 1(SGNC) 2(B809D-GENERATORS).
A39-13/31PCR VALUE: 460/F/C/X/T
A39-17L/35RPCR VALUE: 1060/R/B/W/T
A39-17R/35LPCR VALUE: 1160/F/A/X/T
A81-APTACTVT REIL RWY 13 & 31, 17R - CTC COS ATCT.
CITY OF COLORADO SPRINGS MUNI (ICAO: KCOS, IATA: COS) is a public airport located in COLORADO SPRINGS, CO, US.
