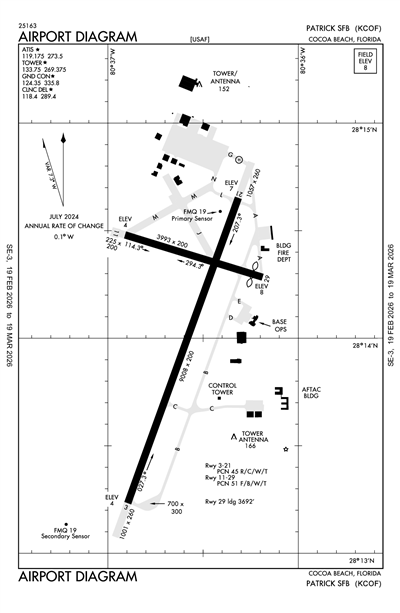

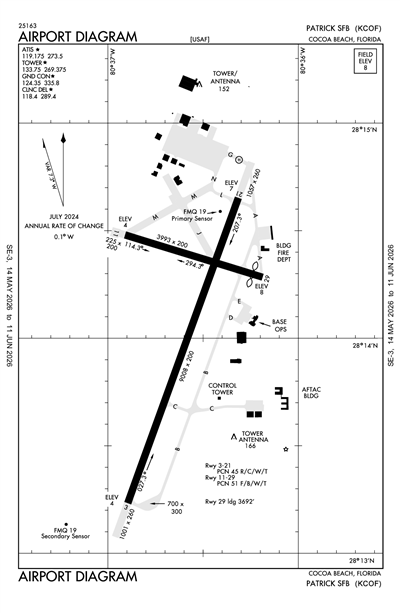

PATRICK SPACE FORCE BASE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCOF
ICAO KCOFIATA COFLocal COF
PATRICK SPACE FORCE BASE
PrivatePVT

3 miles S of COCOA BEACH, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
28° 14' 06"N 80° 36' 36"W
Elevation
8' MSL
Pattern Alt
1008' MSL
Mag Variation
7°W
Declination
7°W
Fuel
JET A+, CILI
FSS
SAINT PETERSBURG (PIE)
Sectional
JACKSONVILLE
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KCOF VFR
7:55 AM EST
Clear
10sm
72°F
69°F
30.20"Hg
080° 8kts
AO2 SLP231 T02230204 $
METAR KCOF 041255Z AUTO 08008KT 10SM CLR 22/20 A3020 RMK AO2 SLP231 T02230204 $
+ Add Your Business

KCOF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.175

Common

Pilot-To-Dispatcher (PTD) 139.3
(CALL BARRIER); GLOBAL HF THRU CAPE ROD.

Clearance

Clearance Delivery 118.4

Ground

PATRICK GROUND 124.35
1300-0500Z++ MON-FRI; SAT-SUN CLSD; HOL CLSD. AIR FIELD CLSD THIRD FRI OF MONTH.

Tower

PATRICK TOWER 133.75
1300-0500Z++ MON-FRI; SAT-SUN CLSD; HOL CLSD. AIR FIELD CLSD THIRD FRI OF MONTH.

Arrival

BITHO STAR 128.375

Approach

ORLANDO APPROACH 126.025

Departure

OCEAN DP 126.025
ORLANDO DEPARTURE 126.025
RIVER DP 126.025

Operations

Operations 138.475
RESCUE OPS
Operations 150.35
KING OPS

Emergency

Emergency 121.5

Military

COMD POST 139.3
PATRICK, (CALL BARRIER); GLOBAL HF THRU CAPE ROD.
PMSV METRO 123.25

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KCOF
Tue, 3/3 10:40 PM EST
Tue, 3/3 10:00 PM EST - Thu, 3/5 4:00 AM EST
MVFR
10:00 PM EST - 2:00 AM EST
Broken 3,000'
Scattered 2,000'
6sm
30.15"Hg
070° 10kts
MVFR
Becoming 2:00 AM EST - 4:00 AM EST
Mist
Overcast 2,500'
Broken 2,000'
Scattered 1,500'
5.59sm
30.15"Hg
100° 8kts
TAF AMD KCOF 040340Z 0403/0509 07010KT 9999 SCT020 BKN030 QNH3016INS
   BECMG 0507/0508 10008KT 9000 BR SCT015 BKN020 OVC025 QNH3014INS TX24/0418Z TN20/0408Z LAST NO AMDS AFT 0403 NEXT 0411
KCOF
EffectiveExpiresCategoryNOTAM
Military
3/5/26
1600Z
3/5/26
1900Z
BAM BAM DROPZONE OPERATIONS SCHEDULED. FROM FIVE MINUTES PRIOR TO AIRCRAFT TIME OVER TARGET UNTIL DZ OPERATIONS ARE STABILIZED (JUMPERS/PACKAGES LANDED) NONPARTICIPATING AIRCRAFT ACTIVITY WITHIN A 3 MILE RADIUS FROM THE CENTER OF THE DZ IS RESTRICTED TO VFR ITINERANTS VIA US-1. FOR DZ OPERATIONS BELOW 2,500' MSL, A TWO MILE RADIUS SAFETY FOOTPRINT MAY BE UTILIZED WITH DZ PILOT CONCURRANCE. DURING DZ OPERATIONS, NONPARTICIPATING AIRCRAFT AND VEHICLE ACTIVITY WITHIN THE CMA IS PROHIBITED.
3/3/26
0334Z
5/31/26
1200Z
RunwayRWY 11/29 RUNWAY EDGE LIGHTS FOR RWY 11/29 STUCK AT MAX INTENSITY
3/3/26
0334Z
5/2/26
0400Z
AerodromeAERODROME TWY B HOLDING POSITION SIGN FOR ILS SOUTH SIDE NOT LGTD
3/3/26
0250Z
3/6/26
0250Z
M0197/26 NOTAMC M0194/26
3/2/26
1701Z
3/5/26
1701Z
M0193/26 NOTAMC M0182/26
3/2/26
1641Z
5/28/26
2359Z
AerodromeAERODROME GUNBERM UNAVAILABLE WITHOUT AIRFIELD MANAGEMENT COORDINATION
2/18/26
1353Z
3/31/26
0500Z
ROTATING BEACON OTS
2/12/26
1222Z
4/14/26
0500Z
FIRE FIGHTING AND RESCUE DOWNGRADED TO RLS IN CATEGORIES 8 AND 9, AND CLS IN CATEGORY 10 WITH 4800 GALLONS AVAILABLE.
12/11/25
1829Z
3/9/26
0400Z
PARKING APRON ON NE SIDE OF 750 RAMP, ADJACENT TO 751 HANGAR RESTRICTED TO TOW OPERATIONS LIMITED TO UH60 AIRCRAFT AND SMALLER. AIRCRAFT BEING TOWED WITHIN 10FT OF AGE EQUIPMENT OR CONSTRUCTION WILL REQUIRE WING WALKERS
12/10/25
0442Z
3/9/26
0001Z
OBSTRUCTION LIGHT ON RWY 03 ILS LOCALIZER UNSERVICEABLE
Yes
M-F 1300-0500Z+
SAT-SUN CLSD
HOL CLSD
CLSD EVERY THIRD FRI OF THE MONTH.
USAF
DEPT OF THE AF,HDQRTS ADTC
EGLIN AFB, FL 32542
CHIEF OF AFLD MANAGEMENT
DEPT OF THE AF HEADQUARTERS ADTC
EGLIN AFB, FL 32542
Phone: 321-494-4028
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
High & Low Pressure
None

Runway 03/21

9008 ft. x 200 ft.
ASPH
CONC
GRVD
HIGH
45/R/C/W/T
--
--
--
--
  Runway 03 Runway 21
True Heading 20°200°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 28° 13' 16"N 28° 14' 40"N
Longitude 80° 36' 54"W 80° 36' 20"W
Elevation 4' 7'
Threshold Crossing Height 52 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 11/29

3993 ft. x 200 ft.

ASPH
NONE
MED
51/F/B/W/T
--
--
--
--
  Runway 11 Runway 29
True Heading 107°287°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 14' 30"N 28° 14' 18"N
Longitude 80° 36' 55"W 80° 36' 12"W
Elevation 4' 8'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-16CAUTION: FIRST 240 FT OF RWY 29 NOT VIS FM TWR. DUR VFR WX COND EXER CAUTION DUE TO EXTV LCL GEN AVN ACFT OVR MELBOURNE INTL 7 NM S.
A110-18FLUID: SP PRESAIR LHOX LOX
A110-19OIL: O-128-133-148
A110-20TRAN ALERT: OPS 1300-0500Z++ MON-FRI; CLSD HOL. ALL TRAN ARR OR DEP RQR TRAN ALERT ASST; NO ARR AFT 0430Z. REQ FOR SVCS OUTSIDE NML HR MUST BE FWD THRU AFLD MGMT NLT 10-WORK DAYS IN ADV.
A110-23MISC: AMOPS DSN 854-2222; C321-494-2222; FAX C321-494-6442.
A110-24RSTD: E SIDE TWY C CLSD TO JET ACFT & ACFT WITH WINGSPAN ABV 133 FT. GUN BERM LTD TO A-10 ACFT OR SMLR AND REQS AFLD MGMT COORDINATION. TWY J WEST OF GUN BERM CLSD.
A110-25CAUTION: BIRD HAZ POTENTIAL EXISTS. MIGRATORY SEASON PHASE II 1 OCT-31 MAR. DUR BIRD WATCH COND MODERATE TKOF AND LDG PMTD; DUR BIRD WATCH COND SEVERE TKOF AND LDG NA. CTC TWR/GND/ATIS FOR CURRENT BIRD WATCH COND CODE.
A110-26CSTMS/AG/IMG: CSTMS LTD TO TRAN MSN IN DIRECT SUPPORT OF SLD 45 AND 920 RQW ONLY. ALL ACFT RQRG CUSTOMS SUPPORT CTC AMOPS 72 HRS PRIOR WITH PPR REQ. IF NO NTC, EXP2-3 HR DELAY. ALL ACFT RQR SUPPORT CTC PTD WITH 30 MIN OUT CALL VIA DIRECT A/G COM OR FONE PATCH.
A110-28OBSN AUTOMATED; FMQ-19 OBSN WX EQPMT IN USE H24. WX OBSN/FCST AVBL H24 - DSN 467-8484; C321-853-8484. BACKUP SUPPORT CTC 26 OWS AT C318-529-2651.
A110-30CAUTION: RWY 11/29 NONSTANDARD LZ TOUCHDOWN BOX MARKINGS.
A110-33RSTD: SKID LDG CONDUCTED BY BASE ASGN R/W ACFT EQUIPPED WITH SKIDS RSTRD TO TWY B S OF TWY C AND RWY 11/29 W OF RWY 03.
A110-34RSTD: ACFT LRGR THAN C-130, NA ON 800 RAMP & 180 DEG TURNS ON RWY 03/21 LTD TO CONC ENDS.
A110-35SERVICE-TRAN ALERT-FLEET SVC UNAVBL; LAV CART AVBL UPON REQ FOR AIRCREW USE.
A110-36MISC: COMSEC STOR NOT AVBL AT AMOPS; CTC CMD POST (BLDG 423, EXTN 7001) FOR COMSEC STOR.
A110-37NTSD OVRN LEN RWY 03; OVRN 1100 FT. NTSD CHEVRON MRK EXIST. MISSING CHEVRON AT INT OF TWYS A & G.
A110-38RSTD: RWY 29 OVRN UNUSBL.
A110-39CSTMS/AG/IMG: CSTMS LTD TO TRAN MSN IN DRCT SUPPORT OF SLD 45 AND 920 RQW ONLY.
A110-4NOISE ABATEMENT INFO - AIRFIELD OPS DSN 854-2222/C321-494-2222.
A110-45RSTD: ACFT WITH 188 FT WINGSPAN AND SMALLER ONLY ON TWY A BTN 800 RAMP AND RY 29.
A110-46CAUTION: ARFF AVBL 4,800 GALS OF AGENT WITH 7 ARFF VEH.
A110-47MISC: BASE TRAN ONLY AVBL MON-FRI 1200-2100++. CLSD WKEND. PAX TRML AVBL MON 1100-1900Z++,WED 1230-2130Z++, AND TUE, THU, FRI 1430-2300Z++.
A110-50SERVICE-LGT: TWY A EDGE LGT BTN TWY B & L APRX 17 FT-78 FT FM USBL TWY SFC.
A110-51RSTD: TWY A BTN TWY L AND RWY 21 UNDERRUN RSTD TO C130 ACFT.
A110-52COMD POST DOES NOT HAVE ABILITY TO ACVT AFLD LTG AFT AFLD HR.
A110-54UHF UNREL.
A110-55HVY ACFT MUST PROVIDE OWN TOW BAR.
A110-56TFC PAT: TRAN ACFT PAT WORK NOT AUTH FM 0300-1300++ (2200-0800 LCL).
A110-57FUEL: LTD FUEL CPBLTY AVBL FOR TRAN ACFT DUE TO CONST OF FUELS STORAGE AREA - C321-494-5535/DSN 854-5535/1365.
A110-58RSTD: OFFL BUS - 72 HRS NTC RQRD FOR PPR - CTC AMOPS AT DSN 854-2222/2223. PPR VALID +/- 30 MIN FR ETA.
A110-59AIRFIELD LGTS-OUT OPS MAY BE IN PROG ON NON-INTFC BASIS WITH NON-PTCPG ACFT.
A110-6JASU; 3(MA-1A); 5(MD-3B).
A110-60RSTD: 301 RQS CARGO SLING LOAD AREA LCTD AT GRASSY AREA NW OF APCH END RWY 11 ALONG BANANA RIVER SHORELINE N28 14 38, W 80 36 57 IS AUTH FOR USE BY 920 RQW HH-60 ACFT. COOR WITH AFLD MGMT RQR PRIOR TO USE. WHEN CONDUCTING CARGO SLING LOAD OPS, OVFT OF PERS, VEH, ND PRK ACFT NOT AUTH.
A110-61RSTD - NON STD SAFETY CIRCLE MRK LCD ON 750 RAMP.
A110-62CAUTION: ARFF AVBL 4800 GAL OF AGENT WITH 4 ARFF VEH.
A16DSN-854-2222
A17-M3CLSD EVERY THIRD FRI OF THE MONTH.
A30A-21CAUTION: NON-STD THR LGT.
A33-03/21_SURFFIRST 1000 FT GROOVED CONC; MID 7000 FT ASPHALT.
A42-11_MARKBOTH STD & ASSAULT LDG ZONE MARKINGS.
A42-29_MARKBOTH STD & ASSAULT LDG ZONE MARKINGS.
A43-03PAPI UNUSBL BYD 7 DEG LEFT AND 9 DEG RIGHT OF CNTRLN.
E147TFC PAT: 1500 FT MSL RECTANGULAR, 2000 FT MSL OVHD.
PATRICK SPACE FORCE BASE (ICAO: KCOF, IATA: COF) is a private airport located in COCOA BEACH, FL, US.
