iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCMX
HOUGHTON COUNTY MEML
PublicPUB

4 miles NE of HANCOCK, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 10' 06"N 88° 29' 21"W
1095' MSL
2095' MSL
02W
JET A, 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
10/31/24-11/28/24
KCMX VFR
6:53 AM EST
Clear
10sm
34°F
29°F
30.27"Hg
200° 7kts
AO2 SLP262 T00111017 10017 21006 58016 $
KCMX 091153Z AUTO 20007KT 10SM CLR 01/M02 A3027 RMK AO2 SLP262 T00111017 10017 21006 58016 $
Add Your Business

KCMX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

ASOS

ASOS
906-482-4248
 125.675

FAA A/FD Pages

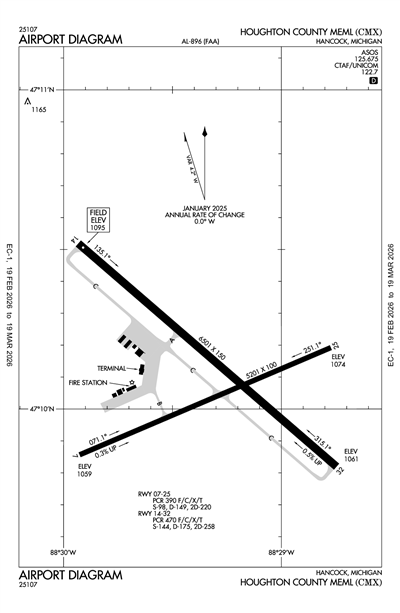

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCMX
Sat, 11/9 6:24 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
VFR
7:00 AM EST - 4:00 PM EST
Few 25,000'
6sm
190° 8kts
VFR
4:00 PM EST - 11:00 PM EST
Broken 18,000'
6sm
180° 9kts
VFR
11:00 PM EST - 4:00 AM EST
Broken 9,000'
6sm
180° 6kts
MVFR
4:00 AM EST - 6:00 AM EST
Showers in vicinity
Broken 2,700'
6sm
Calm
MVFR
6:00 AM EST - 7:00 AM EST
Showers in vicinity
Broken 1,500'
6sm
Calm
KCMX 091124Z 0912/1012 19008KT P6SM FEW250
   FM092100 18009KT P6SM BKN180
   FM100400 18006KT P6SM BKN090
   FM100900 00000KT P6SM VCSH BKN027
   FM101100 00000KT P6SM VCSH BKN015
KCMX
Domestic
11/6/241013Z !CMX 11/027 CMX RWY 25 FICON 5/5/5 100 PCT WET OBS AT 2411061013. 2411061013-2411071013
11/6/241011Z !CMX 11/026 CMX RWY 32 FICON 5/5/5 100 PCT WET OBS AT 2411061011. 2411061011-2411071011
11/4/240546Z !CMX 11/019 CMX OBST TOWER LGT (ASR 1281798) 472542.85N0875843.76W (26NM NE CMX) 1475FT (350FT AGL) U/S 2411040546-2411182359
10/30/242302Z !CMX 10/040 CMX OBST TOWER LGT (ASR 1243711) 471259.50N0882751.20W (3.1NM NNE CMX) 1332.7FT (134.8FT AGL) U/S 2410302302-2502272302
No
0400-0000
HOUGHTON COUNTY
23810 AIRPARK BLVD STE 113
CALUMET, MI 49913-9233
Phone: 906-482-3970
DENNIS M HEXT
23810 AIRPARK BLVD STE 113
CALUMET, MI 49913-9233
Phone: 906-482-3970
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
CMX
--
ACTVT MALSR RWY 32; REIL RWY 14; PAPI RWY 14 & 32; HIRL RWY 14/32 - CTAF. ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25; TWY B - CTC CO MAINT VIA CTAF.
N/A
Yes - Lighted
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction

Runway 07/25

5201 ft. x 100 ft.
ASPH
Good
GRVD
MED

98,000lbs
149,000lbs
220,000lbs
--
  Runway 07 Runway 25
True Heading 67°247°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 09' 51"N 47° 10' 12"N
Longitude 88° 29' 56"W 88° 28' 46"W
Elevation 1,059' 1,074'
Threshold Crossing Height 30 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 14/32

6501 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

144,000lbs
175,000lbs
258,000lbs
--
  Runway 14 Runway 32
True Heading 131°311°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 10' 31"N 47° 09' 49"N
Longitude 88° 29' 56"W 88° 28' 45"W
Elevation 1,095' 1,061'
Threshold Crossing Height 43 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1DEER & GULLS ON & INVOF ARPT.
A110-2AIRFIELD GUIDANCE SIGNS SNOW COVD IN WINTER.
A110-5PAEW ON ARPT MONITOR CTAF. FQT SNOW REMOVAL OPS IN PROGRESS AT VARIOUS TIMES OCT-APR MONITOR CTAF.
A110-6PPR VIA UNICOM FOR PRKG IN FRONT OF AIRLINE TRML.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-8RWY CONDS UNMON DLY 0000-0500.
HOUGHTON COUNTY MEML (ICAO: KCMX, IATA: CMX) is a public airport located in HANCOCK, MI.
