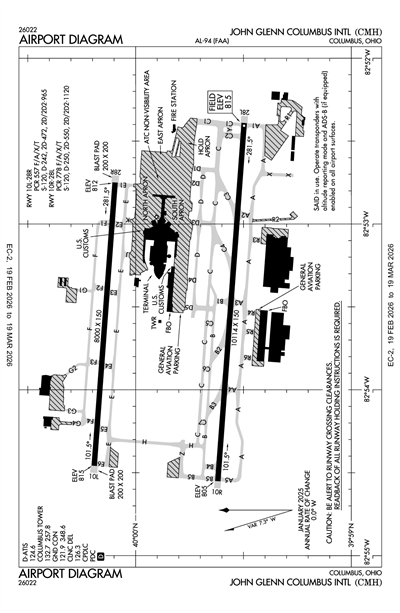

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCMH
JOHN GLENN COLUMBUS INTL
PublicPUB

6 miles E of COLUMBUS, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 59' 49"N 82° 53' 32"W
815' MSL
1815' MSL
07W
JET A-1+, 100
DAYTON (DAY)
CINCINNATI
INDIANAPOLIS (ZID)
4/17/25-5/15/25
KCMH VFR
6:51 AM EDT
Scattered 1,000'
10sm
49°F
49°F
30.20"Hg
020° 3kts
AO2 SLP226 T00940094
METAR KCMH 141051Z 02003KT 10SM SCT010 09/09 A3020 RMK AO2 SLP226 T00940094
+ Add Your Business

KCMH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
 124.6

ASOS

ASOS
614-333-9354
 124.6

Approach/Departure

APCH/P DEP/P
100-279
 134.0
APCH/P DEP/P IC
280-099
 125.95

Clearance Delivery

CD/P
 126.3

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 132.7

Other

CBUSS STAR
 125.95
CLASS C
280-099
 125.95
CLASS C
100-279
 134.0
CLPRR STAR
 134.0
DUBLN STAR
 125.95
JAKTZ STAR
 134.0
OPS
DEICE PAD CONTROL
 122.775
SCRLT STAR
 134.0

Terminal Area Forecast

KCMH
Tue, 10/14 1:20 AM EDT
Tue, 10/14 2:00 AM EDT - Wed, 10/15 2:00 AM EDT
VFR
2:00 AM EDT - 6:00 AM EDT
Few 15,000'
6sm
010° 5kts
VFR
6:00 AM EDT - 12:00 PM EDT
Scattered 1,000'
6sm
020° 4kts
VFR
12:00 PM EDT - 9:00 PM EDT
Few 2,500'
6sm
010° 10kts
VFR
9:00 PM EDT - 2:00 AM EDT
Few 20,000'
6sm
020° 8kts
TAF KCMH 140520Z 1406/1506 01005KT P6SM FEW150
   FM141000 02004KT P6SM SCT010
   FM141600 01010KT P6SM FEW025
   FM150100 02008KT P6SM FEW200
KCMH
EffectiveExpiresCategoryNOTAM
Domestic
10/10/25
1130Z
10/10/25
1930Z
!CMH 10/014 CMH TWY R5 CLSD 2510101130-2510101930
10/9/25
1930Z
10/9/25
2230Z
!CMH 10/030 CMH TWY B BTN TWY R5 AND TWY R6 CLSD 2510091930-2510092230
10/9/25
1100Z
10/9/25
2000Z
!CMH 10/017 CMH TWY C9, TWY D BTN TWY H AND TWY C9 WIP MAINT 2510091100-2510092000
10/8/25
1200Z
10/8/25
1400Z
!CMH 10/032 CMH NAV ILS RWY 10R U/S 2510081200-2510081400
10/8/25
1200Z
10/8/25
1400Z
!CMH 10/031 CMH NAV ILS RWY 28L U/S 2510081200-2510081400
10/8/25
1200Z
10/10/25
1900Z
!CMH 10/019 CMH APRON LANE AVIATION APN, CONCOURSE A TXL, CONCOURSE B SOUTH TXL, EAST APN TXL, HOLD PAD FOR RWY 28L TXL WIP SFC PAINTING 2510081200-2510101900
10/8/25
1100Z
10/12/25
1600Z
!CMH 10/026 CMH APRON CONCOURSE B APN BTN GATE 30 AND GATE 32 CLSD LGTD AND BARRICADED 2510081100-2510121600
10/7/25
2330Z
10/8/25
2330Z
Runway!CMH 10/033 CMH RWY 28L FICON 5/5/5 100 PCT WET OBS AT 2510072329. 2510072330-2510082330
10/6/25
2135Z
Runway!CMH 10/027 CMH RWY 28L PAPI U/S 2510062135-2510112000EST
10/6/25
1300Z
10/12/25
1600Z
!CMH 10/024 CMH APRON CONCOURSE A TXL ADJ GATE A3 CLSD 2510061300-2510121600
10/6/25
0943Z
10/21/25
0943Z
!CMH 10/018 CMH AD AP ABN ON CONS 2510060943-2510210943
9/30/25
2355Z
!CMH 09/155 CMH NAV ILS RWY 28R U/S 2509302355-2510302000EST
9/30/25
2355Z
!CMH 09/154 CMH NAV ILS RWY 10L U/S 2509302355-2510302000EST
9/30/25
2354Z
Runway!CMH 09/153 CMH RWY 28R PAPI U/S 2509302354-2510302000EST
9/30/25
2353Z
Runway!CMH 09/152 CMH RWY 28R ALS U/S 2509302353-2510302000EST
9/30/25
2353Z
10/30/25
2000Z
Runway!CMH 09/151 CMH RWY 10L ALS U/S 2509302353-2510302000
9/30/25
2352Z
10/30/25
2000Z
Runway!CMH 09/150 CMH RWY 10L RVR U/S 2509302352-2510302000
9/30/25
2352Z
10/30/25
2000Z
Runway!CMH 09/149 CMH RWY 10L PAPI U/S 2509302352-2510302000
9/30/25
2351Z
Runway!CMH 09/148 CMH RWY 28R RVR U/S 2509302351-2510302000EST
9/30/25
1748Z
10/31/25
2359Z
!CMH 09/147 CMH TWY F1, E2 WIP HVY EQPT 2509301748-2510312359
9/27/25
0106Z
11/1/25
2359Z
!CMH 09/137 CMH TWY E2, TWY E BTN TWY E1 AND TWY E2, TWY E1 BTN CONCOURSE B NORTH TXL AND TWY E CLSD TO ACFT WINGSPAN MORE THAN 118FT 2509270106-2511012359
9/27/25
0103Z
11/1/25
2359Z
!CMH 09/136 CMH TWY J, F2, E3, E6, TWY E BTN TWY E2 AND TWY E4, TWY E1 BTN APCH END RWY 28R AND TWY E CLSD 2509270103-2511012359
8/8/25
1125Z
10/31/25
2359Z
!CMH 08/018 CMH OBST TOWER LGT (ASR 1040501) 395816.00N0830140.00W (6.4NM WSW CMH) 1748.7FT (1028.5FT AGL) U/S 2508081125-2510312359
7/31/25
0040Z
10/31/25
2359Z
!CMH 07/131 CMH APRON HOLD PAD FOR RWY 10R CLSD TO ACFT WINGSPAN MORE THAN 118FT 2507310040-2510312359
7/20/25
1103Z
11/7/25
2359Z
!CMH 07/082 CMH TWY C6, C7, C8, C9, H, TWY C BTN TWY C4 AND TWY C9, TWY D BTN TWY C9 AND TWY H CLSD TO ACFT WINGSPAN MORE THAN 118FT 2507201103-2511072359
7/7/25
1552Z
12/31/25
2359Z
!CMH 07/027 CMH TWY C5 CLSD 2507071552-2512312359
5/17/25
0000Z
12/31/25
2359Z
!CMH 05/105 CMH AIRSPACE UAS WI AN AREA DEFINED AS 1.5NM RADIUS OF
395657.30N0825222.00W (3.0NM S CMH) SFC-300FT AGL DLY 0000-2359
2505170000-2512312359
3/26/25
1805Z
8/31/26
2359Z
!CMH 03/167 CMH OBST CRANE (ASN 2025-AGL-123-NRA) 395947N0825334W (0.0NM SW CMH) 959FT (150FT AGL) FLAGGED AND LGTD 2503261805-2608312359
3/26/25
1803Z
8/31/26
2359Z
!CMH 03/166 CMH OBST CRANE (ASN 2025-AGL-117-NRA) 395949N0825418W (0.6NM W CMH) 957FT (150FT AGL) FLAGGED AND LGTD 2503261803-2608312359
3/24/25
1200Z
10/31/25
2100Z
Runway!CMH 03/128 CMH RWY 10L/28R CLSD 2503241200-2510312100
3/21/25
1751Z
11/1/25
2100Z
!CMH 03/138 CMH TWY R2 CLSD 2503211751-2511012100
3/10/25
1030Z
11/1/25
2300Z
!CMH 03/059 CMH TWY H WIP HVY EQPT SOUTH SIDE MON-SAT 1030-2300 2503101030-2511012300
12/20/24
1638Z
11/28/25
2200Z
!CMH 12/139 CMH TWY D5, TWY D BTN TWY D4 AND TWY D5 CLSD 2412201638-2511282200
10/12/24
0900Z
10/12/25
2359Z
!CMH 10/061 CMH OBST CRANE LGT (ASN 2024-AGL-6155-OE) 395712N0825854W (4.9NM WSW CMH) 1235FT (453FT AGL) U/S 2410120900-2510122359
FDC
8/15/25
0239Z
!FDC 5/8275 CMH ODP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7A...
TAKEOFF OBSTACLE NOTE: RWY 10L, TEMPORARY CRANE 3827FT FROM DER, 616 RIGHT OF CENTERLINE, 150 AGL/938 MSL (2024-AGL-10254-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2508150239-2512142355EST
8/15/25
0205Z
!FDC 5/8259 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
ILS OR LOC RWY 28R, AMDT 5...
S-ILS 28R DA 1075/HAT 262 ALL CATS. FOR INOP ALS, INCREASE ILS VISIBILITY TO RVR 4500 ALL CATS; INCREASE LOC VISIBILITY TO 1 3/8 CATS C/D. TEMPORARY CRANES UP TO 1057 MSL, 3145FT EAST OF RWY 10R (2025-AGL-5241-5248-NRA).
2508150205-2802152355EST
8/15/25
0205Z
!FDC 5/8258 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
RNAV (GPS) Y RWY 10L, AMDT 4...
LPV DA 1121/HAT 306 ALL CATS. FOR INOP ALS, INCREASE LPV VISIBILITY TO RVR 4500 ALL CATS; LNAV VISIBILITY TO 1 3/8 CATS C/D. TEMPORARY CRANES UP TO 1059 MSL, BEGINNING 3145FT E OF RWY 10R (2025-AGL-5241-5248-NRA). TEMPORARY CRANE, 1027 MSL BEGINNING 2782 FT SE OF RWY 10L (2025-AGL-1432-NRA). TEMPORARY CRANE, 995 MSL BEGINNING 2707FT NE OF RWY 10L (2025-AGL-592 THRU 596-NRA).
2508150205-2802152355EST
8/15/25
0205Z
!FDC 5/8254 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
ILS OR LOC RWY 10L, AMDT 20...
S-ILS 10L DA 1121/HAT 306 ALL CATS. FOR INOP ALS, INCREASE ILS VISIBILITY TO RVR 4500 ALL CATS. TEMPORARY CRANES UP TO 1057 MSL BEGINNING 3145FT E OF RWY 10R (2025-AGL-5241-5248-NRA). TEMPORARY CRANE 1027 MSL, 2782FT SE OF RWY 10L (2025-AGL-1432-NRA). TEMPORARY CRANE 995 MSL, 2707FT NE OF RWY 10L (2025-AGL-592 THRU 596-NRA).
2508150205-2802152355EST
8/15/25
0205Z
!FDC 5/8251 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
ILS RWY 10R (SA CAT I AND II), AMDT 10 ...
PROCEDURE NA.
TEMPORARY CRANES UP TO 1059 MSL, BEGINNING 3815FT E OF RWY 10R (2025-AGL-5241-5248-NRA). TEMPORARY CRANES, UP TO 957 MSL, BEGINNING 1499FT NE OF RWY 10R (2025-AGL-116/117-NRA) 2508150205-2802152355EST
8/15/25
0205Z
!FDC 5/8250 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
ILS OR LOC RWY 10R, AMDT 10...
S-ILS 10R DA 1117/HAT 308 ALL CATS. VIS RVR 2400 ALL CATS. FOR INOP ALS, INCREASE ILS VISIBILITY TO RVR 4500 ALL CATS. TEMPORARY CRANES UP TO 1059 MSL, BEGINNING 3815FT E OF RWY 10R (2025-AGL-5241-5248-NRA). TEMPORARY CRANES, UP TO 957 MSL, BEGINNING 1499FT NE OF RWY 10R (2025-AGL-116/117-NRA).
2508150205-2802152355EST
8/15/25
0205Z
!FDC 5/8249 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
RNAV (GPS) Y RWY 10R, AMDT 4...
LPV DA 1117/HAT 308 ALL CATS. VIS RVR 2400 ALL CATS. TEMPORARY CRANES 1055 MSL 3815 FT E OF RWY 10R (2025-AGL-5241-5248-NRA). TEMPORARY CRANES, UP TO 957 MSL, BEGINNING 1499FT NE OF RWY 10R (2025-AGL-116/117-NRA).
2508150205-2802152355EST
8/15/25
0205Z
!FDC 5/8247 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
RNAV (GPS) Y RWY 28R, AMDT 3...
LPV DA 1075/HAT 262 ALL CATS. LNAV/VNAV DA 1290/HAT 477 ALL CATS, VIS RVR 5000 ALL CATS. FOR INOP ALS, INCREASE LPV ALL CATS VISIBILITY TO RVR 4500; INCREASE LNAV/VNAV ALL CATS VISIBILITY TO RVR 5500; INCREASE LNAV CAT C/D VISIBILITY TO 1 3/8 SM. TEMPORARY CRANES BEGINNING 1056 MSL 4225FT SE OF RWY 10L (2025-AGL-5241-5248-NRA). TEMPORARY CRANE 997 MSL 1.2NM E OF RWY 28R (2024-AGL-7283-OE). TEMPORARY CRANE 1047 MSL 5478FT S OF RWY 28R (2022-AGL-20712-OE). TEMPORARY CRANE 938 MSL 3449FT NE OF RWY 28L (2024-AGL-10254-OE).
2508150205-2802152355EST
8/15/25
0205Z
!FDC 5/8245 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
ILS OR LOC RWY 10L, AMDT 20...
ILS OR LOC RWY 10R, AMDT 10...
ILS OR LOC RWY 28L, AMDT 31...
ILS OR LOC RWY 28R, AMDT 5...
RNAV (GPS) Y RWY 10L, AMDT 4...
RNAV (GPS) Y RWY 10R, AMDT 4...
RNAV (GPS) Y RWY 28L, AMDT 4...
RNAV (GPS) Y RWY 28R, AMDT 3...
CIRCLING CAT A/B MDA 1420/HAA 605, TEMPORARY CRANE 1059 MSL 2852 FT FROM RWY 10L (2025-AGL-5241 THRU 5248-NRA). TEMPORARY CRANE 1047 MSL 5161FT SE OF CMH AIRPORT (2022-AGL-20712-OE).
2508150205-2802152355EST
5/28/25
1512Z
!FDC 5/5931 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
RNAV (RNP) Z RWY 28L, AMDT 2A...
RNP 0.17 DA 1177/HAT 362 ALL CATS, VIS RVR 3500 ALL CATS. FOR INOP ALS, INCREASE RNP 0.17 ALL CATS VISIBILITY TO RVR 5500 AND INCREASE RNP 0.30 ALL CATS VISIBILITY TO 1 3/8 SM. EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. TEMPORARY CRANE 1047 MSL 2580FT SW OF RWY 28L (2022-AGL-20712-OE).
2505281512-2601071512EST
3/19/25
1100Z
!FDC 5/4998 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
RNAV (RNP) Z RWY 28R, AMDT 2...
RNP 0.16 DA 1165/HAT352 ALL CATS. VIS RVR 4000 ALL CATS. RNP 0.30 VIS RVR 4000. FOR INOP ALS, INCREASE ALL CATS VISIBILITY TO RVR 5500. TEMPORARY CRANE, 938 MSL, 3449FT NE OF RWY 28L (2024-AGL-10254-OE).
2503191100-2512142355EST
3/10/25
1749Z
!FDC 5/1001 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
RNAV (GPS) Y RWY 28R, AMDT 3...
LNAV/VNAV DA 1118/HAT 305 ALL CATS.
2503101749-2703101749EST
2/25/25
1950Z
12/3/25
2355Z
!FDC 5/6745 CMH ODP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7A...
TAKEOFF MINIMUMS: RWY 10L, 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 208FT PER NM TO 1100, EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. TEMPORARY CRANE 4814 MSL 1.2NM E OF RWY 28R (2024-AGL-7283-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2502251950-2512032355EST
2/8/25
1230Z
!FDC 5/1134 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
RNAV (RNP) Z RWY 28R, AMDT 2...
RNP 0.16 DA 1165/HAT 352 ALL CATS. VISIBILITY ALL CATS RVR 3000. RNP 0.30 DA 1221/HAT 408 ALL CATS. VISIBILITY ALL CATS RVR 4000. FOR INOPERATIVE ALS, INCREASE RNP 0.16 ALL CATS VISIBILITY TO RVR 5500 AND INCREASE RNP 0.30 ALL CATS VISIBILITY TO RVR 6000. TEMPORARY CRANE 891FT MSL 4350FT EAST OF RWY 28R (2024-AGL-14684-OE).
2502081230-2601141406EST
1/13/25
1710Z
!FDC 5/2904 CMH IAP JOHN GLENN COLUMBUS INTL, COLUMBUS, OH.
RNAV (RNP) Z RWY 28R, AMDT 2...
RNP 0.30 DA 1282/HAT 469 ALL CATS, VIS RVR 5000 ALL CATS. FOR INOP ALS, INCREASE RNP 0.16 ALL CATS VISIBILITY TO RVR 4500 AND INCREASE RNP 0.30 ALL CATS VISIBILITY TO 1 3/8 SM. EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. TEMPORARY CRANE 997 MSL 1.2NM E OF RWY 28R (2024-AGL-7283-OE).
2501131710-2511191710EST
Yes
ALL
COLUMBUS REGIONAL AIRPORT AUTH
4600 INTERNATIONAL GATEWAY
COLUMBUS, OH 43219
Phone: 614-239-4000
JOE NARDONE
COLUMBUS REGIONAL AIRPORT AUTHORITY, 4600 INTERNATIONAL GATEWAY
COLUMBUS, OH 43219
Phone: 614-239-4004
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
CMH
--
--
N/A
Yes
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 10L/28R

8000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
242,000lbs
472,000lbs
965,000lbs
  Runway 10L Runway 28R
True Heading 94°274°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 00' 12"N 40° 00' 06"N
Longitude 82° 54' 27"W 82° 52' 45"W
Elevation 815' 812'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 10R/28L

10114 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 10R Runway 28L
True Heading 94°274°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 59' 37"N 39° 59' 30"N
Longitude 82° 54' 33"W 82° 52' 23"W
Elevation 805' 815'
Threshold Crossing Height 70 ft. AGL 68 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-1MODEL ACFT TFC WITHIN A 1 NM RDS OF A POINT 8 NM ON A 010 DEG BRG FM THE ARPT; SFC - 5000 FT AGL; SR-SS DLY.
A110-12ALL SURFACES AROUND TERMINAL; NORTH OF TWY 'D' & SOUTH OF TWY 'E' ARE NON-MOVEMENT AREAS.
A110-18NOISE BARRIER LOCATED AT SE SIDE OF AIRFIELD RESTRICTED TO ACFT WITH WINGSPAN LESS THAN 79 FT.
A110-20TO REQ LDG RIGHTS CTC US CUSTOMS BETWEEN 1230-0300Z, MON-FRI AT 614-497-1865.
A110-21FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.
A110-26TWY F1 RSTRD TO AIRCRAFT WITH WINGSPAN LESS THAN 120 FT.
A110-3BIRDS INVOF ARPT.
A110-30TWYS R2, R3, R4, R5 AND R6 RSTRD TO WINGSPAN LESS THAN 118 FT.
A110-31TWY R1 RSTRD TO ACFT WITH WINGSPAN LESS THAN 79 FT.
A110-33TAXILANE CONCOURSE A BTN TWY D3 AND TWY D4 CLSD TO ACFT WINGSPAN MORE THAN 130 FT.
A110-34TAXILANE CONCOURSE C BTN TWY J AND TWY K CLSD TO ACFT WINGSPAN MORE THAN 135 FT.
A110-35HOLD PAD FOR RWY 28L RSTRD TO ACFT WITH WINGSPAN LESS THAN 118 FT.
A110-36PILOTS CONDUCTING EFVS OPS; BE AWARE LED ALS IN USE RWY 28L.
A110-6TWY D-5 PAVEMENT (NORTH OF TWY D) IS RSTRD TO ACFT WITH WINGSPAN LESS THAN 79 FT.
A110-7BE ALERT: RY 10L/28R RESTRICTIONS ON STAGE I & II TURBOJET ACFT 2200-0800 & ON STAGE III TURBOJET ACFT 2200-0700. PRACTICE APCHS FOR HIGH NOISE LEVEL TYPE ACFT INCLUDING NON-STAGE III MIL JET ACFT SHALL NOT BE APPROVED UNLESS RY 10R/28L IS IN USE & THE APCH TERMINATES IN A FULL STOP TAXI-BACK OPN.
JOHN GLENN COLUMBUS INTL (ICAO: KCMH, IATA: CMH) is a public airport located in COLUMBUS, OH.
