KCLL
EASTERWOOD FLD
Public
PUB
3 miles SW of COLLEGE STATION, TX
View on
Map
Status
Operational
Coordinates
30° 35' 17"N
96° 21' 45"W
Elevation
321' MSL
Pattern Alt
1321' MSL
Mag Variation
03E
Fuel
JET A, JET A (FSII), 100LL
FSS
MONTGOMERY COUNTY (CXO)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KCLL FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.95
CTAF
118.5
ATIS
ATIS
126.85
Clearance Delivery
CD/P
128.7
Emergency
EMERG
121.5
Ground
GND/P
128.7
Tower
LCL/P
118.5
FAA A/FD Pages
FAA A/FD Page

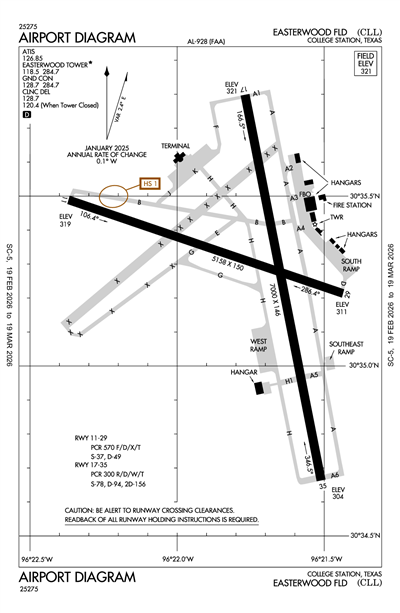

Airport Diagrams
AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
HOT SPOT
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 35
LOC BC RWY 17
RNAV (GPS) RWY 11
RNAV (GPS) RWY 17
RNAV (GPS) RWY 29
RNAV (GPS) RWY 35
VOR OR TACAN RWY 11
VOR RWY 29
Terminal Area Forecast
No TAF is available for this location.
KCLL
Domestic
1/16/25
1500Z
!CLL 01/008 CLL SVC TAR/SSR U/S 2501161500-2501162100
1/16/25
1400Z
!CLL 01/013 CLL AD AP FUEL NOT AVBL TO HEL HOT REFUELING 2501161400-2501181400
1/16/25
1400Z
!CLL 01/012 CLL TWY A2
CLSD
2501161400-2501181400
1/16/25
1400Z
!CLL 01/011 CLL TWY A1
CLSD
2501161400-2501181400
1/16/25
1400Z
!CLL 01/010 CLL TWY A BTN TWY B AND APCH END RWY 17
CLSD
2501161400-2501181400
1/16/25
1400Z
!CLL 01/009 CLL RWY 11/29
CLSD
EXC XNG 2501161400-2501181400
1/13/25
1400Z
!CLL 01/019 CLL AIRSPACE UAS WI AN AREA DEFINED AS 1.5NM RADIUS OF
83TX (6.8NM WNW CLL) SFC-400FT AGL MON-FRI 1400-2300
2501131400-2503282300
12/3/24
1109Z
!CLL 12/001 CLL NAV ILS RWY 35 OM U/S 2412031109-2512052000EST
11/4/24
2225Z
!CLL 11/005 CLL OBST TOWER LGT (ASR 1039472) 303323.70N0961520.80W (5.9NM ESE CLL) 529.2FT (223.1FT AGL) U/S 2411042225-2502020500
FDC
6/6/23
1334Z
!FDC 3/6178 CLL IAP EASTERWOOD FLD, COLLEGE STATION, TX.
RNAV (GPS) RWY 35, AMDT 1C...
LNAV/VNAV DA 619/HAT 308 ALL CATS.
FOR INOPERATIVE ALS, INCREASE LPV CAT E VISIBILITY TO 3/4 SM, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 7/8 SM, INCREASE LNAV CAT E VISIBILITY TO 1 3/8 SM.
TOWER, 458 MSL, 4419 FT EAST OF APCH END RWY 35 (48-183701 PERM OBSTACLE).
2306061334-2506061334EST
ATC Tower
Yes
Attendance
0600-2200
Owner
TEXAS A&M UNIVERSITY SYSTEM
301 TARROW STREET
COLLEGE STATION, TX 77840
Phone: (979) 775-9900
Manager
KEVIN DAVIS
1 MCKENZIE TERMINAL BLVD, SUITE 112
COLLEGE STATION, TX 77845
Phone: 979-775-9901
FSS
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
NOTAM
CLL
Light Schedule
--
Lights
WHEN ATCT CLSD ACTVT MALSR RWY 35; MIRL RWY 11/29; HIRL RWY 17/35 - CTAF. REIL RWY 29 PRESET LOW INTST ONLY.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Avionics
Charter Service
Pilot Instruction
Runway 11/29
Dimensions
5158 ft. x 150 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
GRVD
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
37,000lbs
Double Wheel
49,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 11
Runway 29
True Heading
109°
289°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
30° 35' 29"N
30° 35' 13"N
Longitude
96° 22' 22"W
96° 21' 26"W
Elevation
319'
311'
Threshold Crossing Height
50 ft. AGL
54 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
V4L
V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Runway 17/35
Dimensions
7000 ft. x 146 ft.
Surface Type
ASPH CONC
Surface Cond
Excellent
Treatment
GRVD
Rwy Edge Lgts
HIGH
Pavement Class
Single Wheel
78,000lbs
Double Wheel
94,000lbs
Double Tandem
156,000lbs
Dual Dbl Tand
--
Runway 17
Runway 35
True Heading
169°
349°
Traffic Pattern
Left
Left
Markings
PIR
PIR
Markings Condition
GOOD
GOOD
Latitude
30° 35' 48"N
30° 34' 40"N
Longitude
96° 21' 46"W
96° 21' 31"W
Elevation
321'
304'
Threshold Crossing Height
51 ft. AGL
--
Visual Glide Path Angle
3°
--
Visual Slope Indicator
V4R
--
Approach Lights
MALSR
Centerline Lights
Runway End Identifier Lights
A110-10
ALL RAPID RFL MIL HEL ADZ ATC FOR RAPID RFL OPS & PROCD TO SOUTH RAMP. CTC ASTIN AVN UNICOM 122.95 FOR SVC PRIOR TO LNDG. RAPID RFL IS AVBL 0600-2200 DLY. SPL RQS CSDRD ON CASE BY CASE BASIS.
A110-12
FOR CD IF UNA TO CTC ON FSS FREQ, CTC HOUSTON ARTCC AT 281-230-5622.
A110-14
ALL ACFT PRKG ON SE RAMP MUST CTC ASTIN AVN FOR SVC OR TRNSP, UNICOM 122.95 OR 979-775-5255.
A110-15
(CONTACT PHONE NR) CABBOTT@EASTERWOODAIRPORT.COM
A110-2
TURN FEE SKEDD FAR 135 AND ALL FAR 121 OPNS.
A110-7
PAEW ADJ ALL RWYS AND TWYS 0600-1600.
A110-9
SFC COND NOT RPRTD FM 1700-0500 LCA MON-FRI AND SAT-SUN.
EASTERWOOD FLD (ICAO: KCLL, IATA: CLL) is a public airport located in COLLEGE STATION, TX.
