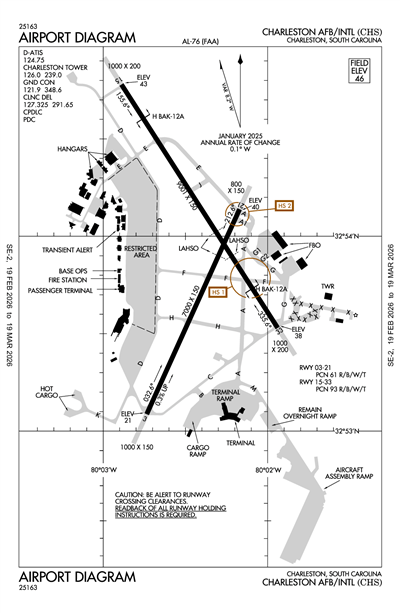

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCHS
CHARLESTON AFB/INTL
PublicPUB

9 miles NW of CHARLESTON, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 53' 55"N 80° 02' 26"W
46' MSL
1046' MSL
07W
JET A-1+, 100
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
7/11/24-8/8/24
KCHS VFR
5:56 AM EDT
Patches Fog
Broken 10,000'
Few 300'
7sm
70°F
69°F
29.86"Hg
330° 3kts
AO2 SLP112 T02110206
KCHS 190956Z 33003KT 7SM BCFG FEW003 BKN100 21/21 A2986 RMK AO2 SLP112 T02110206
Add Your Business

KCHS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
 124.75

ASOS

ASOS
843-554-9862
 124.75

Approach/Departure

APCH/P DEP/P
331-150
 121.275
APCH/P DEP/P IC
151-330
 120.7

Clearance Delivery

CD/P
 127.325

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 126.0

Other

AMYLU STAR
331-150
 121.275
BAGGY STAR
 120.7
CLASS C
151-330
 120.7
CLASS C
331-150
 121.275
LGRHD DP
 120.7
MLTRE DP
331-150
 121.275
OPS
PALMETTO
 134.1
OSPRI STAR
 120.7
PLMTO DP
331-150
 121.275
STUNO DP
 120.7
SWPFX DP
331-150
 121.275

Terminal Area Forecast

KCHS
Thu, 9/19 6:28 AM EDT
Thu, 9/19 6:00 AM EDT - Fri, 9/20 2:00 AM EDT
VFR
6:00 AM EDT - 9:30 AM EDT
Mist
Broken 10,000'
Few 300'
6sm
Calm
MVFR
Temporary 6:00 AM EDT - 9:00 AM EDT
Mist and Patches Fog
Broken 10,000'
Scattered 300'
3sm
Calm
VFR
9:30 AM EDT - 1:00 PM EDT
Broken 10,000'
Scattered 2,500'
6sm
010° 5kts
VFR
1:00 PM EDT - 9:00 PM EDT
Broken 4,000'
6sm
040° 6kts
VFR
9:00 PM EDT - 2:00 AM EDT
Scattered 6,000'
6sm
VRB° 3kts
KCHS 191028Z 1910/2006 00000KT 6SM BR FEW003 BKN100
   TEMPO 1910/1913 3SM BR BCFG SCT003 BKN100
   FM191330 01005KT P6SM SCT025 BKN100
   FM191700 04006KT P6SM BKN040
   FM200100 VRB03KT P6SM SCT060
KCHS
Domestic
9/19/241300Z !CHS 09/017 CHS SVC SSR U/S 2409191300-2409191900
9/18/241600Z !CHS 09/020 CHS NAV ILS RWY 15 CAT II NA 2409181600-2409182000
9/18/241600Z !CHS 09/019 CHS RWY 33 RVR U/S 2409181600-2409182000
9/18/241600Z !CHS 09/018 CHS RWY 15 RVR U/S 2409181600-2409182000
9/13/241000Z !CHS 09/016 CHS OBST CRANE (ASN 2024-ASO-4973-NRA) 325259N0800215W (0.9NM S CHS) 272FT (250FT AGL) LGTD AND FLAGGED DLY 1000-2300 2409131000-2411022300
9/13/241000Z !CHS 09/015 CHS OBST CRANE (ASN 2024-ASO-4976-NRA) 325251N0800217W (1.1NM S CHS) 272FT (250FT AGL) FLAGGED AND LGTD DLY 1000-2300 2409131000-2411022300
9/13/241000Z !CHS 09/014 CHS OBST CRANE (ASN 2024-ASO-4975-NRA) 325249N0800206W (1.1NM SSE CHS) 272FT (250FT AGL) FLAGGED AND LGTD DLY 1000-2300 2409131000-2411022300
9/13/241000Z !CHS 09/013 CHS OBST CRANE (ASN 2024-ASO-4974-NRA) 325258N0800204W (1.0NM SSE CHS) 272FT (250FT AGL) LGTD AND FLAGGED DLY 1000-2300 2409131000-2411022300
9/4/240654Z !CHS 09/003 CHS OBST TOWER LGT (ASR 1227768) 330114.00N0795559.10W (9.2NM NE CHS) 297.9FT (286.1FT AGL) U/S 2409040654-2412032359
5/8/242013Z !CHS 05/018 CHS APRON MAIN TERMINAL RAMP TXL BTN TWY A AND GATE A6-A7 CLSD TO ACFT WINGSPAN MORE THAN 123FT 2405082013-2412310500
3/30/241247Z !CHS 03/069 CHS TWY F BTN RWY 15/33 AND TWY G CLSD 2403301247-2409251600
10/5/232154Z !CHS 10/008 CHS TWY F WIP HOLE ADJ 2310052154-2409302359
FDC
9/6/241924Z !FDC 4/1787 CHS IAP CHARLESTON AFB/INTL, CHARLESTON, SC.
RNAV (RNP) Z RWY 3, AMDT 1...
RNP 0.20 DA 327/HAT 292 ALL CATS, VIS ALL CATS 7/8. TEMPORARY CRANES 138 MSL BEGINNING 2537FT E OF RWY 3 (2023-ASO-9053 THRU 9056-NRA).
2409061924-2411091924EST
Military
9/23/241100Z CAUTION UNMANNED AIRCRAFT SYSTEM (UAS) OPERATING IN THE VICINITY OF 32°53'26.88N, 80°3'9.01W AT OR BELOW 400 FT AGL
9/17/241038Z M0674/24 NOTAMC M0673/24
8/30/241150Z RWY 15 DEP END BAK12 (H) ARRESTING GEAR UNSERVICEABLE
8/28/241052Z RWY 03 PAPI UNSERVICEABLE
8/28/241051Z RWY 21 PAPI UNSERVICEABLE
8/27/240000Z !KCHS M0623/24 CHS AD BIRD ACTIVITY PHASE II IN EFFECT AS REPORTED BY ATCT AS MODERATE OR BELOW, ONE-TIME DEPARTURE/RECOVERY FROM THE LOCAL AREA DURING SUNRISE/SUNSET WINDOW IS AUTHORIZED FOR THE FOLLOWING MISSION: JA/ATTS, OFF-STATION TRAINER, REAL-WORLD MISSIONS (I.E. TACC) AND TRAINERS DEPARTING THE LOCAL AREA (AR TRACKS ARE NOT IN THE LOCAL AREA). SEE AP1 FOR ADDITIONAL INFORMATION. 2408270000-2411242359
8/26/241221Z AERODROME MIL RAMP UNABLE TO DOWNLOAD/STORE HAZ CARGO 1.1 AND 1.2
7/23/240306Z RWY 15 PAPI UNSERVICEABLE
7/16/240242Z RWY 33 PAPI UNSERVICEABLE
7/15/240729Z !KCHS M0531/24 CHS AD WDI RWY 15 NOT LGTD 2407150729-2410122359
7/10/240851Z AERODROME ROTATING BEACON UNSERVICEABLE
6/28/240344Z RWY 33 8000 FT RDR RIGHT SIDE NOT LGTD
6/28/240344Z RWY 33 7000 FT RDR RIGHT SIDE NOT LGTD
6/28/240344Z RWY 03 1000 FT RDR RIGHT SIDE NOT LGTD
6/28/240344Z RWY 33 6000 FT RDR RIGHT SIDE NOT LGTD
6/28/240344Z RWY 21 6000 FT RDR LEFT SIDE NOT LGTD
6/28/240343Z RWY 15/33 HOLDING POSITION SIGN ON RWY 21 LEFT SIDE NOT LGTD
6/28/240343Z RWY 15/33 HOLDING POSITION SIGN ON RWY 03 RIGHT SIDE NOT LGTD
6/28/240343Z RWY 15/33 HOLDING POSITION SIGN ON RWY 03 LEFT SIDE NOT LGTD
6/28/240343Z TWY F DIRECTIONAL SIGN ON RWY 03 LEFT SIDE NOT LGTD
6/28/240343Z RWY 33 3000 FT RDR RIGHT SIDE NOT LGTD
6/28/240342Z TWY F DIRECTIONAL SIGN ON RWY 21 RIGHT SIDE NOT LGTD
6/28/240342Z TWY E DIRECTIONAL SIGN ON RWY 03 NOT LGTD
6/28/240342Z RWY 15/33 HOLDING POSITION SIGN ON RWY 21 RIGHT SIDE NOT LGTD
6/28/240341Z AERODROME RWY 15/33 HOLDING POSTION SIGN ON TWY F WEST SIDE OF 15/33 NOT LGTD
6/28/240341Z AERODROME RWY 15/33 HOLDING POSITION SIGN ON TWY E EAST OF RWY 15/33 NOT LGTD
6/28/240341Z AERODROME RWY 21 HOLDING POSITION SIGN ON TWY E NOT LGTD
6/28/240341Z DIRECTIONAL SIGN FOR TWY C ON RWY 21 NOT LGTD
6/28/240340Z TWY C LOCATION SIGN AT RWY 03 APPCH NOT LGTD
6/28/240340Z RWY 03 HOLDING POSITION SIGN ON TWY C NOT LGTD
6/28/240340Z RWY 03/21 HOLDING POSITION SIGN ON TWY F WEST SIDE OF RWY 03/21 NOT LGTD
6/28/240340Z AERODROME DISREGARD AP1 CHARLESTON AFB ENTRY PARAGRAPHS 6 AND 7 FOR AIRFIELD SIGN OUTAGES. INFORMATION IS OUTDATED. SEE CURRENT NOTAMS FOR CURRENT OUTAGES.
6/28/240339Z DESTINATION SIGN FOR RWY 03 ON TWY D NOT LGTD
6/28/240339Z DESTINATION SIGN FOR RWY 33 AND RWY 21 ON TWY D RIGHT SIDE NEAR TWY F NOT LGTD
6/28/240339Z TWY K/D DIRECTIONAL SIGN ON TWY D BTN RWY 03/21 AND TWY K NOT LGTD
6/28/240338Z VORTAC CHK PT SIGN ON TWY D NEAR RWY 15 APPCH NOT LGTD
6/28/240338Z ILS BOUNDARY SIGN FOR RWY 15/33 ON TWY E WEST SIDE OF RWY 15/33 NOT LGTD
6/28/240338Z DESTINATION SIGN FOR RWY 15 AND RWY 03 ON TWY D NEAR SPOT 15 AT TAXILANE END NOT LGTD
6/28/240338Z DESTINATION SIGN FOR RWY 33 AND RWY 21 ON TWY D LEFT SIDE NEAR TWY F NOT LGTD
6/28/240338Z DESTINATION SIGN FOR RWY 15 ON TWY D NOT LGTD
6/28/240337Z VORTAC CHK PT SIGN ON TWY E NOT LGTD
6/28/240337Z TWY E LOCATION SIGN AT TWY J NOT LGTD
6/28/240336Z TWY E LOCATION SIGN AT RWY 21 APPCH NOT LGTD
6/28/240336Z TWY J LOCATION AND TWY E DIRECTIONAL SIGN NOT LGTD
6/28/240336Z TWY J LOCATION SIGN AT TWY E NOT LGTD
6/28/240335Z RWY 21 3000 FT RDR LEFT SIDE NOT LGTD
Yes
ALL
USAF
JOINT BASE CHARLESTON
CHARLESTON AFB, SC 29404
Phone: (843) 963-3028
ELLIOTT SUMMEY
5500 INTL BLVD
CHARLESTON, SC 29418
Phone: 843-761-7000
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
CHS
--
--
N/A
Yes
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
39
9
25
2
0
0
Major
Major
None
High Pressure
Avionics
Charter Service
Aircraft Sales

Runway 03/21

7000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
71 /R/B/W/T
--
--
--
--
  Runway 03 Runway 21
True Heading 24°204°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 53' 05"N 32° 54' 08"N
Longitude 80° 02' 44"W 80° 02' 10"W
Elevation 21' 40'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 15/33

9001 ft. x 150 ft.
CONC
Good
GRVD
HIGH
73 /R/B/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 147°327°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 54' 47"N 32° 53' 32"N
Longitude 80° 02' 53"W 80° 01' 56"W
Elevation 43' 38'
Threshold Crossing Height 50 ft. AGL 59 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-19PARKING ON TERMINAL APRON RESTRICTED TO COMMERCIAL AIR CARRIER AND ACFT FOR CUSTOMS CLEARANCE BY PRIOR ARRANGEMENT ONLY.
A110-2LIQUID OXYGEN SERVING AVBL TO MILITARY.
A110-22JASU: 8(MD-3M) 2(MA-1A) (M32A-60) (M32A-60A)
A110-24FLUID: SOAP - ROUTINE SOAP SAMPLES NOT AVBL; SP PRESAIR LHOX LOX
A110-25OIL: NON-DETERGENT OIL NOT AVBL FOR PISTON ACFT. O-128-133-148(MIL)
A110-26SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-28RSTD: ALL INBD VIP CODE 7 OR HI, PAX, CARGO ACFT MUST CTC PALMETTO OPS NO LATER THAN 30 MIN PRIOR TO LDG.
A110-29RSTD: AMC ACFT OPR RSTD DUR BIRD WATCH COND MODERATE (TKOF OR LDG PERMS ONLY WHEN DEP/ARR RTE AVOID IDENT BIRD ACT, NO LCL IFR/VFR TFC PAT ACFT) AND SEVERE (TKOF AND LDG PROH WO OG/CC APVL), CTC PALMETTO OPS FOR CURRENT BIRD WATCH COND.
A110-3NO STUDENT SOLO TOUCH AND GO LANDING ALLOWED.
A110-30RSTD: ALL ACFT MUST CTC PALMETTO OPS PRIOR TO ENTERING MIL RAMP FOR PRK ASGN.
A110-31RSTD: NON-AMC AIRCREWS REQ RON SVC CTC COMD POST (PALMETTO OPS) DSN 673-8400, C843-963-8400 PRIOR ARR. TRML APN RSTD TO COML AIR CARRIER AND ACFT FOR CSTMS CLNC BY PPR.
A110-32CAUTION: MIGRATORY BIRD SEASON PHASE II 1-15 APR AND 1 AUG-30 NOV. RWY 15-33 RAISED APCH LGT IN OVRN, RY 03-21 OVRN 800FT.
A110-34TFC PAT: RECTANGULAR 1200 FT, OVERHEAD 1700 FT, LGT ACFT 700 FT, C5A 2000 FT.
A110-35MISC: AFLD MGMT DSN 673-3024/6, C843-963-3024/6. AFLD MGMT OUT OF OFFICE CTC NR C843-609-4362. IF CIV SIDE OF ARPT IS FINAL DESTN, ACFT COMDR WILL SO INDICATE ON DD 175. DANGEROUS CARGO ACFT CTC PTD PRIM, PALMETTO OPS SECD. ALL AMC MSN ACFT CTC PALMETTO OPS WHEN WITHIN RDO RNG.
A110-36MISC: PMSV RDO UNAVBL. PMSV/PHONE PATCH AVBL THRU 628 CP DSN 673-8400 C843-963-8400. WX FLT CLOSED WKENDS, HOL AND DOWN DAYS. MIL WX FLD AFLD SUPPORT AVBL 24/7 FOR SVR WX, C843-754-1956. MSN WX SUPPORT HRS 1100-2300Z++ MON-THU AND 1100-2100Z++ FRI, DSN 673-3016/3644, C843-963-3016, CLSD WKEND, HOL, AND DOWN DAYS. MSN WX SUPPORT BRFGS FOR AIRCREW AVBL VIA THE 260WS/BARKSDALE AFB DSN 331-2651/C318-529-2651 DUR MIL WX FLT CLOSURE HRS.
A110-40SERVICE-LGT: AIRFIELD BEACON NOT VISIBLE FROM NW.
A110-41MISC: TMPRY STOR OF CLASSIFIED MATERIALS: LTD CLASSIFIED STOR AVBL. 24 HR PN RQR WITH AFLD MGMT. PRIOR COORD RQR. CTC BASE OPS 24 PRIOR TO ARR. NO CLASSIFIED STOR AT COMD POST. FOR TOP SECRET STOR CTC 437 SOS 24 HR PRIOR TO ARR DSN 673-0955, C843-963-0955.
A110-44SERVICE: KCHS MIL PROVIDES NO SECURITY AND NO ACFT SERVICES AT FBO'S AND COMMERCIAL TERMINAL.
A110-46RSTD: RWY 03-21 CLSD 2ND TUE EA MONTH 1330-2200Z++. RWY 15-33 CLSD LAST TUE OF EA MONTH 1330-2200Z++.
A110-48CAUTION: RY 15-33 1000 FT OVERRUNS HAS FRANGIBLE RAISED APCH LIGHTS.
A110-51CAUTION: MIL RAMP ACFT CONTACT CHS GND CONTROL FOR ENG START & TAXI.
A110-52RSTD: RVR AVAIL VIA FAA ATCT.
A110-53MISC: AFLD SFC WX OBS TAKEN IAW FAA CRITERIA, NOT AF CRITERIA.
A110-54SERVICE FUEL: ALL ACFT RQR FUEL, PLEASE HAVE IN YOUR POSSESSION THE WHITE DD FORM 1896 FUEL CARD, US GOVT AIR CARD OR YOUR BASE BILLING INFO.
A110-55TRANS ACFT FOR MIL RAMP FOLLOW-ME RQR. MIL ACFT FOR FBO PRK/SVC RQR PPR (843-746-7600).
A110-56CAUTION: RY 21 - FREQ PRK TRAIN CARS (25 FT AGL), CONSTRUCTION/UTILITY STORAGE YARD (20 FT AGL) 1000 FT FR THLD AND GRAVEL PILES (50 FT AGL) 1500 FT FR THLD.
A110-57RSTD: PPR, EXC AIREVAC, SAM AND AMC GDSSII MSN, FOR NUMBER AND LCL TRNG FLT TRAN ALERT SUPPORT CTC AFLD MGMT DSN 673-3024/6, C843-963-3024/6.
A110-58CAUTION: REDUCED FIRE SUPPORT FOR C-5 AND AN-124 ACFT, DEGRADATION OF FIRE FIGHTING CAPABILITY. C-5/AN-124 WITH EMERGENCY MUST CLOSELY COORDINATE RQR WITH PALMETTO OPS.
A110-59CAUTION: MIL SIDE WG TIP CLNC LINES: TWY D 161 FT FR TWY CNTRLN AND RAMP INTER-TXY 115 FT FR CNTRLN.
A110-61RSTD: C5, B747, AND AN-124 ACFT TAXI WITH OUTBOARD ENG AT IDLE.
A110-62FUEL: A++(MIL), A+(ATLANTIC AVN, C843-746-7600) (NC-100, A1+).
A110-63CAUTION: FUEL PIT/SWITCH OBST 36 IN HIGH LCTD 75 FT LEFT OF TWY D CNTLN N OF TWY E.
A110-64CAUTION: RY 15-33 1 FT RAISED THLD LGT.
A110-65MISC: PAX TRML OPR 0930-0330Z++ DLY. AFTER HRS CTC DSN 673-7005/7006 OR C843-963-7005/7006. C-17 ENG RUNNING ONLOADS/OFFLOADS AVBL 24 HR PN. CTC 437 APS DSN 673-3193/4 C843-963-3193/4 FOR COORD/APVL. PASS PAX/CARGO INFO TO PALMETTO OPS 3 HRS PRIOR TO ARR.
A110-66SERVICE-LGT: RWY 15 ALSF-2 ALSO OPR AS SSALR DUR VMC.
A110-67ALL AIRCRAFT USE UPPER ANTENNA UNTIL AIRBORNE.
A110-68RWY COND CODE (RWYCC) NOT RPTD.
A110-69AFLD GRASS CUTTING OPS CONDUCTED IN CTL MOVEMENT AREA YR ROUND; CTC AFLD MGMT FOR DLY LCTN.
A110-7PPR FOR PARKING OF GENERAL AVIATION ACFT ON TERMINAL RAMP CTC 843-767-1100.
A110-71MISC: COMBAT OFF-LOAD OPS ON N END OF TWY D MUST ENSURE THAT PALLETS LAND PRIOR TO LEAD-IN LINE TO RWY 15 APCH END; CTC GND IF PALLET LANDS BYD LEAD-IN LINE.
A110-73RSTD: EXP RWY 15/33 OPS SUSPD 1230-1300Z++DLY FOR A-G INSPECTION.
A110-74MISC: RWY 15/33 AND 3/21 GROOVED.
A110-9INTENSIVE HEAVY MIL JETS & OTHER MISC ACFT EXECUTING NUMEROUS CARGO & PERSONNEL DROPS, HIGH SPEED LOW-LEVEL FORMATION FLTS & MISC AIR-TO-GROUND OPNS.
CHARLESTON AFB/INTL (ICAO: KCHS, IATA: CHS) is a public airport located in CHARLESTON, SC.
