KCHA
LOVELL FLD
PublicPUB

5 miles E of CHATTANOOGA, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 02' 07"N 85° 12' 13"W
682' MSL
1682' MSL
05W
JET A, 100LL
NASHVILLE (BNA)
ATLANTA
ATLANTA (ZTL)
7/11/24-8/8/24
KCHA VFR
6:53 AM EDT
Few 25,000'
10sm
64°F
61°F
29.96"Hg
Calm
AO2 SLP137 T01780161
KCHA 191053Z 00000KT 10SM FEW250 18/16 A2996 RMK AO2 SLP137 T01780161
Add Your Business

KCHA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.3

ATIS

ATIS
 119.85

ASOS

ASOS
423-499-5973
 119.85

Approach

APCH/S
 126.5

Approach/Departure

APCH/P DEP/P
 125.1

Clearance Delivery

CD/P
 120.95

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 118.3

Other

CLASS C
 125.1
NG OPS
FM
 41.5
NG OPS
 149.8

FAA A/FD Pages

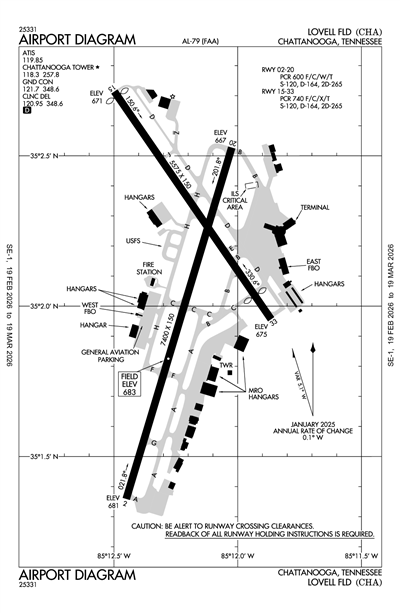

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCHA
Thu, 9/19 1:33 AM EDT
Thu, 9/19 2:00 AM EDT - Fri, 9/20 2:00 AM EDT
VFR
2:00 AM EDT - 12:00 PM EDT
Few 7,000'
6sm
Calm
VFR
12:00 PM EDT - 9:00 PM EDT
Broken 10,000'
Scattered 5,000'
6sm
020° 5kts
VFR
9:00 PM EDT - 2:00 AM EDT
Few 25,000'
6sm
Calm
KCHA 190533Z 1906/2006 00000KT P6SM FEW070
   FM191600 02005KT P6SM SCT050 BKN100
   FM200100 00000KT P6SM FEW250
KCHA
Domestic
9/19/241300Z !CHA 09/027 CHA OBST CRANE (ASN UNKNOWN) 345954N0851307W (0.94NM SSE APCH END RWY 02)
875FT (200FT AGL) FLAGGED 2409191300-2409192000
9/19/240415Z !CHA 09/030 CHA RWY 02/20 CLSD 2409190415-2409190900
9/12/240504Z !CHA 09/021 CHA OBST TOWER LGT (ASR 1064238) 350100.70N0852313.60W (9.1NM W CHA) 1174.9FT (270.0FT AGL) U/S 2409120504-2409270404
9/9/240732Z !CHA 09/011 CHA TWY A SOUTH 200FT CLSD BARRICADED FLAGGED AND LGTD 2409090732-2410112000
9/7/241453Z !CHA 09/007 CHA OBST TOWER LGT (ASR 1043409) 350509.70N0851256.60W (3.1NM N CHA) 962.9FT (292.0FT AGL) U/S 2409071453-2409220400
9/5/240654Z !CHA 09/004 CHA OBST TOWER LGT (ASR 1217199) 351038.20N0852213.40W (11.7NM NW CHA) 2253.0FT (259.8FT AGL) U/S 2409050654-2412040400
9/4/241630Z !CHA 09/003 CHA OBST TOWER LGT (ASR 1002734) 350311.50N0851418.00W (2.0NM WNW CHA) 987.2FT (142.1FT AGL) U/S 2409041630-2409200400
9/4/241100Z !CHA 09/002 CHA TWY A SOUTH 200FT WIP CONST LGTD AND
BARRICADED WED THU FRI MON TUE 1100-2300 2409041100-2410112300
8/12/242000Z !CHA 08/015 CHA OBST TOWER LGT (ASR 1247961) 350018.80N0851329.90W (2.1NM SSW CHA) 873.0FT (188.0FT AGL) U/S 2408122000-2411100400
4/16/241735Z !CHA 04/023 CHA RWY 02 ALS U/S 2404161735-2410292000EST
Yes
ALL
CHATTANOOGA METRO ARPT AUTH
1001 AIRPORT ROAD, SUITE 14
CHATTANOOGA, TN 37421
Phone: 423-855-2200
TERRY HART
1001 AIRPORT ROAD, SUITE 14
CHATTANOOGA, TN 37421
Phone: 423-855-2200
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
CHA
--
ACTVT MALSR RWY 02; TDZL RWY 20; CNTRLN LGTS RWY 02/20; HIRL RWY 02/20 - CTAF. MIRL RWY 15/33 UNAVBL WHEN ATCT CLSD.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
44
9
45
2
0
0
Major
Major
High & Low Pressure
None
Air Freight
Avionics
Cargo Handling
Charter Service

Runway 02/20

7400 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
42 /F/A/X/U
120,000lbs
164,000lbs
265,000lbs
--
  Runway 02 Runway 20
True Heading 17°197°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 01' 22"N 35° 02' 32"N
Longitude 85° 12' 27"W 85° 12' 01"W
Elevation 681' 667'
Threshold Crossing Height 71 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4R --
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 15/33

5575 ft. x 150 ft.
ASPH
Good
GRVD
MED
14 /F/A/Y/U
120,000lbs
164,000lbs
265,000lbs
--
  Runway 15 Runway 33
True Heading 145°325°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 02' 43"N 35° 01' 57"N
Longitude 85° 12' 30"W 85° 11' 52"W
Elevation 671' 675'
Threshold Crossing Height 45 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2TSNT ACFT AVOID SCTY ZONE WI 300 FT OF TRML BLDG.
A110-3BIRDS INVOF ARPT.
A110-4HOLD SHORT INSTR READ BACK RQRD.
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC CHATTANOOGA APCH AT 423-855-6478, WHEN APCH CLSD CTC ATLANTA ARTCC AT 770-210-7692.
LOVELL FLD (ICAO: KCHA, IATA: CHA) is a public airport located in CHATTANOOGA, TN.
