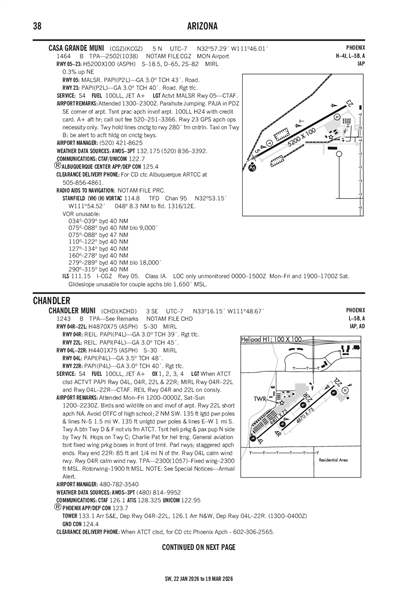

CASA GRANDE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCGZ
ICAO KCGZIATA CGZLocal CGZ
CASA GRANDE MUNI
PublicPUB

5 miles N of CASA GRANDE, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 57' 18"N 111° 46' 01"W
Elevation
1464' MSL
Pattern Alt
2502' MSL
Mag Variation
10°E
Declination
12°E
Fuel
JET A (FSII), 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KCGZ VFR
9:56 PM MST
Clear
10sm
67°F
25°F
N/A
210° 4kts
AO2 SLPNO T01941039 $
METAR KCGZ 040456Z AUTO 21004KT 10SM CLR 19/M04 RMK AO2 SLPNO T01941039 $
+ Add Your Business

KCGZ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 132.175
(520) 836-3392

Common

CTAF 122.7
ACTVT MALSR RWY 05 - CTAF.
UNICOM 122.7

Center

ALBUQUERQUE CENTER 125.4
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ABQ) ON FREQS 125.4/269.3 (GLOBE NR 2 RCAG).

Terminal Area Forecast

KIWA (22nm)
Tue, 3/3 4:22 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 9:00 PM MST
Sky Clear
6sm
250° 7kts
VFR
9:00 PM MST - 12:00 PM MST
Scattered 25,000'
Few 20,000'
6sm
120° 6kts
VFR
12:00 PM MST - 5:00 PM MST
Broken 25,000'
Scattered 20,000'
6sm
240° 6kts
TAF KIWA 032322Z 0400/0424 25007KT P6SM SKC
   FM040400 12006KT P6SM FEW200 SCT250
   FM041900 24006KT P6SM SCT200 BKN250
KCGZ
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
0117Z
!CGZ 02/013 CGZ SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2602240117-2603142359EST
2/22/26
1834Z
3/5/26
2300Z
!CGZ 02/012 CGZ SVC AUTOMATED WX BCST SYSTEM ALTIMETER SETTING UNREL 2602221834-2603052300
2/21/26
2247Z
2/26/26
0121Z
!CGZ 02/011 CGZ AIRSPACE FIRE FIGHTING ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF CGZ SFC-5000FT 2602212247-2602260121
2/4/26
1531Z
Runway!CGZ 02/001 CGZ RWY 23 PAPI U/S 2602041531-2608042111EST
FDC
2/25/26
1600Z
3/3/26
2000Z
!FDC 6/8890 CGZ IAP CASA GRANDE MUNI, CASA GRANDE, AZ.
VOR RWY 5, AMDT 4F...
PROCEDURE NA,
TFD VORTAC OUT OF SERVICE. 2602251600-2603032000EST
2/25/26
1600Z
3/3/26
2000Z
!FDC 6/8889 CGZ IAP CASA GRANDE MUNI, CASA GRANDE, AZ.
ILS OR LOC RWY 5, AMDT 7A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TFD VORTAC OUT OF SERVICE. 2602251600-2603032000EST
2/25/26
1600Z
3/3/26
2000Z
!FDC 6/8880 CGZ ODP CASA GRANDE MUNI, CASA GRANDE, AZ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1B...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TFD VORTAC OUT OF SERVICE. 2602251600-2603032000EST
2/22/26
1853Z
!FDC 6/8152 CGZ IAP CASA GRANDE MUNI, CASA GRANDE, AZ.
RNAV (GPS) RWY 23, AMDT 1...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE CHANDLER MUNI ALTIMETER SETTING AND INCREASE ALL MDAS 80 FEET AND LNAV VISIBILITY CAT C/D 1/8 SM, AND CIRCLING VISIBILITY CAT
D 1/4 SM. VDP NA WHEN USING CHANDLER MUNI ALTIMETER SETTING. CASA GRANDE (CGZ) AWOS OTS.
2602221853-2603021853EST
2/22/26
1853Z
!FDC 6/8150 CGZ IAP CASA GRANDE MUNI, CASA GRANDE, AZ.
RNAV (GPS) RWY 5, AMDT 1A...
NOTE: WHEN CASA GRANDE ALTIMETER SETTING NOT RECEIVED, USE CHANDLER AND INCREASE ALL DA TO 1783 AND INCREASE ALL MDA 80 FEET. INCREASE CIRCLING CAT D VISIBILITY TO 2 3/4 SM. CASA GRANDE (CGZ) AWOS OTS.
2602221853-2603021852EST
2/22/26
1852Z
!FDC 6/8149 CGZ IAP CASA GRANDE MUNI, CASA GRANDE, AZ.
VOR RWY 5, AMDT 4F...
NOTE: IF LOCAL ALTIMETER SETTING NOT RECEIVED, USE PHOENIX SKY HARBOR INTL ALTIMETER SETTING AND INCREASE MDAS 140 FEET. CASA GRANDE (CGZ) AWOS OTS.
2602221852-2603021850EST
2/22/26
1845Z
!FDC 6/8146 CGZ IAP CASA GRANDE MUNI, CASA GRANDE, AZ.
ILS OR LOC RWY 5, AMDT 7A...
NOTE: WHEN CASA GRANDE ALTIMETER SETTING NOT RECEIVED, USE CHANDLER AND INCREASE ALL DA 75 FT AND ALL MDA 80 FEET AND INCREASE S-LOC 5 CATS C AND D VISIBILITY TO 3/4 SM AND CIRCLING CAT D VISIBILITY TO 2 3/4 SM. CASA GRANDE (CGZ) AWOS OTS.
2602221845-2603021844EST
12/30/25
1627Z
!FDC 5/3832 CGZ IAP CASA GRANDE MUNI, CASA GRANDE, AZ.
VOR RWY 5, AMDT 4F...
VDP NA,
TFD DME OUT OF SERVICE. 2512301627-2712301627EST
12/30/25
1627Z
!FDC 5/3830 CGZ IAP CASA GRANDE MUNI, CASA GRANDE, AZ.
ILS OR LOC RWY 5, AMDT 7A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TFD DME OUT OF SERVICE. 2512301627-2712301627EST
No
0600-1600
CITY OF CASA GRANDE
CITY HALL 510 E. FLORENCE BLVD
CASA GRANDE, AZ 85222
Phone: 520-421-8625
DAVID REFFNER
3225 N. LEAR AVE.
CASA GRANDE, AZ 85122
Phone: (520) 421-8625
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
CGZ
--
ACTVT MALSR RWY 05 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics

Runway 05/23

5200 ft. x 100 ft.
ASPH
Good
NONE
MED

18,000lbs
65,000lbs
--
--
  Runway 05 Runway 23
True Heading 60°240°
Traffic Pattern Left Right
Markings PIR NPI
Markings Condition FAIR GOOD
Latitude 32° 57' 05"N 32° 57' 31"N
Longitude 111° 46' 27"W 111° 45' 34"W
Elevation 1,447' 1,464'
Threshold Crossing Height 43 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No
A110-2TSNT PRAC APCH INVOF ARPT.
A110-4TWY HOLD LINES CNCTG TO RWY 280 FT FM CNTRLN.
A110-5TAXI ON TWY B; BE ALERT TO ACFT HLDG ON CNCTG TWYS.
A110-7FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-8PAJA IN PDZ SE CORNER OF ARPT.
A16EX: 3347.
A30A-23GPS APCH OPS NECESSITY ONLY.
A58-0510 FT ROAD AT RWY END 130 FT L; 6 FT FENCE & 3 FT TREES & BRUSH 200 FT FM RWY END 100-300 L OF CNTRLN.
A58-2310 FT ROAD 0-200 FT FM THR 125 FT R OF CNTRLN; 3-5 FT BRUSH 240-500 FT R OF CNTRLN N SIDE PRIM SFC.
A70-100LLAVBL H24 WITH CREDIT CARD.
A70-A+AFT HR; CALL OUT FEE - 520-251-3366.
A81-APTACTVT MALSR RWY 05 - CTAF.
CASA GRANDE MUNI (ICAO: KCGZ, IATA: CGZ) is a public airport located in CASA GRANDE, AZ, US.
