KCGF
CUYAHOGA COUNTY
Public
PUB
10 miles E of CLEVELAND, OH
View on
Map
Status
Operational
Coordinates
41° 33' 52"N
81° 29' 14"W
Elevation
876' MSL
Pattern Alt
1876' MSL
Mag Variation
08W
Fuel
JET A, JET A (FSII), 100LL
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KCGF FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
118.5
ATIS
D-ATIS
216-289-4113
119.95
Ground
GND/P
121.85
Tower
LCL/P
118.5
FAA A/FD Pages
FAA A/FD Page

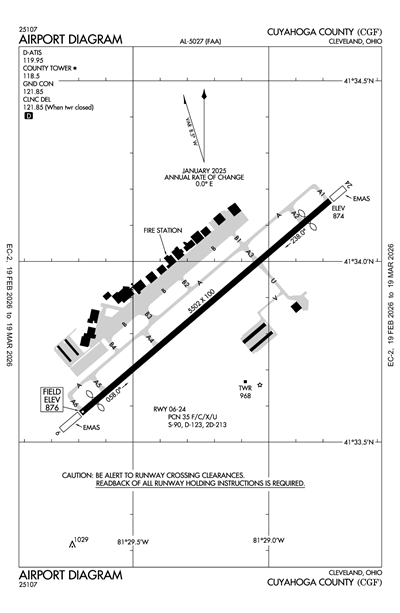

Airport Diagrams
AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
AHMET FOUR (RNAV)
CAVVS FOUR (RNAV)
GTLKE FOUR (RNAV)
MYCAR FOUR (RNAV)
ZAAPA FIVE (RNAV)
Hotspot
No Documents
Standard Term. Arrival
BRWNZ FOUR (RNAV)
ROKNN THREE (RNAV)
ROLLN TWO (RNAV)
TRYBE FOUR (RNAV)
Instrument Approach
ILS OR LOC RWY 24
RNAV (GPS) RWY 06
RNAV (GPS) RWY 24
Terminal Area Forecast
No TAF is available for this location.
KCGF
Domestic
1/15/25
0836Z
!CGF 01/612 CGF RWY 24 FICON 5/5/5 40 PCT 1/8IN DRY SN OBS AT 2501150836. 2501150836-2501160836
1/15/25
0559Z
!CGF 01/611 CGF AD AP ALL SFC WIP SN REMOVAL 2501150559-2501162233
1/15/25
0314Z
!CGF 01/608 CGF TWY B3
CLSD
2501150314-2501162233
1/15/25
0312Z
!CGF 01/605 CGF TWY ALL FICON PATCHY ICE AND 1/8IN DRY SN OVER COMPACTED SN 16IN SNOWBANKS BA GOOD TO MEDIUM OBS AT 2501150312. 2501150312-2501160312
1/15/25
0312Z
!CGF 01/604 CGF APRON ALL FICON PATCHY ICE AND 1IN DRY SN OVER COMPACTED SN BA MEDIUM TO POOR OBS AT 2501150312. 2501150312-2501160312
1/14/25
1142Z
!CGF 01/572 CGF OBST TOWER LGT (ASR 1210524) 413131.10N0811934.70W (7.5NM ESE CGF) 1503.9FT (265.1FT AGL) U/S 2501141142-2504140500
ATC Tower
Yes
Attendance
0600-2300
FOR AFT HRS SVC CALL 216-261-8800 DRG ATNDD HRS.
Owner
CUYAHOGA COUNTY
26300 CURTISS WRIGHT PKWY
RICHMOND HEIGHTS, OH 44143-4408
Phone: 216-289-4111
Manager
J MYERS
26300 CURTISS WRIGHT PKWY
RICHMOND HEIGHTS, OH 44143-4408
Phone: 216-289-4111
FSS
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
NOTAM
CGF
Light Schedule
--
Lights
WHEN ATCT CLSD ACTVT WINDSOCKS; MALSR RWY 24; REIL RWY 06; PAPI RWY 06; HIRL RWY 06/24 - CTAF. PAPI RWY 24 OPR CONSLY.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High Pressure
Bulk Oxygen
None
Other Services
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Runway 06/24
Dimensions
5502 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
GRVD
Rwy Edge Lgts
HIGH
Pavement Class
35 /F/C/X/U
Single Wheel
90,000lbs
Double Wheel
123,000lbs
Double Tandem
213,000lbs
Dual Dbl Tand
--
Runway 06
Runway 24
True Heading
49°
229°
Traffic Pattern
Left
Left
Markings
NPI
PIR
Markings Condition
GOOD
GOOD
Latitude
41° 33' 35"N
41° 34' 10"N
Longitude
81° 29' 41"W
81° 28' 46"W
Elevation
876'
874'
Threshold Crossing Height
45 ft. AGL
45 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
MALSR
Centerline Lights
No
No
Runway End Identifier Lights
Yes
No
A110-10
NOISE ABATEMENT PROCS IN EFCT CALL ARPT.
A110-11
FOR CD WHEN ATCT CLSD CTC CLEVELAND APCH AT 216-352-2323.
A110-3
BIRDS & WILDLIFE ON & INVOF ARPT.
A110-5
ATCT VIS SW LTD WI 500 FT AER 06.
A110-9
FLT TRG PROHIBITED 2300-0700.
CUYAHOGA COUNTY (ICAO: KCGF, IATA: CGF) is a public airport located in CLEVELAND, OH.
