KCFJ
CRAWFORDSVILLE RGNL
PublicPUB

4 miles S of CRAWFORDSVILLE, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 58' 29"N 86° 55' 16"W
800' MSL
1800' MSL
04W
JET A, JET A (FSII), 100LL
TERRE HAUTE (HUF)
ST LOUIS
INDIANAPOLIS (ZID)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KCFJ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
765-362-2967
 125.65

FAA A/FD Pages

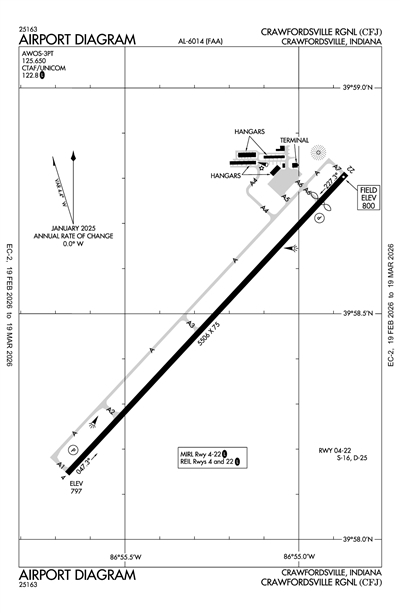

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KCFJ
Domestic
1/14/251540Z !HUF 01/920 CFJ OBST TOWER LGT (ASR 1202764) 395949.70N0864422.70W (8.5NM E CFJ) 1121.7FT (255.9FT AGL) U/S 2501141540-2504140500
1/12/251134Z !HUF 01/839 CFJ OBST TOWER LGT (ASR 1034162) 395852.40N0864633.70W (6.7NM E CFJ) 1114.8FT (254.9FT AGL) U/S 2501121134-2502261133
4/9/241911Z !HUF 04/299 CFJ RWY 04/22 NOW RWY 05/23 2404091911-2603312100
FDC
8/21/241339Z !FDC 4/3075 CFJ IAP CRAWFORDSVILLE RGNL, CRAWFORDSVILLE, IN.
RNAV (GPS) RWY 4, AMDT 1B...
LNAV/VNAV DA 1072/HAT 275 ALL CATS.
CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH - GPS.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE GREENCASTLE ALTIMETER SETTING AND INCREASE LPV DA TO 1128 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAV/VNAV DA TO 1124 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE ALL MDAS 60 FEET AND LNAV AND CIRCLING VISIBILITY CATS C AND D 1/4 SM.
DISREGARD VDP.
DISREGARD PROFILE NOTE: *LNAV ONLY. DISREGARD ASTERISK IN PROFILE AT VDP.
2408211339-2608211339EST
8/21/241337Z !FDC 4/3072 CFJ IAP CRAWFORDSVILLE RGNL, CRAWFORDSVILLE, IN.
RNAV (GPS) RWY 22, AMDT 1A...
LPV DA 1059/HAT 260 ALL CATS. VIS ALL CATS 3/4.
LNAV/VNAV DA 1200/HAT 401 ALL CATS. VIS ALL CATS 1 1/8.
LNAV MDA 1200/HAT 401 ALL CATS.
CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH - GPS.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE GREENCASTLE ALTIMETER SETTING AND INCREASE LPV DA TO 1111 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAV/VNAV DA TO 1252 FEET AND ALL VISIBILITIES 1/4 SM; INCREASE ALL MDAS 60 FEET AND LNAV AND CIRCLING VISIBILITY CATS C AND D 1/4 SM.
DISREGARD VDP.
CHANGE NOTE TO READ: BARO-VNAV NA WHEN USING GREENCASTLE ALTIMETER SETTING.
DISREGARD PROFILE NOTE: *LNAV ONLY. DISREGARD ASTERISK IN PROFILE AT VDP.
2408211337-2608211337EST
No
0900-1700
CITY OF CRAWFORDSVILLE
759 W 400 S
CRAWFORDSVILLE, IN 47933
Phone: 765-362-0707
LORI CURLESS
759 W 400 S
CRAWFORDSVILLE, IN 47933
Phone: (765) 362-0707
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
ACTVT REIL RWY 04 & 22 - CTAF. MIRL RWY 04/22 PRESET TO LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 04/22

5506 ft. x 75 ft.
ASPH
Good
GRVD
MED

16,000lbs
25,000lbs
--
--
  Runway 04 Runway 22
True Heading 43°223°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 58' 09"N 39° 58' 49"N
Longitude 86° 55' 40"W 86° 54' 52"W
Elevation 797' 800'
Threshold Crossing Height 41 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-2ARPT CLSD TO PART 137 OPS EXCP PPR 765-362-0070.
A110-3FOR CD CTC INDIANAPOLIS APCH AT 317-227-5744.
CRAWFORDSVILLE RGNL (ICAO: KCFJ, IATA: CFJ) is a public airport located in CRAWFORDSVILLE, IN.
