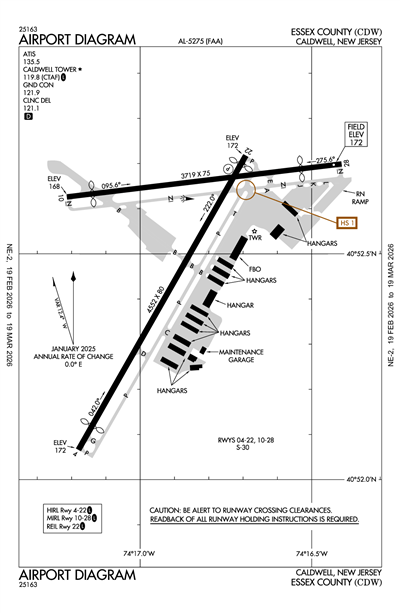

ESSEX COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCDW
ICAO KCDWIATA CDWLocal CDW
ESSEX COUNTY
PublicPUB

2 miles N of CALDWELL, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 52' 31"N 74° 16' 53"W
Elevation
172' MSL
Pattern Alt
1172' MSL
Mag Variation
13°W
Declination
13°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KCDW VFR
4:53 AM EST
Mist
Few 6,500'
6sm
35°F
33°F
30.22"Hg
Calm
AO2 SLP242 T00170006
METAR KCDW 040953Z AUTO 00000KT 6SM BR FEW065 02/01 A3022 RMK AO2 SLP242 T00170006
+ Add Your Business

KCDW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 135.5
(631) 594-4523
ASOS 135.5
(631) 594-4523

Common

CTAF 119.8
WHEN ATCT CLSD, PAPI RWY 22; HIRL RWY 04/22; MIRL RWY 10/28 OPR CONSLY. HIRL RWY 04/22; MIRL RWY 10/28 PRESET TO LOW INTST. TO INCRS INTST AND ACTVT REIL RWY 22 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 121.1

Ground

CALDWELL GROUND 121.9
0700-2300

Tower

CALDWELL TOWER 119.8
0700-2300

Arrival

JAIKE STAR 132.8
WILKES-BARRE STAR 127.6

Approach

NEWARK APPROACH 127.6

Departure

NEWARK DEPARTURE 119.2

Terminal Area Forecast

KTEB (10nm)
Wed, 3/4 3:33 AM EST
Wed, 3/4 4:00 AM EST - Thu, 3/5 7:00 AM EST
IFR
4:00 AM EST - 8:00 AM EST
Mist
Overcast 2,000'
Broken 600'
3sm
VRB° 4kts
MVFR
8:00 AM EST - 11:00 AM EST
Mist
Broken 1,200'
Scattered 600'
5sm
280° 2kts
VFR
11:00 AM EST - 3:00 PM EST
Scattered 25,000'
Few 2,000'
6sm
360° 4kts
VFR
3:00 PM EST - 11:00 PM EST
Broken 25,000'
Scattered 10,000'
6sm
VRB° 3kts
VFR
11:00 PM EST - 2:00 AM EST
Mist
Broken 25,000'
Broken 10,000'
Scattered 600'
6sm
VRB° 2kts
IFR
2:00 AM EST - 7:00 AM EST
Mist
Broken 800'
3sm
VRB° 2kts
TAF KTEB 040833Z 0409/0512 VRB04KT 3SM BR BKN006 OVC020
   FM041300 28002KT 5SM BR SCT006 BKN012
   FM041600 36004KT P6SM FEW020 SCT250
   FM042000 VRB03KT P6SM SCT100 BKN250
   FM050400 VRB02KT 6SM BR SCT006 BKN100 BKN250
   FM050700 VRB02KT 3SM BR BKN008
KCDW
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
1402Z
3/4/26
1402Z
Runway!CDW 03/002 CDW RWY 28 FICON 5/5/5 100 PCT WET OBS AT 2603031402. 2603031402-2603041402
3/3/26
1402Z
3/4/26
1402Z
Runway!CDW 03/001 CDW RWY 22 FICON 5/5/5 100 PCT WET OBS AT 2603031402. 2603031402-2603041402
2/26/26
1656Z
3/31/26
2200Z
Runway!CDW 02/102 CDW RWY 04 2000FT DIST REMAINING SIGN RIGHT SIDE MISSING 2602261656-2603312200
2/26/26
1655Z
3/31/26
2200Z
Runway!CDW 02/101 CDW RWY 22 2000FT DIST REMAINING SIGN LEFT SIDE MISSING 2602261655-2603312200
2/16/26
1423Z
4/16/26
2359Z
!CDW 02/049 CDW OBST TOWER LGT (ASR 1241949) 405058.80N0741101.00W (4.6NM ESE CDW) 553.8FT (355.0FT AGL) U/S 2602161423-2604162359
1/28/26
1648Z
4/28/26
0500Z
!CDW 01/105 CDW OBST TOWER LGT (ASR 1251166) 405420.20N0741541.90W (2.1NM NNE CDW) 293.0FT (108.9FT AGL) U/S 2601281648-2604280500
1/14/26
1946Z
3/14/26
2359Z
!CDW 01/027 CDW OBST TOWER LGT (ASR 1241951) 405101.20N0741057.70W (4.7NM ESE CDW) 553.8FT (355.0FT AGL) U/S 2601141946-2603142359
12/26/25
1313Z
3/31/26
2200Z
!CDW 12/087 CDW TWY N SFC PAINTED HLDG PSN SIGNS FOR APCH END RWY 28 NOT STD 2512261313-2603312200
12/26/25
1313Z
3/31/26
2200Z
!CDW 12/086 CDW TWY B SFC PAINTED HLDG PSN SIGNS FOR RWY 10/28 NOT STD 2512261313-2603312200
12/26/25
1313Z
3/31/26
2200Z
!CDW 12/085 CDW TWY E SFC PAINTED HLDG PSN SIGNS FOR RWY 10/28 NOT STD 2512261313-2603312200
12/26/25
1312Z
3/31/26
2200Z
!CDW 12/084 CDW TWY B SFC PAINTED HLDG PSN SIGNS FOR RWY 04/22 NOT STD 2512261312-2603312200
12/26/25
1312Z
3/31/26
2200Z
!CDW 12/083 CDW TWY N SFC PAINTED HLDG PSN SIGNS FOR APCH END RWY 10 NOT STD 2512261312-2603312200
12/26/25
1312Z
3/31/26
2200Z
!CDW 12/082 CDW TWY P SFC PAINTED HLDG PSN SIGNS FOR RWY 10/28 NOT STD 2512261312-2603312200
10/7/25
1046Z
10/31/26
2359Z
!CDW 10/024 CDW AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 405317N0741815W (1NM NW CDW) SFC-200FT AGL 2510071046-2610312359
FDC
6/12/25
1825Z
!FDC 5/3528 CDW IAP ESSEX COUNTY, CALDWELL, NJ.
LOC RWY 22, AMDT 4C ...
CHART NOTE: CIRCLING NA E OF RWY 4-22 2506121825-2706151824EST
Yes
0700-2300
ESSEX COUNTY IMPROVEMENT AUTHORITY
27 WRIGHT WAY
FAIRFIELD, NJ 07004
Phone: 973-575-0952
JOE CALI
27 WRIGHT WAY
FAIRFIELD, NJ 07004
Phone: 973-227-4567
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
CDW
--
WHEN ATCT CLSD, PAPI RWY 22; HIRL RWY 04/22; MIRL RWY 10/28 OPR CONSLY. HIRL RWY 04/22; MIRL RWY 10/28 PRESET TO LOW INTST. TO INCRS INTST AND ACTVT REIL RWY 22 - CTAF.
N/A
AIRPORT BEACON LOCATED ON TOP OF CONTROL TOWER
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

4552 ft. x 80 ft.
ASPH
Good
GRVD
HIGH

30,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 30°210°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 52' 04"N 40° 52' 43"N
Longitude 74° 17' 11"W 74° 16' 42"W
Elevation 172' 172'
Threshold Crossing Height -- 42 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes

Runway 10/28

3719 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 83°263°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 52' 38"N 40° 52' 42"N
Longitude 74° 17' 13"W 74° 16' 25"W
Elevation 168' 172'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-10DEER & BIRDS ON & INVOF ARPT.
A110-11NON-STANDARD TRAFFIC PATTERNS FOR RWY 04 PROHIBITED DUE TO NOISE SENSITIVE AREA SOUTHWEST OF THE AIRPORT.
A110-12FOR CD WHEN ATCT IS CLSD CTC NEWARK APCH AT 800-645-3206.
A110-13ROTOCRAFT: IF PSBL, CROSS THE ARPT BDRY AT OR ABV 700 FT MSL.
A110-14ENG RUN-UPS ON TWY N AT AER 28 SHD BE CONDUCTED TO LMT EFCT TO ACFT PARKED ON RN RAMP.
A110-2LCL OPNS SUSPENDED FROM 2300-0700 MON THRU SAT 2300 SAT UNTIL 1000 SUN.
A110-3FIXED WING VFR ACFT DEP: RWY 4 - FLY RWY HDG FOR 1 MI, THEN TURN CROSSWIND IF REMAINING IN THE TFC PAT. IF DEPARTING THE TFC PAT, CONT ON RWY HDG TIL REACHING TFC PAT ALT.
A110-4FIXED WING VFR ACFT DEP: RWY 10 - FLY HDG 080 DEG AT RWY DEP END. UPON REACHING 900 FT MSL, TURN CROSSWIND IF REMAINING IN THE TFC PAT; IF DEPARTING THE TFC PAT, CONT ON HDG 080 DEG TIL REACHING TFC PAT ALT.
A110-5FIXED WING VFR ACFT DEP: RWY 22 - FLY RWY HDG TIL REACHING 900 FT MSL, THEN TURN CROSSWIND IF REMAINING IN THE TFC PAT. IF DEPARTING THE TFC PAT, CONT ON RWY HDG TIL REACHING TFC PAT ALT.
A110-6FIXED WING VFR ACFT DEP: RWY 28 - FLY RWY HDG FOR 1 MI THEN TURN CROSSWIND IF REMAINING IN THE TFC PAT. IF DEPARTING THE TFC PAT, CONT ON RWY HDG TIL READHING TFC PAT ALT.
A110-8PILOTS BE ALERT -- THE MORRISTOWN ILS & GPS RWY 23 APPROACHES TRANSIT ESSEX CO ARPT CLASS D ASP. TFC PASSES TWO MI WEST OF THE ARPT DESCENDING THRU 2000 FT MSL.
A43-22RY 22 PAPI UNUSABLE BYD 5 DEGREES RIGHT OF CENTERLINE DUE TO OBSTRUCTION.
A57-04APCH RATIO 13:1 TO DSPLCD THLD.
A57-10RY 10 APCH SLOPE 11:1 TO DSPLCD THLD.
A57-22APCH RATIO 6:1 TO DSPLCD THLD.
A57-28RY 28 APCH RATIO 28:1 TO DSPLCD THLD.
A58-226 FT FENCE, 200 FT FM RY END, ACROSS CNTRLN.
A58-286 FT FENCE, 195 FT FM RY END, 120 FT LT OF CNTRLN.
A75-HLANDING FEE FOR ALL TRANSIENT AIRCRAFT
A80AIRPORT BEACON LOCATED ON TOP OF CONTROL TOWER
A81-APTWHEN ATCT CLSD, PAPI RWY 22; HIRL RWY 04/22; MIRL RWY 10/28 OPR CONSLY. HIRL RWY 04/22; MIRL RWY 10/28 PRESET TO LOW INTST. TO INCRS INTST AND ACTVT REIL RWY 22 - CTAF.
E147TPA FOR LARGE & TURBOJET ACFT 1527 FT AGL; TPA FOR LIGHT ACFT 1027 FT AGL.
ESSEX COUNTY (ICAO: KCDW, IATA: CDW) is a public airport located in CALDWELL, NJ, US.
