iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCDC
CEDAR CITY RGNL
PublicPUB

2 miles NW of CEDAR CITY, UT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 42' 03"N 113° 05' 56"W
5622' MSL
6399' MSL
14E
JET A, 100LL
CEDAR CITY (CDC)
LAS VEGAS
SALT LAKE CITY (ZLC)
7/11/24-8/8/24
KCDC VFR
4:53 AM MDT
Clear
10sm
46°F
24°F
30.04"Hg
200° 5kts
AO2 SLP116 T00781044
KCDC 191053Z AUTO 20005KT 10SM CLR 08/M04 A3004 RMK AO2 SLP116 T00781044
Add Your Business

KCDC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
435-867-0278
 119.025

FAA A/FD Pages

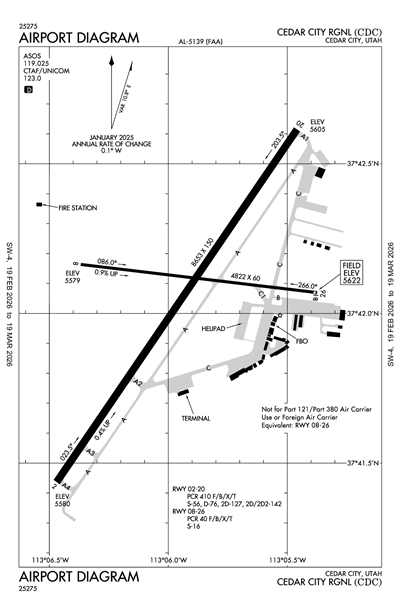

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCDC
Wed, 9/18 11:20 PM MDT
Thu, 9/19 12:00 AM MDT - Fri, 9/20 12:00 AM MDT
VFR
12:00 AM MDT - 1:00 PM MDT
Sky Clear
6sm
140° 4kts
VFR
1:00 PM MDT - 9:00 PM MDT
Few 10,000'
6sm
200° 11kts
VFR
9:00 PM MDT - 12:00 AM MDT
Few 10,000'
6sm
150° 5kts
KCDC 190520Z 1906/2006 14004KT P6SM SKC
   FM191900 20011KT P6SM FEW100
   FM200300 15005KT P6SM FEW100
KCDC
Domestic
9/16/241754Z !CDC 09/149 CDC TWY A1 APCH AREA HLDG PSN SIGN LGT U/S 2409161754-2409202000EST
9/16/241752Z !CDC 09/147 CDC TWY A1 LGT U/S 2409161752-2409202000EST
9/16/241751Z !CDC 09/146 CDC TWY C LGT BTN RWY 08/26 AND TWY A1 U/S 2409161751-2409202000EST
9/16/241751Z !CDC 09/145 CDC RWY 02/20 REDL U/S EXC LOW INTST
2409161751-2409202000EST
9/9/241605Z !CDC 09/087 CDC TWY B1 CL MARKINGS REMOVED 2409091605-2410302300
9/9/241604Z !CDC 09/086 CDC TWY C SFC PAINTED HLDG PSN SIGNS FOR RWY 08/26 NORTH SIDE REMOVED 2409091604-2410302300EST
9/9/241604Z !CDC 09/085 CDC TWY B1 SFC PAINTED HLDG PSN SIGNS NOT MARKED 2409091604-2410302000EST
9/2/241757Z !CDC 09/003 CDC OBST TOWER LGT (ASR 1057926) 373229.00N1130407.00W (9.7NM S CDC) 10353.7FT (355.0FT AGL) U/S 2409021757-2410022359
8/26/241800Z !CDC 08/196 CDC OBST CRANE (ASN UNKNOWN) 374057N1130657W (.6NM SW APCH END RWY 02)
UNKNOWN (86FT AGL) LGTD 2408261800-2502282000EST
8/23/240620Z !CDC 08/220 CDC OBST TOWER LGT (ASR 1041458) 374151.00N1131054.40W (3.9NM W CDC) 5785.1FT (305.1FT AGL) U/S 2408230620-2410070615
7/18/241804Z !CDC 07/205 CDC APRON TERMINAL RAMP SW 100FT WIP CONST BARRICADED 2407181804-2505302000EST
5/9/241716Z !CDC 05/054 CDC TWY A SAFETY AREA BTN TWY A2 AND TWY C WIP CONST 2405091716-2505091715
6/25/212000Z !CDC 06/126 CDC TWY B BTN TWY C AND EAST RAMP CLSD 2106252000-PERM
No
DALGT
FOR AFT HRS SVC CALL 435-586-4504
CEDAR CITY CORPORATION
10 NORTH MAIN
CEDAR CITY, UT 84720
Phone: 435-586-2950
TYLER GALETKA
2560 AVIATION WAY
CEDAR CITY, UT 84721
Phone: 435-867-9408
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
CDC
--
ACTVT MALSR RWY 20; REIL RWY 02, 08 & 26; HIRL RWY 02/20; MIRL RWY 08/26 - CTAF. PAPI RWY 02 & 20, 08 OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
73
3
7
34
0
0
Major
Major
High & Low Pressure
None
Air Freight
Crop Dusting
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Glider Towing

Runway 02/20

8653 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
21 /F/C/X/T
56,000lbs
76,000lbs
127,000lbs
142,000lbs
  Runway 02 Runway 20
True Heading 34°214°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 37° 41' 26"N 37° 42' 37"N
Longitude 113° 06' 28"W 113° 05' 28"W
Elevation 5,580' 5,605'
Threshold Crossing Height 48 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 08/26

4822 ft. x 60 ft.
ASPH
Fair
NONE
MED
8 /F/C/X/T
16,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 97°277°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 42' 10"N 37° 42' 04"N
Longitude 113° 06' 22"W 113° 05' 23"W
Elevation 5,579' 5,622'
Threshold Crossing Height 47 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1GA ACFT NOT PERMITTED ON ACR RAMP.
A110-10AUTOROTATE - NO AUTOROTATION TRNG TO HELIPAD. RWY 02/20 CLSD TO HEL RUN-ON LNDG; RWY 08/26 CLSD TO HEL RUN-ON LNDG; TWY A, N OF RWY 8/26 CLSD TO HEL RUN-ON LNDG; TWY C CLSD TO HEL RUN-ON LNDG.
A110-11RWY 02 LEFT TRAFFIC PATTERN EXC HELICOPTERS. RWY 20 RIGHT TRAFFIC EXC HELICOPTERS.
A110-12FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-13TWY B CLSD BTWN TWY C & EAST APRON
A110-2RECOMMNED PILOTS CIRCLE ARPT FOR ALT BEFORE DEPARTING EASTBOUND DUE TO FAST RISING TERRAIN AND HI DENSITY ALT. TURBC LIKELY INVOF MNTS & PASSES.
A110-3RWY 08/26 & TWY B NOT AVBL FOR ACR ACFT.
A110-6DESIGNATED CALM WIND RWY (BLW 5 KTS) IS RWY 20, RGT TFC.
A110-7UNMON SFC CONDS 1900-0700 DLY EXC FOR SKED ACR.
A110-8EXTENSIVE HELICOPTER ACTIVITY.
A110-9EXTENSIVE FLIGHT TRNG INVOF ARPT.
CEDAR CITY RGNL (ICAO: KCDC, IATA: CDC) is a public airport located in CEDAR CITY, UT.
