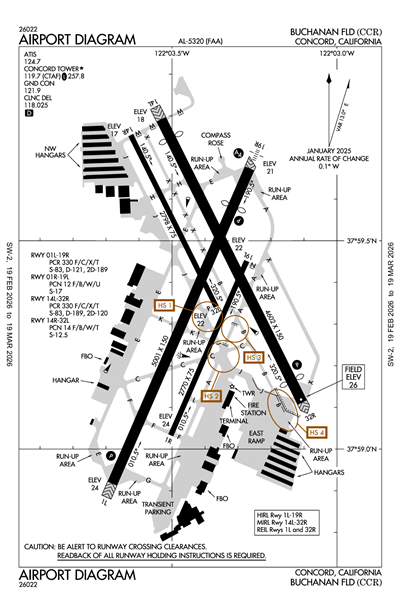

BUCHANAN FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCCR
BUCHANAN FLD
PublicPUB

1 miles W of CONCORD, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 59' 23"N 122° 03' 25"W
26' MSL
1026' MSL
13E
JET A-1+, 100LL
OAKLAND (OAK)
SAN FRANCISCO
OAKLAND (ZOA)
4/17/25-5/15/25
KCCR VFR
2:53 PM PST
Clear
10sm
56°F
27°F
30.26"Hg
010° 12kts
Gusts 18kts
AO2 SLP234 T01331028
METAR KCCR 082253Z 01012G18KT 10SM CLR 13/M03 A3026 RMK AO2 SLP234 T01331028
+ Add Your Business

KCCR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.7
925-685-4567

Clearance

CD/P 118.75

Ground

GND/P 121.9

Tower

LCL/P 123.9
LCL/P IC 119.7

Emergency

EMERG 121.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KSUU (17nm)
Thu, 1/8 11:00 AM PST
Thu, 1/8 11:00 AM PST - Fri, 1/9 5:00 PM PST
VFR
11:00 AM PST - 2:00 AM PST
Sky Clear
6sm
30.24"Hg
350° 15kts
Gusts 25kts
VFR
Temporary 5:00 PM PST - 8:00 PM PST
No Clouds
N/A
350° 10kts
Gusts 20kts
VFR
Becoming 2:00 AM PST - 4:00 AM PST
Sky Clear
6sm
30.32"Hg
VRB° 6kts
VFR
Temporary 4:00 AM PST - 5:00 AM PST
No Clouds
N/A
030° 12kts
VFR
Becoming 4:00 AM PST - 4:00 PM PST
Sky Clear
6sm
30.35"Hg
020° 10kts
Gusts 15kts
VFR
Temporary 9:00 AM PST - 1:00 PM PST
No Clouds
N/A
030° 15kts
Gusts 25kts
VFR
Becoming 4:00 PM PST - 5:00 PM PST
Sky Clear
6sm
30.41"Hg
VRB° 6kts
TAF KSUU 081900Z 0819/1001 35015G25KT 9999 SKC QNH3024INS
   TEMPO 0901/0904 35010G20KT
   BECMG 0910/0911 VRB06KT 9999 SKC QNH3033INS
   TEMPO 0912/0913 03012KT
   BECMG 0912/0913 02010G15KT 9999 SKC QNH3035INS
   TEMPO 0917/0921 03015G25KT
   BECMG 1000/1001 VRB06KT 9999 SKC QNH3042INS TX13/0822Z TN04/0915Z
KCCR
EffectiveExpiresCategoryNOTAM
Domestic
1/7/26
1600Z
1/7/26
2000Z
Runway!CCR 01/001 CCR RWY 19R ALS U/S 2601071600-2601072000
12/23/25
0543Z
12/31/26
2359Z
!CCR 12/027 CCR OBST STACK (ASN UNKNOWN) 380306N1220710W (4.2NM NW CCR) 326FT (310FT AGL) NOT LGTD 2512230543-2612312359
12/11/25
0000Z
12/4/26
2359Z
!CCR 12/012 CCR AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF
375957.50N1214659.40W (12.2NM S O88) SFC-400FT AGL DLY 0000-2359
2512110000-2612042359
11/25/25
0748Z
1/9/26
0747Z
!CCR 11/017 CCR OBST TOWER LGT (ASR 1014626) 375254.20N1215508.80W (9.3NM SE CCR) 3900.9FT (299.9FT AGL) U/S 2511250748-2601090747
11/5/25
1639Z
12/31/26
2359Z
!CCR 11/006 CCR OBST TOWER LGT (ASR UNKNOWN) 380321.00N1214138.00W (8.6NM S O88) 375FT (372FT AGL) U/S 2511051639-2612312359
3/25/25
1900Z
3/25/26
2359Z
!CCR 03/029 CCR OBST TOWER LGT (ASN 2022-AWP-9639-OE) 375925N1220525W (1.6NM W CCR) 314FT (161FT AGL) U/S 2503251900-2603252359
3/25/25
1900Z
3/25/26
2359Z
!CCR 03/028 CCR OBST TOWER LGT (ASN 2022-AWP-9640-OE) 375919N1220525W (1.6NM W CCR) 316FT (146FT AGL) U/S 2503251900-2603252359
3/25/25
1859Z
3/25/26
2359Z
!CCR 03/027 CCR OBST TOWER LGT (ASN 2022-AWP-9641-OE) 375909N1220525W (1.6NM W CCR) 305FT (141FT AGL) U/S 2503251859-2603252359
3/25/25
1858Z
3/25/26
2359Z
!CCR 03/026 CCR OBST TOWER LGT (ASN 2022-AWP-9642-OE) 375902N1220525W (1.6NM WSW CCR) 307FT (142FT AGL) U/S 2503251858-2603252359
3/25/25
1858Z
3/25/26
2359Z
!CCR 03/025 CCR OBST TOWER LGT (ASN 2022-AWP-9643-OE) 375855N1220531W (1.7NM WSW CCR) 345FT (153FT AGL) U/S 2503251858-2603252359
3/25/25
1857Z
3/25/26
2359Z
!CCR 03/024 CCR OBST TOWER LGT (ASN 2022-AWP-9644-OE) 375846N1220544W (1.9NM WSW CCR) 396FT (161FT AGL) U/S 2503251857-2603252359
3/25/25
1857Z
3/25/26
2359Z
!CCR 03/023 CCR OBST TOWER LGT (ASN 2022-AWP-9645-OE) 375836N1220557W (2.1NM WSW CCR) 550FT (161FT AGL) U/S 2503251857-2603252359
FDC
12/18/25
1211Z
12/18/27
1211Z
!FDC 5/0812 CCR ODP BUCHANAN FLD, CONCORD, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
CHANGE DEPARTURE PROCEDURE TO READ: DEPARTURE PROCEDURE: RWYS 1L,
1R, 14L, 14R, 19L, 19R: CLIMBING LEFT TURN DIRECT CCR VOR/DME,
THENCE&
RWYS 32L, 32R: CLIMBING RIGHT TURN DIRECT CCR VOR/DME, THENCE&
&AIRCRAFT DEPARTING ON CCR VOR/DME R-150 CLOCKWISE R-110, CLIMB ON
COURSE. ALL OTHERS NA.
ALL OTHER DATA REMAINS AS PUBLISHED. 2512181211-2712181211EST
Yes
0700-1700
CONTRA COSTA COUNTY
181 JOHN GLENN DR, SUITE 100
CONCORD, CA 94520
Phone: 925-608-8000
GREG BAER
181 JOHN GLENN DR, SUITE 100
CONCORD, CA 94520
Phone: 925-608-8000
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
CCR
--
ACTVT MALS RWY 19R 2200-0600; PAPI RWY 01L, 19R, & 32R - 119.7. REIL RWY 01L OFF WHEN ATCT CLSD.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01L/19R

5001 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

83,000lbs
121,000lbs
189,000lbs
--
  Runway 01L Runway 19R
True Heading 24°204°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 58' 55"N 37° 59' 40"N
Longitude 122° 03' 41"W 122° 03' 16"W
Elevation 24' 21'
Threshold Crossing Height 40 ft. AGL 22 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 01R/19L

2770 ft. x 75 ft.
ASPH
Poor
NONE

12 /F/B/W/U
17,000lbs
--
--
--
  Runway 01R Runway 19L
True Heading 24°204°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 59' 02"N 37° 59' 27"N
Longitude 122° 03' 30"W 122° 03' 16"W
Elevation 24' 22'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 14L/32R

4602 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
MED
108/F/C/W/T
60,000lbs
90,000lbs
140,000lbs
--
  Runway 14L Runway 32R
True Heading 154°334°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 59' 47"N 37° 59' 07"N
Longitude 122° 03' 32"W 122° 03' 06"W
Elevation 18' 26'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 14R/32L

2798 ft. x 75 ft.
ASPH
Fair
NONE

14 /F/B/W/T
12,000lbs
--
--
--
  Runway 14R Runway 32L
True Heading 154°334°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 59' 45"N 37° 59' 20"N
Longitude 122° 03' 37"W 122° 03' 22"W
Elevation 17' 22'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-12ARPT HAS NOISE ABATEMENT PROCEDURES CTC AMGR PRIOR TO ARR (925) 681-4200.
A110-15BIRDS ON & INVOF ARPT HEAVIEST CONCENTRATION NOV-MAR AND AFTER RAINSTORMS.
A110-16WHEN ATCT CLSD RYS 14L/32R; 14R/32L & 01R/19L CLSD.
A110-17NO TRAINING OPERATIONS MON-FRI 2200-0700; SAT SUN & HOL 2200-0800.
A110-18ARFF SVC AVBL UPON REQ WITH 24 HR NTC.
A110-19WHEN ATCT CLSD CALL TRAVIS APCH CTL (SUU) CLNC DEL 707-424-5111.
A110-2NOISE SENSITIVE AREA PRACTICE NOISE ABATEMENT (FLY QUIET) PROCS.
A110-20ARPT SFC CONDS NOT MNT 2200-0700.
A110-21MICHAEL VITALICH, 925-348-4014 (CELL) AND BIKRAMJIT BHULLAR, 925-405-7881 (CELL), CONTRA COSTA COUNTY, SUPERVISORS OF AIRPORT OPERATIONS, BUCHANAN FIELD AND BYRON ARPTS. OFC CTC NR IS 925-681-4200.
A110-6LNDG FEE FOR COML OPNS & TIE DOWN FEE FOR OVERNIGHT PARKING.
A110-9+8 FT FENCE 110 FT BYD RY 01L TODA DSTC OF 5010 AND +7 FT FENCE 210 FT BYD RY 14L TODA DSTC OF 4601 FT ALONG THE EXTDD RY CNTRL.
A23-19RSTD LEFT TFC WHEN ATCT CLSD.
A26CLSD TO ACR OPNS WITH MORE THAN 30 PSGR SEATS EXC PPR; CALL AMGR (925) 681-4200. ARFF SVCS AVBL 24 HRS WITH PRIOR APVL FROM ARPT ADMIN.
A26 1RWYS 14R/32L & 1R/19L NOT AVBL FOR SKED ACR OPNS WITH MORE THAN 9 PSGR SEATS OR UNSKED ACR AT LEAST 31 PSGR SEATS.
A33-01R/19LRWY 01R/19L PAVEMENT HAS HIGH SEVERITY BLOCK CRACKING, LONGL AND TRANSVERSE CRACKING, PATCHING, AND WEATHERING.
A39-01L/19RPCR VALUE: 330/F/C/X/T
A43-01LPAPI DOES NOT PROVIDE OBSTRUCTION CLEARANCE BYD 4.0 NM FROM THR.
A43-32RPAPI DOES NOT PROVIDE OBSTRUCTION CLEARANCE BYD 4.0 NM FROM THR.
A52-14RLIGHT
A57-14LAPCH RATIO 50:1 TO DSPLCD THR.
A57-32RAPCH RATIO 50:1 TO DSPLCD THR.
A58-01LRWY 01L CLOSE IN OBSTN +8 FT FENCE 110 FT FROM RWY END, 100 FT RT
A81-APTACTVT MALS RWY 19R 2200-0600; PAPI RWY 01L, 19R, & 32R - 119.7. REIL RWY 01L OFF WHEN ATCT CLSD.
BUCHANAN FLD (ICAO: KCCR, IATA: CCR) is a public airport located in CONCORD, CA.
