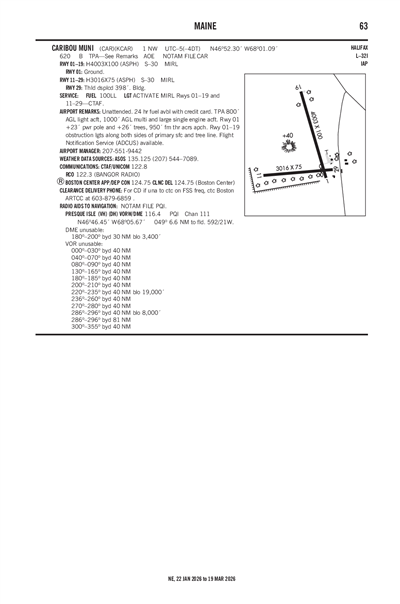

CARIBOU MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCAR
ICAO KCARIATA CARLocal CAR
CARIBOU MUNI
PublicPUB

1 miles NW of CARIBOU, ME, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 52' 18"N 68° 01' 05"W
Elevation
620' MSL
Pattern Alt
1420' MSL
Mag Variation
16°W
Declination
17°W
Fuel
100LL
FSS
BANGOR (BGR)
Sectional
HALIFAX
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KCAR VFR
1:54 AM EST
Few 12,000'
Few 10,000'
10sm
27°F
18°F
30.02"Hg
190° 5kts
AO2 SLP176 T10281078
METAR KCAR 040654Z AUTO 19005KT 10SM FEW100 FEW120 M03/M08 A3002 RMK AO2 SLP176 T10281078
+ Add Your Business

KCAR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.125
(207) 544-7089

Common

CTAF 122.8
ACTVT MIRL RWY 01/19 & 11/29 - CTAF.
UNICOM 122.8

Center

BOSTON CENTER 124.75
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQ 124.75/239.05 (CARIBOU RCAG).

Flight Service

Flight Service 122.3
(BGR)

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCAR
Wed, 3/4 12:30 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
VFR
1:00 AM EST - 3:00 AM EST
Showers in vicinity
Broken 8,000'
6sm
200° 7kts
VFR
3:00 AM EST - 10:00 AM EST
Broken 9,000'
6sm
210° 6kts
VFR
10:00 AM EST - 5:00 PM EST
Broken 5,000'
6sm
260° 10kts
Gusts 20kts
VFR
5:00 PM EST - 9:00 PM EST
Broken 5,000'
6sm
300° 9kts
MVFR
9:00 PM EST - 1:00 AM EST
Light Snow and Mist
Overcast 3,000'
3sm
340° 6kts
TAF KCAR 040530Z 0406/0506 20007KT P6SM VCSH BKN080
   FM040800 21006KT P6SM BKN090
   FM041500 26010G20KT P6SM BKN050
   FM042200 30009KT P6SM BKN050
   FM050200 34006KT 3SM -SN BR OVC030
KCAR
No NOTAM Available
No
UNATNDD
CITY OF CARIBOU
25 HIGH STREET
CARIBOU, ME 04736
Phone: 207-493-3324
PENNY THOMPSON
25 HIGH STREET
CARIBOU, ME 04736
Phone: 207-551-9442
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
CAR
--
ACTVT MIRL RWY 01/19 & 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
None
None
None
None
None

Runway 01/19

4003 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 347°167°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 46° 52' 06"N 46° 52' 44"N
Longitude 68° 00' 54"W 68° 01' 06"W
Elevation 614' 617'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

3016 ft. x 75 ft.
ASPH
Fair
NONE
MED

30,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 88°268°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 46° 52' 08"N 46° 52' 09"N
Longitude 68° 01' 34"W 68° 00' 51"W
Elevation 620' 619'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No
Runway End Identifier Lights No
A110-1RWY 01/19 OBSTN LGTS ALG BOTH SIDES OF PRIM SFC AND TREE LN.
A110-3RWY 01 +23 FT PWR POLE AND +26 FT TREES, 950 FT FM THR ACRS APCH.
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC BOSTON ARTCC AT 603-879-6859 .
A50-29524 FT DTHR; +302 FT BLAST PAD BYD END OF RWY.
A57-2924:1 RATIO TO DTHR.
A58-01GND 0-200 FT FM EOR 100-250 FT R OF CNTRLN RISING TO +8 FT.
A58-29GND ON BOTH SIDES RISING TO +3 FT 200 FT FM RWY END.
A70-100LL24 HR FUEL AVBL WITH CREDIT CARD.
A75-HCALL 207-493-3324 FOR HNGR AVBL.
A81-APTACTVT MIRL RWY 01/19 & 11/29 - CTAF.
E111EXISTED PRIOR TO 1959.
E147800 FT AGL LGT ACFT; 1000 FT AGL MULTI & LRG SNGL ENG ACFT.
CARIBOU MUNI (ICAO: KCAR, IATA: CAR) is a public airport located in CARIBOU, ME, US.
