KCAG
CRAIG-MOFFAT
PublicPUB

2 miles SE of CRAIG, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 29' 43"N 107° 31' 18"W
6198' MSL
7198' MSL
09E
JET A, 100LL
DENVER (DEN)
CHEYENNE
DENVER (ZDV)
7/11/24-8/8/24
KCAG VFR
4:53 AM MDT
No Clouds
N/A
32°F
32°F
30.15"Hg
Calm
AO2 SLPNO PWINO $
KCAG 191053Z AUTO A3015 RMK AO2 SLPNO PWINO $
Add Your Business

KCAG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
970-824-2373
 135.425

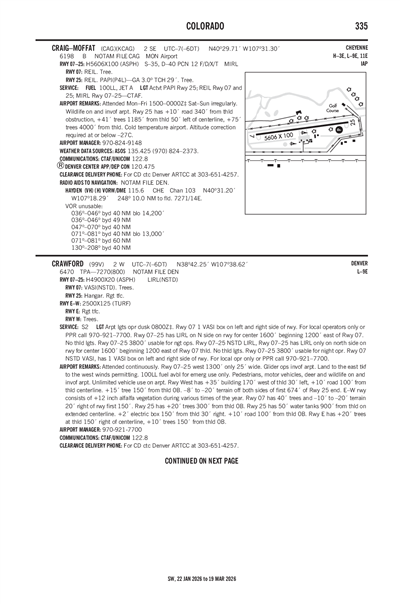

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHDN (13nm)
Wed, 9/18 11:20 PM MDT
Thu, 9/19 12:00 AM MDT - Fri, 9/20 12:00 AM MDT
VFR
12:00 AM MDT - 4:00 AM MDT
Sky Clear
6sm
180° 4kts
VFR
4:00 AM MDT - 2:00 PM MDT
Sky Clear
6sm
110° 7kts
VFR
2:00 PM MDT - 8:00 PM MDT
Sky Clear
6sm
270° 8kts
VFR
8:00 PM MDT - 12:00 AM MDT
Sky Clear
6sm
240° 4kts
KHDN 190520Z 1906/2006 18004KT P6SM SKC
   FM191000 11007KT P6SM SKC
   FM192000 27008KT P6SM SKC
   FM200200 24004KT P6SM SKC
KCAG
Domestic
9/17/241226Z !CAG 09/012 CAG RWY 07 RWY END ID LGT U/S 2409171226-2409182359
9/17/241224Z !CAG 09/011 CAG RWY 25 RWY END ID LGT U/S 2409171224-2409182359
9/17/241223Z !CAG 09/010 CAG RWY 25 PAPI U/S 2409171223-2409182359
9/5/240428Z !CAG 09/001 CAG OBST TOWER LGT (ASR 1253219) 403128.10N1073318.60W (2.3NM NW CAG) 6551.5FT (49.9FT AGL) U/S 2409050428-2409200328
8/15/240542Z !CAG 08/002 CAG OBST WIND TURBINE LGT (ASN 2023-WTW-15654-OE) 404316N1074358W (16.6NM NW CAG) 7400FT (263FT AGL) U/S 2408150542-2409290513
No
MON-FRI 0800-1700
SAT-SUN IRREG
MOFFAT CO
MOFFAT COUNTY COURTHOUSE
CRAIG, CO 81625
Phone: 970-824-9148
CANDACE MILLER
221 W VICTORY WAY
CRAIG, CO 81625
Phone: 970-824-9148
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
CAG
--
ACTIVATE MIRL RY 07/25, REIL RYS 07 & 25 AND PAPI RY 25 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
17
1
0
0
0
1
None
None
None
None
Crop Dusting

Runway 07/25

5606 ft. x 100 ft.
ASPH
Fair
NONE
MED
12 /F/D/X/T
35,000lbs
40,000lbs
--
--
  Runway 07 Runway 25
True Heading 83°263°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 29' 39"N 40° 29' 46"N
Longitude 107° 31' 54"W 107° 30' 42"W
Elevation 6,186' 6,197'
Threshold Crossing Height -- 32 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2RY 25 HAS +10 FT ROAD 340 FT FM THLD OB, +41 FT TREES 1185 FT FM THLD 50 LEFT OF CNTRLN, +75 FT TREES 4000 FT FM THLD.
A110-3WILDLIFE ON AND INVOF ARPT.
A110-4COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -31C.
A110-5FOR CD CTC DENVER ARTCC AT 303-651-4257.
CRAIG-MOFFAT (ICAO: KCAG, IATA: CAG) is a public airport located in CRAIG, CO.
