KCAE
COLUMBIA METRO
PublicPUB

5 miles SW of COLUMBIA, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 56' 20"N 81° 07' 10"W
236' MSL
1236' MSL
07W
JET A, 100LL
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
4/17/25-5/15/25
KCAE VFR
2:56 AM EDT
Clear
10sm
65°F
61°F
30.08"Hg
Calm
AO2 SLP184 T01830161
KCAE 030656Z 00000KT 10SM CLR 18/16 A3008 RMK AO2 SLP184 T01830161
+ Add Your Business

KCAE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 120.15

ASOS

ASOS
803-369-6879
 120.15

Approach/Departure

APCH/P DEP/P IC
110-289
 124.15
APCH/P DEP/P IC
290-109
 133.4

Clearance Delivery

CD/P
 119.75

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 119.5

Other

CLASS C
110-289
 124.15
CLASS C
290-109
 133.4

FAA A/FD Pages

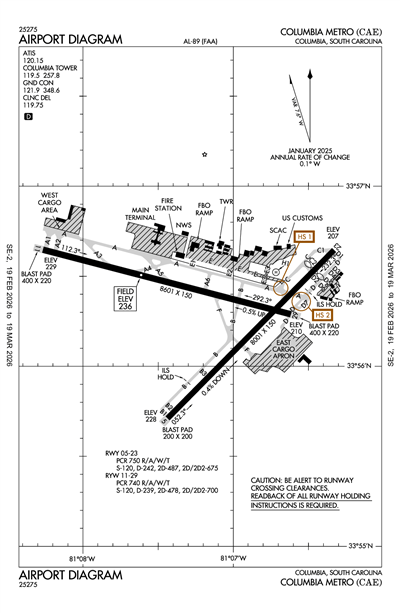

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCAE
Tue, 6/3 1:20 AM EDT
Tue, 6/3 2:00 AM EDT - Wed, 6/4 2:00 AM EDT
VFR
2:00 AM EDT - 11:00 AM EDT
Sky Clear
6sm
VRB° 3kts
VFR
11:00 AM EDT - 11:00 PM EDT
Few 6,000'
6sm
110° 8kts
VFR
11:00 PM EDT - 2:00 AM EDT
Few 25,000'
6sm
VRB° 3kts
KCAE 030520Z 0306/0406 VRB03KT P6SM SKC
   FM031500 11008KT P6SM FEW060
   FM040300 VRB03KT P6SM FEW250
KCAE
Domestic
5/20/251118Z !CAE 05/034 CAE OBST TOWER LGT (ASR 1062773) 340725.50N0811418.40W (12.5NM NNW CAE) 691.9FT (237.9FT AGL) U/S 2505201118-2508180400
5/16/251120Z !CAE 05/029 CAE OBST TOWER LGT (ASR 1237394) 340455.20N0810734.90W (8.6NM N CAE) 784.1FT (449.5FT AGL) U/S 2505161120-2508140400
5/13/251940Z !CAE 05/022 CAE OBST TOWER LGT (ASR 1064427) 335934.00N0811654.00W (8.6NM WNW CAE) 961.9FT (500.0FT AGL) U/S 2505131940-2506271940
5/9/250836Z !CAE 05/016 CAE OBST TOWER LGT (ASR 1028626) 335718.00N0811448.00W (6.4NM W CAE) 669.9FT (259.8FT AGL) U/S 2505090836-2508092359
4/24/250002Z !CAE 04/030 CAE OBST TOWER LGT (ASR 1294607) 335221.00N0810621.00W (4.0NM S CAE) 564.0FT (240.2FT AGL) U/S 2504240002-2506080001
2/10/252353Z !CAE 02/042 CAE TWY B BTN TWY A AND RWY 11/29 CLSD 2502102353-2507312100
2/10/251840Z !CAE 02/038 CAE TWY A5 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2502101840-2507312100
2/10/251825Z !CAE 02/037 CAE RWY 11/29 CLSD EXC XNG AND TAX AND ACFT WINGSPAN LESS THAN 119FT 2502101825-2507312100
2/10/251825Z !CAE 02/036 CAE TWY F BTN TWY A AND RWY 11/29 CLSD 2502101825-2507312100
2/3/251300Z !CAE 01/089 CAE TWY A1, A2, A3, A4, A6, TWY A BTN TWY A1 AND WEST CARGO RAMP CLSD 2502031300-2507312100
2/3/251200Z !CAE 01/079 CAE NAV ILS RWY 11 U/S 2502031200-2507182200
2/3/251200Z !CAE 01/078 CAE NAV ILS RWY 29 U/S 2502031200-2507182200
8/22/242014Z !CAE 08/059 CAE OBST TOWER (ASN 2023-ASO-2325-NRA) 335614N0810708W (0.1NM SSE CAE) 221FT (12FT AGL) ERECTED 2408222014-2509010400
8/22/242014Z !CAE 08/058 CAE OBST TOWER (ASN 2023-ASO-2324-NRA) 335614N0810709W (0.1NM S CAE) 271FT (64FT AGL) ERECTED 2408222014-2509010400
8/22/242012Z !CAE 08/057 CAE OBST TOWER (ASN 2023-ASO-2323-NRA) 335613N0810708W (0.1NM SSE CAE) 271FT (64FT AGL) ERECTED 2408222012-2509010400
8/22/242012Z !CAE 08/056 CAE OBST TOWER (ASN 2023-ASO-2322-NRA) 335613N0810707W (0.1NM SSE CAE) 272FT (63FT AGL) ERECTED 2408222012-2509010400
8/22/242010Z !CAE 08/055 CAE OBST TOWER (ASN 2023-ASO-2321-NRA) 335614N0810708W (0.1NM SSE CAE) 271FT (63FT AGL) ERECTED 2408222010-2509010400
FDC
5/20/252248Z !FDC 5/3628 CAE IAP COLUMBIA METRO, COLUMBIA, SC.
ILS OR LOC RWY 11, AMDT 16...
ILS OR LOC RWY 29, AMDT 5...
ILS OR LOC RWY 5, AMDT 3...
VOR-A, AMDT 16B...
ILS RWY 11 (CAT II - III), AMDT 16...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CAE VOR UNMONITORED. 2505202248-2506202248EST
4/17/251035Z !FDC 5/7816 CAE IAP COLUMBIA METRO, COLUMBIA, SC.
ILS OR LOC RWY 29, AMDT 5...
PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00 / 78 FEET)..
2504171035-2710311034EST
4/17/250905Z !FDC 5/5969 CAE IAP COLUMBIA METRO, COLUMBIA, SC.
ILS OR LOC RWY 5, AMDT 3...
DELETE NOTE: INOPERATIVE TABLE DOES NOT APPLY TO S-ILS 05 CATS
A/B/C/D, S-LOC 05 CATS A/B AND IKUPY MINIMUMS S-LOC 05 CATS A/B.
THIS IS ILS OR LOC RWY 5, AMDT 3A. 2504170905-PERM
3/21/251714Z !FDC 5/6333 CAE IAP COLUMBIA METRO, COLUMBIA, SC.
RNAV (GPS) RWY 11, AMDT 2...
PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00 / 71.3 FEET).
2503211714-2710311714EST
3/21/251714Z !FDC 5/6332 CAE IAP COLUMBIA METRO, COLUMBIA, SC.
ILS OR LOC RWY 11, A16..., ILS RWY 11 (CAT II-III) A16 ...
PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00 / 71.3 FEET) 2503211714-2710311714EST
11/19/241351Z !FDC 4/5882 CAE IAP COLUMBIA METRO, COLUMBIA, SC.
RNAV (GPS) RWY 23, AMDT 2D...
LNAV VIS CATS A/B RVR 5500, CAT C 1 3/8.
2411191351-2611191351EST
Yes
ALL
RICHLAND LEXINGTON
3250 AIRPORT BLVD, SUITE 10
WEST COLUMBIA, SC 29170
Phone: 803-822-5050
RYAN KREULEN
3250 AIRPORT BLVD, SUITE 10
WEST COLUMBIA, SC 29170
Phone: (803) 822-5017
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
CAE
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

8001 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH

120,000lbs
242,000lbs
487,000lbs
675,000lbs
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 55' 43"N 33° 56' 39"N
Longitude 81° 07' 26"W 81° 06' 20"W
Elevation 228' 207'
Threshold Crossing Height 73 ft. AGL 69 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes

Runway 11/29

8601 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

120,000lbs
239,000lbs
478,000lbs
700,000lbs
  Runway 11 Runway 29
True Heading 105°285°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 56' 39"N 33° 56' 17"N
Longitude 81° 08' 16"W 81° 06' 37"W
Elevation 229' 210'
Threshold Crossing Height 59 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway H1

50 ft. x 50 ft.
CONC
Fair
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 95°275°
Traffic Pattern
Markings NONE
Markings Condition FAIR
Latitude 33° 56' 31"N N/A
Longitude 81° 06' 42"W N/A
Elevation 236' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FEE FOR COML ACFT OVER 15000 LBS.
A110-12HELIPAD H1 LOCATED NORTH OF TAXILANE E, EAST OF TWY E3.
A110-13DUE TO PROXIMITY AND RWY ALNMT AIRCREWS HAVE MISTAKEN CUB (RWY 13/31) FOR CAE (RWY 11/29) WHICH IS 6 MILES NE.
A110-2OPRN OF ULTRALIGHT VEHICLES PROHIBITED.
A110-5SPORTS COMPLEX WITH NMRS FLOOD LGTS APRXLY 6500 FT FROM APCH END RWY 11.
A110-6NOISE ABATEMENT PROC: NO TURNS BLW 1000 FT FOR TURBINE ENG ACFT UNLESS DCTD BY ATC.
A110-9ACFT LNDG WITH EXPLOSIVES OBTAIN PPR FM ARPT OPS 803-822-5050.
COLUMBIA METRO (ICAO: KCAE, IATA: CAE) is a public airport located in COLUMBIA, SC.
