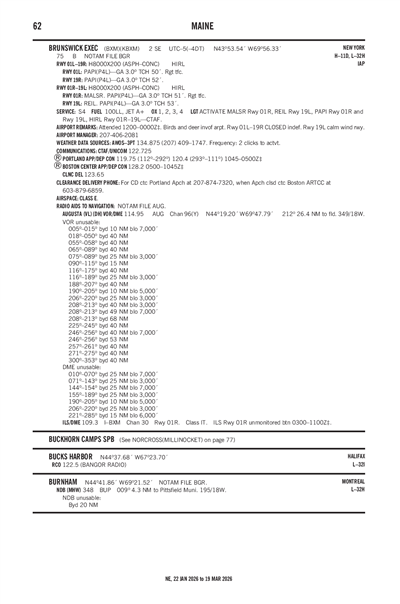

BRUNSWICK EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBXM
ICAO KBXMLocal BXM
BRUNSWICK EXEC
PublicPUB

2 miles SE of BRUNSWICK, ME, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 53' 32"N 69° 56' 20"W
Elevation
75' MSL
Pattern Alt
1075' MSL
Mag Variation
15°W
Declination
18°W
Fuel
JET A (FSII), 100LL
FSS
BANGOR (BGR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KBXM IFR
8:55 PM EST
Light Snow and Mist
Broken 3,900'
Broken 2,000'
Scattered 400'
2sm
28°F
28°F
30.30"Hg
Calm
AO2 PRESFR
METAR KBXM 040155Z AUTO 00000KT 2SM -SN BR SCT004 BKN020 BKN039 M02/M02 A3030 RMK AO2 PRESFR
+ Add Your Business

KBXM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 134.875
(207) 409-1747, (FREQ) 2 CLICKS TO ACTVT.

Common

CTAF 122.725
ACTVT MALSR RWY 01R; REIL RWY 19L; PAPI RWY 01R & 19L; HIRL RWY 01R/19L - CTAF.
UNICOM 122.725

Clearance

Clearance Delivery 123.65

Approach

PORTLAND APPROACH 119.75
112-292
PORTLAND APPROACH 120.4
293-111

Departure

PORTLAND DEPARTURE 119.75
112-292
PORTLAND DEPARTURE 120.4
293-111

Center

PORTLAND CENTER 128.2
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 128.2/263.05 (WATERBORO RCAG) WHEN PORTLAND APCH CTL CLSD.

Terminal Area Forecast

KPWM (22nm)
Tue, 3/3 6:31 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
LIFR
7:00 PM EST - 11:00 PM EST
Snow and Freezing Fog
Obscured
0.5sm
200° 5kts
LIFR
11:00 PM EST - 4:00 AM EST
Light Snow and Mist
Overcast 300'
1.5sm
VRB° 3kts
MVFR
4:00 AM EST - 7:00 AM EST
Mist
Broken 2,500'
6sm
VRB° 3kts
VFR
7:00 AM EST - 7:00 PM EST
Few 25,000'
6sm
260° 5kts
TAF KPWM 032331Z 0400/0424 20005KT 1/2SM SN FZFG VV009
   FM040400 VRB03KT 1 1/2SM -SN BR OVC003
   FM040900 VRB03KT 6SM BR BKN025
   FM041200 26005KT P6SM FEW250
KBXM
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
0500Z
3/3/26
1100Z
!BGR 02/371 BXM COM BXM COM CLR DELIVERY 123.65 U/S 2603030500-2603031100
3/2/26
0500Z
3/2/26
1100Z
!BGR 02/376 BXM COM CLR DELIVERY 123.65 U/S 2603020500-2603021100
2/25/26
0500Z
!BGR 02/244 BXM COM REMOTE TRANS/REC 123.65 U/S 2602250500-2602251200EST
2/25/26
0033Z
3/31/26
2359Z
!BGR 02/385 BXM NAV ILS RWY 01R GP U/S 2602250033-2603312359
2/24/26
1842Z
2/25/26
1842Z
!BGR 02/378 BXM APRON ALL FICON PATCHY COMPACTED SN BA MEDIUM OBS AT 2602241842. 2602241842-2602251842
2/24/26
1840Z
2/25/26
1840Z
Runway!BGR 02/377 BXM RWY 01R FICON 10 PCT COMPACTED SN PLOWED 200FT WID OBS AT 2602241840. 2602241840-2602251840
2/23/26
1109Z
3/23/26
2359Z
!BGR 02/321 BXM OBST TOWER LGT (ASR 1268777) 434744.00N0694956.10W (7.4NM SE BXM) 415.7FT (255.9FT AGL) U/S 2602231109-2603232359
8/2/16
1449Z
!BGR 08/011 BXM OBST TOWER (ASR UNKNOWN) 435343N0695679 (8.21NM SW
BXM) UNKNOWN (90FT AGL) OUT OF SERVICE 1608021449-PERM
FDC
2/16/26
1425Z
3/18/26
1425Z
!FDC 6/4471 BXM IAP BRUNSWICK EXEC, BRUNSWICK, ME.
ILS OR LOC RWY 1R, AMDT 1...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AUG VOR/DME OUT OF SERVICE. 2602161425-2603181425EST
1/11/26
1835Z
!FDC 6/2151 BXM IAP BRUNSWICK EXEC, BRUNSWICK, ME.
ILS OR LOC RWY 1R, AMDT 1...
TERMINAL ROUTE FROM AUG VOR/DME TO BAILI NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
AUG VOR/DME R-206 RESTRICTED BEYOND 25NM AND BELOW 2900FT.
2601111835-2608231835EST
No
0700-1900
MIDCOAST RGNL REDEVELOPMENT AUTH
15 TERMINAL DRIVE
BRUNSWICK, ME 04011
Phone: (207) 798-6512
JIM NALL
15 TERMINAL DRIVE
BRUNSWICK, ME 04011
Phone: 207-406-2081
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
ACTVT MALSR RWY 01R; REIL RWY 19L; PAPI RWY 01R & 19L; HIRL RWY 01R/19L - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Major
Major
High & Low Pressure
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental

Runway 01L/19R

8000 ft. x 200 ft.
ASPH
CONC
NONE
HIGH

--
--
--
--
  Runway 01L Runway 19R
True Heading 354°174°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 43° 52' 53"N 43° 54' 12"N
Longitude 69° 56' 20"W 69° 56' 29"W
Elevation 63' 74'
Threshold Crossing Height 50 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 01R/19L

8000 ft. x 200 ft.
ASPH
CONC
NONE
HIGH

--
--
--
--
  Runway 01R Runway 19L
True Heading 354°174°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 43° 52' 53"N 43° 54' 12"N
Longitude 69° 56' 10"W 69° 56' 20"W
Elevation 62' 74'
Threshold Crossing Height 51 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes
A110-1BIRDS AND DEER INVOF OF ARPT.
A110-4FOR CD CTC PORTLAND APCH AT 207-874-7320, WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A30-01L/19RCLSD INDEFLY.
A30A-19LCALM WIND RWY.
A81-APTACTVT MALSR RWY 01R; REIL RWY 19L; PAPI RWY 01R & 19L; HIRL RWY 01R/19L - CTAF.
BRUNSWICK EXEC (ICAO: KBXM, IATA: BXM) is a public airport located in BRUNSWICK, ME, US.
