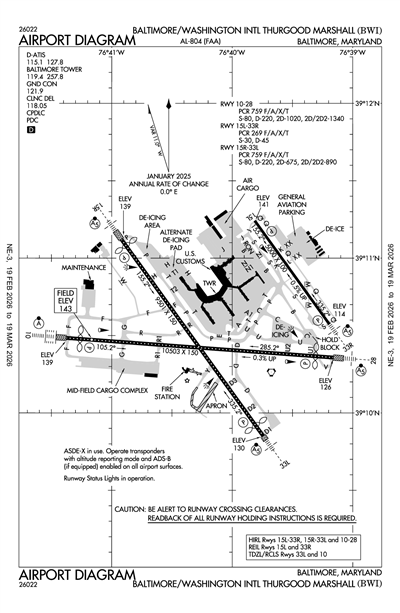

BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBWI
ICAO KBWIIATA BWILocal BWI
BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL
PublicPUB

9 miles S of BALTIMORE, MD, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 10' 33"N 76° 40' 08"W
Elevation
143' MSL
Pattern Alt
1143' MSL
Mag Variation
11°W
Declination
11°W
Fuel
JET A, 100LL
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KBWI IFR
12:54 AM EST
Light Rain and Mist
Overcast 600'
4sm
42°F
42°F
30.23"Hg
250° 5kts
AO2 SLP237 P0001 60008 T00560056 10056 20028 55002
METAR KBWI 040554Z 25005KT 4SM -RA BR OVC006 06/06 A3023 RMK AO2 SLP237 P0001 60008 T00560056 10056 20028 55002
+ Add Your Business

KBWI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 115.1
Digital ATIS 127.8
ASOS (227) 217-0474

Common

UNICOM 119.4
DURING ATC ZERO EVENTS, UNICOM 119.4.
UNICOM 119.4
UNICOM 119.4.

Clearance

Clearance Delivery 118.05

Ground

BALTIMORE GROUND 121.9

Tower

BALTIMORE TOWER 119.4

Arrival

ANTHM STAR 133.85
MIIDY STAR 133.75
RAVNN STAR 128.35
TRISH STAR 125.525
WESTMINSTER STAR 126.825
10000 FT & BLW
WESTMINSTER STAR 133.85
11000 FT & ABV

Approach

POTOMAC APPROACH 119.0
020-100
POTOMAC APPROACH 119.7
131-180
POTOMAC APPROACH 124.55
101-130
POTOMAC APPROACH 128.7
181-019
POTOMAC APPROACH 119.0
Secondary - 131-180
POTOMAC APPROACH 119.7
Secondary - 020-130
POTOMAC APPROACH 125.525
Secondary - 181-019

Departure

CONLE DP 124.55
DUKPN DP 124.55
FIXET DP 124.55
FOXHL DP 128.7
LINSE DP 128.7
PALEO DP 124.55
POTOMAC DEPARTURE 124.55
EAST
POTOMAC DEPARTURE 128.7
WEST
SWANN DP 124.55
TERPZ DP 128.7

Emergency

Emergency 121.5

Other

CLASS B 119.0
020-100
CLASS B 119.7
131-180
CLASS B 124.55
101-130
CLASS B 128.7
181-019
CLASS B/S 119.0
Secondary - 131-180
CLASS B/S 119.7
Secondary - 020-130
CLASS B/S 125.525
Secondary - 181-019

Terminal Area Forecast

KBWI
Wed, 3/4 12:42 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 7:00 AM EST
IFR
1:00 AM EST - 8:00 AM EST
Light Showers and Rain and Mist
Overcast 500'
3sm
230° 6kts
IFR
8:00 AM EST - 2:00 PM EST
Overcast 700'
6sm
040° 3kts
IFR
2:00 PM EST - 9:00 PM EST
Light Showers and Rain and Mist
Overcast 700'
5sm
050° 3kts
LIFR
9:00 PM EST - 4:00 AM EST
Light Drizzle and Mist
Overcast 600'
Broken 300'
2sm
Calm
LIFR
4:00 AM EST - 7:00 AM EST
Light Showers and Rain and Mist
Overcast 400'
4sm
050° 2kts
TAF KBWI 040542Z 0406/0512 23006KT 3SM -SHRA BR OVC005
   FM041300 04003KT P6SM OVC007
   FM041900 05003KT 5SM -SHRA BR OVC007
   FM050200 00000KT 2SM -DZ BR BKN003 OVC006
   FM050900 05002KT 4SM -SHRA BR OVC004
KBWI
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
2000Z
3/4/26
2200Z
!BWI 03/022 BWI NAV ILS RWY 15L U/S 2603042000-2603042200
3/4/26
0330Z
3/4/26
1130Z
Runway!BWI 03/023 BWI RWY 10/28 CLSD 2603040330-2603041130
3/3/26
0725Z
3/4/26
0725Z
Runway!BWI 03/017 BWI RWY 15L FICON 5/5/5 100 PCT WET OBS AT 2603030725. 2603030725-2603040725
3/3/26
0724Z
3/4/26
0724Z
Runway!BWI 03/016 BWI RWY 15R FICON 5/5/5 100 PCT WET OBS AT 2603030724. 2603030724-2603040724
3/1/26
2030Z
6/17/26
1200Z
!BWI 03/005 BWI OBST TREE (ASN UNKNOWN) 391138N0764006W (0.52NM N APCH END RWY 15L)
UNKNOWN (30FT AGL) NOT LGTD 2603012030-2606171200
2/28/26
1849Z
3/31/26
1700Z
!BWI 02/198 BWI AD AP WINDCONE FOR RWY 33L LGT U/S 2602281849-2603311700
2/26/26
0442Z
3/25/26
2300Z
!BWI 02/184 BWI TWY R TWY DIRECTION SIGN NORTHEAST SIDE BTN RWY 15R/33L AND TWY P NOT STD 2602260442-2603252300
2/24/26
1917Z
6/24/26
1917Z
!BWI 02/174 BWI OBST TOWER LGT (ASR 1036304) 391715.00N0764537.00W (7.9NM NNW BWI) 1504.9FT (996.1FT AGL) U/S 2602241917-2606241917
2/5/26
0048Z
3/31/26
2100Z
Runway!BWI 02/030 BWI RWY 15R/33L CL MARKINGS OBSC 2602050048-2603312100
2/4/26
1000Z
4/4/26
2359Z
Runway!BWI 02/025 BWI RWY 15R/33L AT INT RWY 10/28 NOT GROOVED 8FT WID X 22FT LEN 2602041000-2604042359
2/4/26
1000Z
4/4/26
2359Z
Runway!BWI 02/024 BWI RWY 10/28 AT INT RWY 15R/33L NOT GROOVED 8FT WID X 22FT LEN 2602041000-2604042359
1/28/26
1143Z
3/31/26
1200Z
!BWI 01/205 BWI TWY ALL IN PAVEMENT RWY GUARD LGT NOT STD 2601281143-2603311200
1/22/26
1036Z
3/22/26
2200Z
!BWI 01/107 BWI APRON DEICING RAMP FOR RWY 15R CLSD EXC ACFT WINGSPAN LESS THAN 118FT 2601221036-2603222200
9/4/25
1621Z
!BWI 09/033 BWI AIRSPACE SEE FDC 5/7224 ZDC SECURITY INSTRUCTIONS 2509041621-PERM
8/27/25
1027Z
3/25/26
2359Z
!BWI 08/138 BWI OBST POLE (ASN UNKNOWN) 391113N0764056W (0.16NM NE APCH END RWY 15R)
152.8FT (37FT AGL) NOT LGTD 2508271027-2603252359
8/27/25
1027Z
8/25/26
1200Z
!BWI 08/137 BWI OBST TREE (ASN UNKNOWN) 391144N0764012W (0.68NM N APCH END RWY 15L)
UNKNOWN (60FT AGL) NOT LGTD 2508271027-2608251200
9/4/24
1830Z
!BWI 09/020 BWI AIRSPACE SEE FDC 4/2565 ZDC SECURITY INSTRUCTIONS 2409041830-PERM
FDC
3/4/26
1200Z
3/11/26
1742Z
!FDC 6/2749 BWI IAP BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD.
ILS OR LOC RWY 10, AMDT 22...
ILS OR LOC RWY 15L, AMDT 4A...
ILS OR LOC RWY 15R, AMDT 17...
ILS OR LOC RWY 28, AMDT 18...
ILS OR LOC RWY 33L, AMDT 13...
ILS OR LOC RWY 33R, AMDT 3...
ILS RWY 10 (SA CAT I), AMDT 22...
ILS RWY 10 (CAT II-III), AMDT 22...
ILS RWY 33L (SA CAT I-II), AMDT 13...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BAL VORTAC OUT OF SERVICE. 2603041200-2603111742EST
12/16/25
1415Z
!FDC 5/9707 BWI IAP BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD.
RNAV (RNP) Z RWY 10, AMDT 3...
RNP 0.11 DA 468/HAT 325 ALL CATS. VISIBILITY ALL CATS RVR 2600. TEMPORARY CRANES 300FT MSL 1950FT NORTH OF RWY 10 (2021-AEA-2472 THRU 2476-NRA).
2512161415-2607281414EST
9/26/25
2029Z
!FDC 5/1046 BWI ODP BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 10A...
TAKEOFF OBSTACLE NOTES: RWY 33L, TEMPORARY CRANE 475FT FROM DER, 292FT RIGHT OF CENTERLINE, 37FT AGL/154FT MSL (2025-AEA-3841-NRA). 2509262029-2704072355EST
8/9/24
1656Z
!FDC 4/5982 BWI SID BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL, BALTIMORE, MD.
TERPZ EIGHT DEPARTURE (RNAV)...
DO NOT FILE CLTCH TRANSITION, ATC ASSIGNED ONLY.
2408091656-2608091656EST
Yes
ALL
STATE OF MARYLAND
PO BOX 8766
BWI AIRPORT, MD 21240
Phone: 410-859-7100
GREGORY SOLEK
AIRPORT OPERATIONS PO BOX 8766
BWI AIRPORT, MD 21240
Phone: 410-859-7018
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
BWI
--
--
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 10/28

10503 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

80,000lbs
220,000lbs
1,020,000lbs
1,340,000lbs
  Runway 10 Runway 28
True Heading 94°274°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 10' 29"N 39° 10' 21"N
Longitude 76° 41' 23"W 76° 39' 10"W
Elevation 139' 126'
Threshold Crossing Height 71 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 15L/33R

5000 ft. x 100 ft.
ASPH
Fair
GRVD
HIGH

30,000lbs
45,000lbs
--
--
  Runway 15L Runway 33R
True Heading 144°324°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 11' 15"N 39° 10' 34"N
Longitude 76° 39' 49"W 76° 39' 12"W
Elevation 141' 114'
Threshold Crossing Height 47 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15R/33L

9501 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

80,000lbs
220,000lbs
675,000lbs
890,000lbs
  Runway 15R Runway 33L
True Heading 144°324°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 11' 07"N 39° 09' 51"N
Longitude 76° 40' 55"W 76° 39' 45"W
Elevation 139' 130'
Threshold Crossing Height 73 ft. AGL 72 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-10NOISE ABATEMENT PROCEDURES IN EFFECT - RSTRN FOR RWY 15L/33R EXCEPT FOR EMERG OR MERCY FLIGHTS CTC AMGR FOR INFO.
A110-11MAJOR CONSTR ON ARPT DLY; ACFT MOV & PRKG AREAS SUBJECT TO SHORT NOTICE CHANGE/CLOSURE. FOR CURRENT INFO PHONE BWI OPNS CNTR 410-859-7018.
A110-14ACFT ON VISUAL APCHS EXPECT TO MAINTAIN 3000 FT UNTIL 10 DME FM BAL VORTAC; DEP ACFT SHOULD EXPECT TURNS BASED ON BALTIMORE DME.
A110-15TAXIING PROHIBITED BTN CONCOURSE C & ADJ BLDG STRUCTURE SW OF CONCOURSE C. ACCESS TO GATE C12 MUST BE VIA TWY A.
A110-17TWY "S", SOUTH OF TWY "P", RSTRD TO ACFT 60000 LBS & LESS.
A110-19GA ACFT CTC 129.0 PRIOR TO ARR AT GA RAMP FOR SCTY PURPOSES.
A110-2PRACTICE LNDG & APCH BY TURBO-PWRD ACFT PROHIBITED 2200-0600; PRACTICE LNDG & TKOF BY B-747 ACFT PROHIBITED RWY 15R/33L.
A110-24TAXILANES 'T-1' & "H" RSTRD TO GROUP III ACFT WITH MAX WINGSPAN OF 118 FEET.
A110-28CONCOURSE A ALT DEICING AREA IS RSTRD TO B737-800 SIZE ACFT WITH WINGLETS OR SMLR ON SPOTS 6, 7 AND 8.
A110-29RWY 28 DE-ICE PAD LANE 1 RSTRD TO ACFT WITH WINGSPAN 171 FT OR LESS, LANE 2 RSTRD TO ACFT WITH WINGSPAN 135 FT OR LESS, LANE 3 IS USED BY LARGE ACFT MAX WINGSPAN 215 FT AND WHEN IN USE- LANES 2 AND 4 ARE UNAVBL. LANES 4, 5 & 6 ARE RSTRD TO ACFT WINGSPAN 135 FT OR LESS.
A110-3CONT MOWING OPERATIONS ADJ ALL RWYS & TWYS - APR THRU NOV.
A110-30TWY T BTN TWY H AND TWY E RSTD TO GROUP IV ACFT WITH WINGSPAN LESS THAN 171 FT. TWY T BTN TWY E AND TWY B RSTRD TO GROUP V ACFT WITH WINGSPAN LESS THAN 214 FT; WHEN GROUP V ACFT ARE ON TWY T, TWY A IS RSTRD TO MAX WINGSPANS OF 110 FT.
A110-34DUAL PARALLEL TAXILANES HAVE BEEN ADDED TO THE 'D'/'E' ALLEYWAY; TAXILANE 'N' AND TAXILANE 'N1'. TAXILANE 'N' IS DESIGNATED A "GROUP V" TAXILANE WITH MAX WINGSPAN OF 213 FT. TAXILANE 'N1' IS DESIGNATED A "GROUP IV" TAXILANE WITH MAX WINGSPAN OF 170 FT.
A110-35TWY 'A' IS RSTRD TO GROUP IV ACFT WINGSPAN 171 FT OR LESS.
A110-36RWY LEN AVBL FOR RWY 28 DEPS FM TWY U1 IS 9802 FT.
A110-37RWY STATUS LGTS IN OPN.
A110-38ACFT DEPARTING RWY 28 EXP DEP FM TWY U1.
A110-39DURING ATC ZERO EVENTS, UNICOM 119.4.
A110-4NO APRON PARKING FOR UNSKED ACR.
A110-40UNICOM 119.4.
A110-41RWY 15R DEICE PAD PSNS 1 THRU 5 RSTRD TO ACFT WITH WINGSPAN 117 FT 6 INS OR LESS.
A110-7DEER & BIRDS OCNLLY ON & INVOF ARPT.
A110-8DISTRACTING LGTS (GOLF DRIVING RANGE) RIGHT SIDE EXTDD CNTRLN RWY 33L FM AER TO 1/4 MI FINAL.
A19ASURVEYED.
A39-10/28PCR VALUE: 759/F/A/X/T
A39-15L/33RPCR VALUE: 269/F/A/X/T
A39-15R/33LPCR VALUE: 759/F/A/X/T
A47-10MIDFIELD RVR SENSOR SHARED BY RWY 10/28 & RWY 15R/33L.
A57-10APCH RATIO 50:1 TO DSPLCD THR.
A57-28APCH RATIO 50:1 TO DSPLCD THR.
A58-33LRWY 33L +2 FT ROAD 170 FT FROM RWY END 500 FT LEFT.
BALTIMORE/WASHINGTON INTL THURGOOD MARSHALL (ICAO: KBWI, IATA: BWI) is a public airport located in BALTIMORE, MD, US.
