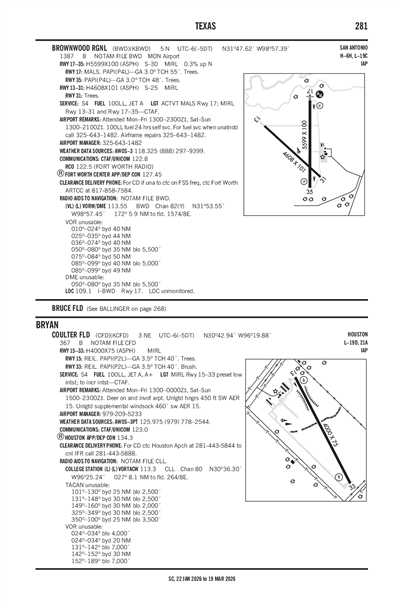

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBWD
BROWNWOOD RGNL
PublicPUB

5 miles N of BROWNWOOD, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 47' 37"N 98° 57' 23"W
1387' MSL
2387' MSL
04E
JET A, 100LL
FORT WORTH (FTW)
SAN ANTONIO
FORT WORTH (ZFW)
7/11/24-8/8/24
KMKN (20nm) VFR
5:35 AM CDT
Clear
N/A
76°F
70°F
29.90"Hg
190° 8kts
AO2 T02460213 PWINO
KMKN 191035Z AUTO 19008KT CLR 25/21 A2990 RMK AO2 T02460213 PWINO
Add Your Business

KBWD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
888-297-9399
 118.325

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBBD (42nm)
Thu, 9/19 12:20 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 10:00 AM CDT
Sky Clear
6sm
160° 6kts
VFR
10:00 AM CDT - 1:00 AM CDT
Sky Clear
6sm
180° 10kts
Gusts 16kts
KBBD 190520Z 1906/2006 16006KT P6SM SKC
   FM191500 18010G16KT P6SM SKC
KBWD
Domestic
9/4/241839Z !BWD 09/002 BWD SVC AUTOMATED WX BCST SYSTEM ALTIMETER SETTING UNREL 2409041839-2501222359EST
8/8/242030Z !BWD 08/007 BWD SVC AUTOMATED WX BCST SYSTEM CEILING NOT AVBL 2408082030-2410102300
7/15/242338Z !BWD 07/010 BWD OBST TOWER LGT (ASR 1053998) 314346.00N0990113.00W (5.0NM SW BWD) 2097.8FT (599.4FT AGL) U/S 2407152338-2410152359
FDC
2/20/241815Z !FDC 4/7272 BWD IAP BROWNWOOD RGNL, BROWNWOOD, TX.
LOC RWY 17, AMDT 4C...
RNAV (GPS) RWY 17, AMDT 1C...
VOR RWY 35, AMDT 1D...
CIRCLING MDA CAT C 2040/HAA 653. VIS 1 3/4.
2402201815-2602201815EST
No
MON-FRI 0700-1700
SAT-SUN 0700-1500
CITY OF BROWNWOOD
BOX 1389
BROWNWOOD, TX 76801
Phone: (325) 646-5775
BOBBY BURKS
BOX 1389
BROWNWOOD, TX 76801
Phone: 325-643-1482
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
BWD
--
ACTVT MALS RWY 17; MIRL RWY 13/31 & 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
37
6
1
3
0
0
Major
Major
None
None
Air Freight
Cargo Handling
Pilot Instruction

Runway 13/31

4608 ft. x 101 ft.
ASPH
Good
NONE
MED

25,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 134°314°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 47' 50"N 31° 47' 19"N
Longitude 98° 57' 49"W 98° 57' 11"W
Elevation 1,381' 1,372'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5599 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 48' 07"N 31° 47' 11"N
Longitude 98° 57' 18"W 98° 57' 18"W
Elevation 1,384' 1,370'
Threshold Crossing Height 55 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
BROWNWOOD RGNL (ICAO: KBWD, IATA: BWD) is a public airport located in BROWNWOOD, TX.
