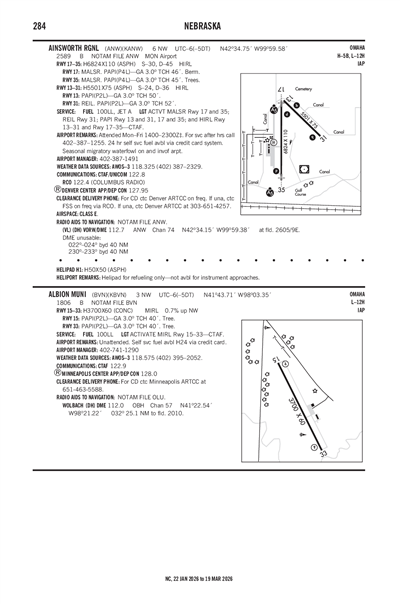

ALBION MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBVN
ICAO KBVNLocal BVN
ALBION MUNI
PublicPUB

3 miles NW of ALBION, NE, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 43' 43"N 98° 03' 21"W
Elevation
1806' MSL
Pattern Alt
2806' MSL
Mag Variation
4°E
Declination
6°E
Fuel
100LL
FSS
COLUMBUS (OLU)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KBVN MVFR
7:55 PM CST
Overcast 1,800'
10sm
44°F
38°F
30.13"Hg
Calm
AO2 T00680031
METAR KBVN 040155Z AUTO 00000KT 10SM OVC018 07/03 A3013 RMK AO2 T00680031
+ Add Your Business

KBVN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.575
(402) 395-2052

Common

CTAF 122.9
ACTVT MIRL RWY 15/33 - CTAF.

Center

MINNEAPOLIS CENTER 128.0
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 128.0/257.95 (O'NEILL RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KOFK (32nm)
Tue, 3/3 5:27 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
MVFR
6:00 PM CST - 10:00 PM CST
Overcast 2,000'
6sm
040° 4kts
MVFR
10:00 PM CST - 3:00 AM CST
Overcast 1,800'
6sm
060° 2kts
IFR
3:00 AM CST - 4:00 AM CST
Mist
Overcast 800'
5sm
020° 3kts
IFR
4:00 AM CST - 7:00 AM CST
Mist
Overcast 600'
2sm
150° 3kts
IFR
7:00 AM CST - 10:00 AM CST
Broken 600'
6sm
Calm
MVFR
10:00 AM CST - 1:00 PM CST
Broken 1,100'
6sm
150° 3kts
VFR
1:00 PM CST - 6:00 PM CST
Scattered 2,100'
6sm
160° 5kts
TAF KOFK 032327Z 0400/0424 04004KT P6SM OVC020
   FM040400 06002KT P6SM OVC018
   FM040900 02003KT 5SM BR OVC008
   FM041000 15003KT 2SM BR OVC006
   FM041300 00000KT P6SM BKN006
   FM041600 15003KT P6SM BKN011
   FM041900 16005KT P6SM SCT021
KBVN
EffectiveExpiresCategoryNOTAM
Domestic
2/20/26
2244Z
7/1/26
2359Z
!BVN 02/006 BVN AD AP ABN U/S 2602202244-2607012359
2/16/26
1825Z
4/16/26
2359Z
!BVN 02/005 BVN OBST TOWER LGT (ASR 1261840) 414200.60N0982225.90W (14.4NM W BVN) 2427.5FT (409.8FT AGL) U/S 2602161825-2604162359
1/30/26
1518Z
Runway!BVN 01/005 BVN RWY 33 PAPI UNUSABLE 2601301518-2607292111EST
1/30/26
1517Z
Runway!BVN 01/004 BVN RWY 15 PAPI UNUSABLE 2601301517-2607292111EST
No
UNATNDD
ALBION ARPT AUTH
P.O. BOX 3
ALBION, NE 68620
Phone: (402) 741-1290
BOB SANDMAN
P.O. BOX 3
ALBION, NE 68620
Phone: 402-741-1290
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
BVN
--
ACTVT MIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 15/33

3700 ft. x 60 ft.
CONC
Excellent
NONE
MED

--
--
--
--
  Runway 15 Runway 33
True Heading 154°334°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 43' 59"N 41° 43' 26"N
Longitude 98° 03' 32"W 98° 03' 10"W
Elevation 1,806' 1,779'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A52-15RWY 15 APCH; TREE AT 42 FT ABV RWY; 882 FT FM RWY END, 310 FT R; CREATES A 16:1.
A70-100LLSELF SVC FUEL AVBL H24 VIA CREDIT CARD.
A81-APTACTVT MIRL RWY 15/33 - CTAF.
ALBION MUNI (ICAO: KBVN, IATA: BVN) is a public airport located in ALBION, NE, US.
