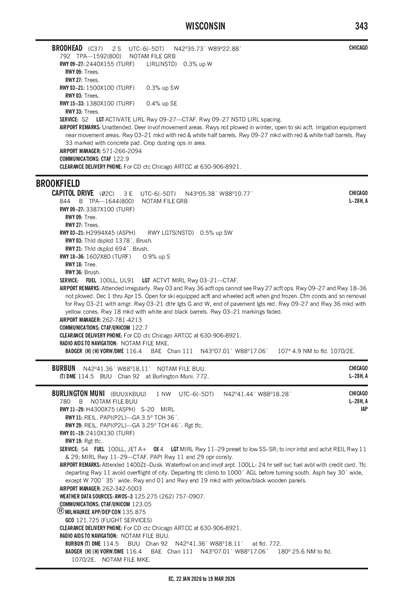

BURLINGTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBUU
ICAO KBUULocal BUU
BURLINGTON MUNI
PublicPUB

1 miles NW of BURLINGTON, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 41' 27"N 88° 18' 17"W
Elevation
780' MSL
Pattern Alt
1780' MSL
Mag Variation
4°W
Declination
3°W
Fuel
JET A (FSII), 100LL
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KBUU MVFR
7:55 PM CST
Overcast 1,900'
10sm
35°F
29°F
30.17"Hg
Calm
AO2 T00191016 PWINO
METAR KBUU 040155Z AUTO 00000KT 10SM OVC019 02/M02 A3017 RMK AO2 T00191016 PWINO
+ Add Your Business

KBUU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 125.275
(262) 757-0907

Common

CTAF 123.05
MIRL RWY 11/29 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 11 & 29; MIRL RWY 11/29 - CTAF. PAPI RWY 11 & 29 OPR CONSLY.
UNICOM 123.05

Arrival

GOPAC STAR 126.5

Approach

MILWAUKEE APPROACH 135.875

Departure

MILWAUKEE DEPARTURE 135.875

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 THRU FLT SVCS.

FAA A/FD Pages

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KENW (17nm)
Tue, 3/3 5:33 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
MVFR
6:00 PM CST - 8:30 PM CST
Broken 1,000'
6sm
Calm
VFR
8:30 PM CST - 4:00 AM CST
Scattered 2,000'
6sm
Calm
MVFR
4:00 AM CST - 9:00 AM CST
Mist
Scattered 4,500'
5sm
VRB° 3kts
VFR
9:00 AM CST - 12:00 PM CST
Scattered 3,500'
6sm
100° 5kts
VFR
12:00 PM CST - 3:00 PM CST
Scattered 6,000'
6sm
110° 7kts
MVFR
3:00 PM CST - 6:00 PM CST
Broken 3,000'
6sm
090° 6kts
TAF KENW 032333Z 0400/0424 00000KT P6SM BKN010
   FM040230 00000KT P6SM SCT020
   FM041000 VRB03KT 5SM BR SCT045
   FM041500 10005KT P6SM SCT035
   FM041800 11007KT P6SM SCT060
   FM042100 09006KT P6SM BKN030
KBUU
EffectiveExpiresCategoryNOTAM
Domestic
2/20/26
0153Z
3/7/26
0053Z
!BUU 02/011 BUU OBST TOWER LGT (ASR 1231164) 424140.70N0882352.60W (4.1NM W BUU) 1267.1FT (254.9FT AGL) U/S 2602200153-2603070053
No
0800-DUSK
CITY OF BURLINGTON
CITY HALL 300 N PINE
BURLINGTON, WI 53105
Phone: 262-763-3717
PAUL AYDT
707 AIRPORT DRIVE
BURLINGTON, WI 53105
Phone: 262-342-5003
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
BUU
--
MIRL RWY 11/29 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 11 & 29; MIRL RWY 11/29 - CTAF. PAPI RWY 11 & 29 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01/19

2410 ft. x 130 ft.
TURF
Good
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 12°192°
Traffic Pattern Left Right
Markings
Markings Condition
Latitude 42° 41' 09"N 42° 41' 32"N
Longitude 88° 18' 17"W 88° 18' 10"W
Elevation 773' 775'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 11/29

4300 ft. x 75 ft.
ASPH
Good
NONE
MED

20,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 109°289°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 41' 37"N 42° 41' 23"N
Longitude 88° 18' 46"W 88° 17' 51"W
Elevation 777' 776'
Threshold Crossing Height 36 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3.5° 3.25°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1ASPH TWY 30 FT WIDE, EXCEPT 'W' 700 FT 35 FT WIDE.
A110-2DEPARTING TFC CLIMB TO 1000 FT AGL BEFORE TURNING SOUTH.
A110-3WATERFOWL ON & INVOF ARPT.
A110-4TFC DEPARTING RY 11 AVOID OVERFLIGHT OF CITY.
A110-5GCO AVBL ON FREQ 121.725 THRU FLT SVCS.
A110-6FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A15EMAIL ADDRESS: PAYDT@BURLINGTON-WI.GOV.
A42-01_MARKMKD WITH YELLOW/BLACK WOODEN PANELS.
A42-19_MARKMKD WITH YELLOW/BLACK WOODEN PANELS.
A70-100LL24 HR SELF SVC FUEL AVBL WITH CREDIT CARD.
A81-APTMIRL RWY 11/29 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 11 & 29; MIRL RWY 11/29 - CTAF. PAPI RWY 11 & 29 OPR CONSLY.
BURLINGTON MUNI (ICAO: KBUU, IATA: BUU) is a public airport located in BURLINGTON, WI, US.
