iFlightPlanner



...

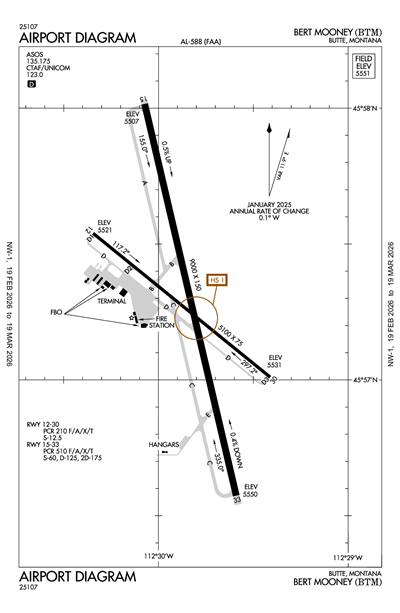

BERT MOONEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBTM
ICAO KBTMIATA BTMLocal BTM
BERT MOONEY
PublicPUB

3 miles SE of BUTTE, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 57' 17"N 112° 29' 51"W
Elevation
5551' MSL
Pattern Alt
6551' MSL
Mag Variation
12°E
Declination
12°E
Fuel
JET A, 100LL, 100
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KBTM VFR
1:53 AM MST
Clear
10sm
26°F
20°F
30.03"Hg
120° 4kts
AO2 SLP172 T10331067 56001 $
METAR KBTM 040853Z AUTO 12004KT 10SM CLR M03/M07 A3003 RMK AO2 SLP172 T10331067 56001 $
+ Add Your Business

KBTM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.175
(406) 494-1870

Common

CTAF 123.0
ACTVT MALSR RWY 15; REIL RWY 12 & 30; PAPI RWY 12 & 30; VASI RWY 33; MIRL RWY 15/33 & 12/30 - CTAF. PAPI RWY 15 OPR CONSLY.
UNICOM 123.0

Center

SALT LAKE CENTER 132.4
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON FREQS 132.4/338.3 (BUTTE RCAG).

Flight Service

Flight Service 122.2
(GTF)
Flight Service 122.3
(GTF), COMMUNICATIONS PRVDD BY GREAT FALLS RADIO ON FREQ 122.3 (COPPERTOWN RCO).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Hotspot

Terminal Area Forecast

KBTM
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 12:00 PM MST
Sky Clear
6sm
Calm
VFR
12:00 PM MST - 4:00 PM MST
Overcast 12,000'
6sm
200° 8kts
Gusts 16kts
VFR
4:00 PM MST - 6:00 PM MST
Light Showers and Rain
Overcast 8,000'
6sm
200° 8kts
Gusts 16kts
IFR
6:00 PM MST - 11:00 PM MST
Light Snow and Rain
Broken 2,500'
Scattered 1,000'
2sm
300° 12kts
TAF KBTM 040520Z 0406/0506 00000KT P6SM SKC
   FM041900 20008G16KT P6SM OVC120
   FM042300 20008G16KT P6SM -SHRA OVC080
   FM050100 30012KT 2SM -SNRA SCT010 BKN025
KBTM
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
0615Z
3/4/26
1300Z
!BTM 03/004 BTM AD AP SFC COND NOT REP 2603040615-2603041300
2/16/26
2041Z
3/16/26
2359Z
!BTM 02/041 BTM OBST TOWER LGT (ASR 1000778) 460027.00N1122633.00W (3.9NM NE BTM) 8458.0FT (212.9FT AGL) U/S 2602162041-2603162359
1/23/26
2116Z
3/18/26
2300Z
!BTM 01/062 BTM OBST CRANE (ASN UNKNOWN) 455919N1123006W (1.13NM N APCH END RWY 15)
5522FT (100FT AGL) FLAGGED AND LGTD 2601232116-2603182300
No
DAWN-DUSK
BERT MOONEY, ARPT AUTH
101 AIRPORT ROAD
BUTTE, MT 59701
Phone: 406-494-3771
PAM CHAMBERLIN
101 AIRPORT RD
BUTTE, MT 59701
Phone: 406-494-3771
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
BTM
--
ACTVT MALSR RWY 15; REIL RWY 12 & 30; PAPI RWY 12 & 30; VASI RWY 33; MIRL RWY 15/33 & 12/30 - CTAF. PAPI RWY 15 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 12/30

5100 ft. x 75 ft.
ASPH
Good
GRVD
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 129°309°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 45° 57' 32"N 45° 57' 01"N
Longitude 112° 30' 21"W 112° 29' 25"W
Elevation 5,521' 5,531'
Threshold Crossing Height 41 ft. AGL 47 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

9000 ft. x 150 ft.
ASPH
Good
GRVD
MED

60,000lbs
125,000lbs
175,000lbs
--
  Runway 15 Runway 33
True Heading 167°347°
Traffic Pattern Right Left
Markings PIR BSC
Markings Condition GOOD GOOD
Latitude 45° 58' 01"N 45° 56' 34"N
Longitude 112° 30' 04"W 112° 29' 35"W
Elevation 5,507' 5,550'
Threshold Crossing Height 55 ft. AGL 74 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L V2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No No
A110-10FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-11TWY D RSTD TO ACFT WITH WINGSPAN LESS THAN 100 FT WO PPR, CALL APMGR 406-494-3771.
A110-3DEER IN VICINITY OF AIRPORT.
A110-7SNOW REMOVAL OPS IN PROGRES DURING PERIODS OF SNOW.
A110-9COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -24C.
A24FEE FOR ALL COML ACFT & ACFT OVER 9000 LBS.
A26PPR FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 406-494-3771.
A33-12/30_SURFSURFACE CONDITIONS UNMONITORED BETWEEN MIDNIGHT AND 5 A.M.
A39-12/30PCR VALUE: 210/F/A/X/T
A39-15/33PCR VALUE: 510/F/A/X/T
A43-12PAPI UNUSBL BYD 5 DEG RIGHT OF RCL.
A43-30PAPI RSTRD TO 2.1 NM FM RWY 30 THLD DUE TO HIGH TERRAIN. PAPI UNUSBL BYD 2 DEG RIGHT OF RCL.
A43-33DO NOT USE VASI BYD 1.5 MI DUE TO HIGH TERRAIN.
A81-APTACTVT MALSR RWY 15; REIL RWY 12 & 30; PAPI RWY 12 & 30; VASI RWY 33; MIRL RWY 15/33 & 12/30 - CTAF. PAPI RWY 15 OPR CONSLY.
BERT MOONEY (ICAO: KBTM, IATA: BTM) is a public airport located in BUTTE, MT, US.
