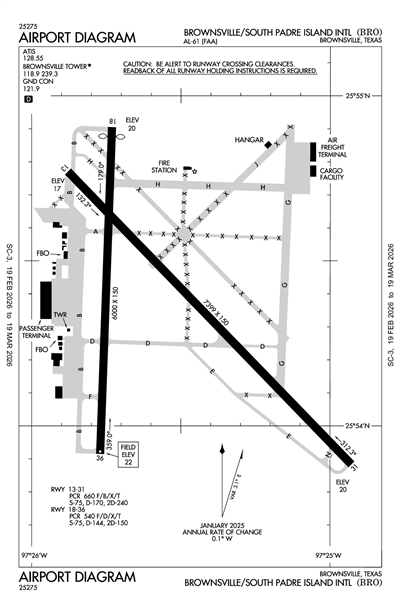

BROWNSVILLE/SOUTH PADRE ISLAND INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBRO
ICAO KBROIATA BROLocal BRO
BROWNSVILLE/SOUTH PADRE ISLAND INTL
PublicPUB

4 miles E of BROWNSVILLE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
25° 54' 22"N 97° 25' 34"W
Elevation
22' MSL
Pattern Alt
1022' MSL
Mag Variation
3°E
Declination
3°E
Fuel
JET A, 100LL
FSS
SAN ANGELO (SJT)
Sectional
BROWNSVILLE
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KBRO MVFR
10:53 PM CST
Overcast 1,200'
10sm
76°F
71°F
30.01"Hg
150° 13kts
Gusts 20kts
AO2 SLP160 T02440217
METAR KBRO 040453Z 15013G20KT 10SM OVC012 24/22 A3001 RMK AO2 SLP160 T02440217
+ Add Your Business

KBRO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.55
ASOS 128.55
(956) 299-5871

Common

CTAF 118.9
DUSK-DAWN. WHEN ATCT CLSD ACTVT MALSR RWY 13 - CTAF.
UNICOM 122.95

Ground

BROWNSVILLE GROUND 121.9
0600-0000

Tower

BROWNSVILLE TOWER 118.9
0600-0000

Approach

VALLEY APPROACH 119.5

Departure

VALLEY DEPARTURE 119.5

Flight Service

Flight Service 122.3
(SJT)

Emergency

Emergency 121.5

Terminal Area Forecast

KBRO
Tue, 3/3 5:36 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 8:00 PM CST
Scattered 2,000'
6sm
140° 20kts
Gusts 30kts
MVFR
8:00 PM CST - 8:00 AM CST
Broken 1,500'
6sm
150° 12kts
Gusts 17kts
MVFR
8:00 AM CST - 6:00 PM CST
Broken 3,000'
6sm
150° 18kts
Gusts 25kts
TAF KBRO 032336Z 0400/0424 14020G30KT P6SM SCT020
   FM040200 15012G17KT P6SM BKN015
   FM041400 15018G25KT P6SM BKN030
KBRO
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
1330Z
2/25/26
2355Z
!BRO 02/078 BRO NAV VORTAC U/S 2602251330-2602252355
2/24/26
2351Z
2/25/26
0649Z
!BRO 02/079 BRO AIRSPACE UAS WI AN AREA DEFINED AS 7NM RADIUS OF
255534.20N0972407.20W (1.8NM NE BRO) SFC-1200FT AGL
2602242351-2602250649
2/24/26
0107Z
6/24/26
0107Z
!BRO 02/077 BRO OBST TOWER LGT (ASR 1050340) 255750.50N0973113.30W (6.2NM NW BRO) 513.8FT (489.8FT AGL) U/S 2602240107-2606240107
2/20/26
0340Z
!BRO 02/067 BRO NAV VORTAC NOT MNT 2602200340-2603202000EST
2/17/26
1613Z
10/30/26
2200Z
Runway!BRO 02/058 BRO RWY 36 VASI U/S 2602171613-2610302200
2/17/26
1612Z
10/30/26
2200Z
Runway!BRO 02/057 BRO RWY 18 PAPI U/S 2602171612-2610302200
2/17/26
1548Z
5/31/26
2100Z
!BRO 02/056 BRO TWY D BTN TWY E AND TWY B CLSD 2602171548-2605312100
2/17/26
1508Z
10/31/26
2100Z
!BRO 02/055 BRO AD AP WINDCONE FOR RWY 18 NOT STD 2602171508-2610312100
2/17/26
1501Z
5/31/26
2100Z
!BRO 02/053 BRO TWY F CLSD 2602171501-2605312100
2/17/26
1458Z
5/31/26
2100Z
!BRO 02/052 BRO TWY B BTN APCH END RWY 13 AND APCH END RWY 18 CLSD 2602171458-2605312100
2/17/26
1455Z
5/31/26
2100Z
!BRO 02/050 BRO TWY B BTN TWY F AND APCH END RWY 36 CLSD 2602171455-2605312100
2/17/26
1300Z
10/30/26
2200Z
Runway!BRO 02/045 BRO RWY 18/36 CLSD 2602171300-2610302200
2/13/26
2334Z
3/30/26
2333Z
!BRO 02/041 BRO OBST TOWER LGT (ASR 1048960) 255341.00N0973029.00W (4.5NM W BRO) 445.2FT (411.1FT AGL) U/S 2602132334-2603302333
2/2/26
0600Z
3/1/26
0559Z
!BRO 02/003 BRO AIRSPACE UAS WI AN AREA DEFINED AS 255315N0972831W
(2.9NM WSW BRO) TO 255338N0972749W (2.2NM WSW BRO) TO
255239N0972655W (2.1NM SSW BRO) TO 255233N0972618W (1.9NM SSW BRO)
TO 255208N0972501W (2.3NM SSE BRO) TO 255150N0972235W (3.7NM SE BRO)
TO 255806N0972427W (3.9NM NNE BRO) TO 260705N0971733W (4.1NM SE PIL)
TO 255730N0971650W (8.5NM ENE BRO) TO 255513N0972121W (3.9NM ENE
BRO) TO 255420N0972229W (2.8NM E BRO) TO 255210N0972132W (4.2NM ESE
BRO) TO 255026N0972224W (4.8NM SE BRO) TO 255028N0972528W (3.9NM S
BRO) TO POINT OF ORIGIN SFC-400FT AGL DLY 0600-0559
2602020600-2603010559
12/11/25
1449Z
3/3/26
2359Z
!BRO 12/049 BRO AIRSPACE UAS WI AN AREA DEFINED AS 5NM RADIUS OF 260127N0972943W (7.3NM NW BRO) SFC-400FT AGL 2512111449-2603032359
12/11/25
0859Z
3/3/26
2359Z
!BRO 12/048 BRO AIRSPACE UAS WI AN AREA DEFINED AS 260204N0973512W (11.4NM NW BRO) TO 255702N0972938W (4NM NW BRO) TO 255612N0973002W (4.3NM WNW BRO) TO 255516N0973012W (4.1NM WNW BRO) TO 255340N0973006W (4.2NM WSW BRO) TO 255315N0973117W (4.1NM WSW BRO) TO 255423N0973212W (5.8 NM W BRO) TO 255528N0973213W (5.7NM WNW BRO) TO 255551N0973320W (6.7NM WNW BRO) TO 255548N0973511W (8.4 NM WNW BRO) TO 255623N0973411W (7.8NM WNW BRO) TO 255657N0973423W (7.8NM WNW BRO) TO 255647N0973458W (7.8NM WNW BRO) TO 255733N0973522W (9NM WNW BRO) TO 255715N0973615W (9.7NM WNW BRO) TO 255816N0973648W (10.1NM WNW BRO) TO 255838N0973718W (11NM WNW BRO) TO POINT OF ORIGIN SFC-400FT AGL 2512110859-2603032359
12/11/25
0823Z
3/3/26
2359Z
!BRO 12/047 BRO AIRSPACE UAS WI AN AREA DEFINED AS 255623N0972001W (5.3NM NE BRO) TO 255748N0972043W (5.7NM NE BRO) TO 260219N0970919W (16.8NM NE BRO) TO 255758N0970844W (16NM ENE BRO) TO 255703N0971133W (5.7NM NE BRO) TO 255731N0971231W (12.4NM ENE BRO) TO 255721N0971352W (11.5NM ENE BRO) TO 255545N0971709W (7.6NM ENE BRO) TO 255601N0971847W (7.1NM ENE BRO) TO 255458N0972016W (5NM ESE BRO) TO POINT OF ORIGIN SFC-400FT AGL 2512110823-2603032359
9/3/25
1906Z
!BRO 09/014 BRO NAV ILS RWY 13 OM U/S 2509031906-2603032111EST
8/25/22
1402Z
!BRO 08/056 BRO TWY G LOCATION MARKINGS NOT STD 2208251402-PERM
FDC
2/25/26
1330Z
3/4/26
2343Z
!FDC 6/9742 BRO IAP BROWNSVILLE/SOUTH PADRE ISLAND INTL, BROWNSVILLE, TX.
LOC BC RWY 31, ORIG...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BRO VORTAC OUT OF SERVICE. 2602251330-2603042343EST
2/4/26
1613Z
3/4/26
1613Z
!FDC 6/0268 BRO IAP BROWNSVILLE/SOUTH PADRE ISLAND INTL, BROWNSVILLE, TX.
ILS OR LOC RWY 13, ORIG-B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HRL VOR/DME UNMONITORED. 2602041613-2603041613EST
Yes
ALL
FOR ACFT SVC CALL 956-542-5852 OR 956-542-9111.
CITY OF BROWNSVILLE
BOX 911
BROWNSVILLE, TX 78520
Phone: 956-542-4373
FAISAL KHALIFA- INTERIM AIRPORT DIR
700 AMELIA EARHART
BROWNSVILLE, TX 78521
Phone: 956-459-1811
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
BRO
--
DUSK-DAWN. WHEN ATCT CLSD ACTVT MALSR RWY 13 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
High Pressure
High Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

7399 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

75,000lbs
170,000lbs
240,000lbs
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 25° 54' 46"N 25° 53' 54"N
Longitude 97° 25' 53"W 97° 24' 56"W
Elevation 17' 20'
Threshold Crossing Height -- 68 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 18/36

6000 ft. x 150 ft.
ASPH
Fair
GRVD
MED

75,000lbs
144,000lbs
150,000lbs
--
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 25° 54' 54"N 25° 53' 55"N
Longitude 97° 25' 44"W 97° 25' 46"W
Elevation 20' 22'
Threshold Crossing Height 50 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FLIGHT NOTIFICATION SERVICE (ADCUS) AVAILABLE.
A110-10LGTD OIL DERRICKS LCTN APRXLY 5 NM NE MAX 500 FT AGL.
A110-11BIRDS ON & INVOF ARPT.
A110-19FOR CD WHEN ATCT IS CLSD CTC CRP APCH AT 361-299-4230.
A110-20TXY J NORTH OF TXY H OPEN TO TFC UNDER 12500 LBS.
A110-21FOR CUST AND BDR PROTECTION SVCS CTC: 956-547-5760 DLY 0800-2400; KBRO.GAP@CBP.DHS.GOV. AFT HRS: 956-983-5704, 956-982-3653; BROWNSVILLEOPSCENTER@CBP.DHS.GOV.
A14INTERIM DIRECTOR OF AVIATION.
A17-M1FOR ACFT SVC CALL 956-542-5852 OR 956-542-9111.
A26WHEN ATCT CLSD REQ ARFF ASSISTANCE THRU HOUSTON ARTCC OR FLT SVC. PPR 24 HRS FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 956-542-4373.
A39-13/31PCR VALUE: 660/F/B/X/T
A39-18/36PCR VALUE: 540/F/D/X/T
A81-APTDUSK-DAWN. WHEN ATCT CLSD ACTVT MALSR RWY 13 - CTAF.
BROWNSVILLE/SOUTH PADRE ISLAND INTL (ICAO: KBRO, IATA: BRO) is a public airport located in BROWNSVILLE, TX, US.
