iFlightPlanner



...

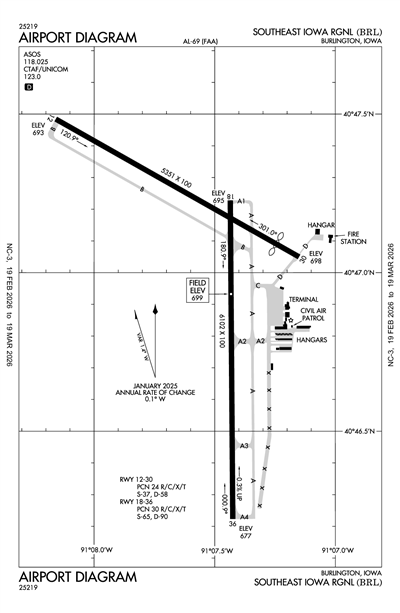

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBRL
SOUTHEAST IOWA RGNL
PublicPUB

2 miles SW of BURLINGTON, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 46' 59"N 91° 07' 32"W
699' MSL
1699' MSL
01E
JET A, 100LL
FORT DODGE (FOD)
CHICAGO
CHICAGO (ZAU)
10/31/24-11/28/24
KBRL VFR
5:53 AM CST
Clear
10sm
47°F
40°F
30.16"Hg
110° 7kts
AO2 SLP214 T00830044 10083 20044 58018
KBRL 091153Z AUTO 11007KT 10SM CLR 08/04 A3016 RMK AO2 SLP214 T00830044 10083 20044 58018
Add Your Business

KBRL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
319-752-6246
 118.025

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBRL
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 2:00 PM CST
Overcast 15,000'
6sm
110° 8kts
VFR
12:00 PM CST - 2:00 PM CST
Light Showers and Rain
Overcast 4,000'
6sm
Calm
MVFR
2:00 PM CST - 3:00 PM CST
Light Showers and Rain
Overcast 2,500'
Scattered 1,500'
6sm
120° 9kts
MVFR
3:00 PM CST - 8:00 PM CST
Light Showers and Rain
Overcast 2,500'
Broken 1,500'
5sm
130° 9kts
IFR
8:00 PM CST - 11:00 PM CST
Overcast 700'
6sm
140° 9kts
IFR
11:00 PM CST - 3:00 AM CST
Light Drizzle and Mist
Overcast 600'
3sm
170° 8kts
MVFR
3:00 AM CST - 6:00 AM CST
Broken 1,500'
6sm
190° 8kts
KBRL 091120Z 0912/1012 11008KT P6SM OVC150
   PROB30 0918/0920 6SM -SHRA OVC040
   FM092000 12009KT 6SM -SHRA SCT015 OVC025
   FM092100 13009KT 5SM -SHRA BKN015 OVC025
   FM100200 14009KT P6SM OVC007
   FM100500 17008KT 3SM -DZ BR OVC006
   FM100900 19008KT P6SM BKN015
KBRL
Domestic
10/31/240433Z !BRL 10/016 BRL OBST TOWER LGT (ASR 1295301) 405114.60N0905820.70W (8.2NM ENE BRL) 806.8FT (254.9FT AGL) U/S 2410310433-2411150333
10/10/241131Z !BRL 10/004 BRL OBST TOWER LGT (ASR 1237810) 405753.10N0910915.00W (11.0NM N BRL) 1005.9FT (259.8FT AGL) U/S 2410101131-2412111159
2/10/222030Z !BRL 02/014 BRL RWY 12/30 BTN 500FT W RWY 18/36 AND RWY 18/36 GRADE 1.0 PCT UP SE 2202102030-PERM
FDC
7/8/241829Z !FDC 4/8257 BRL IAP SOUTHEAST IOWA RGNL, BURLINGTON, IA.
RNAV (GPS) RWY 36, AMDT 1A...
LPV DA 944/HAT 250 VIS 3/4 ALL CATS.
2407081829-2607081829EST
7/8/241828Z !FDC 4/8255 BRL IAP SOUTHEAST IOWA RGNL, BURLINGTON, IA.
RNAV (GPS) RWY 30, AMDT 1B...
LPV DA NA.
LNAV/VNAV DA NA.
2407081828-2607081828EST
7/8/241825Z !FDC 4/8253 BRL IAP SOUTHEAST IOWA RGNL, BURLINGTON, IA.
ILS OR LOC RWY 36, AMDT 10C...
S-ILS 36 DA 944/HAT 250 VIS 3/4 ALL CATS.
2407081825-2607081825EST
No
0700-1900
SE IOWA REG ARPT AUTHORITY
2515 SUMMER STREET
BURLINGTON, IA 52601-3330
Phone: 319-754-1414
SARA SANDBURG
2515 SUMMER ST
BURLINGTON, IA 52601
Phone: 319-754-1414
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
BRL
--
ACTVT MALSR RWY 36; REIL RWYS 12, 18 & 30; VASI RWY 12; PAPI RWY 18 & 30; MIRL RWY 12/30; HIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 12/30

5351 ft. x 100 ft.
CONC
Fair
GRVD
MED
24 /R/C/X/T
37,000lbs
58,000lbs
--
--
  Runway 12 Runway 30
True Heading 120°300°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 47' 29"N 40° 47' 03"N
Longitude 91° 08' 10"W 91° 07' 09"W
Elevation 693' 698'
Threshold Crossing Height 39 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

6102 ft. x 100 ft.
CONC
Excellent
GRVD
HIGH
30 /R/C/X/T
65,000lbs
90,000lbs
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Right Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 40° 47' 14"N 40° 46' 13"N
Longitude 91° 07' 26"W 91° 07' 25"W
Elevation 695' 677'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1LINE OF SIGHT VISION BLOCKED BETWEEN RYS 36 & 12.
A110-2RY 36 IS CALM WIND RY.
A110-3SELF SERVICE FUEL STATION AVAILABLE ON NORTH END OF APRON.
A110-4SFC CONDITIONS UNMNT BTN 1900-0600 DLY.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC CHICAGO ARTCC AT 630-906-8921.
SOUTHEAST IOWA RGNL (ICAO: KBRL, IATA: BRL) is a public airport located in BURLINGTON, IA.
