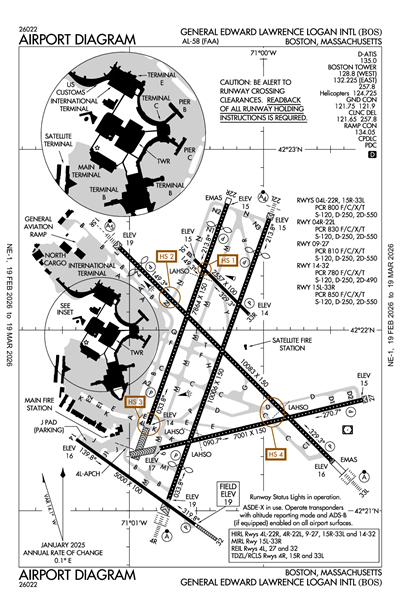

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBOS
GENERAL EDWARD LAWRENCE LOGAN INTL
PublicPUB

1 miles E of BOSTON, MA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 21' 47"N 71° 00' 23"W
19' MSL
1019' MSL
15W
JET A, 100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KBOS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

No TAF is available for this location.
KBOS
Domestic
1/17/250600Z !BOS 01/265 BOS AD AP RWY STATUS LGT SYSTEM U/S 2501170600-2501171100
1/15/251400Z !BOS 01/287 BOS NAV ILS RWY 04R U/S 2501151400-2501151500
1/15/250946Z !BOS 01/302 BOS TWY M BTN TWY C AND TWY E CLSD 2501150946-2501180100
1/15/250932Z !BOS 01/301 BOS RWY 04R FICON 5/5/5 100 PCT WET DEICED LIQUID 100FT WID OBS AT 2501150932. 2501150932-2501160932
1/15/250932Z !BOS 01/300 BOS RWY 27 FICON 5/5/5 100 PCT WET DEICED LIQUID 100FT WID OBS AT 2501150931. 2501150932-2501160932
1/15/250930Z !BOS 01/299 BOS RWY 04L/22R CLSD EXC TAX 30MIN PPR 131.1 2501150930-2501161000
1/15/250353Z !BOS 01/297 BOS RWY 33L FICON 5/5/5 100 PCT WET DEICED LIQUID 100FT WID OBS AT 2501150352. 2501150353-2501160353
1/15/250008Z !BOS 01/294 BOS APRON J PAD PRKG RAMP CLSD EXC ACFT PRKG OVERNIGHT 2501150008-2501151800
1/15/250007Z !BOS 01/293 BOS RWY 14/32 CLSD EXC TAX 30MIN PPR 131.1 2501150007-2501151800
1/14/251817Z !BOS 01/292 BOS RWY 15L/33R CLSD EXC TAX 2501141817-2501282100
1/9/250620Z !BOS 01/117 BOS RWY 27 PAPI U/S 2501090620-2501232000EST
1/7/251455Z !BOS 01/081 BOS OBST CRANE (ASN 2024-ANE-3801-OE) 422111N0710238W (1.8NM WSW BOS) 352FT (340FT AGL) FLAGGED AND LGTD 2501071455-2507072359
12/25/242356Z !BOS 12/656 BOS RWY 09/27 CL MARKINGS OBSC 2412252356-2504012359
12/20/241754Z !BOS 12/413 BOS SVC AUTOMATED WX BCST SYSTEM CHANGED TO 339-746-6855 2412201754-PERM
12/18/241751Z !BOS 12/361 BOS OBST STACK (ASN UNKNOWN) 422326N0710354W (2.3NM NW BOS) 550FT (500FT AGL) NOT LGTD 2412181751-2504302359
FDC
1/10/252040Z !FDC 5/2432 BOS IAP GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
ILS OR LOC RWY 27, AMDT 3A...
S-ILS 27 DA 561/HAT 544 ALL CATS. VISIBILITY ALL CATS 1 5/8. S-LOC 27 MDA 600/HAT 583 ALL CATS. VISIBILITY CATS C/D 1 3/4. TEMPORARY CRANE 922FT MSL 2.25 NM SOUTHWEST OF BOS AIRPORT (2021-ANE-8621-OE).
2501102040-2508222040EST
1/10/252039Z !FDC 5/2430 BOS IAP GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
RNAV (GPS) RWY 27, AMDT 1B...
LNAV/VNAV DA 562/HAT 545 ALL CATS. VISIBILITY ALL CATS 1 5/8. LNAV MDA 760/743 ALL CATS. VISIBILITY CAT B 1 1/2, CAT C 2. TEMPORARY CRANE 922FT MSL 2.25 NM SOUTHWEST OF BOS AIRPORT (2021-ANE-8621-OE).
2501102039-2508222039EST
1/10/252038Z !FDC 5/2428 BOS SID GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
BLZZR SIX DEPARTURE (RNAV)...
BRUWN SEVEN DEPARTURE (RNAV)...
CELTK SEVEN DEPARTURE (RNAV)...
HYLND SEVEN DEPARTURE (RNAV)...
LBSTA EIGHT DEPARTURE (RNAV)...
LOGAN FOUR DEPARTURE...
PATSS SEVEN DEPARTURE (RNAV)...
REVSS SIX DEPARTURE (RNAV)...
SSOXS SEVEN DEPARTURE (RNAV)...
WYLYY FIVE DEPARTURE (RNAV)...
DISREGARD TAKE-OFF MINIMUMS: RWY 27, STANDARD WITH MINIMUM CLIMB OF 487FT PER NM TO 1000. TAKEOFF MINIMUMS: RWY 27: 1000-2 3/4 WITH MINIMUM CLIMB OF 487 FT PER NM TO 1000. TEMPORARY CRANE 922 MSL 1.87NM WEST OF RWY 27 (2021-ANE-8621-OE). ALL OTHER DATA REMAINS AS PUBLISHED.. 2501102038-2508222038EST
1/10/252038Z !FDC 5/2426 BOS ODP GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 15...
DISREGARD TAKE-OFF MINIMUMS: RWY 27, STANDARD WITH MINIMUM CLIMB OF 487FT PER NM TO 1000. TAKE-OFF MINIMUMS: RWY 27, 1000-2 3/4 WITH MINIMUM CLIMB OF 487FT PER NM TO 1000. RWY 33L, 300-1 3/4 OR STANDARD WITH MINIMUM CLIMB OF 370 FTPNM TO 400. ADD TAKEOFF OBSTACLE NOTE: RWY 4R, TEMPORARY CRANE 2212FT FROM DER, 244FT LEFT OF CENTERLINE, 60FT AGL/79FT MSL (2023-ANE-1736-NRA). TEMPORARY CRANE 922 MSL 1.87NM WEST OF RWY 27 (2021-ANE-8621-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2501102038-2508222038EST
1/10/252037Z !FDC 5/2424 BOS ODP GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
DIVERSE VECTOR AREA (RADAR VECTORS), ORIG ...
RWY 14, REQUIRES MINIMUM CLIMB OF 400 FT PER NM TO 1100.
RWY 22L, DEPARTURE NA.
RWY 22R, DEPARTURE NA.
RWY 33L, REQUIRES MINIMUM CLIMB OF 420 FT PER NM TO 1300.
TEMPORARY CRANE 922 MSL 1.87NM WEST OF RWY 27 (2021-ANE-8621-OE).
ALL OTHER DATA REMAINS AS PUBLISHED 2501102037-2508222037EST
8/29/241530Z !FDC 4/8009 BOS STAR GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
OOSHN FIVE ARRIVAL...
RIFLE ROUTE INCREASE MOCA FROM CUTOX TO CUJKE 1200 TO 1900,
WINDMILL AT 873 OBS (25-077159)

2408291530-2503311500
5/16/241319Z !FDC 4/5140 BOS IAP GENERAL EDWARD LAWRENCE LOGAN INTL, BOSTON, MA.
ILS OR LOC RWY 4R, AMDT 11B...
ILS RWY 4R (SA CAT I), AMDT 11B...
ILS RWY 4R (CAT II AND III), AMDT 11B...
SIMULTANEOUS APPROACH NOT AUTHORIZED.
2405161319-2505161319EST
Yes
ALL
MASS PORT AUTHORITY
ONE HARBORSIDE DR STE 200S
BOSTON, MA 02128
Phone: 617-428-2800
EDWARD FRENI
LOGAN INTERNATIONAL AIRPORT, HARBORSIDE DR STE 200S
EAST BOSTON, MA 02128-2909
Phone: 617-567-5400
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
BOS
--
--
N/A
Yes - Lighted
No
Yes
None
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service

Runway 04L/22R

7864 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 04L Runway 22R
True Heading 20°200°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 21' 29"N 42° 22' 42"N
Longitude 71° 00' 52"W 71° 00' 16"W
Elevation 14' 15'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes No

Runway 04R/22L

10006 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 04R Runway 22L
True Heading 20°200°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 21' 04"N 42° 22' 37"N
Longitude 71° 00' 42"W 70° 59' 57"W
Elevation 19' 14'
Threshold Crossing Height 67 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF2 MALSF
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 09/27

7001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 09 Runway 27
True Heading 77°257°
Traffic Pattern Left Left
Markings BSC PIR
Markings Condition GOOD GOOD
Latitude 42° 21' 21"N 42° 21' 37"N
Longitude 71° 00' 46"W 70° 59' 16"W
Elevation 17' 15'
Threshold Crossing Height -- 71 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway 14/32

5000 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
490,000lbs
--
  Runway 14 Runway 32
True Heading 125°305°
Traffic Pattern
Markings BSC PIR
Markings Condition GOOD GOOD
Latitude 42° 21' 24"N 42° 20' 55"N
Longitude 71° 01' 24"W 71° 00' 30"W
Elevation 16' 19'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 15L/33R

2557 ft. x 100 ft.
ASPH
Good
NONE
MED

120,000lbs
250,000lbs
550,000lbs
--
  Runway 15L Runway 33R
True Heading 135°315°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 22' 24"N 42° 22' 06"N
Longitude 71° 00' 31"W 71° 00' 07"W
Elevation 15' 14'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 15R/33L

10083 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 15R Runway 33L
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 22' 27"N 42° 21' 17"N
Longitude 71° 01' 04"W 70° 59' 30"W
Elevation 19' 16'
Threshold Crossing Height 71 ft. AGL 68 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-1BIRDS ON & INVOF ARPT.
A110-10NMRS CRANES ON AND INVOF ARPT.
A110-11RWY 14/32 UNIDIRECTIONAL; NO LDGS RWY 14; NO TKOFS RWY 32.
A110-13PILOTS SHOULD COMPLETE ALL CALCULATIONS PRIOR TO PUSHBACK FROM GATE.
A110-14RWY STATUS LGTS IN OPN.
A110-16FOR NOISE ABATEMENT, RWY 15R IS PREFERRED FOR TKOF, RWY 33L IS PREFERRED FOR LDG. FOR MORE INFO ON NOISE ABATEMENT PROCS CALL 617-561-3333.
A110-17THE USE OF THE RNAV SIDS AT BOSTON LOGAN ARE CRITICAL TO RDCG NOISE AND ACHIEVING OUR FLY QUIET GOALS. MASSPORT AND THE FAA ENCOURAGE PILOTS TO USE PUBLD RNAV FLIGHT PROCS AT BOSTON LOGAN ARPT WHENEVER POSS. ALL ACFT THAT HAVE REQD ALTS ABV 10,000 FT SHOULD BE FILING RNAV SIDS WITH FAA ATC. CTC MASSPORT'S NOISE ABATEMENT OFC AT 617-561-3333 WITH ANY QNS.
A110-7NO RON PARKING FOR NON-TENANT CHARTER AIRCRAFT WITHOUT PRIOR MASSPORT PERMISSION.
A110-8TERMINAL E; NORTH & SOUTH CARGO ARRIVALS CTC MASSPORT GATE CONTROL ON FREQ 131.1 BEFORE ENTERING/DEPARTING RAMP AREA.
GENERAL EDWARD LAWRENCE LOGAN INTL (ICAO: KBOS, IATA: BOS) is a public airport located in BOSTON, MA.
