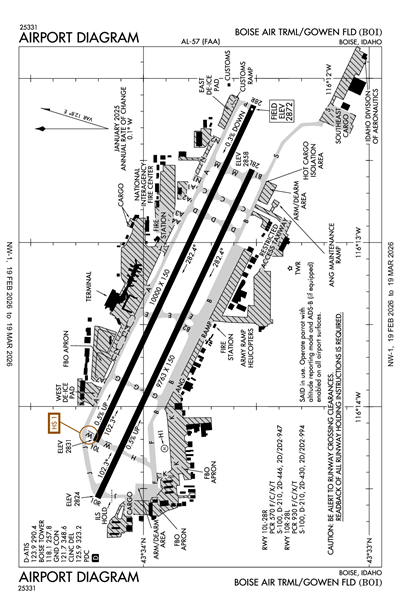

BOISE AIR TRML/GOWEN FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBOI
ICAO KBOIIATA BOILocal BOI
BOISE AIR TRML/GOWEN FLD
PublicPUB

3 miles S of BOISE, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 33' 52"N 116° 13' 22"W
Elevation
2872' MSL
Pattern Alt
3872' MSL
Mag Variation
13°E
Declination
13°E
Fuel
JET A (FSII), 100LL
FSS
BOISE (BOI)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KBOI VFR
1:53 AM MST
Clear
10sm
46°F
35°F
30.00"Hg
130° 9kts
AO2 SLP152 T00780017 56017
METAR KBOI 040853Z 13009KT 10SM CLR 08/02 A3000 RMK AO2 SLP152 T00780017 56017
+ Add Your Business

KBOI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 123.9
ASOS 123.9
(208) 318-5005

Common

UNICOM 122.95

Clearance

Clearance Delivery 125.9

Ground

BOISE GROUND 121.7

Tower

BOISE TOWER 118.1
Initial Contact
BOISE TOWER 119.0
Secondary

Approach

BIG SKY APPROACH 119.6
Initial Contact - MORE THAN 15 NM FM BOI
BIG SKY APPROACH 126.9
WITHIN 15 NM OF BOI, OR INBOUND FM HORSESHOE BEND/ALDAPE PEAK.

Departure

BIG SKY DEPARTURE 119.6
Initial Contact - MORE THAN 15 NM FM BOI
BIG SKY DEPARTURE 126.9
WITHIN 15 NM OF BOI, OR INBOUND FM HORSESHOE BEND/ALDAPE PEAK.

Flight Service

Flight Service 122.6

Emergency

Emergency 121.5

Other

CLASS C 119.6
SOUTH
CLASS C 126.9
NORTH

Terminal Area Forecast

KBOI
Tue, 3/3 10:26 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 10:00 AM MST
Broken 20,000'
6sm
130° 12kts
VFR
10:00 AM MST - 1:00 PM MST
Showers in vicinity
Broken 6,000'
6sm
160° 11kts
MVFR
1:00 PM MST - 6:00 PM MST
Light Rain and Mist
Overcast 2,000'
Scattered 1,000'
4sm
300° 18kts
Gusts 28kts
MVFR
6:00 PM MST - 10:00 PM MST
Light Showers and Rain
Overcast 2,000'
Scattered 1,200'
4sm
300° 12kts
Gusts 22kts
MVFR
6:00 PM MST - 11:00 PM MST
Showers in vicinity
Overcast 2,500'
6sm
300° 11kts
TAF KBOI 040526Z 0406/0506 13012KT P6SM BKN200
   FM041700 16011KT P6SM VCSH BKN060
   FM042000 30018G28KT 4SM -RA BR SCT010 OVC020
   FM050100 30011KT P6SM VCSH OVC025
   PROB30 0501/0505 30012G22KT 4SM -SHRA SCT012 OVC020
KBOI
EffectiveExpiresCategoryNOTAM
Domestic
3/9/26
1400Z
11/15/26
2230Z
!BOI 03/019 BOI NAV ILS RWY 28R U/S 2603091400-2611152230
3/4/26
1500Z
3/5/26
2330Z
Runway!BOI 03/038 BOI RWY 10R/28L CLSD 2603041500-2603052330
3/4/26
1500Z
3/4/26
2300Z
!BOI 03/036 BOI SVC TAR/SSR U/S 2603041500-2603042300
3/4/26
1500Z
3/4/26
2300Z
!BOI 02/283 BOI NAV ILS RWY 10R CAT II NA 2603041500-2603042300
3/4/26
1500Z
3/4/26
2300Z
Runway!BOI 02/282 BOI RWY 10R ALS U/S 2603041500-2603042300
3/4/26
1500Z
3/4/26
2300Z
!BOI 02/281 BOI NAV ILS RWY 10R U/S 2603041500-2603042300
3/4/26
1430Z
3/4/26
2300Z
!BOI 02/251 BOI SVC ATIS U/S 2603041430-2603042300
3/4/26
1400Z
3/4/26
2300Z
Runway!BOI 02/280 BOI RWY 28L VASI U/S 2603041400-2603042300
3/4/26
1400Z
3/4/26
2200Z
!BOI 02/257 BOI NAV ILS RWY 28R U/S 2603041400-2603042200
3/3/26
1400Z
3/27/26
2359Z
!BOI 03/028 BOI AIRSPACE UAS WI AN AREA DEFINED AS 2.5NM RADIUS OF 432537N1161207W (8.8NM S BOI) SFC-400FT AGL DLY 1400-2359 2603031400-2603272359
3/3/26
0911Z
3/17/26
2359Z
!BOI 03/032 BOI OBST TOWER LGT (ASR 1248048) 432930.90N1161358.90W (4.4NM S BOI) 3197.8FT (151.9FT AGL) U/S 2603030911-2603172359
3/1/26
1400Z
11/15/26
2330Z
Runway!BOI 02/210 BOI RWY 10L PAPI U/S 2603011400-2611152330
3/1/26
1400Z
11/15/26
2330Z
Runway!BOI 02/209 BOI RWY 28R PAPI U/S 2603011400-2611152330
3/1/26
1400Z
11/15/26
2330Z
Runway!BOI 02/208 BOI RWY 10L RWY END ID LGT U/S 2603011400-2611152330
5/25/25
1509Z
5/31/26
1800Z
!BOI 05/220 BOI APRON SOUTHWEST GA RAMP IRREGULAR SFC 2505251509-2605311800
5/7/25
1300Z
3/31/26
2200Z
!BOI 05/050 BOI OBST CRANE (ASN 2025-ANM-847-NRA) 433349N1161226W (0.7NM E BOI) 2964FT (95FT AGL) ERECTED 2505071300-2603312200
FDC
3/4/26
1700Z
3/10/26
2000Z
!FDC 6/2786 BOI ODP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
GOWEN FOUR DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BOI TACAN OUT OF SERVICE. 2603041700-2603102000EST
3/4/26
1700Z
3/10/26
2000Z
!FDC 6/2784 BOI IAP U.S. DOD BOISE AIR TRML/GOWEN FLD, BOISE, ID.
HI - ILS Z OR LOC Z RWY 10R, AMDT 5A...
HI - VOR OR TACAN RWY 10R, AMDT 2...
HI - VOR Z OR TACAN Z RWY 28L, AMDT 4...
ILS OR LOC RWY 28R, ORIG-B...
ILS Y OR LOC Y RWY 10R, AMDT 14...
VOR OR TACAN RWY 10L, AMDT 3...
VOR Y OR TACAN Y RWY 28L, AMDT 3...
ILS Y RWY 10R, (SA CAT I) AMDT 14...
ILS Y RWY 10R, (CAT II-III) AMDT 14....
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BOI TACAN OUT OF SERVICE. 2603041700-2603102000EST
2/2/26
1806Z
!FDC 6/9603 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
RNAV (RNP) X RWY 28L, AMDT 1...
RNP 0.15 DA 3249/HAT 391 ALL CATS, VIS ALL CATS RVR 4000. TEMPORARY CRANES 2926 MSL 5749 SE OF RWY 28L (2024-ANM-4869/4870-NRA).
2602021806-2609142355EST
2/2/26
1556Z
!FDC 6/9522 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
RNAV (RNP) Z RWY 28R, AMDT 2...
RNP 0.15 DA 3209/HAT 337 ALL CATS.
RNP 0.30 DA 3357/HAT 485, VIS ALL CATS 1 3/8.
TERMINAL ROUTE JUBEN TO SAKVY MINIMUM ALTITUDE 4700.
2602021556-2609141556EST
11/5/25
1234Z
!FDC 5/1952 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
RNAV (RNP) Z RWY 28R, AMDT 2...
PROCEDURE NA. TEMPORARY CRANES UP TO 3506 MSL BEGINNING 4.21NM SE OF BOI AIRPORT (2023-ANM-6825/6827/6828/6829/6830-OE, 2024-ANM-2415-OE), TEMPORARY CRANES 2926 MSL 4227 SE OF RWY 28R (2024-ANM-4869/4870-NRA). TEMPORARY CRANES, UP TO 3480 MSL, BEGNNING 3.1NM SE OF RWY 28R (2025-ANM-5697 THRU 5702-OE).
2511051234-2604301234EST
11/5/25
1234Z
!FDC 5/1951 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
RNAV (RNP) Z RWY 28L, AMDT 3...
PROCEDURE NA. DLY SR-SS EXCEPT WHEN ADVISED BY ATCT. TEMPORARY CRANES UP TO 3506 MSL BEGINNING 4.21NM SE OF BOI AIRPORT (2023-ANM-6825/6827/6828/6829/6830-OE, 2024-ANM-2415-OE).
TEMPORARY CRANES, UP TO 3480 MSL, BEGNNING 3.2NM SE OF RWY 28L (2025-ANM-5697 THRU 5702-OE).
2511051234-2604301234EST
11/5/25
1200Z
!FDC 5/1917 BOI ODP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
GOWEN FOUR DEPARTURE ...
TAKE-OFF MINIMUMS: RWY 10L, STANDARD WITH MINIMUM CLIMB OF 229 FEET PER NM TO 4300.
RWY 10R, STANDARD WITH MINIMUM CLIMB OF 220 FEET PER NM TO 4300.
ADD TAKEOFF OBSTACLE NOTES: RWY 10L. TEMPORARY CRANES BEGNNING 3.3NM SE OF DER. UP TO 3480FT MSL (2025-ANM-5697 THRU 5702-OE).
RWY 10R. TEMPORARY CRANES BEGNNING 3.5NM SE OF DER. UP TO 3480FT MSL (2025-ANM-5697 THRU 5702-OE)..
ALL OTHER DATA REMAINS AS PUBLISHED. 2511051200-2604301035EST
11/5/25
1200Z
!FDC 5/1916 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
RNAV (GPS) Y RWY 28R, AMDT 6A...
LNAV MDA 3700/HAT 829 ALL CATS. CIRCLING CATS A/B MDA 3700/HAA 829. TEMPORARY CRANES, UP TO 3480 MSL, BEGNNING 3.3NM SE OF RWY 28R (2025-ANM-5697 THRU 5702-OE).
2511051200-2604301035EST
11/5/25
1200Z
!FDC 5/1915 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
RNAV (GPS) Y RWY 28L, AMDT 6...
ASASE TO BOUNTY MINIMUM ALTITUDE 3700. TEMPORARY CRANES, UP TO 3480 MSL, BEGNNING 3.5NM SE OF RWY 28L (2025-ANM-5697 THRU 5702-OE).
2511051200-2604301035EST
8/6/25
1517Z
!FDC 5/1873 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
RNAV (RNP) Z RWY 28L, AMDT 3...
RNP 0.11 DA 3226/HAT 368.
RNP 0.30 DA 3352/HAT 494, VIS RVR 5000 ALL CATS.
TERMINAL ROUTE JUBEN TO SAKVY MINIMUM ALTITUDE 4700.
2508061517-2603181517EST
8/5/25
1905Z
!FDC 5/1269 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
RNAV (GPS) Y RWY 28R, AMDT 6A...
LNAV/VNAV DA 3231/HAT 359 ALL CATS.
2508051905-2603171905EST
8/5/25
1900Z
!FDC 5/1259 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
RNAV (RNP) X RWY 28L, AMDT 1...
RNP 0.15 DA 3232/HAT 374 ALL CATS.
DISREGARD PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 50).
2508051900-2603171859EST
8/5/25
1854Z
!FDC 5/1254 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
VOR OR TACAN RWY 10L, AMDT 3...
S-10L MDA 3400/HAT 556, VIS CAT C-E 1 5/8.
2508051854-2603171854EST
7/11/24
2050Z
!FDC 4/1145 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
ILS Y OR LOC Y RWY 10R, AMDT 14...
CHANGE TERMINAL ROUTE COURSE SALLA TO JIMMI FROM 211 TO 216.
2407112050-2607112049EST
7/9/24
1944Z
!FDC 4/9058 BOI IAP BOISE AIR TRML/GOWEN FLD, BOISE, ID.
RNAV (GPS) Y RWY 28L, AMDT 6...
TERMINAL ROUTE FROM LIITL TO YOGUC 7800. PLANVIEW NOTE: MAX 250 KIAS SPEED RESTRICTION AT LIITL (IAF). CROSS LIITL (IAF) AT OR ABOVE 9000.
DISREGARD PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 50).
2407091944-2607091944EST
Military
2/19/26
1614Z
5/15/26
1200Z
AerodromeAERODROME NOISE ABATEMENT PROCEDURES IN EFFECT FOR ALL MILITARY ARRIVALS AND DEPARTURES. TRANSIENT MILITARY AIRCRAFT RESTRICTED TO STRAIGHT-IN FULL STOP ONLY. STRICTLY ENFORCED. CARRIER BREAKS ARE PROHIBITED AT ALL TIMES. FIGHTER AIRCRAFT WILL NOT PERFORM AFTERBURNER TAKEOFFS, GO-AROUNDS, OR MISSED APPROACHES EXCEPT WHEN OPERATIONALLY REQUIRED. IF SO, FIGHTERS WILL TERMINATE AFTERBURNERS ON TAKEOFF NO LATER THAN DEPARTURE END OF RUNWAY, OR 300 KIAS, WHICHEVER OCCURS FIRST. AFTER TAKEOFF, GO AROUND OR MISSED APPROACH FIGHTER AIRCRAFT WILL RAPIDLY CLIMB TO 5,000? MSL UNLESS DIRECTED OTHERWISE BY ATC. QUIET HOURS ARE 1900-0700 LOCAL. DURING THESE HOURS, PRACTICE APPROACHES ARE PROHIBITED.
2/19/26
1608Z
5/15/26
1200Z
Aerodrome!KBOI M0006/26 BOI AERODROME OFFICIAL BUSINESS ONLY MANDATORY PPR REQUIRED FOR ALL MILITARY AIRCRAFT ARRIVING AT KBOI IN BOISE, IDAHO REGARDLESS OF WHERE THE A/C IS PARKING AT: HTTP://WWW.124THFIGHTERWING.ANG.AF.MIL. IF PARKING ON THE ANG RAMP SUBMIT NLT 72 HOURS IN ADVANCE; ALL OTHER AREAS, TO INCLUDE FBO PARKING, SUBMIT PRIOR TO ARRIVAL. PPR TIME IS VALID +/- 30 MIN. PPR NOT REQUIRED FOR AIRCRAFT CONDUCTING LOW APPROACHES, PATTERN WORK, & TOUCH AND GO. 2602191608-2605151200
2/19/26
1605Z
5/15/26
1200Z
TXL E , SOUTH OF TXY B, RESTRICTED TO ROTARY-WING AND LOCALLY ASSIGNED IDAHO NATIONAL GUARD AIRCRAFT DUE TO PAVEMENT STRENGTH
Yes
ALL
CITY OF BOISE
PO BOX 500
BOISE, ID 83702
Phone: 208-383-3110
REBECCA HUPP
3201 AIRPORT WAY SUITE 1000
BOISE, ID 83705
Phone: 208-972-8420
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 10L/28R

10000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

100,000lbs
210,000lbs
446,000lbs
947,000lbs
  Runway 10L Runway 28R
True Heading 115°295°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 43° 34' 13"N 43° 33' 31"N
Longitude 116° 14' 13"W 116° 12' 10"W
Elevation 2,831' 2,872'
Threshold Crossing Height 53 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 10R/28L

9763 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

100,000lbs
210,000lbs
430,000lbs
994,000lbs
  Runway 10R Runway 28L
True Heading 115°295°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 43° 34' 12"N 43° 33' 31"N
Longitude 116° 14' 33"W 116° 12' 33"W
Elevation 2,824' 2,858'
Threshold Crossing Height 64 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway H1

50 ft. x 50 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 43° 33' 55"N N/A
Longitude 116° 14' 16"W N/A
Elevation 2,823' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HEL OPS SFC-3500 FT WI 1 NM E, W & 5 NM S OF RWY 10R/28L.
A110-10CSTMS/AG/IMG: 1400-0130Z++ MON-FRI, FONE 24 HR BFR ARR C208-972-8730. LTD SVCS AVBL FOR INTL DIVERSIONS WITHOUT PN. CSTMS ONLY AVBL DRG PUBLD HRS OR WITH PN.
A110-11ANG: OPR 1400-2330Z++ CLSD WKND, HOL & DOWN MON. TSNT SVC NA AFT HR. SVC & PRKG - FBO. TSNT SVC & GND EQPT LTD OTR THAN A10. TSNT MUST FUEL/SVC OWN ACFT.
A110-13MISC: BASE SCTY - D422-5366. COMD POST BUS HR ONLY - D422-5333. BASE OPS BUS HR ONLY - D422-5345.
A110-14ARNG - D422-3976/C208-272-3976 1330-0600Z++ MON-FRI. ARNG RAMP OPS USE ADZY FREQ 266.2. C-12 OPS - D422-3588.
A110-15ANG: AMGR TSNT COMSEC ISSUE OR STORAGE NA.
A110-16CTN: 1 OCT-31 MAR MIL OPS BASH PHASE II; BIRD WATCH COND SVR: TKOF, LDG & LOW APCH NA EXC EMERG. LCL & TACTICAL TRNG NA. MODERATE: MUL APCH NA; DEP OR FULL STOP IF RTE AVOIDS BIRD ACT.
A110-2ARR/DEP 2200-0700 PPR DUE TO LOCKED GATES - FBO.
A110-20COML RAMP PRKG - CTC GND CTL BFR PUSHBACK.
A110-21ANG: W RAMP NONSTD WHITE WINGTIP CLNC LN BHND PRKG SPOTS & WHITE PRKG SPOT NRS. E RAMP NONSTD MARKINGS FADED & OBSC; GUARD RAILS ENCROACH WINGTIP CLNC LN.
A110-22ALL TWYS CLSD TO ACFT WITH WINGSPAN OVER 170 FT EXCEPT 1 HR PPR 208-972-8420. TWY J NORTH OF TWY F CLSD TO ACFT WITH WINGSPAN OVER 94 FT WHEN WEST ARM/DEARM PAD IN USE. TWY B CLSD BTN TWY F AND TWY C TO ACFT WITH WINGSPAN OVER 147 FT 1 IN EXCEPT 1 HR PPR 208-972-8420. TWY B CLSD BTN TWY C AND TWY B1 TO ACFT WITH WINGSPAN OVER 118 FT WHEN EAST ARM/DEARM PAD IN USE. TWY S AND TXL S CLSD TO ACFT OVER 170 FT WINGSPAN BTN TWY B AND SOUTHEAST CARGO. TXL S CLSD TO ACFT OVER 94 FT WINGSPAN EAST OF SOUTHEAST CARGO.
A110-24ONLY ACFT USING CUST MAY PARK IN WHITE BOX ON EAST DE-ICE PAD.
A110-25TXL T1, T2, T3, T4, AND APRON BTN T1 TO T4 CLSD TO ACFT OVER 118FT WINGSPAN.
A110-3FSS LOCAL - 343-2525.
A110-5BIRD ACT WI 5 NM OCT-MAR.
A110-6MIL OFFL BUS ONLY; PPR FOR MIL ARR REGARDLESS OF PRKG; ANG RAMP 72 HR PPR - HTTP://WWW.124THFIGHTERWING.ANG.AF.MIL/. PPR VALID +/- 30 MIN. TSNT FULL STOP ONLY. GO AROUND OR MISSED APCH EXP RT TFC.
A110-7PTNS OF TXL K & SOUTHWEST RAMP NOT VSBL TO ATCT.
A39-10L/28RPCR VALUE: 570/F/C/X/T
A39-10R/28LPCR VALUE: 930/F/C/X/T
E80FLIGHT NOTIFICATION SVC (ADCUS) MON-FRI 0800-1700; WKEND IF NOTIFIED BY 1700 THURS.
BOISE AIR TRML/GOWEN FLD (ICAO: KBOI, IATA: BOI) is a public airport located in BOISE, ID, US.
