iFlightPlanner



...

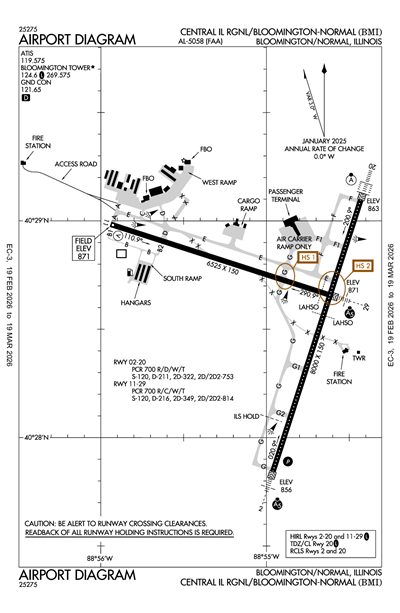

CENTRAL IL RGNL/BLOOMINGTON-NORMAL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBMI
CENTRAL IL RGNL/BLOOMINGTON-NORMAL
PublicPUB

3 miles E of BLOOMINGTON/NORMAL, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 28' 38"N 88° 54' 57"W
871' MSL
1871' MSL
03W
JET A, 100LL
KANKAKEE (IKK)
CHICAGO
CHICAGO (ZAU)
4/17/25-5/15/25
KBMI IFR
4:56 PM CST
Light Rain and Mist
Overcast 500'
5sm
56°F
56°F
29.54"Hg
160° 21kts
Gusts 28kts
AO2 PK WND 16028/2252 SLP001 P0013 T01330133
METAR KBMI 082256Z 16021G28KT 5SM -RA BR OVC005 13/13 A2954 RMK AO2 PK WND 16028/2252 SLP001 P0013 T01330133
+ Add Your Business

KBMI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.575
AWOS-3PT 135.35
309-661-9478

Ground

GND/P 121.65

Tower

LCL/P 124.6

Emergency

EMERG 121.5

Terminal Area Forecast

KBMI
Thu, 1/8 2:21 PM CST
Thu, 1/8 2:00 PM CST - Fri, 1/9 12:00 PM CST
IFR
2:00 PM CST - 6:00 PM CST
Mist
Overcast 500'
5sm
160° 17kts
Gusts 27kts
IFR
Temporary 2:00 PM CST - 6:00 PM CST
Light Thunderstorm and Rain
Broken 900'
Scattered 500'
N/A
Calm
IFR
6:00 PM CST - 10:00 PM CST
Light Showers and Rain
Overcast 600'
5sm
170° 20kts
Gusts 31kts
LIFR
6:00 PM CST - 10:00 PM CST
Thunderstorm and Rain
Overcast 400'
1sm
Calm
VFR
10:00 PM CST - 3:00 AM CST
Light Showers and Rain
Broken 3,500'
6sm
210° 20kts
Gusts 31kts
MVFR
3:00 AM CST - 10:00 AM CST
Broken 3,000'
6sm
230° 18kts
Gusts 30kts
MVFR
10:00 AM CST - 12:00 PM CST
Broken 1,700'
6sm
300° 15kts
Gusts 23kts
TAF KBMI 082021Z 0820/0918 16017G27KT 5SM BR OVC005
   TEMPO 0820/0824 -TSRA SCT005 BKN009CB
   FM090000 17020G31KT 5SM -SHRA OVC006 WS020/18055KT
   PROB30 0900/0904 1SM TSRA OVC004CB
   FM090400 21020G31KT P6SM -SHRA BKN035 WS020/22050KT
   FM090900 23018G30KT P6SM BKN030
   FM091600 30015G23KT P6SM BKN017
KBMI
EffectiveExpiresCategoryNOTAM
Domestic
1/8/26
0600Z
1/8/26
1200Z
!BMI 01/005 BMI COM REMOTE TRANS/REC 128.725, 256.9 U/S 2601080600-2601081200
1/7/26
1500Z
1/7/26
2000Z
!BMI 01/013 BMI NAV ILS RWY 20 CAT II NA 2601071500-2601072000
1/7/26
1500Z
1/7/26
2000Z
!BMI 01/012 BMI AD AP RVR ALL U/S 2601071500-2601072000
1/7/26
1330Z
1/7/26
2000Z
!BMI 01/011 BMI NAV ILS RWY 02 U/S 2601071330-2601072000
1/7/26
1330Z
1/7/26
2000Z
!BMI 01/010 BMI NAV ILS RWY 20 U/S 2601071330-2601072000
1/7/26
0600Z
1/7/26
1200Z
!BMI 12/593 BMI COM REMOTE TRANS/REC 128.725, 256.9 U/S 2601070600-2601071200
1/7/26
0218Z
Runway!BMI 01/017 BMI RWY 29 ALS U/S 2601070218-2601162000EST
1/6/26
2205Z
!BMI 01/016 BMI NAV ILS RWY 29 DME U/S 2601062205-2601142000EST
1/6/26
1026Z
2/20/26
1025Z
!BMI 01/015 BMI OBST TOWER LGT (ASR 1279905) 403923.70N0885510.10W (10.8NM N BMI) 965.9FT (228.0FT AGL) U/S 2601061026-2602201025
12/28/25
2339Z
4/27/26
2339Z
!BMI 12/591 BMI OBST TOWER LGT (ASR 1220485) 403550.00N0885137.10W (7.7NM NNE BMI) 1026.9FT (254.9FT AGL) U/S 2512282339-2604272339
12/23/25
1052Z
2/7/26
2337Z
!BMI 12/551 BMI OBST WIND TURBINE LGT (ASN 2024-WTE-3203-OE) 403730N0883508W (17.5NM ENE BMI) 1143FT (380FT AGL) U/S 2512231052-2602072337
11/27/25
0831Z
1/11/26
0512Z
!BMI 11/069 BMI OBST WIND TURBINE LGT (ASN 2020-WTE-3440-OE) 404005N0884147W (15.3NM NE BMI) 1091FT (328FT AGL) U/S 2511270831-2601110512
11/18/25
1430Z
3/18/26
1430Z
!BMI 11/032 BMI OBST TOWER LGT (ASR 1043833) 402708.20N0885748.30W (2.6NM SW BMI) 1217.2FT (367.1FT AGL) U/S 2511181430-2603181430
10/29/25
1816Z
!BMI 10/100 BMI NAV ILS RWY 20 IM/OM U/S 2510291816-2604302000EST
9/25/25
0904Z
!BMI 09/067 BMI NAV ILS RWY 29 OM U/S 2509250904-2604012111EST
3/5/19
1230Z
!BMI 03/028 BMI OBST TOWER (ASN UNKNOWN) 402434N0884602W (8.2NM ESE BMI) 1245FT (319FT AGL) NOT LGTD 1903051230-PERM
FDC
12/2/25
1326Z
!FDC 5/3115 BMI IAP CENTRAL IL RGNL/BLOOMINGTON-NORMAL, BLOOMINGTON/NORMAL, IL.
ILS RWY 20 (CAT II), AMDT 4A ...
S-ILS 20 CAT II NA EXCEPT FOR AIRCRAFT EQUIPPED WITH RADAR ALTIMETER. I-LHJ INNER MARKER OUT OF SERVICE. 2512021326-2607141325EST
Yes
0400L-2400L
CENTRAL ILLINOIS REGIONAL ARPT AUTH
3201 CIRA DRIVE
BLOOMINGTON, IL 61704
Phone: 309-663-7383
CARL G. OLSON
3201 CIRA DRIVE
BLOOMINGTON, IL 61704
Phone: 309-663-7383
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
BMI
--
ACTVT MALSR RWY 02 & 29; TDZ RWY 20; CNTLN 02/20; PAPI RWY 02; HIRL RWY 02/20 & 11/29 - CTAF. ALSF AVBL WHEN ATCT OPEN.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

8000 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
211,000lbs
322,000lbs
753,000lbs
  Runway 02 Runway 20
True Heading 18°198°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 40° 27' 51"N 40° 29' 06"N
Longitude 88° 54' 58"W 88° 54' 26"W
Elevation 856' 862'
Threshold Crossing Height 75 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4R --
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 11/29

6525 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
216,000lbs
349,000lbs
814,000lbs
  Runway 11 Runway 29
True Heading 107°287°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 28' 59"N 40° 28' 39"N
Longitude 88° 55' 56"W 88° 54' 36"W
Elevation 871' 871'
Threshold Crossing Height 43 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V4R --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No
A110-2BIRDS ON & INVOF ARPT.
A110-3SNOW REMOVAL OPS WINTER MONTHS; WHEN ATCT CLSD MNT CTAF.
A110-4WHEN ATCT CLSD LNDG/TKOF ANNOUNCE INTENTIONS ON CTAF.
A110-5ARPT OPS H24 - 309-834-7396.
A2648 HR PPR FOR UNSKED ACR OPS MORE THAN 30 PAX SEATS - AMGR.
A31-11/29SE END 565 FT CONC; RMNG 5960 FT ASPH.
A39-02/20PCR VALUE: 700/R/D/W/T
A39-11/29PCR VALUE: 700/R/C/W/T
A49-20WHEN ATCT CLSD ALSF2 OPR AS SSALR.
A81-APTACTVT MALSR RWY 02 & 29; TDZ RWY 20; CNTLN 02/20; PAPI RWY 02; HIRL RWY 02/20 & 11/29 - CTAF. ALSF AVBL WHEN ATCT OPEN.
CENTRAL IL RGNL/BLOOMINGTON-NORMAL (ICAO: KBMI, IATA: BMI) is a public airport located in BLOOMINGTON/NORMAL, IL.
