No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBMG
MONROE COUNTY
PublicPUB

4 miles SW of BLOOMINGTON, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 08' 46"N 86° 37' 00"W
846' MSL
1846' MSL
02W
JET A, 100LL
TERRE HAUTE (HUF)
ST LOUIS
INDIANAPOLIS (ZID)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KBMG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.775

ASOS

ASOS
812-825-8046
 134.525

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.775

FAA A/FD Pages

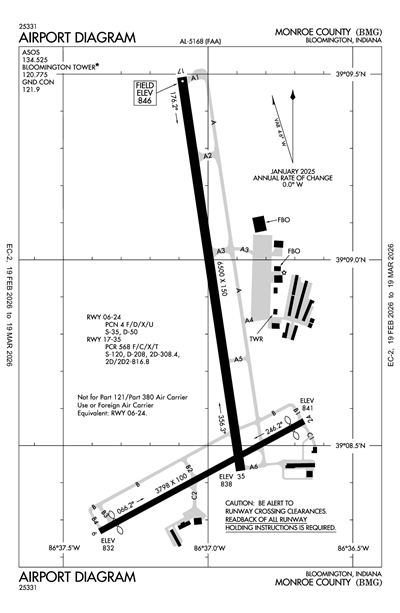

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KBMG
Domestic
1/15/250500Z !BMG 01/047 BMG COM REMOTE TRANS/REC 128.025 U/S 2501150500-2501151200
1/14/251818Z !BMG 01/053 BMG RWY 24 FICON 3/3/3 40 PCT COMPACTED SN, 30 PCT COMPACTED SN, 40 PCT COMPACTED SN OBS AT 2501141818. 2501141818-2501151818
1/9/250223Z !BMG 01/026 BMG NAV ILS RWY 35 GP U/S 2501090223-2501152000EST
12/6/241751Z !BMG 12/020 BMG OBST TOWER LGT (ASR 1043502) 391204.00N0862819.00W (7.5NM ENE BMG) 1148.0FT (280.8FT AGL) U/S 2412061751-2501201750
11/21/242035Z !BMG 11/011 BMG OBST TOWER LGT (ASR 1057502) 391119.00N0864153.10W (4.5NM NW BMG) 1338.9FT (479.0FT AGL) U/S 2411212035-2505212359
10/14/240309Z !BMG 10/005 BMG OBST TOWER LGT (ASR 1255455) 391822.20N0862817.80W (11.8NM NE BMG) 1164.0FT (304.1FT AGL) U/S 2410140309-2510012359
6/10/241200Z !BMG 06/015 BMG TWY B SIGNS NOT STD 2406101200-2512310500
6/10/241159Z !BMG 06/014 BMG TWY B LGT U/S 2406101159-2512310500
6/10/241158Z !BMG 06/012 BMG TWY A BTN TWY A4 AND TWY A6 SIGNS LGT U/S 2406101158-2512310500
6/10/241154Z !BMG 06/011 BMG TWY A BTN TWY A4 AND TWY A6 LGT U/S 2406101154-2512310500
FDC
11/30/231703Z !FDC 3/8827 BMG IAP MONROE COUNTY, BLOOMINGTON, IN.
RNAV (GPS) RWY 17, AMDT 1C...
NOTE: BARO-VNAV AND VDP NA WHEN USING TERRE HAUTE RGNL ALTIMETER SETTING.
2311301703-2511301703EST
11/16/231508Z !FDC 3/2663 BMG IAP MONROE COUNTY, BLOOMINGTON, IN.
RNAV (GPS) RWY 35, AMDT 1B...
LNAV MDA 1400/HAT 556 ALL CATS, VISIBILITY CAT A/B 1 SM, CAT C/D 1 5/8 SM. CIRCLING CAT A MDA 1400/HAA 554.
ANTENNA ON TOWER 2.35NM S OF RWY 35 THRESHOLD 1086FT MSL/109FT AGL (2021-AGL-27887-OE).
2311161508-2511161508EST
Yes
0630-2130
MONROE COUNTY
972 SOUTH KIRBY ROAD
BLOOMINGTON, IN 47403
Phone: 812-825-5406
CARLOS LAVERTY
972 S. KIRBY RD
BLOOMINGTON, IN 47403
Phone: 812-825-5406
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
BMG
--
WHEN ATCT CLSD ACTVT MALSR RWY 35; REIL RWY 17; PAPI RWY 24; MIRL RWY 06/24; HIRL RWY 17/35 - CTAF. PAPI RWY 17 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
None
None

Runway 06/24

3798 ft. x 100 ft.
ASPH
Fair
GRVD
MED
4 /F/D/X/U
35,000lbs
50,000lbs
--
--
  Runway 06 Runway 24
True Heading 62°242°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 08' 16"N 39° 08' 34"N
Longitude 86° 37' 23"W 86° 36' 40"W
Elevation 832' 841'
Threshold Crossing Height -- 51 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

6500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
31 /F/D/X/U
68,000lbs
121,000lbs
169,000lbs
--
  Runway 17 Runway 35
True Heading 172°352°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 39° 09' 30"N 39° 08' 26"N
Longitude 86° 37' 05"W 86° 36' 53"W
Elevation 846' 837'
Threshold Crossing Height 41 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-2SFC COND UNMNT MON-FRI 1600-0800 & WKEND.
A110-3FOR CD CTC HULMAN APCH AT 812-877-7581.
MONROE COUNTY (ICAO: KBMG, IATA: BMG) is a public airport located in BLOOMINGTON, IN.
