iFlightPlanner



...

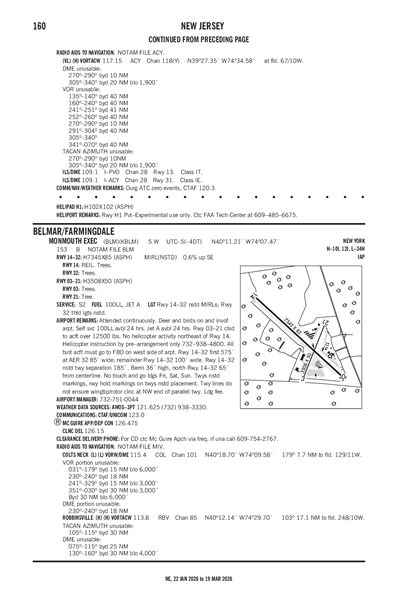

MONMOUTH EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBLM
ICAO KBLMIATA BLMLocal BLM
MONMOUTH EXEC
PublicPUB

5 miles W of BELMAR/FARMINGDALE, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 11' 12"N 74° 07' 28"W
Elevation
153' MSL
Pattern Alt
1153' MSL
Mag Variation
12°W
Declination
12°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KBLM LIFR
11:56 PM EST
Unknown Precipitation
Overcast 300'
1sm
37°F
32°F
30.23"Hg
240° 7kts
AO2 UPB41 SLP237 P0000 T0028 400331017 RVRNO
METAR KBLM 040456Z AUTO 24007KT 1SM UP OVC003 03/ A3023 RMK AO2 UPB41 SLP237 P0000 T0028 400331017 RVRNO
+ Add Your Business

KBLM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 121.625
(732) 938-3330

Common

CTAF 123.0
UNICOM 123.0

Clearance

Clearance Delivery 126.15

Approach

MC GUIRE APPROACH 126.475

Departure

MC GUIRE DEPARTURE 126.475

Terminal Area Forecast

KWRI (24nm)
Tue, 3/3 9:00 PM EST
Tue, 3/3 9:00 PM EST - Thu, 3/5 3:00 AM EST
LIFR
Temporary 9:00 PM EST - 2:00 AM EST
Fog
Obscured
0.5sm
Calm
LIFR
9:00 PM EST - 2:00 AM EST
Light Rain and Mist
Overcast 300'
1.99sm
30.21"Hg
VRB° 6kts
LIFR
Becoming 2:00 AM EST - 9:00 AM EST
Mist
Overcast 300'
2.49sm
30.21"Hg
VRB° 6kts
LIFR
Temporary 3:00 AM EST - 9:00 AM EST
Fog
Obscured
0.5sm
Calm
MVFR
Becoming 9:00 AM EST - 3:00 PM EST
Mist
Broken 1,000'
Scattered 700'
3.73sm
30.24"Hg
VRB° 6kts
MVFR
Becoming 3:00 PM EST - 3:00 AM EST
Mist
Broken 1,500'
Scattered 700'
4.97sm
30.24"Hg
VRB° 6kts
TAF KWRI 040200Z 0402/0508 VRB06KT 3200 -RA BR OVC003 QNH3020INS
   TEMPO 0402/0407 0800 FG VV002
   BECMG 0407/0408 VRB06KT 4000 BR OVC003 QNH3022INS
   TEMPO 0408/0414 0800 FG VV002
   BECMG 0414/0415 VRB06KT 6000 BR SCT007 BKN010 QNH3024INS
   BECMG 0420/0421 VRB06KT 8000 BR SCT007 BKN015 QNH3024INS TX11/0418Z TN05/0402Z
KBLM
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
0500Z
2/26/26
1100Z
!BLM 02/020 BLM COM REMOTE TRANS/REC 126.15 U/S 2602260500-2602261100
2/25/26
0630Z
2/25/26
1100Z
!BLM 02/015 BLM COM REMOTE TRANS/REC 126.15 U/S 2602250630-2602251100
2/24/26
2250Z
2/27/26
2200Z
!BLM 02/023 BLM APRON MAIN APN WIP SN REMOVAL 2602242250-2602272200
2/24/26
2249Z
2/27/26
2200Z
Runway!BLM 02/022 BLM RWY 03/21 CLSD 2602242249-2602272200
2/24/26
2248Z
2/25/26
1700Z
!BLM 02/021 BLM AD AP CLSD 2602242248-2602251700
2/23/26
0656Z
6/23/26
0656Z
!BLM 02/019 BLM OBST TOWER LGT (ASR 1054664) 402411.60N0740238.50W (13.7NM NNE BLM) 579.7FT (401.9FT AGL) U/S 2602230656-2606230656
2/10/26
2146Z
5/12/26
0500Z
!BLM 02/005 BLM OBST TOWER LGT (ASR 1047335) 401310.00N0740309.00W (3.9NM ENE BLM) 312.0FT (211.9FT AGL) U/S 2602102146-2605120500
1/24/26
0445Z
4/23/26
2359Z
!BLM 01/020 BLM OBST TOWER LGT (ASN 2022-AEA-4051-OE) 401234N0740214W (4.2NM ENE BLM) 218FT (185FT AGL) U/S 2601240445-2604232359
1/19/26
0350Z
3/5/26
0349Z
!BLM 01/017 BLM OBST TOWER LGT (ASR 1231692) 401610.40N0740417.50W (5.6NM NNE BLM) 304.1FT (204.1FT AGL) U/S 2601190350-2603050349
3/3/25
1622Z
3/3/26
2359Z
!BLM 03/001 BLM TWY ALL NORTH OF RWY 14/32 CLSD TO ACFT MORE THAN 12500LB 2503031622-2603032359
FDC
3/12/24
1412Z
!FDC 4/6152 BLM IAP MONMOUTH EXEC, BELMAR/FARMINGDALE, NJ.
VOR-A, AMDT 3D...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
COL VOR OUT OF SERVICE. 2403121412-2603121412EST
No
ALL
WALL AVIATION
1717 STATE RD 34 BLDG 5
FARMINGDALE, NJ 07727
Phone: 732-938-4800
ALAN ANTAKI
1717 STATE RD 34 BLDG 5
FARMINGDALE, NJ 07727
Phone: 732-751-0044
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
BLM
Sunset to Sunrise
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 03/21

3508 ft. x 50 ft.
ASPH
Good
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 22°202°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 10' 50"N 40° 11' 22"N
Longitude 74° 07' 28"W 74° 07' 11"W
Elevation 149' 147'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

7345 ft. x 85 ft.
ASPH
Good
NONE
NSTD

--
--
--
--
  Runway 14 Runway 32
True Heading 132°312°
Traffic Pattern Left Left
Markings PIR NSTD
Markings Condition GOOD GOOD
Latitude 40° 11' 40"N 40° 10' 51"N
Longitude 74° 08' 08"W 74° 06' 58"W
Elevation 110' 153'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes No
A110-10NO HELICOPTER ACTIVITY NE OF RY 14. HELICOPTER INSTRUCTION BY PRE-ARRANGEMENT ONLY 732-938-4800.
A110-11FOR CD CTC MC GUIRE APCH VIA FREQ, IF UNA CALL 609-754-2767.
A110-12ALL TSNT ACFT MUST GO TO FBO ON WEST SIDE OF ARPT.
A110-2NO TOUCH & GO LANDINGS FRI; SAT; SUN.
A110-3DEER & BIRDS ON & INVOF ARPT.
A110-4RY 14/32 NON-STD TWY SEPARATION 185 FT.
A110-5BERM 36 FT HIGH; NORTH RY 14/32 65 FT FROM CNTRLN.
A110-6TWYS NSTD MARKINGS. RY HOLD MARKINGS ON TWYS NSTD PLACEMENT. TWY LINES DO NOT ENSURE WING TIP/ROTOR CLEARANCE AT NW END OF PARALLEL TWY.
A32-14/32RWY 14/32 FIRST 575 FT AT AER 32 85 FT WIDE; REMAINDER RWY 14/32 100 FT WIDE
A35-03/21RWY 03/21 CLSD TO ACFT OVER 12500 LBS.
A40-14/32RWY 14/32 NSTD MIRLS; RWY 32 THLD LGTS NTSD.
A57-14OBSTN CLNC SLOPE 20:1 TO THRESHOLD
A57-32OBSTN CLNC SLOPE 20:1 TO THRESHOLD
A58-03+15 FT TREE 138 FT FM RWY END 13 FT R CNTRLN.
A58-21RWY 21 32 FT POLE/BLDG 60 FT FROM THLD, 70 FT LEFT.
A70-100LLSELF-SVC 100LL AVABL 24 HRS.
A70-AJET A AVBL 24 HRS.
E111ARPT ESTAB 1938.
MONMOUTH EXEC (ICAO: KBLM, IATA: BLM) is a public airport located in BELMAR/FARMINGDALE, NJ, US.
