iFlightPlanner



...

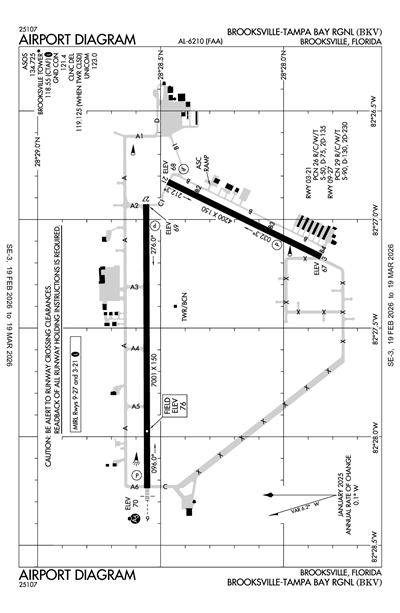

BROOKSVILLE-TAMPA BAY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBKV
ICAO KBKVLocal BKV
BROOKSVILLE-TAMPA BAY RGNL
PublicPUB

6 miles SW of BROOKSVILLE, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
28° 28' 24"N 82° 27' 22"W
Elevation
76' MSL
Pattern Alt
1076' MSL
Mag Variation
6°W
Declination
4°W
Fuel
JET A, 100LL
FSS
SAINT PETERSBURG (PIE)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KBKV LIFR
5:53 AM EST
Mist
Overcast 300'
5sm
62°F
61°F
30.23"Hg
050° 4kts
AO2 SLP235 T01670161
METAR KBKV 041053Z AUTO 05004KT 5SM BR OVC003 17/16 A3023 RMK AO2 SLP235 T01670161
+ Add Your Business

KBKV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 134.725
(352) 799-5881

Common

CTAF 118.55
DUSK-2200. MALSR RWY 9; MIRL RWY 03/21 & 09/27 PRESET LOW INTST DUSK-2200, TO INCR INTST AND ACTVT AFTER 2200 - CTAF.
UNICOM 123.0

Clearance

Clearance Delivery 119.125
WHEN TWR CLSD

Ground

BROOKSVILLE GROUND 121.4
0700-2200

Tower

BROOKSVILLE TOWER 118.55
0700-2200

Approach

TAMPA APPROACH 125.3
TAMPA APPROACH 119.9
Secondary

Departure

TAMPA DEPARTURE 125.3
TAMPA DEPARTURE 119.9
Secondary

Flight Service

Flight Service 122.3
(PIE)

Military

ARNG OPS 42.525

Terminal Area Forecast

KTPA (31nm)
Wed, 3/4 3:58 AM EST
Wed, 3/4 4:00 AM EST - Thu, 3/5 7:00 AM EST
VFR
4:00 AM EST - 9:00 AM EST
Scattered 300'
6sm
060° 5kts
VFR
9:00 AM EST - 1:00 PM EST
Scattered 25,000'
Few 5,000'
6sm
090° 7kts
VFR
1:00 PM EST - 5:00 PM EST
Broken 25,000'
Scattered 5,000'
6sm
100° 7kts
VFR
5:00 PM EST - 7:00 AM EST
Broken 25,000'
Few 5,000'
6sm
080° 6kts
TAF KTPA 040858Z 0409/0512 06005KT P6SM SCT003
   FM041400 09007KT P6SM FEW050 SCT250
   FM041800 10007KT P6SM SCT050 BKN250
   FM042200 08006KT P6SM FEW050 BKN250
KBKV
EffectiveExpiresCategoryNOTAM
Domestic
3/2/26
2140Z
6/30/26
2140Z
!BKV 03/002 BKV OBST TOWER LGT (ASR 1038307) 283154.60N0821936.50W (7.8NM ENE BKV) 342.8FT (255.9FT AGL) U/S 2603022140-2606302140
2/18/26
2048Z
6/18/26
2048Z
!BKV 02/011 BKV OBST TOWER LGT (ASR 1040914) 282522.50N0821651.50W (9.7NM ESE BKV) 526.6FT (308.7FT AGL) U/S 2602182048-2606182048
2/16/26
1352Z
2/16/27
2300Z
!BKV 02/008 BKV AD AP WILDLIFE HAZARD DEER 2602161352-2702162300
1/22/26
0933Z
!BKV 01/011 BKV COM REMOTE TRANS/REC 119.125 U/S 2601220933-2603312000EST
1/2/26
1329Z
4/30/26
2200Z
!BKV 01/001 BKV NAV ILS RWY 09 U/S 2601021329-2604302200
8/27/25
1700Z
8/31/26
2359Z
!BKV 08/023 BKV AD AP BIRD ACT SANDHILL CRANES 2508271700-2608312359
Yes
0700-1800
HERNANDO COUNTY BOCC
20 NORTH MAIN STREET, ROOM 263 M 263
BROOKSVILLE, FL 34601
Phone: 352-754-4000
STEVE MILLER
15800 FLIGHT PATH DR
BROOKSVILLE, FL 34604
Phone: 352-540-6342
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
BKV
--
DUSK-2200. MALSR RWY 9; MIRL RWY 03/21 & 09/27 PRESET LOW INTST DUSK-2200, TO INCR INTST AND ACTVT AFTER 2200 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 03/21

4200 ft. x 150 ft.
CONC
Poor
NONE
MED
26/R/C/W/T
50,000lbs
75,000lbs
135,000lbs
--
  Runway 03 Runway 21
True Heading 26°206°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 27' 51"N 28° 28' 28"N
Longitude 82° 27' 10"W 82° 26' 50"W
Elevation 67' 68'
Threshold Crossing Height 40 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

7001 ft. x 150 ft.
ASPH
Excellent
GRVD
MED
29/R/C/W/T
90,000lbs
130,000lbs
230,000lbs
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 28° 28' 33"N 28° 28' 34"N
Longitude 82° 28' 14"W 82° 26' 56"W
Elevation 70' 69'
Threshold Crossing Height 58 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON AND INVOF ARPT.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC TAMPA APCH AT 813-878-2528.
A110-3PPR 352-797-5813. PRK RAMP 42.525.
A33-03/21_CONDLONG AND TRANSVERSE CRACKING PRODUCING LOOSE AGGREGATE.
A81-APTDUSK-2200. MALSR RWY 9; MIRL RWY 03/21 & 09/27 PRESET LOW INTST DUSK-2200, TO INCR INTST AND ACTVT AFTER 2200 - CTAF.
BROOKSVILLE-TAMPA BAY RGNL (ICAO: KBKV, IATA: BKV) is a public airport located in BROOKSVILLE, FL, US.
